Indoor LED Display

LEDU indoor LED displays deliver high brightness, vibrant colors, and wide viewing angles, perfect for retail stores, corporate lobbies,exhibition halls, and entertainment venues. With ultra-thin design,fine pitch LED technology and seamless splicing, these commercial LED screens create stunning digital signage and LED video walls that attract customers and boost brand visibility. Energy-efficient, durable, and easy to install, our indoor LED display solutions are built for reliable 24/7 operation.

Inquire

Indoor LED Display

COB LED Display

LEDU indoor COB LED display represents the pinnacle of fine-pitch LED technology, delivering exceptional visual performance for mission-critical and high-end applications. With pixel pitches from 0.6mm to 1.2mm, these displays create seamless images that rival the...

Send Inquiry Now>

HOB LED Display

Indoor HOB LED display (Hybrid on Board) combines the best features of COB and SMD technologies, creating a high contrast LED display that delivers exceptional image quality. With its innovative design, this HOB LED screen offers...

Send Inquiry Now>

GOB LED Display

Indoor GOB LED display represents a leap forward in indoor visual technology. By encapsulating LED chips in a protective epoxy resin, this GOB LED screen delivers superior durability and image quality compared to traditional displays. The...

Send Inquiry Now>

SMD LED Display

Indoor SMD LED display (Surface Mount Device) is a widely trusted, high-performance option for diverse indoor applications. As a classic SMD LED screen, it features compact surface-mounted LED chips that deliver bright, vibrant visuals—making it ideal...

Send Inquiry Now>

HD LED Display

Indoor HD LED display delivers stunning picture quality with exceptional clarity, making it ideal for retail stores, corporate offices, entertainment venues, and control rooms. As a premium high-resolution LED screen, it features pixel pitches as fine...

Send Inquiry Now>

Full Color LED Display

Indoor full-color LED display is a high-performance visual tool designed to elevate branding, communication, and engagement in corporate lobbies, retail stores, event venues, and more. As a top-tier full-color LED screen, it delivers stunning 4K+ resolution,...

Send Inquiry Now>

Fixed LED Display

Indoor fixed LED display is a long-term, high-quality visual investment for corporate lobbies, retail stores, control rooms, and public spaces. Designed for permanent installation, this seamless LED wall delivers stunning, distraction-free visuals with ultra-narrow bezels that...

Send Inquiry Now>

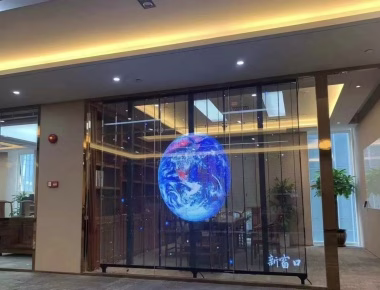

Transparent LED Display

Indoor transparent LED display is a game-changing solution for retail windows, showrooms, museums, and architectural spaces where maintaining natural light and visibility is crucial. This innovative transparent LED screen combines high transparency (up to 70-90%) with...

Send Inquiry Now>

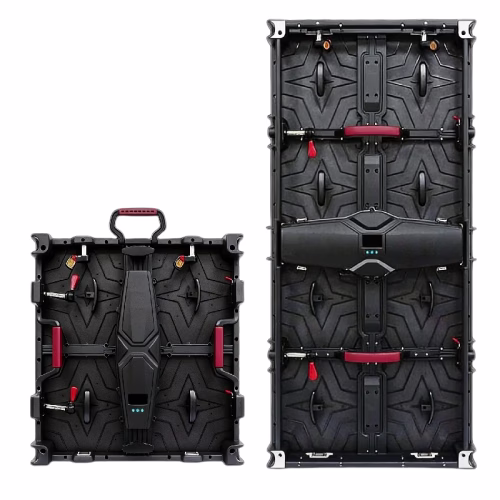

How to Choose the Right Indoor LED Display Cabinet Size?

The 640×480mm indoor LED display cabinet – perfect for seamless video walls. Supports P1.25 to P4.0 pixel pitches, front maintenance, and ultra-clear visuals for conference rooms, retail, and command centers.

The 500×250mm, 750×250mm, and 1000×250mm indoor fixed LED display cabinets are designed for permanent installations requiring high visual performance, durability, and flexible design. These slim, lightweight cabinets deliver stunning image quality and are perfect for a wide range of indoor applications.

The 500×500mm and 500×1000mm indoor rental LED display cabinets are designed for fast setup, stunning visuals, and maximum durability—ideal for events, conferences, trade shows, and stage backdrops. Built with lightweight magnesium alloy frames and one-click quick-lock systems, they can be assembled in minutes without tools. Supporting pixel pitches from P2.0 to P4.81, these cabinets deliver crystal-clear images with high refresh rates (≥3840Hz), wide viewing angles (160°), and vibrant colors. The front & rear maintenance design allows quick component swaps, minimizing downtime during live events. With low power consumption and IP30 dust protection, they are perfect for rental companies looking for reliable, cost-effective solutions.

The 600×337.5mm indoor fixed COB LED display cabinet redefines premium visual performance for permanent
installations. Using Chip-on-Board (COB) technology, it delivers unmatched image quality, durability, and
design flexibility—making it perfect for retail, corporate lobbies, control rooms, and luxury venues.

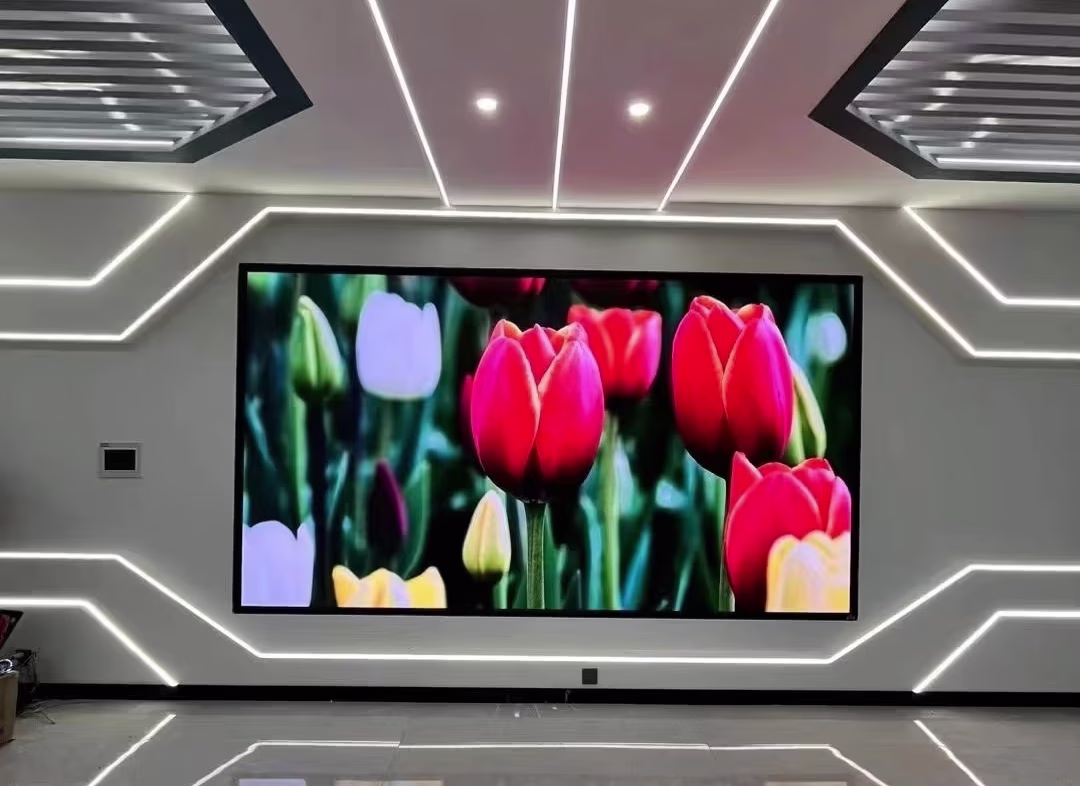

HOB vs COB vs SMD LED Display Technologies Comparison

Overview

– SMD LED: Traditional surface-mount technology, cost-effective, widely used

– COB LED: Chip-on-board design for ultra-fine pitches and seamless visuals

– HOB LED: Hybrid technology combining advantages of both

Technology & Visual Quality

– SMD: Visible pixel boundaries, good color, slight moiré at close range

– COB: No pixel boundaries, excellent contrast, smooth visuals, no moiré

– HOB: Minimal pixel boundaries, high contrast, optimized for clarity

Pixel Pitch Range

– SMD: 1.2mm to 3.91mm

– COB: 0.6mm to 1.2mm

– HOB: 0.9mm to 1.5mm

Brightness & Contrast

– SMD: High brightness (800-1500 nits), moderate contrast

– COB: Medium-high brightness (800-1200 nits), excellent contrast (10,000:1+)

– HOB: High brightness (1000-1500 nits), very good contrast

Environmental Resistance

– SMD: Standard protection, sensitive to dust

– COB: Good dust/water resistance, scratch-resistant surface

– HOB: Enhanced protection against dust and moderate impact

Best Applications

– SMD: General signage, rental events, shopping mall displays

– COB: Control rooms, broadcast studios, luxury retail, fine art displays

– HOB: Corporate lobbies, exhibition halls, high-end retail, command centers

Cost Comparison

– SMD: Most economical

– COB: Premium pric

– HOB: Mid to high range

Selection Guide

– Choose SMD for cost-sensitive projects with medium viewing distance

– Choose COB for close-viewing applications requiring ultimate clarity

– Choose HOB for bright environments needing both clarity and durability

HOB vs COB vs SMD LED Display Technologies Comparison

Product Features

Stunning Visual Quality

Experience high-resolution LED display with vivid full-color LED screen performance, ensuring crisp images and vibrant videos.
Bright & Clear

High brightness LED display (800–1500 nits) with anti-glare technology guarantees excellent visibility even in well-lit environments.
Seamless Integration

Ultra-narrow bezels create a seamless LED wall effect for an immersive viewing experience.
Versatile Design

Modular panels support curved indoor LED display, custom shapes, and flexible configurations to match any architectural style.
Durable & Reliable

Built for 24/7 operation with dustproof construction, efficient cooling, and a long lifespan (≥100,000 hours).
Energy-Efficient

Low power consumption reduces operating costs while maintaining peak performance.
Interactive Options

Supports touch screen LED display and motion sensors to create engaging, interactive environments.
Easy Management

Remote content updates let you change promotions, live feeds, and branding in real time.

Installation Method

Wall-Mounted Installation

Hanging Installation

Floor-Standing

Rapid Installation System

Integrated Control & Cabling

Wall-Mounted Installation

Perfect for seamless LED wall setups in lobbies, meeting rooms, or retail spaces. The lightweight modular panels are mounted directly to the wall using a secure bracket system, creating a sleek, flush finish.

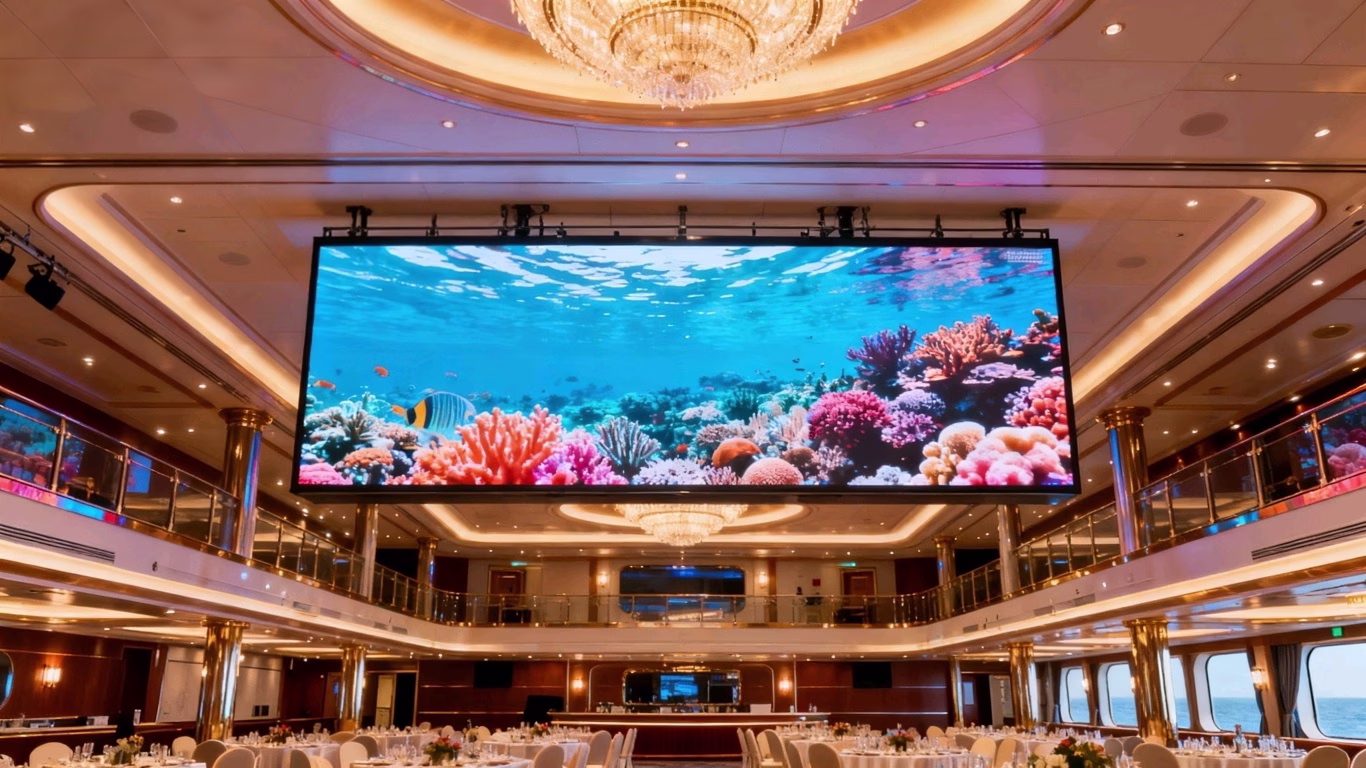

Hanging Installation

Perfect for high-ceiling venues like event halls or airports. Suspended indoor LED displays free up floor space while delivering eye-level visibility for large audiences.

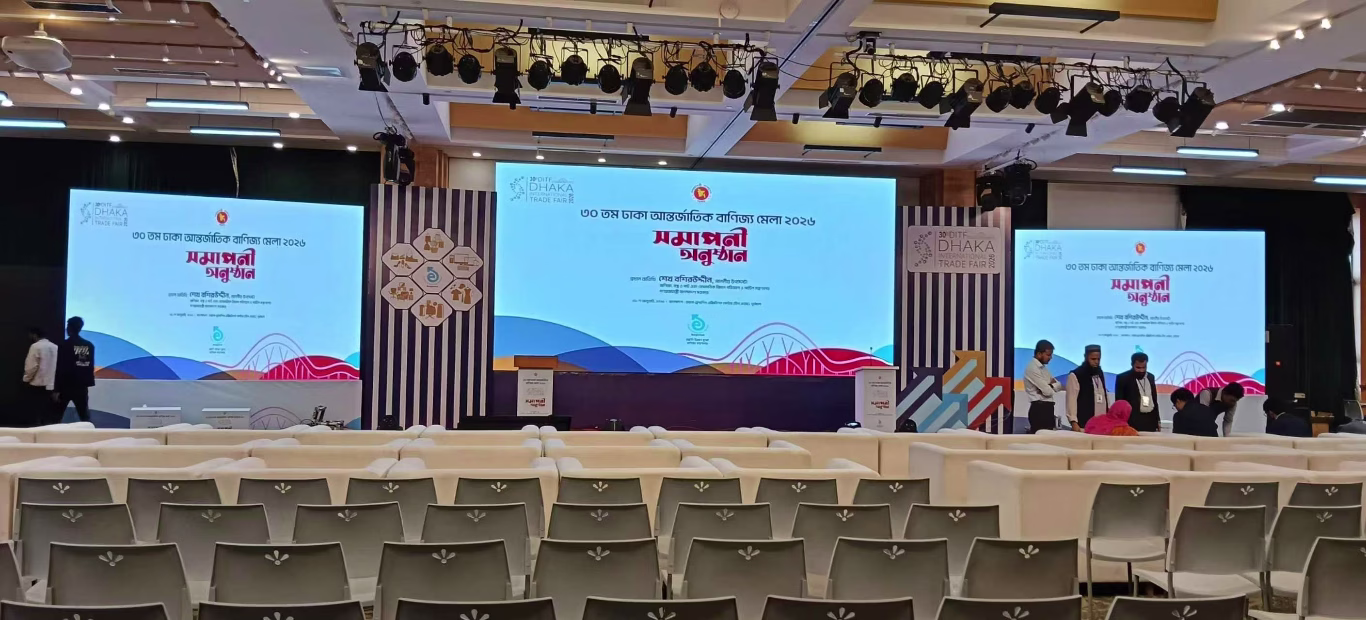

Floor-Standing

A portable solution for trade shows, pop-up shops, or temporary events. This method allows quick setup and relocation without permanent fixtures.

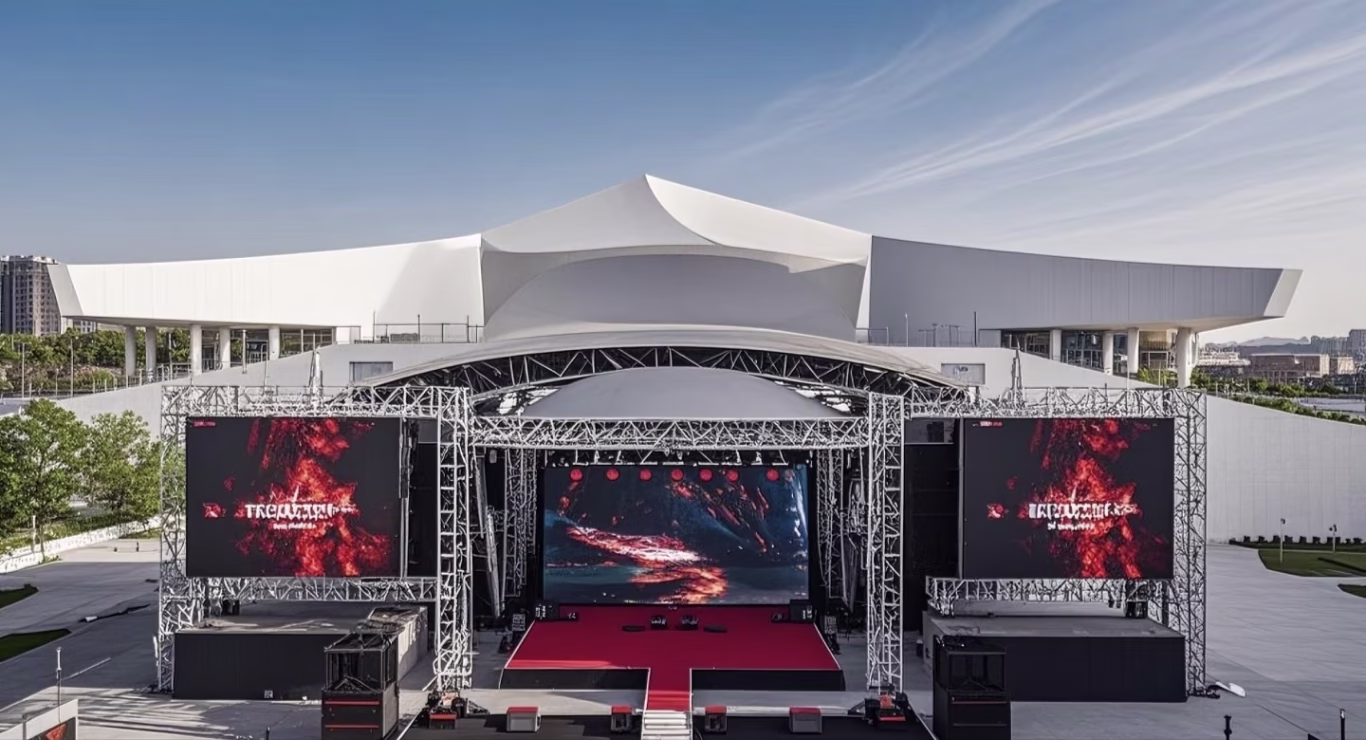

Rapid Installation System

Magnetic or quick-lock connectors enable fast assembly and disassembly, making it ideal for both permanent and temporary LED video wall installations.

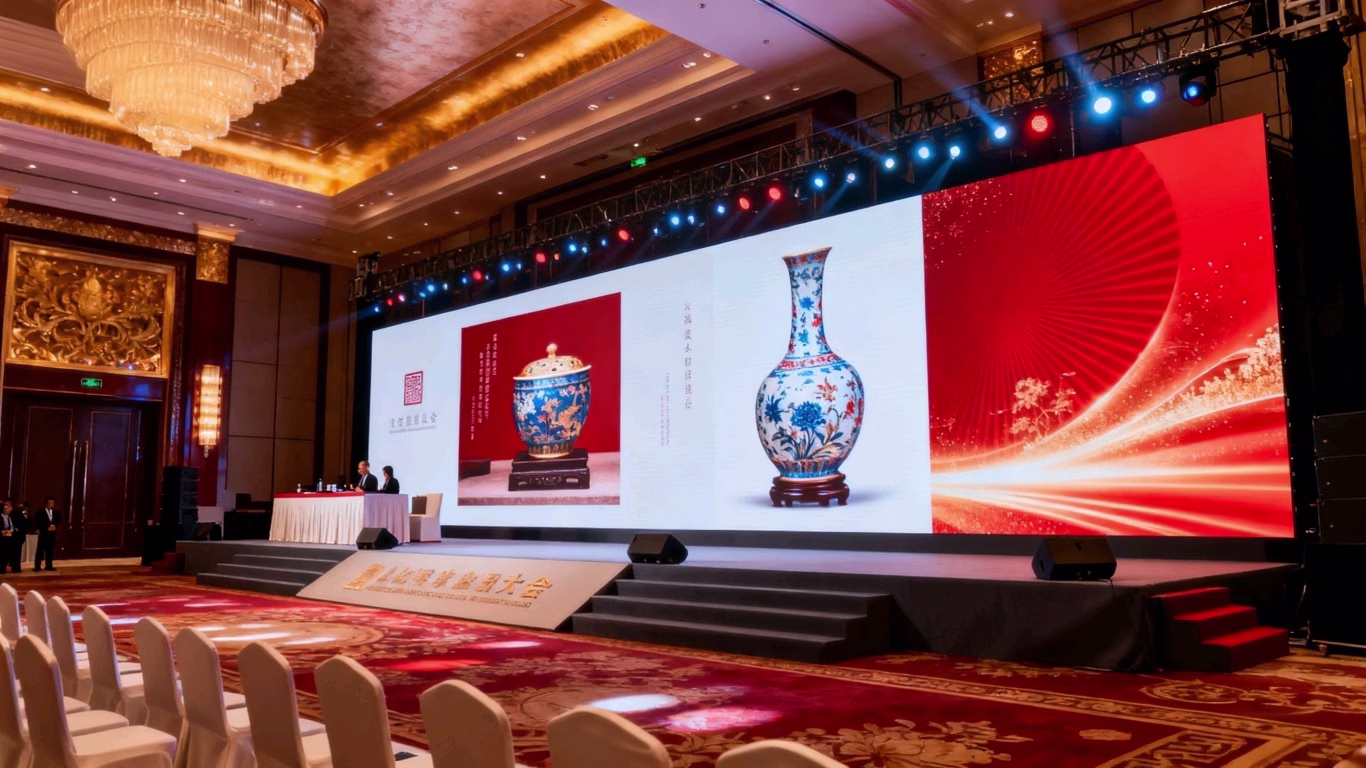

Integrated Control & Cabling

All power and data cables are concealed within the panel structure, ensuring a clean, professional look with minimal cable management required.

How Indoor LED Displays Work

LED Modules/Panels These are the fundamental units. Each LED Module contains an array of individual LEDs (Light Emitting Diodes) arranged in a grid. The pixel pitch (Pixel Pitch) determines the display's resolution and viewing distance.

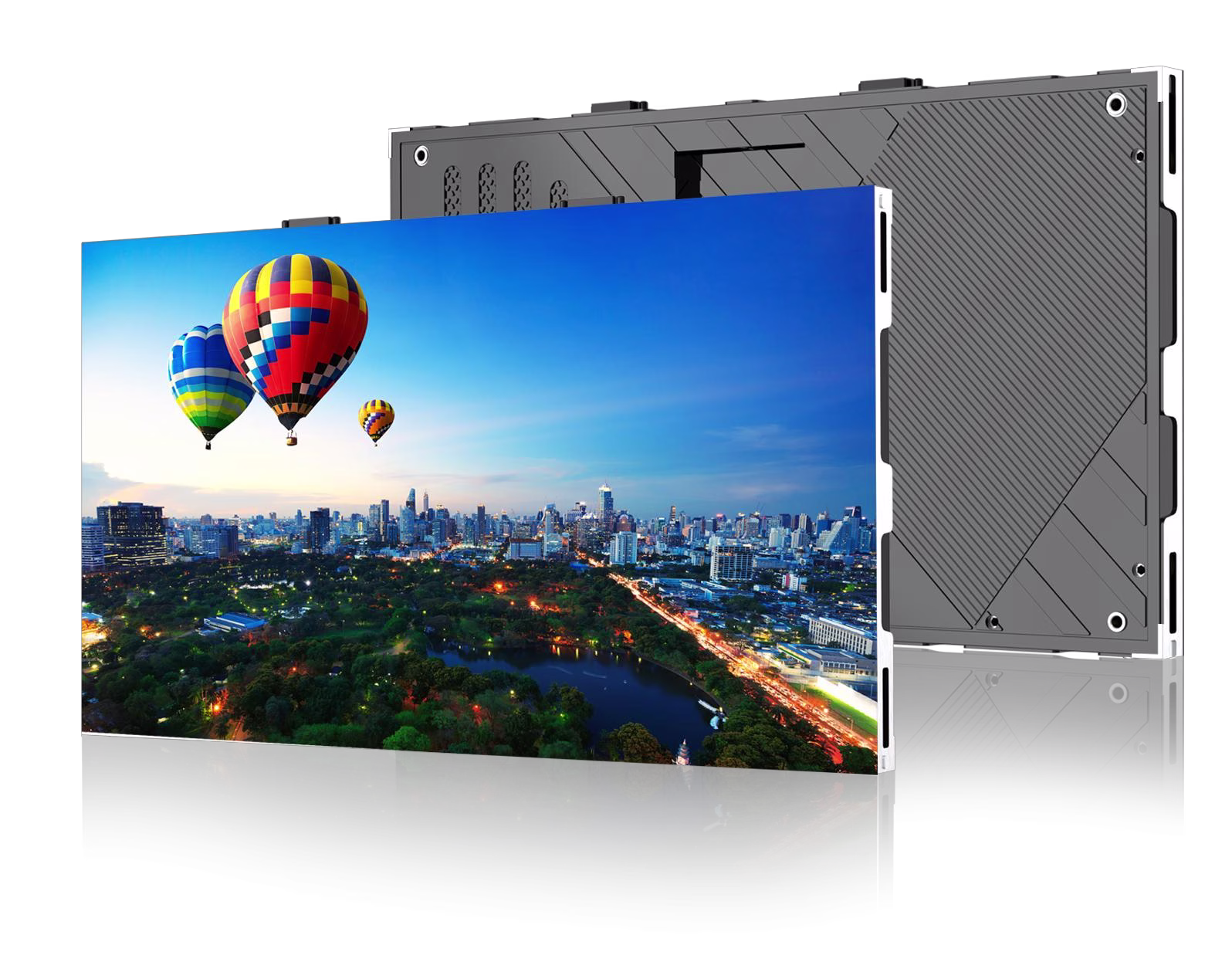

LED Cabinets/Tile Multiple LED Modules are mounted onto a frame called an LED Cabinet or LED Tile. These cabinets are the building blocks that are seamlessly assembled to form the final large-format LED Video Wall.

Control System This system includes the Sending Card (which receives the video source) and Receiving Cards (mounted inside the cabinets) that distribute data and commands to the LEDs.

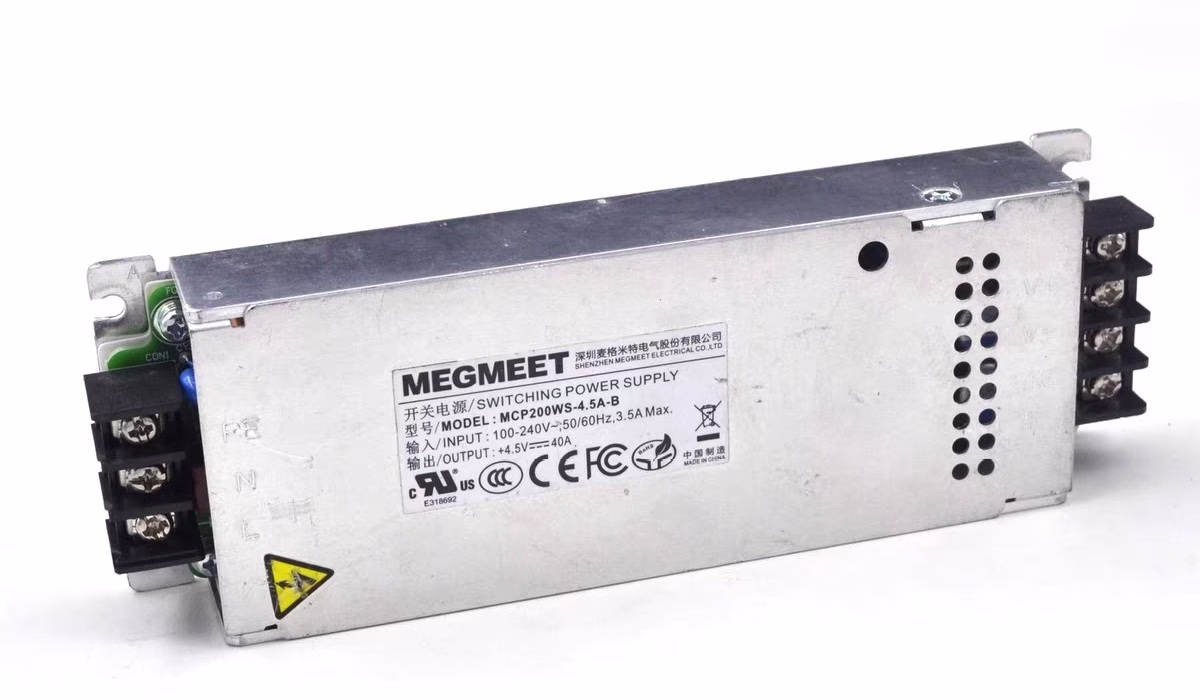

Power Supply Converts AC power to the low-voltage DC power required for the LEDs and control components.

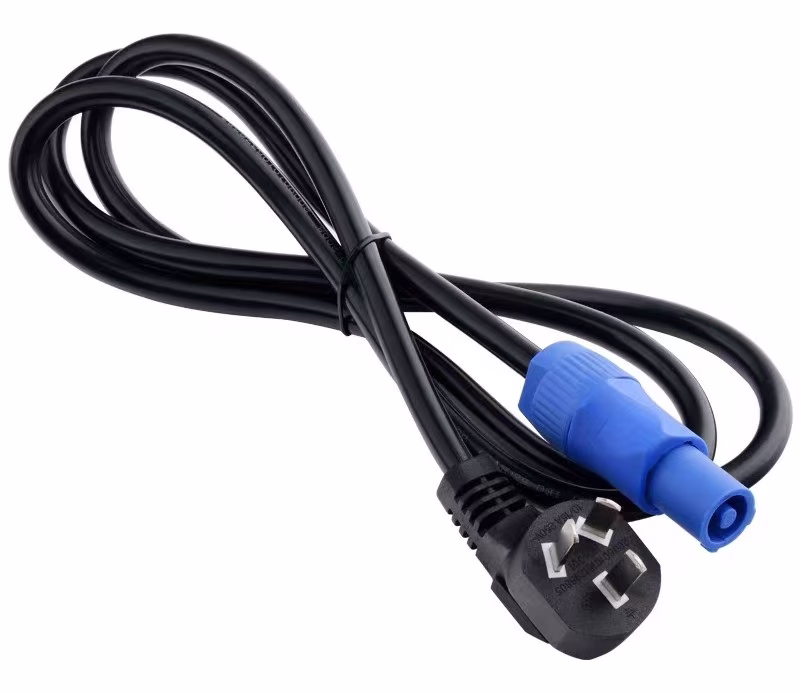

Power Cables and Data Cables In an indoor LED display, the Ethernet cable transmits data signals from the LED display controller to the screen, enabling real-time content updates, synchronization, and remote monitoring. The power cable supplies stable electricity to all LED modules, ensuring 24/7 operation, energy efficiency, and reliable performance.

How Indoor LED Displays Bring Powerful Visual Impact

Indoor LED displays create an unforgettable visual experience through a combination of advanced technologies. Their high brightness and exceptional contrast ratio produce vivid colors and deep blacks, ensuring every detail stands out even in well-lit environments.

With wide viewing angles of up to 160°, the display remains clear and vibrant from almost any position in the room, engaging larger audiences without image distortion. The seamless design allows for ultra-large screens with no bezels, delivering a fully immersive, cinema-like experience.

Equipped with high refresh rates (up to 3840Hz), indoor LED video walls render fast-moving content—such as sports, concerts, or dynamic ads—with smooth motion and no blur. Fine pixel pitch options like P1.2, P1.5, and P1.8 ensure razor-sharp images for close-up viewing in retail stores, corporate lobbies, and control rooms.

From dynamic branding to live event broadcasting, LEDU LED’s indoor LED display solutions transform spaces into visual powerhouses, capturing attention and leaving a lasting impression.

Customize to Meet the Requirements of Any Scenario

At LEDU LED, we offer fully custom indoor LED display solutions designed to meet the unique needs of any space. Whether you require a small LED panel for a retail window or a large LED video wall for a stadium, our team creates tailored visuals that deliver high brightness, exceptional contrast, and seamless performance.

Why choose our custom solutions:

– Flexible pixel pitch (P1.2, P1.5, P1.8, P2.0, P2.5, P3.0) for perfect image
– High refresh rates (up to 3840Hz) for smooth, blur-free motion
– Wide viewing angles for consistent visibility from every seat
– Energy-efficient design for 24/7 operation
– Modular construction for easy installation and future expansion

From corporate lobbies and control rooms to retail stores and event venues, our custom indoor LED displays transform your vision into reality.

Related Cases

France Cycling Live Broadcast — Product Type: P3.9 Outdoor Rental LED Display Address: France
View More>
Send Inquiry Now>
Spain Outdoor Concert — Product Type: P4.8 Outdoor Rental LED Display Address: Spain
View More>
Send Inquiry Now>
Philippines Poolside Sports — Product Type: P3.9 Outdoor Rental LED Display Address: Philippines
View More>
Send Inquiry Now>

FAQ

What is an indoor LED display?

An indoor LED display is a high-resolution screen that uses light-emitting diodes to show images, videos, and other digital content. It is widely used for digital signage, advertising, information display, and entertainment in places like shopping malls, offices, and control rooms.

What are the advantages of indoor LED screens?

Indoor LED screens offer high brightness, wide viewing angles, low power consumption, and long lifespan. They deliver vibrant visuals and can be customized in size and shape for different applications.

What pixel pitch should I choose for my indoor LED display?

Pixel pitch depends on the viewing distance. For close viewing (1–3 meters), choose P1.2 or P1.5; for medium distance (3–5 meters), P1.8 or P2.0 is ideal. Larger pitches like P2.5 are suitable for farther viewing distances.

Can indoor LED displays be used for outdoor?

No, indoor LED displays are not designed for outdoor use. They lack the weatherproofing and brightness needed for outdoor environments. For outdoor applications, choose outdoor LED displays.

Can I customize the size and shape of my indoor LED display?

Absolutely. As a professional LED display manufacturer, we offer fully customized solutions, including curved LED screens, flexible LED displays, and large LED video walls.

How long does an indoor LED display last?

With proper maintenance, indoor LED displays can last 100,000 hours, which is about 5–10 years of continuous operation.

What content can I show on an indoor LED video wall?

You can display videos, images, live streams, social media feeds, weather updates, promotions, and more. Our systems support multiple input sources and easy content management.

Is the Installation of an Indoor LED Display complicated?

While the installation process is more specialized than setting up a home TV, modern Indoor LED Cabinets are designed for easy and quick assembly. We offer lightweight, front-serviceable cabinets that can be mounted on walls, hung, or stacked. Our team provides comprehensive technical guides and remote/on-site support to ensure a smooth setup.

How is the Maintenance and servicing performed on an LED Video Wall?

Our professional-grade LED Video Walls are typically Front-Serviceable. This means individual LED modules, power supplies, or receiving cards can be quickly removed and replaced from the front of the display using a vacuum tool. This allows for easy maintenance without needing access to the rear of the screen, which is ideal for wall-mounted or integrated installations.

What are the main advantages of an LED Video Wall over an LCD or projection system?

* True Seamlessness: LED Video Walls offer a completely bezel-free image, creating a truly unified canvas.

* Superior Brightness & Contrast: They deliver more vibrant colors and deeper blacks than most alternatives.

* Scalability: The modular design allows for customization into virtually any size or shape (curved, L-shape, etc.).

* Longevity: LEDs have a long operational lifespan.
