INDOOR COB LED DISPLAY

COB LED Display means Chip-on-Board LED Display. It is a new generation of fine pitch LED display technology. The LED chips are directly mounted on the PCB board and then fully encapsulated with protective material.

This technology makes the LED display surface smoother, stronger and more reliable. COB LED screens are widely used in high-end indoor applications because they provide better protection, higher contrast, wider viewing angle and a more comfortable viewing experience.

Inquire

Description Specifications Advantage Application

Description

LEDU Indoor COB LED Display is specially developed for close-viewing indoor LED screen projects. The fine pixel pitch design delivers sharp image details, smooth color performance and excellent visual consistency. The COB encapsulated surface improves the durability of the LED panel and reduces the risk of lamp damage during installation, transportation and daily use.

With high refresh rate, wide viewing angle, high grayscale, low power consumption and front maintenance design, LEDU COB LED screen provides a professional indoor LED display solution for customers who need premium visual performance and reliable long-term operation.

High Protection Surface

Eliminate the headache of "dead pixels" caused by physical impact. The continuously sealed resin surface of Ledu’s fine pitch COB displays provides robust 5-layer protection:

Anti-Collision & Impact Resistant: Highly durable against accidental bumps in public or high-traffic areas.
Dust-Proof & Moisture-Proof: The fully sealed architecture protects internal diodes from humidity and environmental degradation.
Anti-Static & Easy Maintenance: The smooth, glass-like surface can be wiped clean directly with a standard cloth.

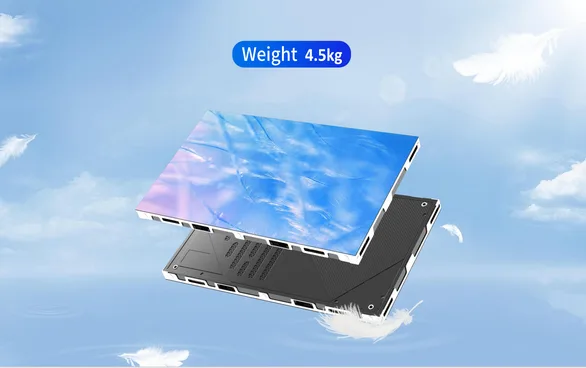

Ultra Thin and Light

COB LED screen is only 27.5mm thick and weighs as little as 4.5kg, which saves space while providing an excellent visual experience, perfectly integrating with simple design.

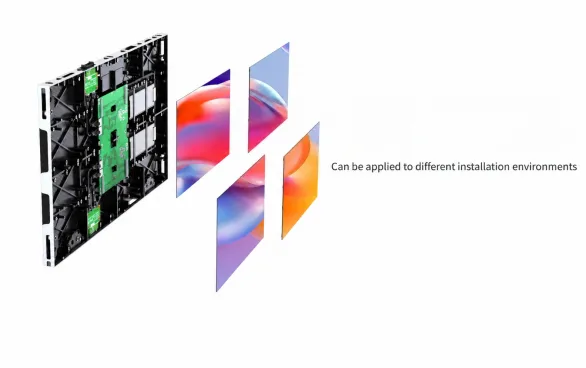

Front Maintenance Design

The LED modules, power supply and receiving cards can be maintained from the front side. This saves installation space and makes maintenance faster and easier, especially for wall-mounted and embedded LED screen installations.

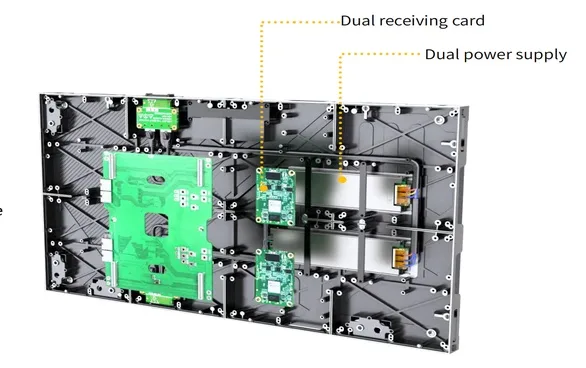

Dual Backup Design

LEDU Indoor COB LED Display can be equipped with a dual backup system, including dual receiving card backup and dual power supply backup, to ensure stable signal transmission and uninterrupted power supply during long-term operation.

For high-end indoor LED display projects such as control rooms, command centers, conference rooms, financial centers, broadcast studios and smart city monitoring centers, display stability is extremely important. The dual backup design helps reduce system failure risk and ensures the LED video wall continues to operate smoothly even if one receiving card or one power supply has an abnormal condition.

Seamless LED Video Wall

600×337.5mm, has an aspect ratio of 16:9, high-precision cabinet design ensures flat installation and seamless splicing. The screen can be built into a large indoor LED video wall with excellent uniformity and immersive visual impact.

High Contrast and Vivid Color

The COB LED display provides deep black levels, high contrast ratio and rich color reproduction. It delivers vivid images, natural color transitions and a more comfortable viewing experience for professional indoor display projects.

Wide Viewing Angle

With a wide horizontal and vertical viewing angle, the LED image remains clear and consistent from different viewing positions. This makes COB LED display suitable for meeting rooms, control centers, public information spaces and commercial display areas.

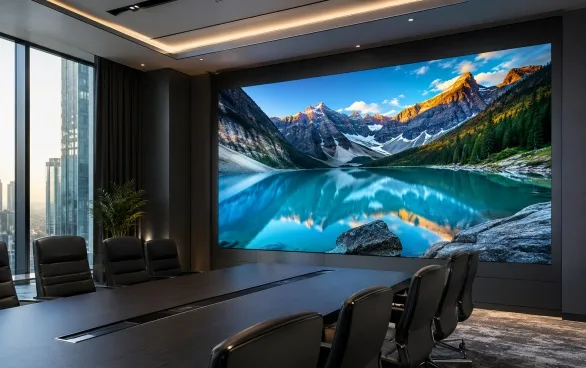

Stable 24/7 Operation

LEDU Indoor COB LED Display is designed for stable long-term operation. It is suitable for command centers, monitoring rooms, traffic control centers, financial data centers and other environments that require continuous display performance.

Specification

Indoor P0.6-P1.87 Module Parameters

Model	P0.625	p0.78	p0.93	p1.25	p1.56	p1.87
Usage	Indoor	Indoor	Indoor	Indoor	Indoor	Indoor
Cabinet size(mm)	600337.527.5	600337.527.5	600337.527.5	600337.527.5	600337.527.5	600337.527.5
Cabinet Resolution (dot)	960*540	768*432	640*360	480*270	384*216	320*180
Panel Weight	4.5	4.5	4.5	4.5	4.5	4.5
Packaging Technology	COB	COB	COB	COB	COB	COB
Maintenance	Front	Front	Front	Front	Front	Front
Density(dot/㎡)	2560000	1638400	1137778	640000	409600	284444
Brightness(cd/㎡)	600-1000nits	600-1000nits	600-1000nits	600-1000nits	600-1000nits	600-1000nits
Max. Power Consumption(w)	420	420	420	420	420	420
Average Power Consumption(w)	80-150	80-150	80-150	80-150	80-150	80-150
Grey Level	16bit	16bit	16bit	16bit	16bit	16bit
Protection Level	IP31	IP31	IP31	IP31	IP31	IP31

Why Choose COB LED Display?

LEDU Indoor COB LED Display is designed for high-end indoor visual applications that require ultra-fine pixel pitch, high contrast, excellent flatness, and stronger protection. With advanced Chip-on-Board packaging technology, the LED chips are directly encapsulated on the PCB surface, offering better impact resistance, moisture resistance, anti-dust performance, and a smoother viewing experience compared with traditional SMD LED displays.

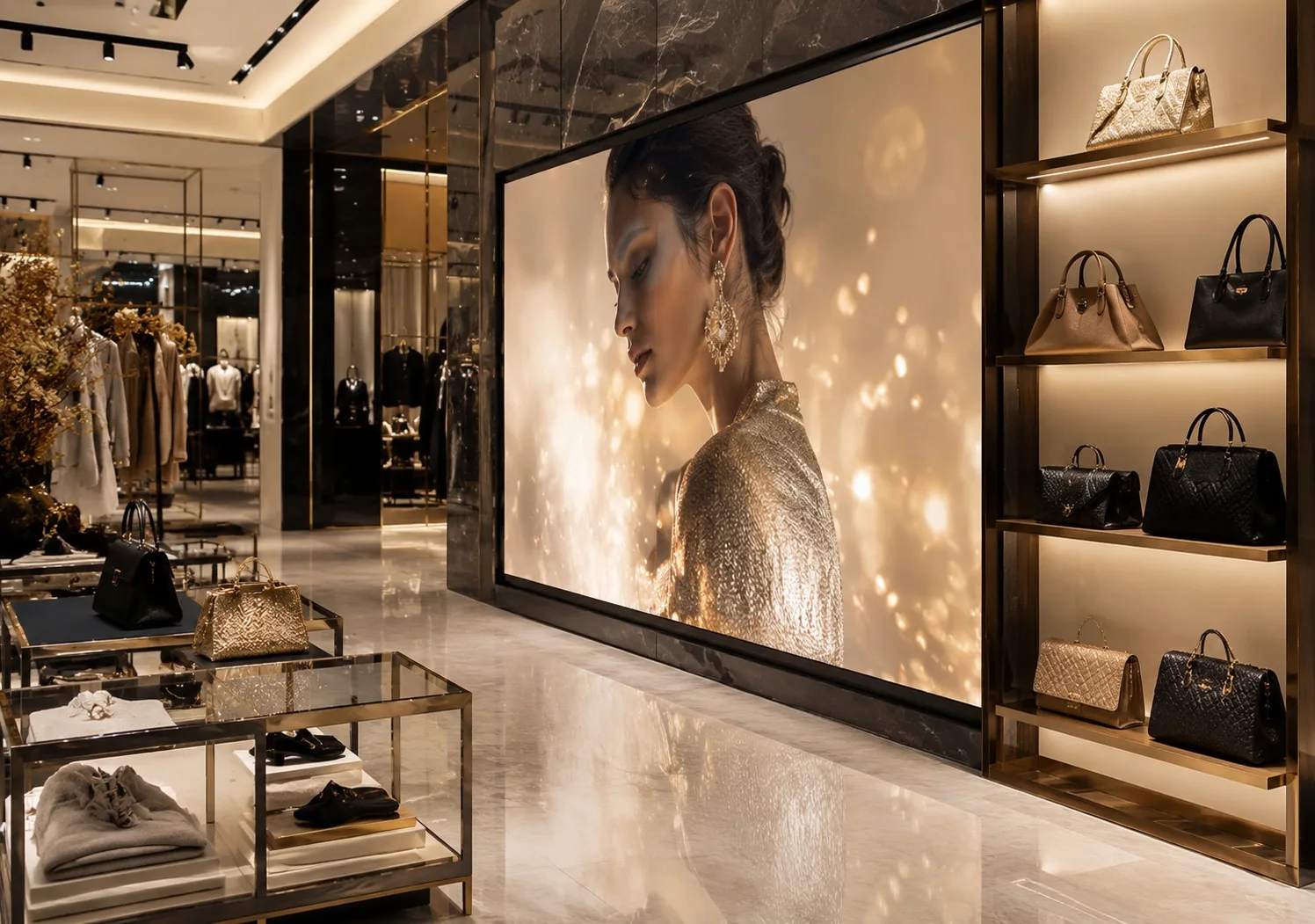

It is an ideal LED display solution for control rooms, conference rooms, command centers, broadcast studios, corporate showrooms, luxury retail stores, airports, museums, and high-end commercial spaces.

Better Protection Than Traditional SMD LED Display

The COB surface is fully sealed, reducing the risk of LED lamp damage caused by touch, collision, dust, humidity or static electricity.
Perfect for Fine Pixel Pitch LED Video Wall

COB LED display is suitable for close viewing distance and high-resolution indoor LED display projects.
More Stable Long-Term Performance

COB technology improves heat dissipation and enhances screen reliability, making it suitable for 24/7 operation environments.
Premium Visual Experience

High contrast, vivid color, smooth image and seamless splicing help create a professional and high-end display effect.

Application

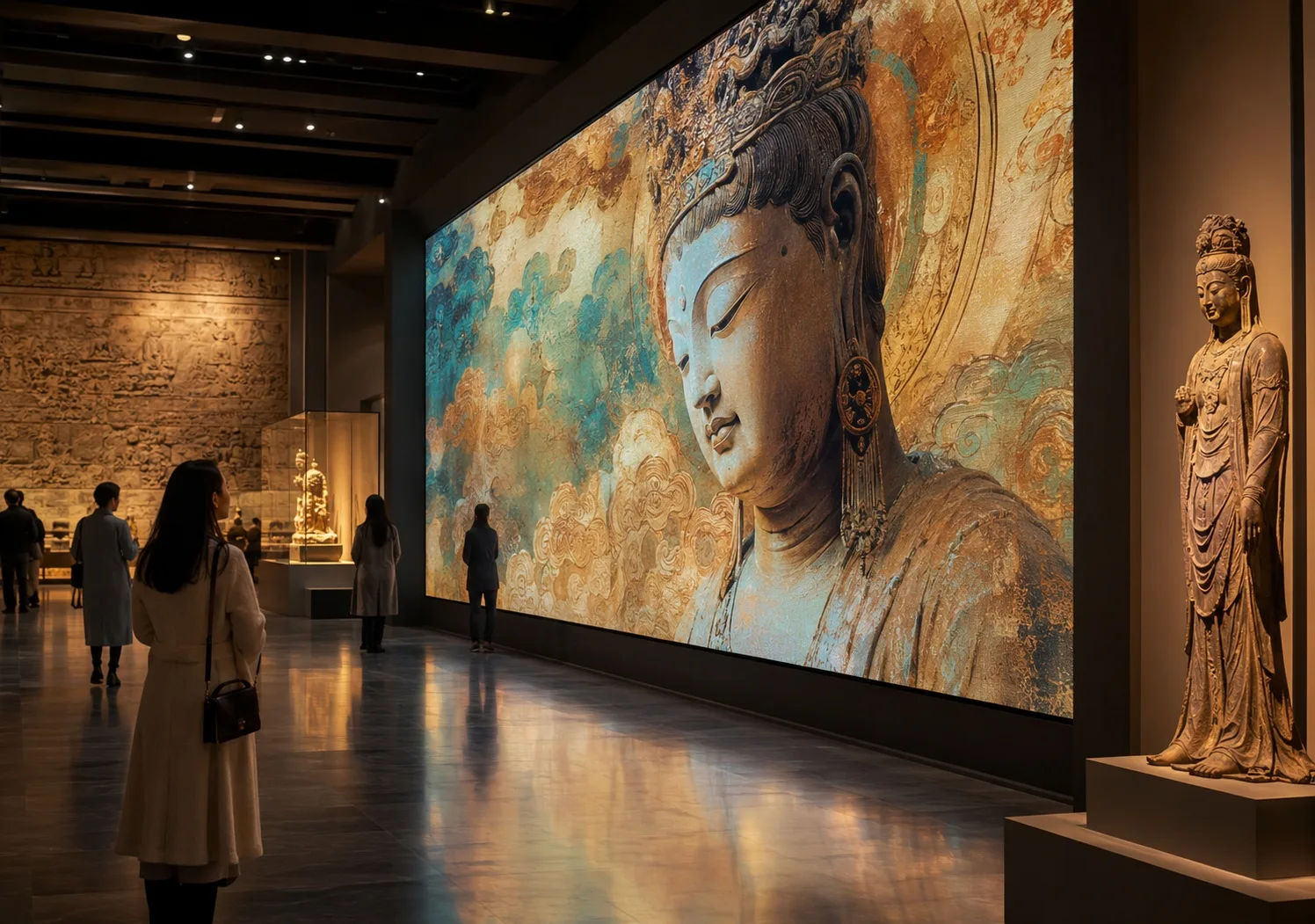

Museum Digital Display

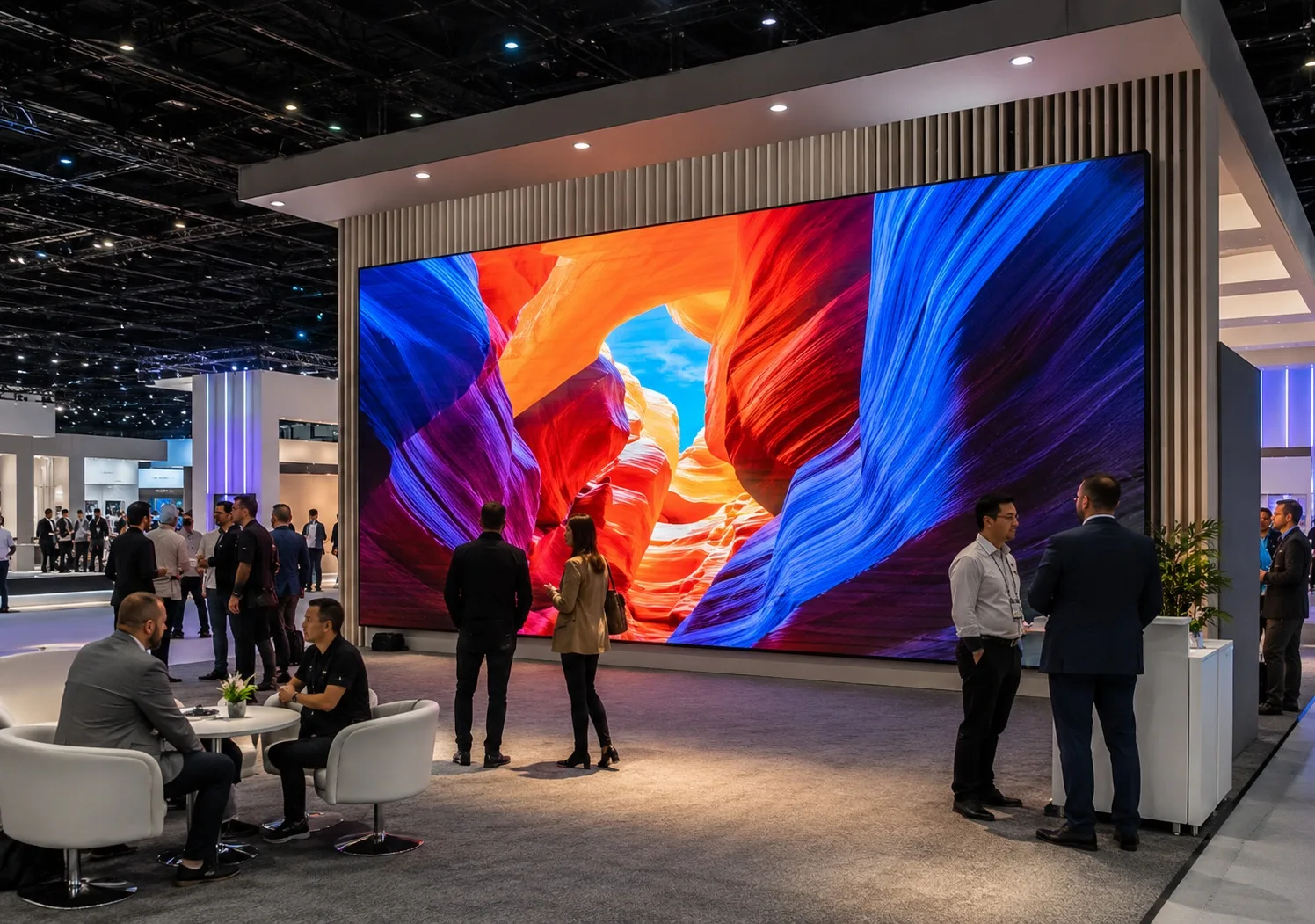

Exhibition Hall LED Screen

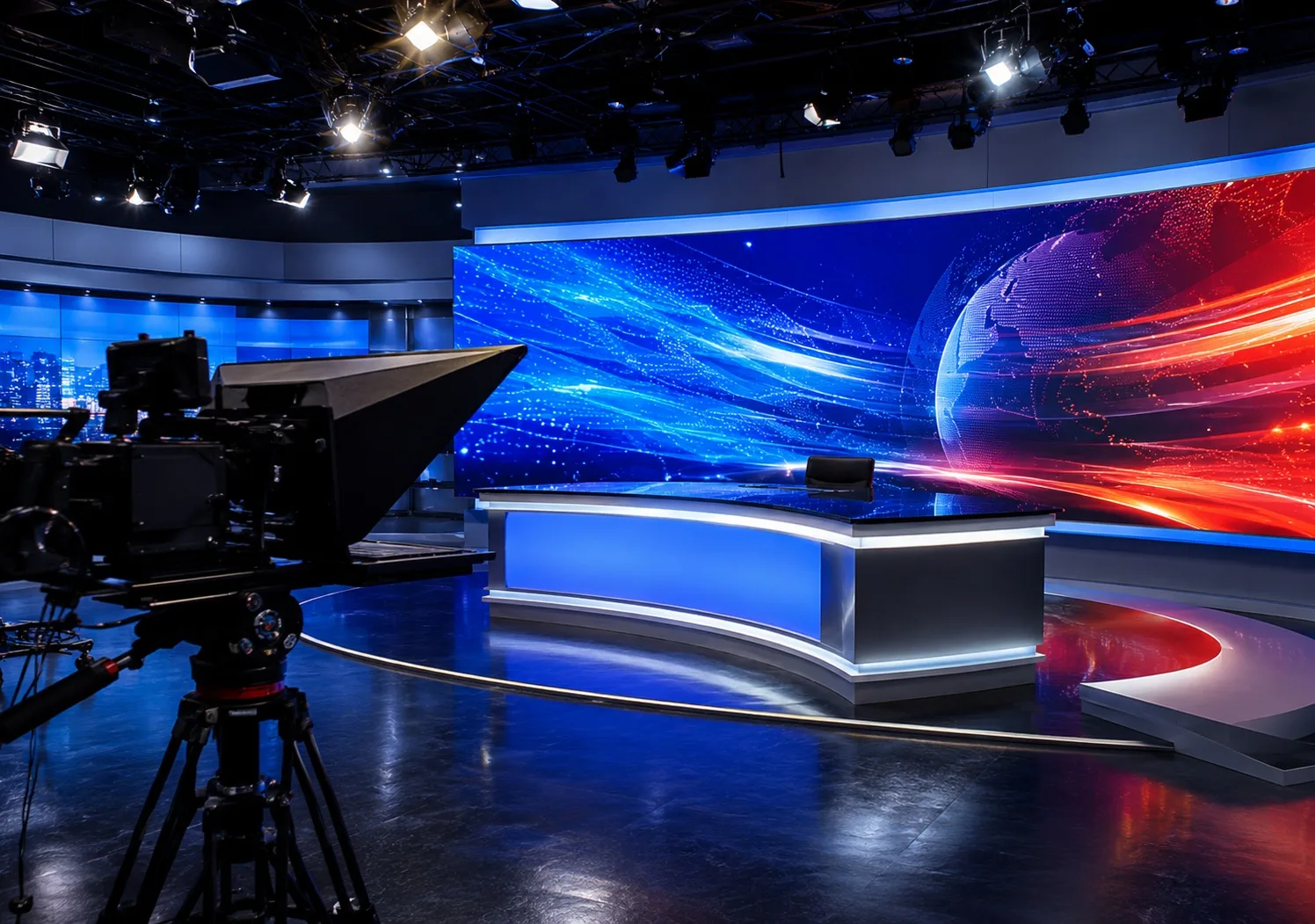

Broadcast Studio LED Wall

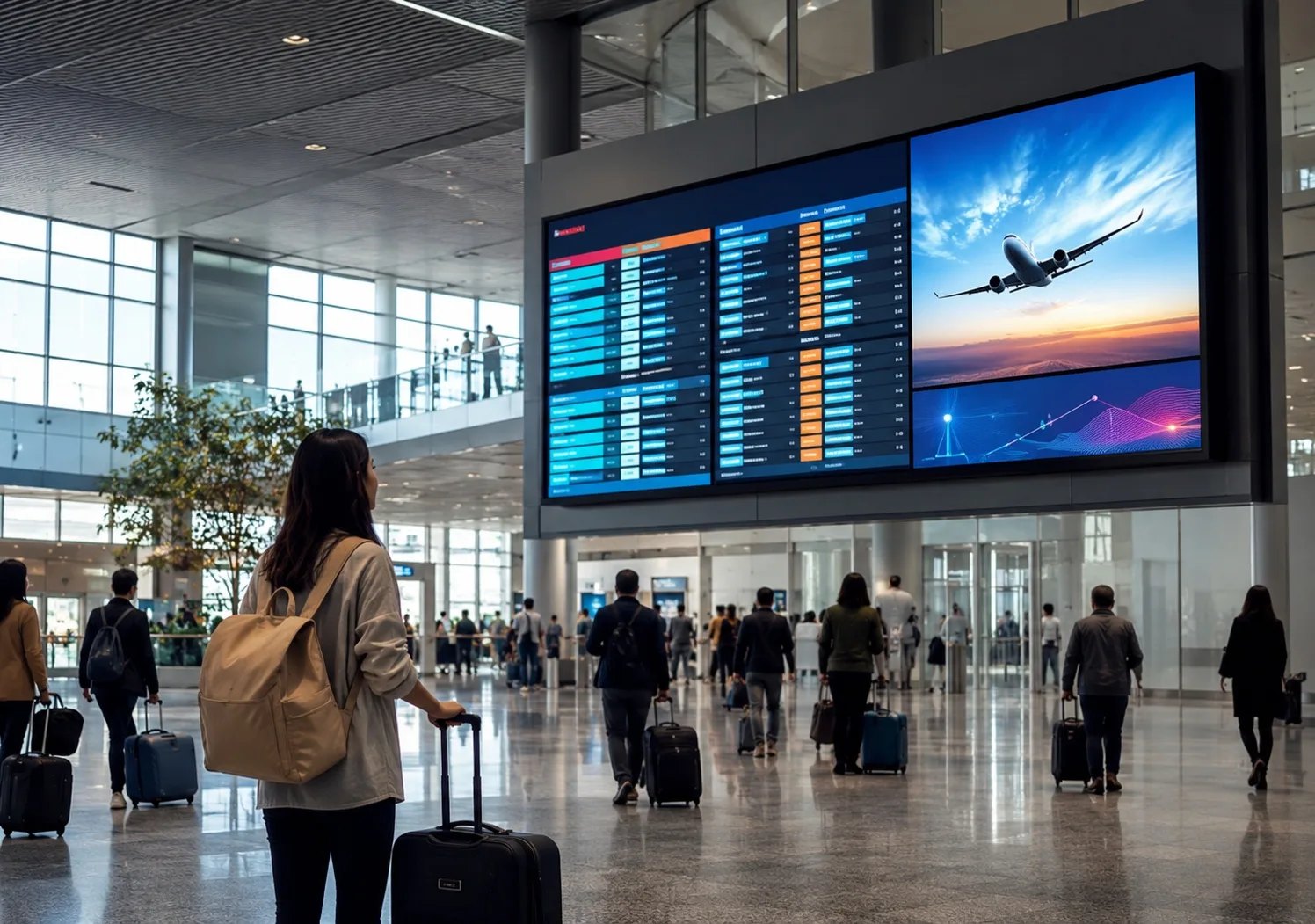

Airport Information Display

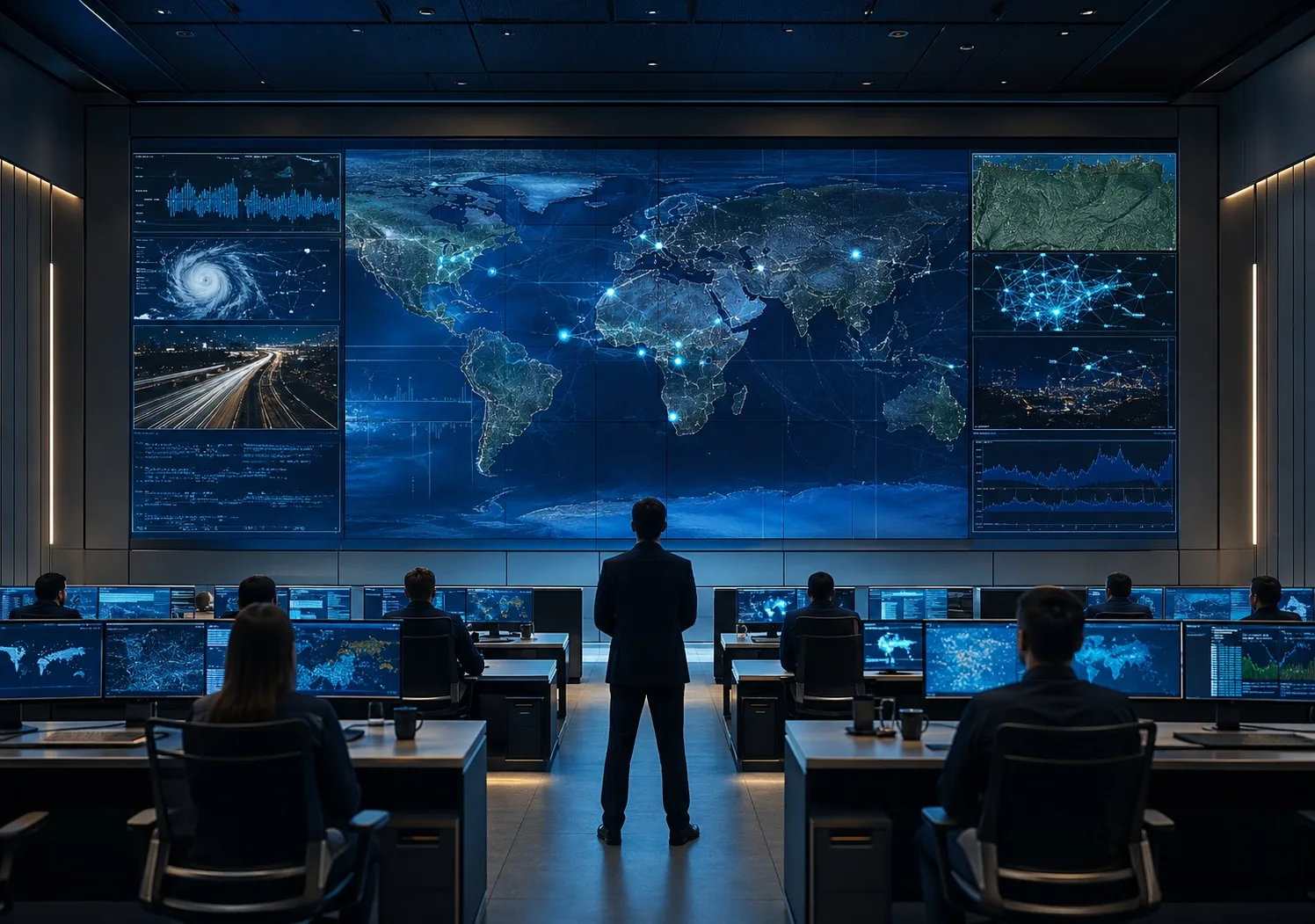

Command Center LED Video Wall

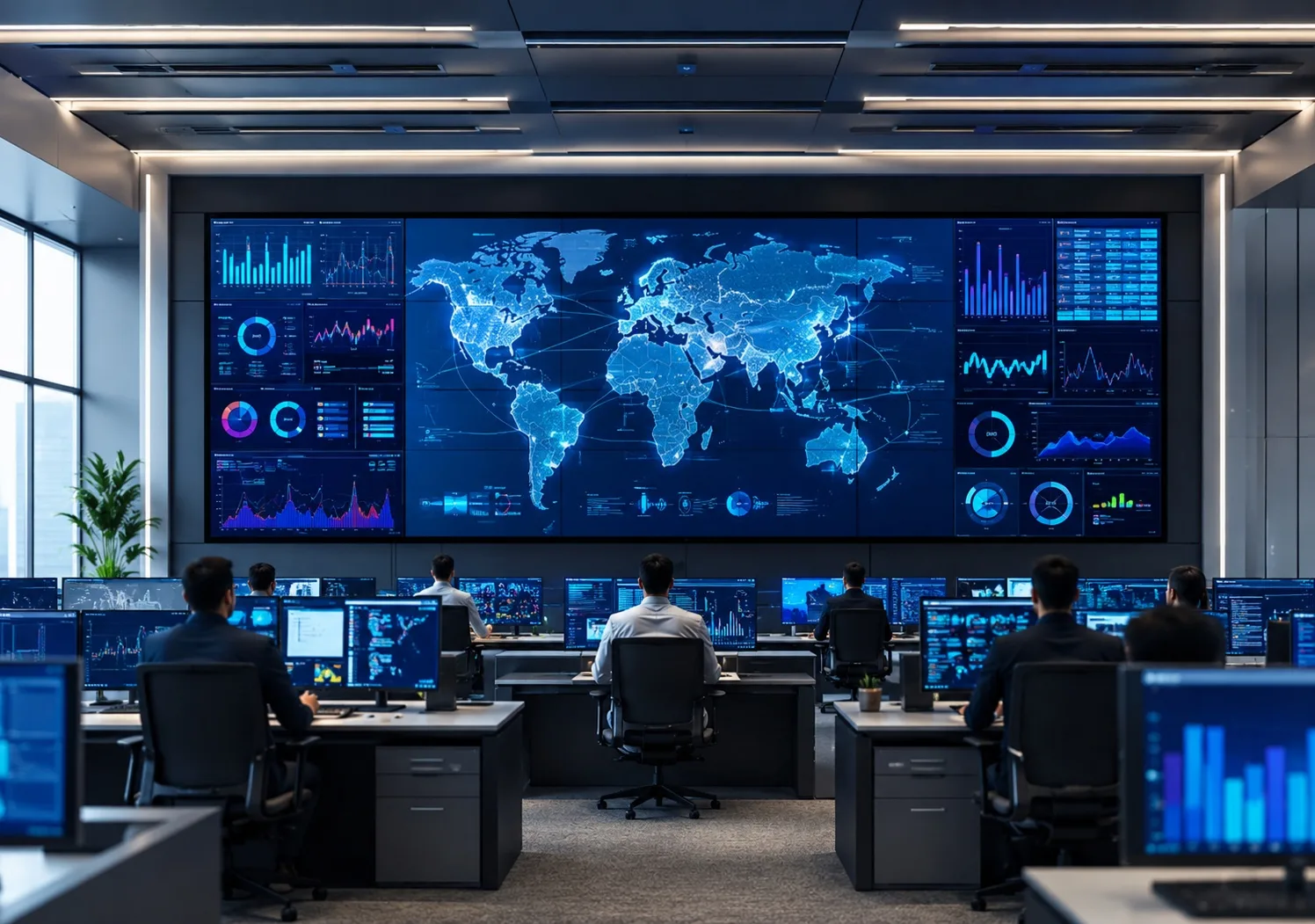

Control Room LED Display

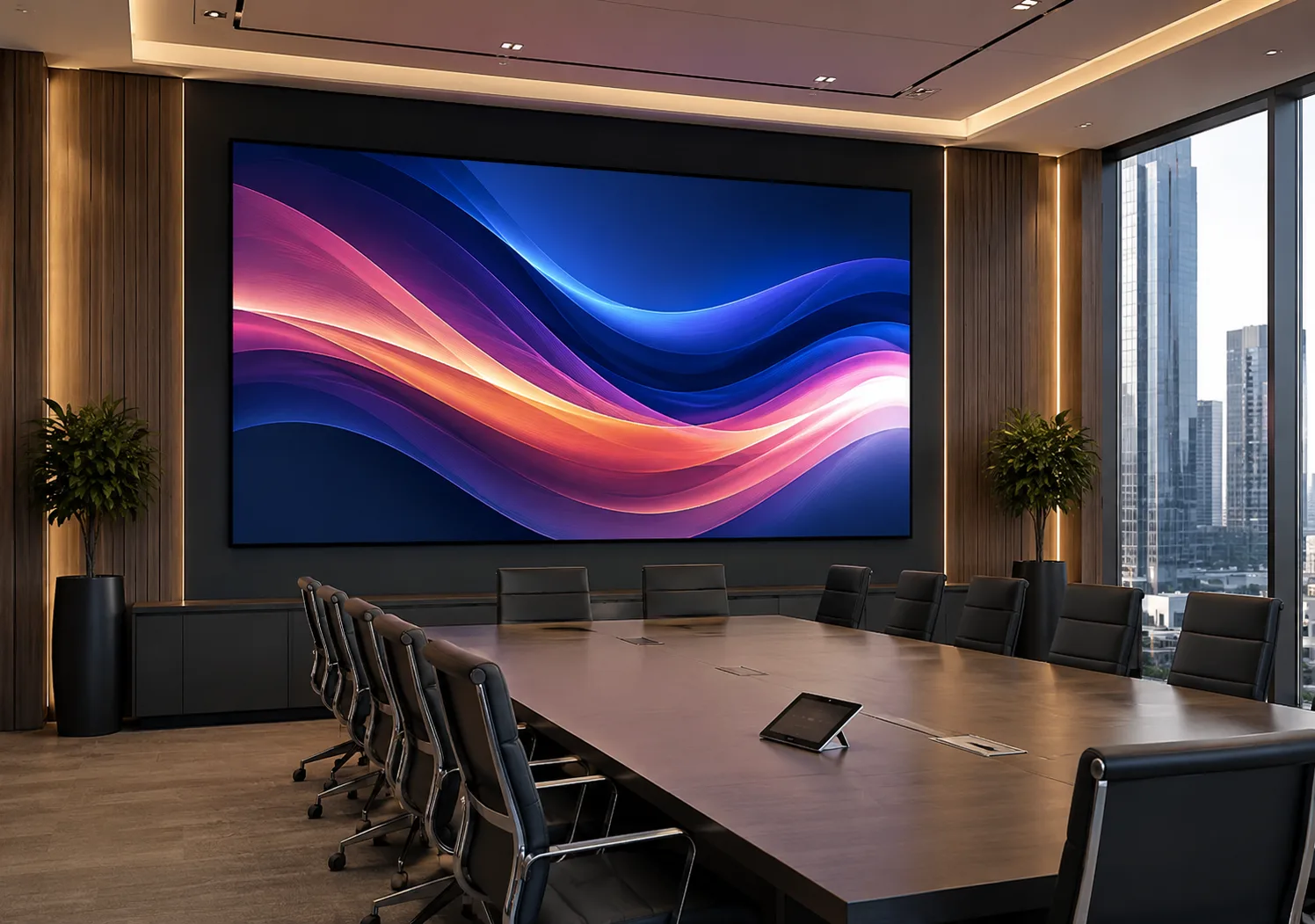

Corporate Conference Room LED Display

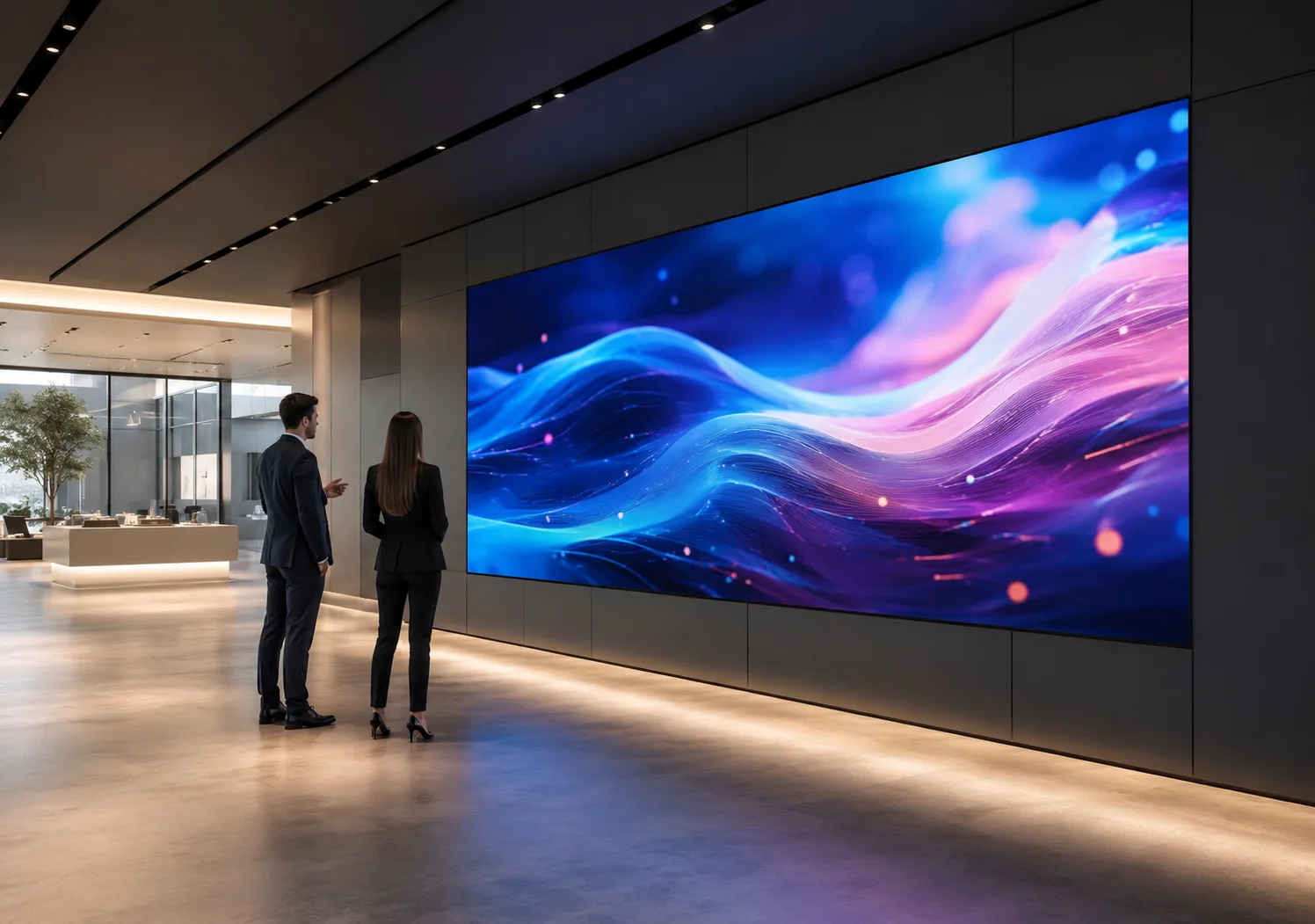

Corporate Showroom LED Display

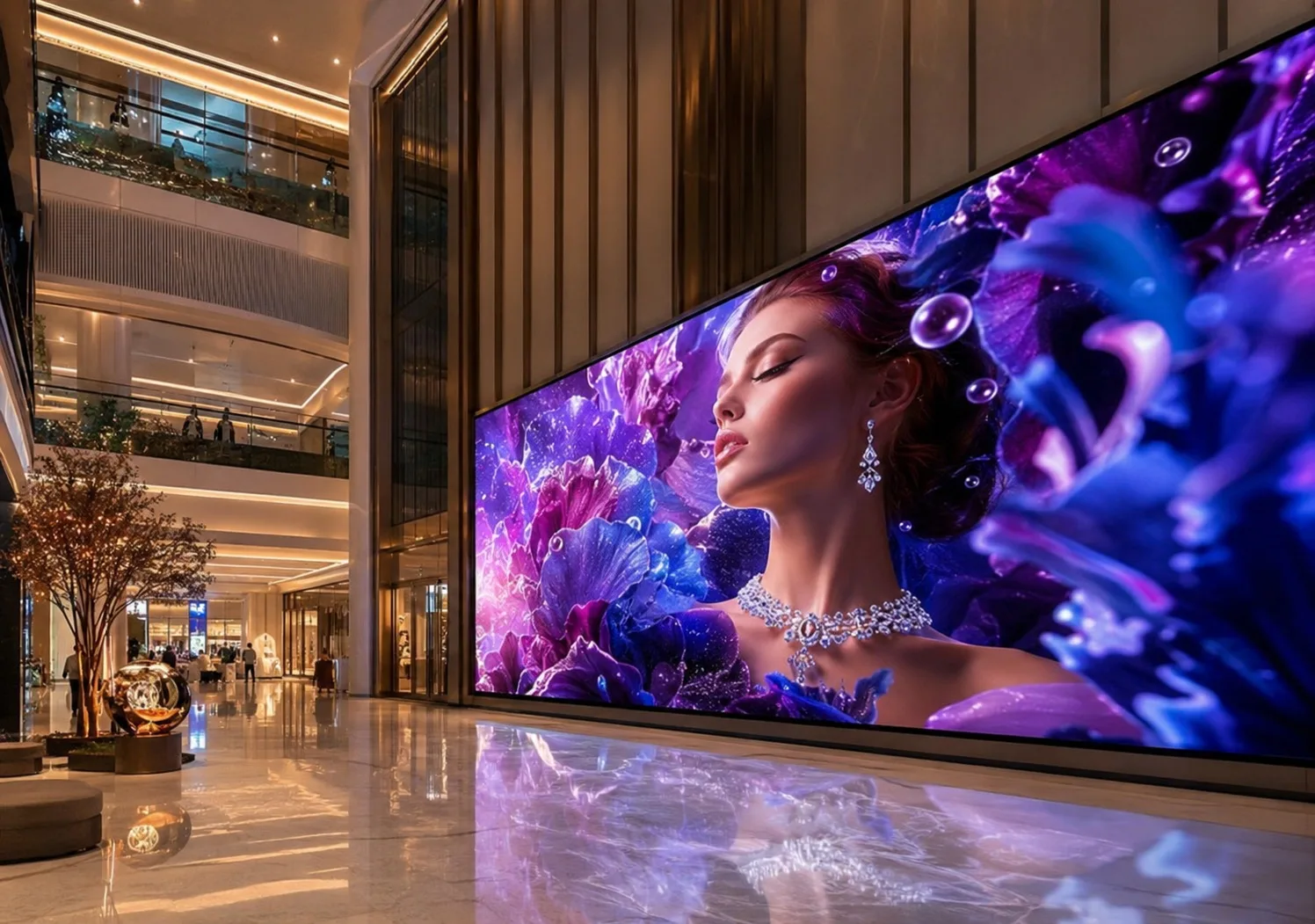

High-end Commercial LED Video Wall

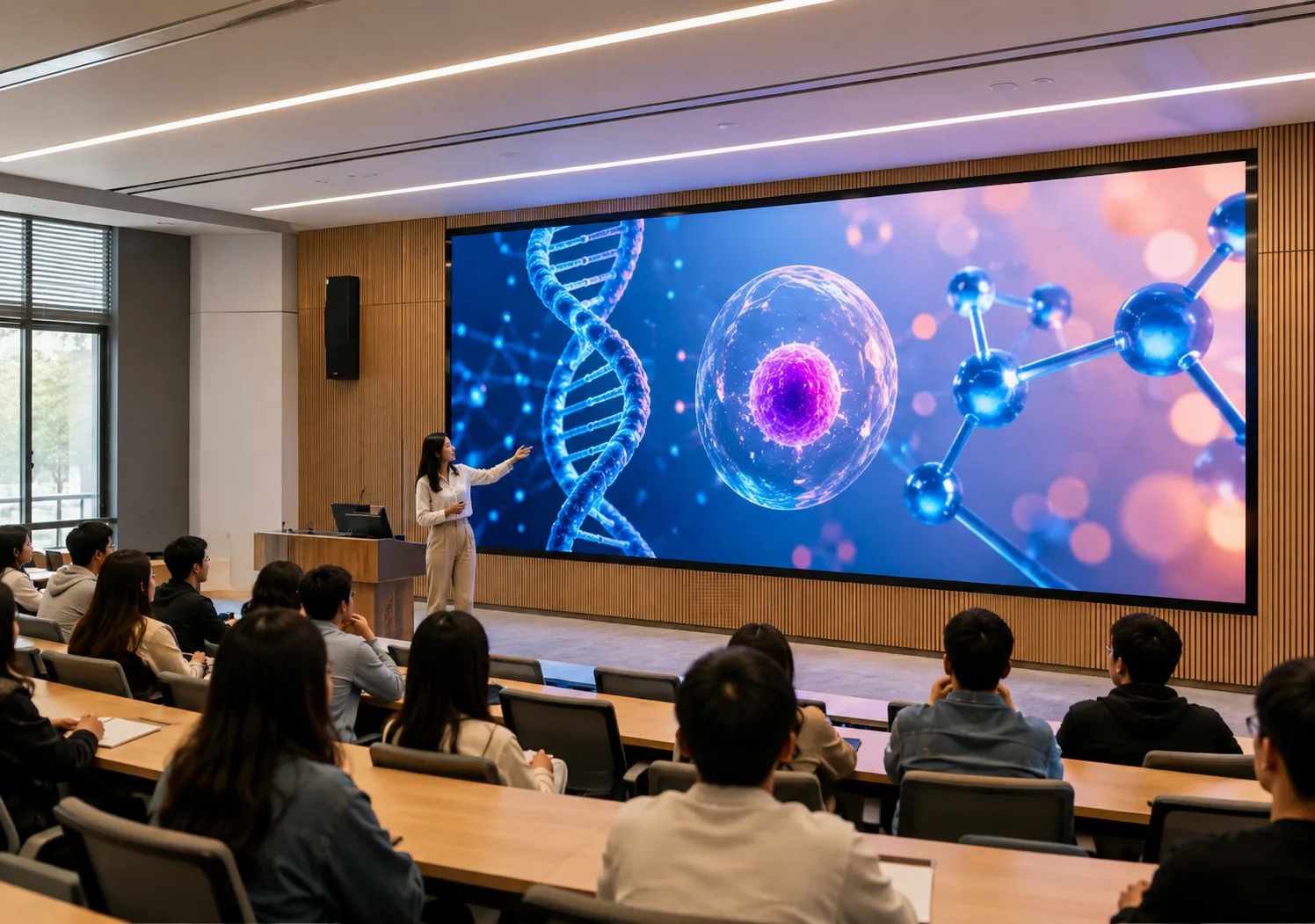

School and Education LED Display

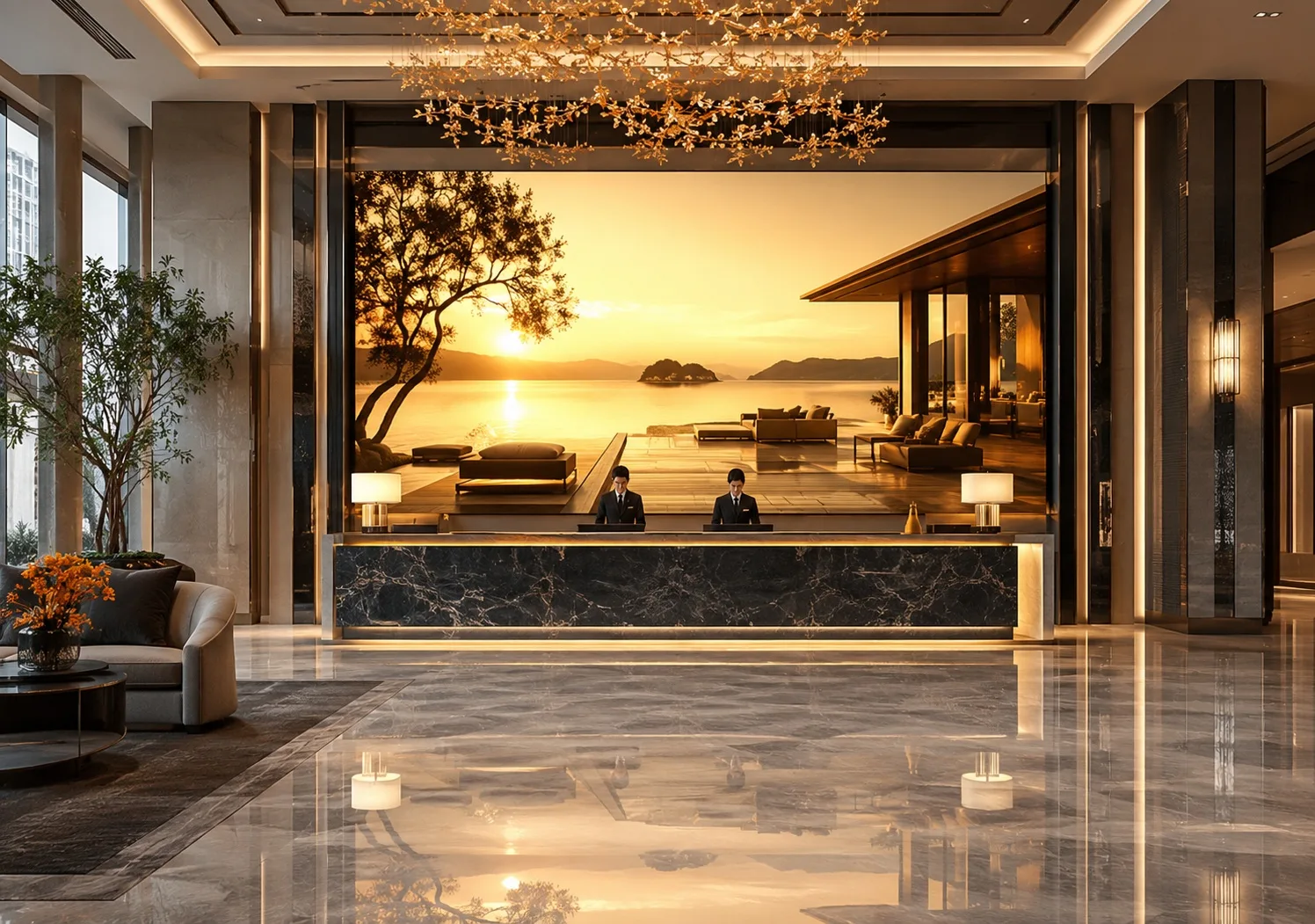

Hotel Lobby LED Display

FAQ

What is an indoor COB LED display?

An indoor COB (Chip-on-Board) LED display is an advanced encapsulation technology where LED chips are directly mounted on the PCB board. Unlike traditional SMD, COB eliminates the need for bracket packaging, offering higher pixel density, better stability, and superior visual performance for indoor environments.

What is the difference between COB and SMD LED displays?

The main difference lies in packaging and protection. COB vs SMD LED screen comparison shows that COB offers seamless surface protection (anti-collision, dust-proof), higher contrast ratio, and a wider viewing angle, while SMD uses traditional surface-mounted diodes which are more fragile.

What is Flip-Chip COB LED technology?

Flip-chip COB LED display is an upgrade to regular COB. By inverting the chip, it eliminates wire bonding, which significantly improves heat dissipation, increases brightness efficiency, and lowers the failure rate to nearly zero. Ledu Display utilizes premium flip-chip COB for high-end projects.

What pixel pitches are available for indoor COB LED screens?

As a leading fine pitch LED display manufacturer, Ledu offers a wide range of small pixel pitch COB LED screens, including P0.9, P1.25, P1.5, and P1.875, perfectly designed for close-up viewing distances.

Why is a COB LED video wall ideal for control rooms?

A COB LED video wall is perfect for command and control rooms because it delivers a moiré-free, ultra-high-definition visual experience. Its high reliability ensures 24/7 continuous operation with zero downtime, and the soft light emission reduces eye fatigue during long hours of monitoring.

Can COB LED displays achieve true 4K or 8K resolution?

Yes, due to the ultra-fine pixel pitch capabilities (under P1.0), an indoor HD COB LED screen can easily configure into standard 4K, 8K, or even higher resolutions within a limited wall space, delivering pixel-perfect images.

How does COB technology protect the LED screen from damage?

COB technology seals the entire diode array under a smooth epoxy resin layer. This provides excellent 5-layer protection: waterproof, dustproof, anti-collision, anti-static, and moisture-proof, making it much more durable than SMD screens.

Does the COB LED display cause eye strain during close viewing?

https://gemini.google.com/app/00b7f8370f19641b?pageId=none#:~:text=No.%20Traditional%20SMD%20displays%20emit%20point%20light%2C%20which%20can%20cause%20glare.%20COB%20LED%20screens%20function%20as%20a%20surface%20light%20source%2C%20which%20softens%20the%20light%2C%20eliminates%20graininess%2C%20and%20significantly%20reduces%20eye%20strain%20for%20close%2Dup%20corporate%20or%20broadcast%20audiences.

What is the contrast ratio of Ledu’s indoor COB LED screen?

Ledu’s high-contrast COB LED screen features an ultra-black coating technology that achieves a contrast ratio of up to 10,000:1. This ensures deep blacks, vivid colors, and exceptional grayscale rendering even at low brightness levels.

How does COB LED display perform in energy saving?

By adopting common cathode driving technology and flip-chip architecture, our energy-efficient COB LED display reduces power consumption by up to 30% compared to traditional SMD displays, significantly lowering long-term operational costs.

How do you maintain or repair an indoor COB LED display?

Indoor COB displays support full front maintenance. In the rare event of pixel damage, modules can be hot-swapped instantly. For diode-level repairs, the smooth surface allows for precise on-site resin resealing, ensuring seamless visual recovery.

What are the installation options for a COB LED video wall?

Ledu’s indoor COB LED panels support versatile installation methods, including wall-mounted, stacked, or recessed structures. Our slim cabinet design minimizes space occupation and guarantees perfectly flat alignment.

Is it difficult to align COB LED cabinets smoothly?

Not at all. Ledu Display designs its cabinets with high-precision die-cast aluminum with CNC tolerances under 0.1mm. This ensures a completely seamless LED video wall without visible lines between cabinets.

What is the typical lifespan of an indoor COB LED screen?

A high-quality indoor COB LED screen from a reputable manufacturer like Ledu has a rated lifespan of over 100,000 hours under normal operating conditions, thanks to its superior heat dissipation and robust packaging.

Why is the COB LED display price higher than SMD?

The COB LED display price reflects its advanced manufacturing process, higher yield rate requirements, and unmatched durability. While the initial investment is higher, COB offers a lower Total Cost of Ownership (TCO) due to its near-zero maintenance and longer lifespan.

Can I customize the aspect ratio of my COB LED display?

Yes, our standard 16:9 cabinet design allows you to easily build standard 16:9, 32:9, or custom aspect ratio custom COB LED screens to perfectly match your boardroom or studio dimensions.

What certifications do Ledu’s indoor COB LED displays have?

As an export-oriented China COB LED display factory, Ledu's products comply with international quality and safety standards, holding certifications including CE, RoHS, FCC, and ETL to ensure smooth customs clearance and project compliance.

What is the lead time for an indoor COB LED screen order?

For standard fine pitch COB displays, our lead time is typically 15 to 25 working days, which includes rigorous 72-hour burn-in testing at our factory to ensure flawless quality before shipping.

Why choose Ledu Display as your COB LED display manufacturer in China?

Shenzhen Ledu Display Co., Ltd. is a trusted professional manufacturer specializing in high-end LED solutions. We offer direct factory pricing, cutting-edge flip-chip COB technology, comprehensive customization, and 5-star global technical support.

How can I request a quotation for a COB LED display solution?

You can get a customized COB LED screen quotation within 24 hours by clicking our "Request a Quote" button or emailing our sales team with your project dimensions, pixel pitch preference, and installation environment details.

Related Products

COB LED Display

LEDU indoor COB LED display represents the pinnacle of fine-pitch LED technology, delivering exceptional visual performance for mission-critical and high-end applications. With pixel pitches from 0.6mm to 1.2mm, these displays create seamless images that rival the clarity of OLED while offering superior durability and longevity. COB Key Features - Ultra-fine pixel pitch: 0.6mm-1.2mm for incredible detail at close viewing distances - High contrast ratio: 10,000:1 for deep blacks and vivid colors - Wide viewing angles: 170°+ with no color distortion - High refresh rate: 3840Hz+ for smooth video playback - Surface light source: Eliminates pixel hotspots and moiré patterns - Durable construction: IP54 protection with scratch-resistant surface.

Send Inquiry Now>

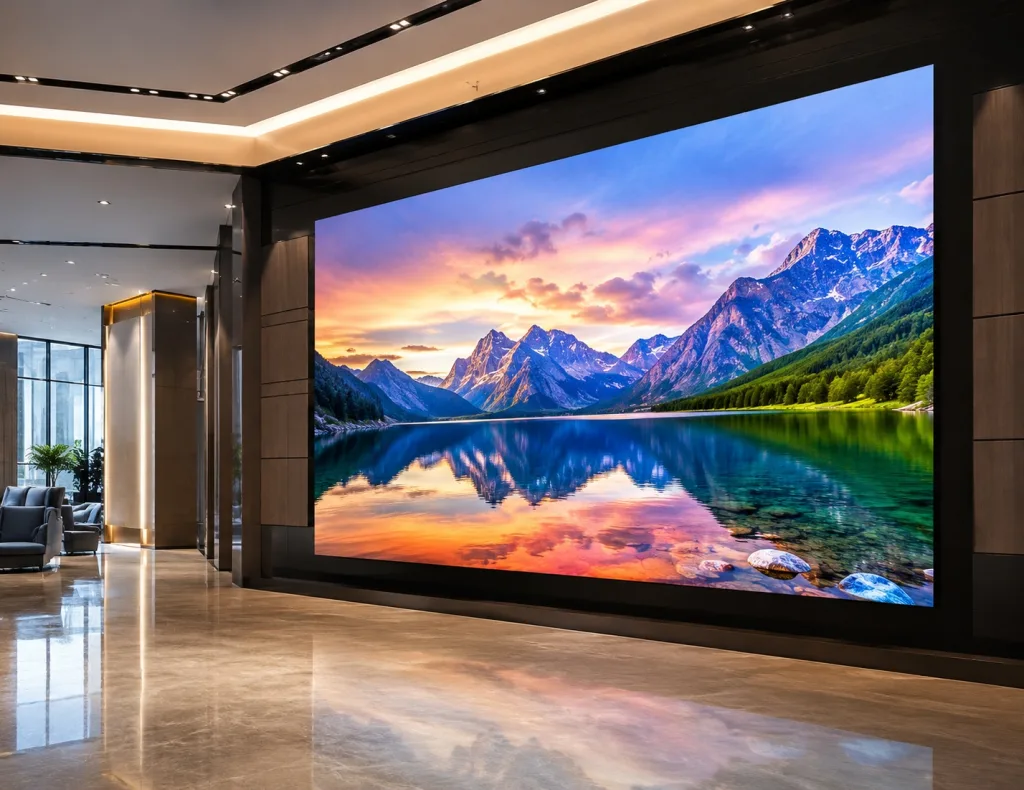

SMD LED Display

Indoor SMD LED display (Surface Mount Device) is a widely trusted, high-performance option for diverse indoor applications. As a classic SMD LED screen, it features compact surface-mounted LED chips that deliver bright, vibrant visuals—making it ideal for indoor digital signage, seamless LED walls, and dynamic presentation spaces. With a flexible pixel pitch range (1.2mm to 3.91mm), this high brightness LED display (800–1500 nits) adapts to both close and medium viewing distances, while its excellent color reproduction ensures eye-catching content in retail stores, corporate lobbies, rental events, and shopping malls. It balances affordability with reliability, offering easy installation and maintenance for businesses seeking a cost-effective LED display without compromising on visual quality. Whether you need to showcase promotional content, build immersive video walls, or enhance event experiences, our indoor SMD LED display is the versatile, budget-friendly choice for high-impact indoor visuals.

Send Inquiry Now>

Full Color LED Display

Indoor full-color LED display is a high-performance visual tool designed to elevate branding, communication, and engagement in corporate lobbies, retail stores, event venues, and more. As a top-tier full-color LED screen, it delivers stunning 4K+ resolution, 16.7 million true colors, and high brightness (800–1500 nits) that stays vivid even in well-lit indoor environments. This seamless LED wall solution features ultra-narrow bezels, creating a cohesive, distraction-free canvas for indoor digital signage, live video, product showcases, or data visualization. Its modular design allows custom sizing (from small displays to large video walls), while advanced color calibration ensures consistent, eye-catching visuals across every panel. Built for reliability, the indoor full-color LED display supports 24/7 operation with low energy consumption and a long lifespan—making it a cost-effective choice for businesses seeking impactful, long-term visual solutions. Whether you need to showcase promotional content, host immersive events, or streamline internal communications, this display combines flexibility, quality, and performance to meet your needs.

Send Inquiry Now>

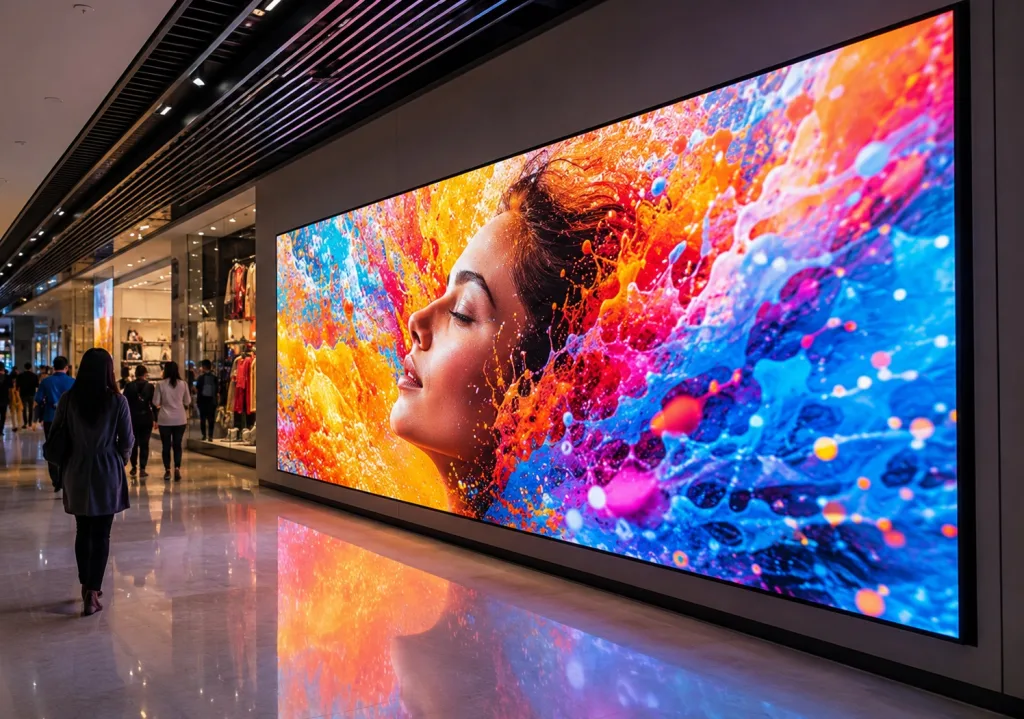

HD LED Display
