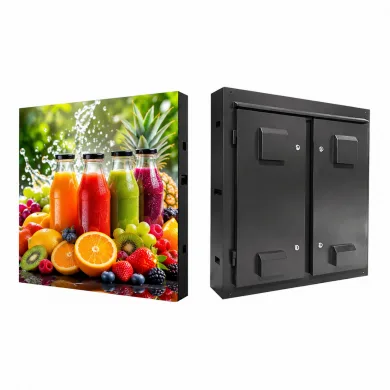

Advertising LED Display

LEDU Outdoor Advertising LED Display is designed for outdoor environments where brightness, durability, visibility and stable performance are important. With high brightness, high contrast, vivid color reproduction and wide viewing angle, the LED display can present advertising videos, product campaigns, brand messages and commercial content clearly in outdoor public spaces.

The screen can be customized into different sizes and aspect ratios, including large outdoor LED billboards, wall-mounted advertising LED displays, rooftop LED screens, roadside LED signs, building facade LED displays and DOOH digital media screens.

For outdoor advertising projects, LEDU helps customers choose the right pixel pitch, cabinet structure, control system, brightness level, waterproof protection and installation method to achieve better advertising performance and long-term project value.

Inquire

Description Specifications Advantage Application

Description

Outdoor advertising LED display is one of the most effective tools for modern digital advertising. It can display high-definition videos, product images, brand promotions, event announcements, public information and commercial graphics with strong visual attraction.

LEDU outdoor LED advertising screen is suitable for long-term fixed installation projects. The display cabinet can be designed for front maintenance or rear maintenance according to the installation site. Multiple LED cabinets can be connected together to create seamless large-format LED advertising screens.

The outdoor LED display is built with weather-resistant design, high-brightness LED modules, stable power supply system, strong cabinet structure and professional control system. It is suitable for outdoor environments such as commercial streets, shopping centers, traffic roads, building exteriors, stadiums, airports, railway stations and public squares.

This product is a reliable solution for customers looking for outdoor advertising LED display, LED billboard display, outdoor LED display, DOOH LED screen, digital advertising LED display and commercial LED display projects.

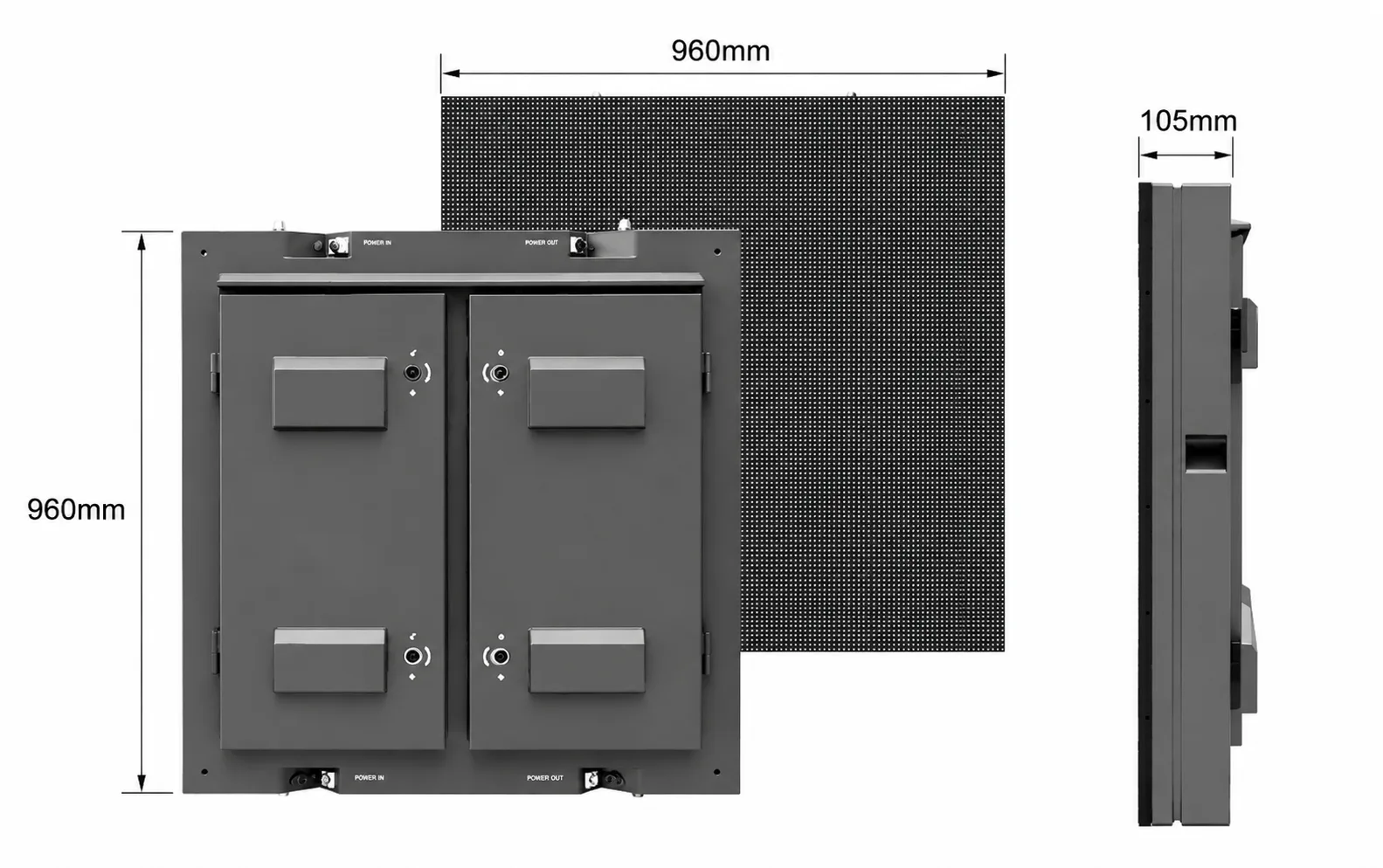

Parameters

-Material: Waterproof iron cabinet
-Sizes: 960 x 960 x 105 mm
-Weight: 33.5kg
-Modules: Each cabinet countswith 18 separate modules of 320*160mm which contains high definition encapsulated led lamps.

-Pixel Pitch: P2.5, P4, P5, P8, P10

-Waterproof: IP65

-Brightness: 4500-7500nits

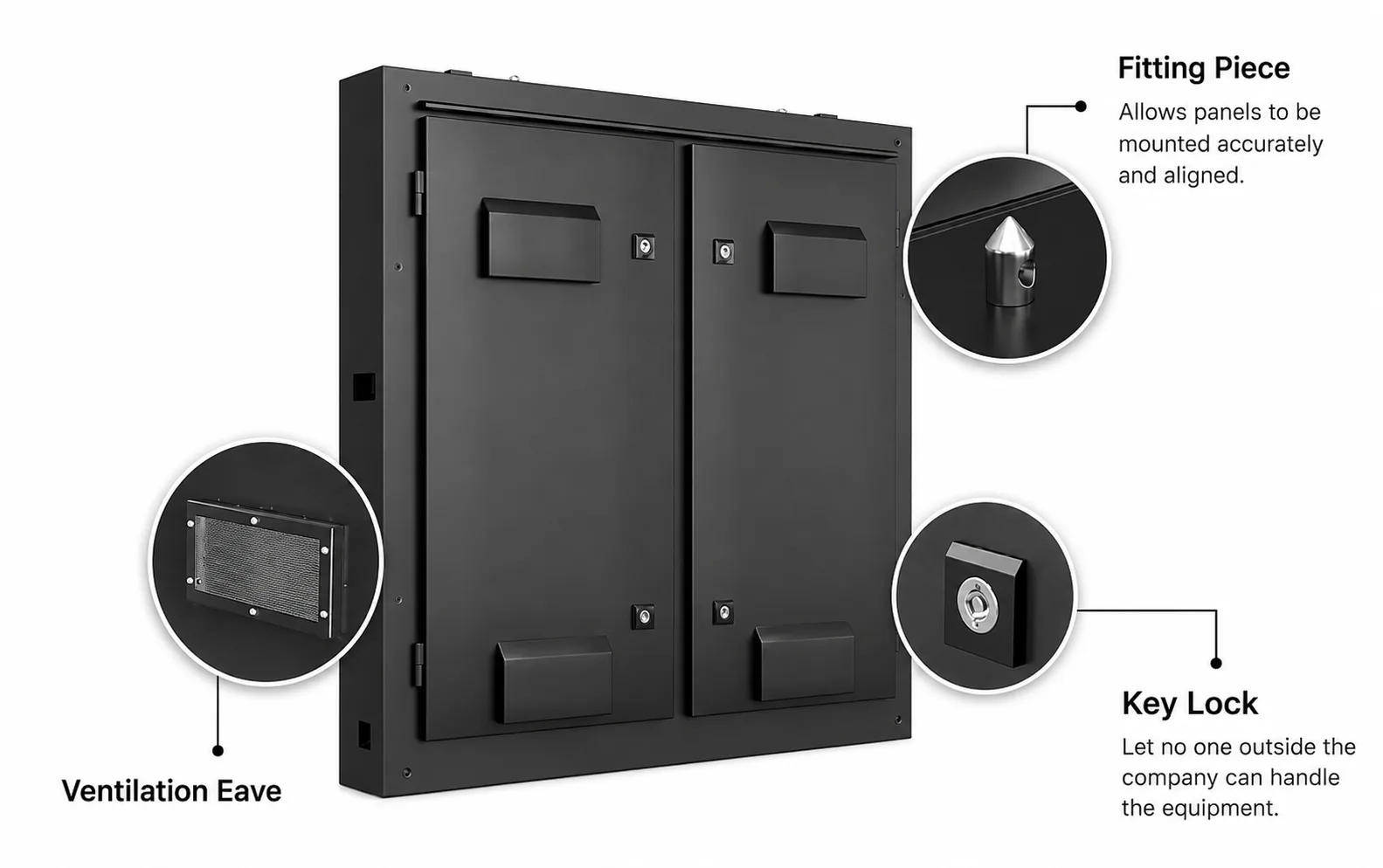

Perfect Cabinet Design

- The innovative structural design and avant-garde body lines give you an extraordinary experience.
- Fitting Piece: Allows panels to be mounted accurately and aligned.
- Ventilation Eave
- Key Lock: Let no one outside the company can handle the equipment.

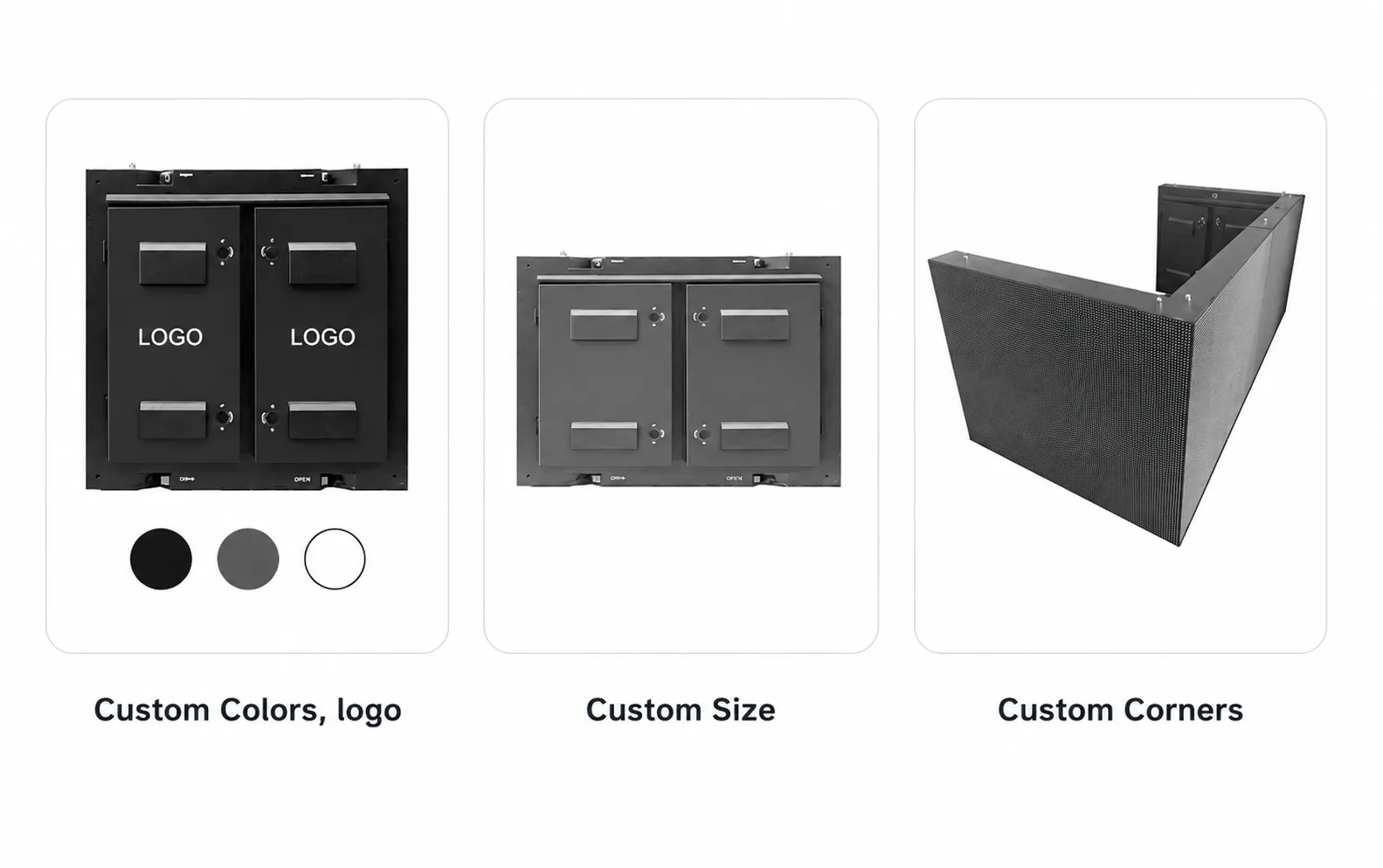

Personalized Customization

- Can be optimized in appearance and functionality according to different environments and needs, enhancing brand image and communication effectiveness.
- Custom Colors, logo
- Custom Size
- Custom Corners

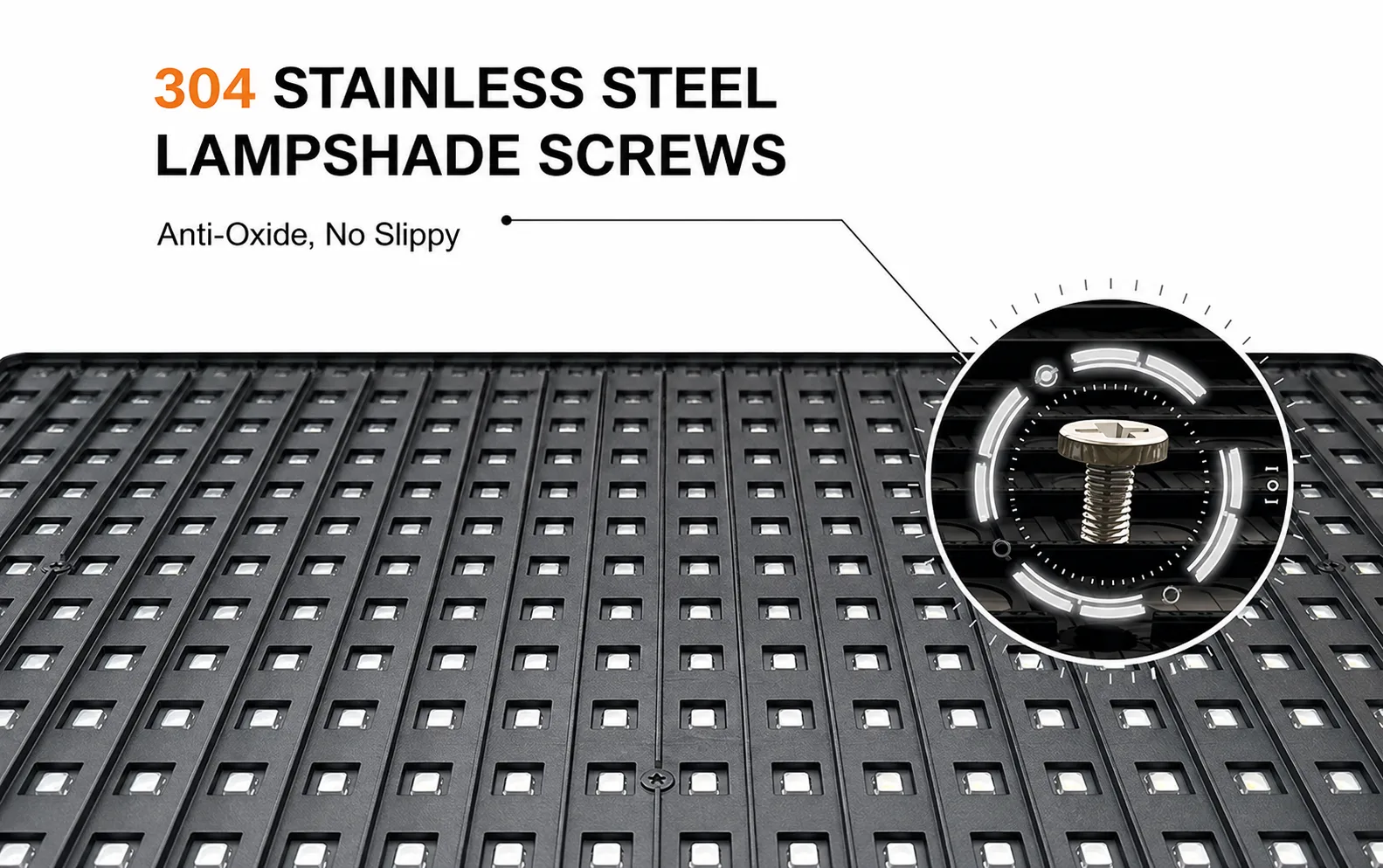

Stainless Steel Screws

- Stainless steel screws lampshade design anti-Oxide, no slippy,make screen long time span more longer

Consumer Grade Power And Singal Connector Design

- Aviation plug, more stable and convenience, more safer than traditional electrical connectors.
- Aviation Plug
- Ordinary Power Cord

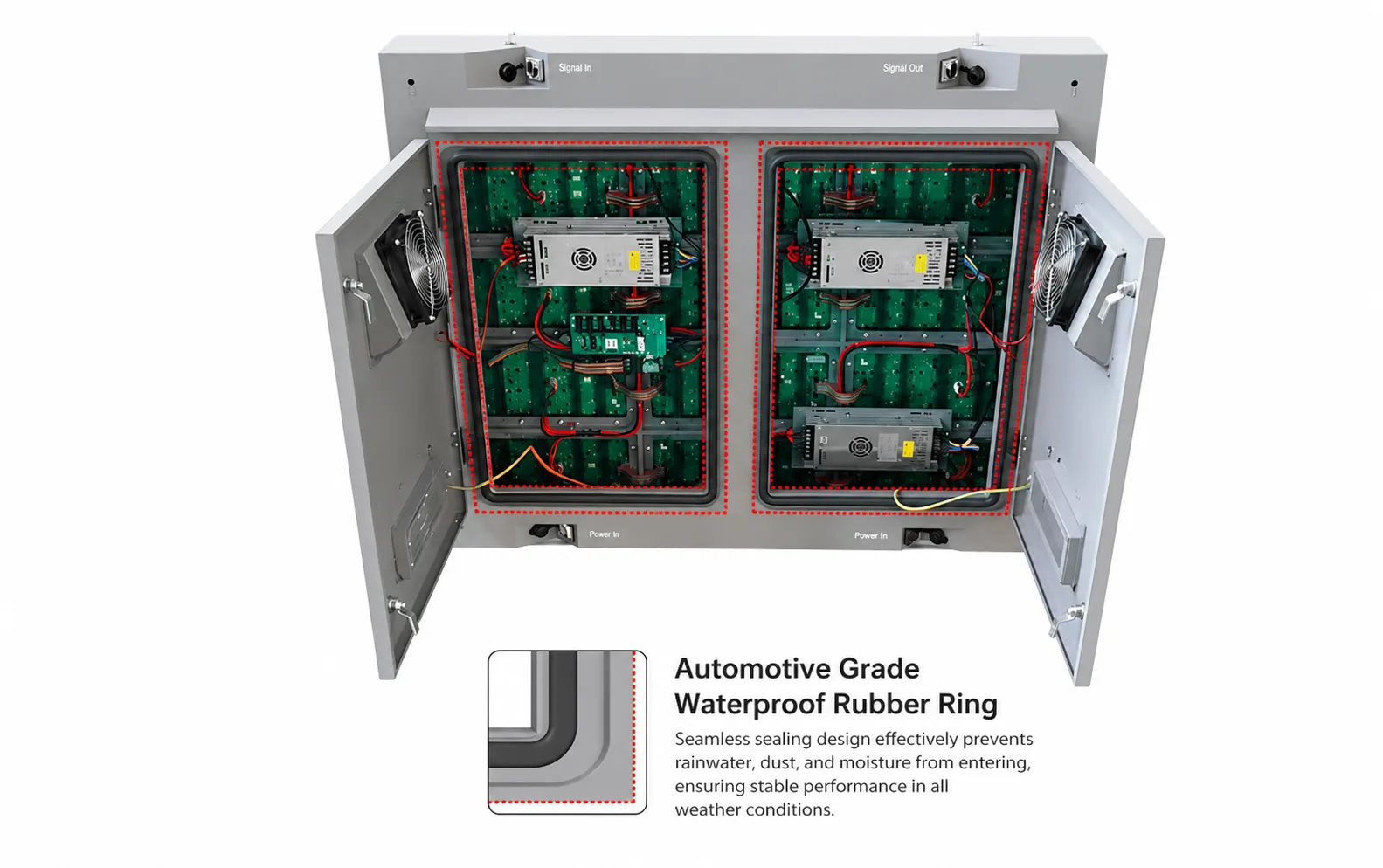

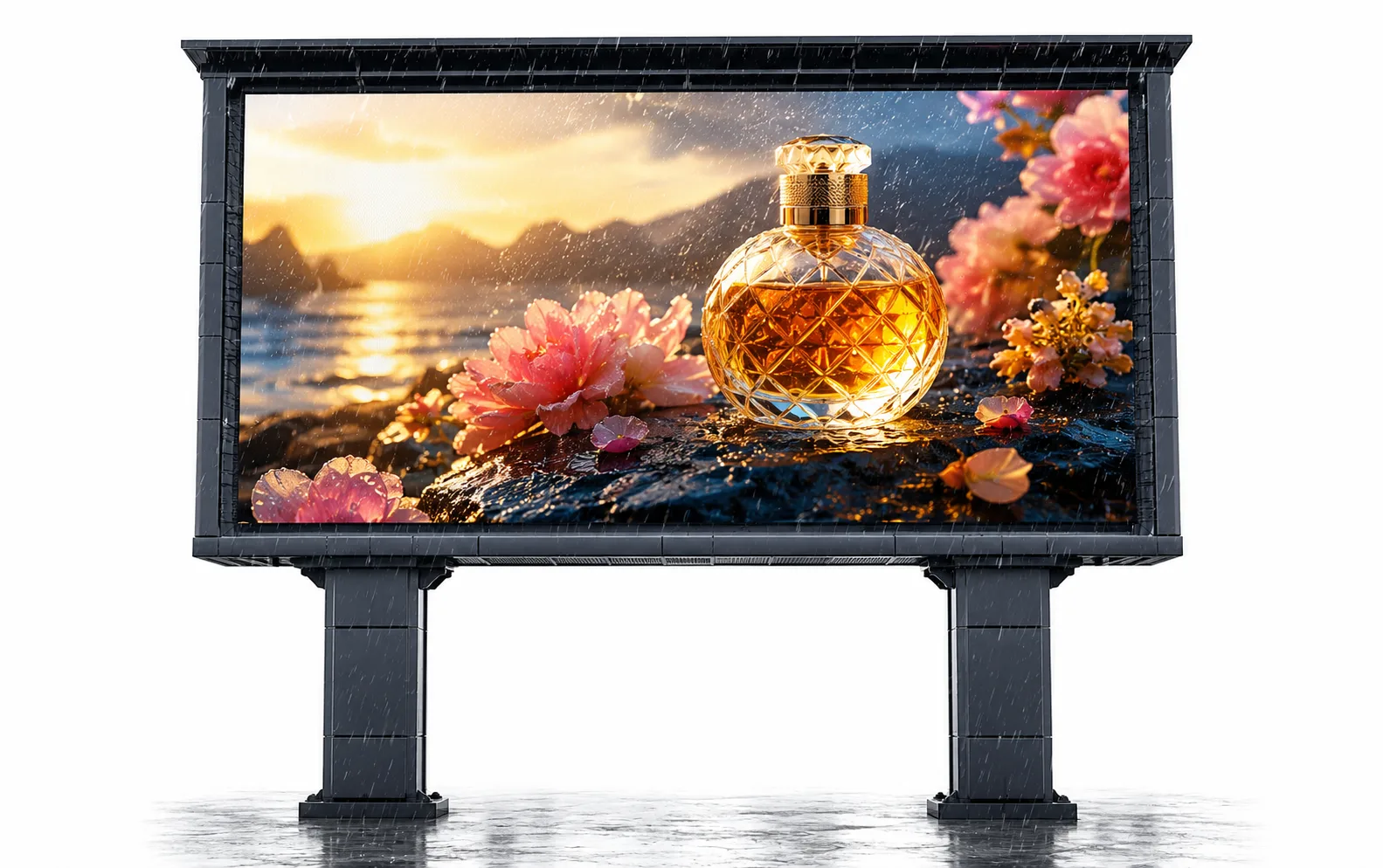

HIgh Protection Level

- Rear access led cabinets with screws fixed led modules to ensure the high protection level to be IP65, Automotive grade waterproof rubber ring makes the cabinets double protected.
- Automotive Grade Waterproof Rubber Ring

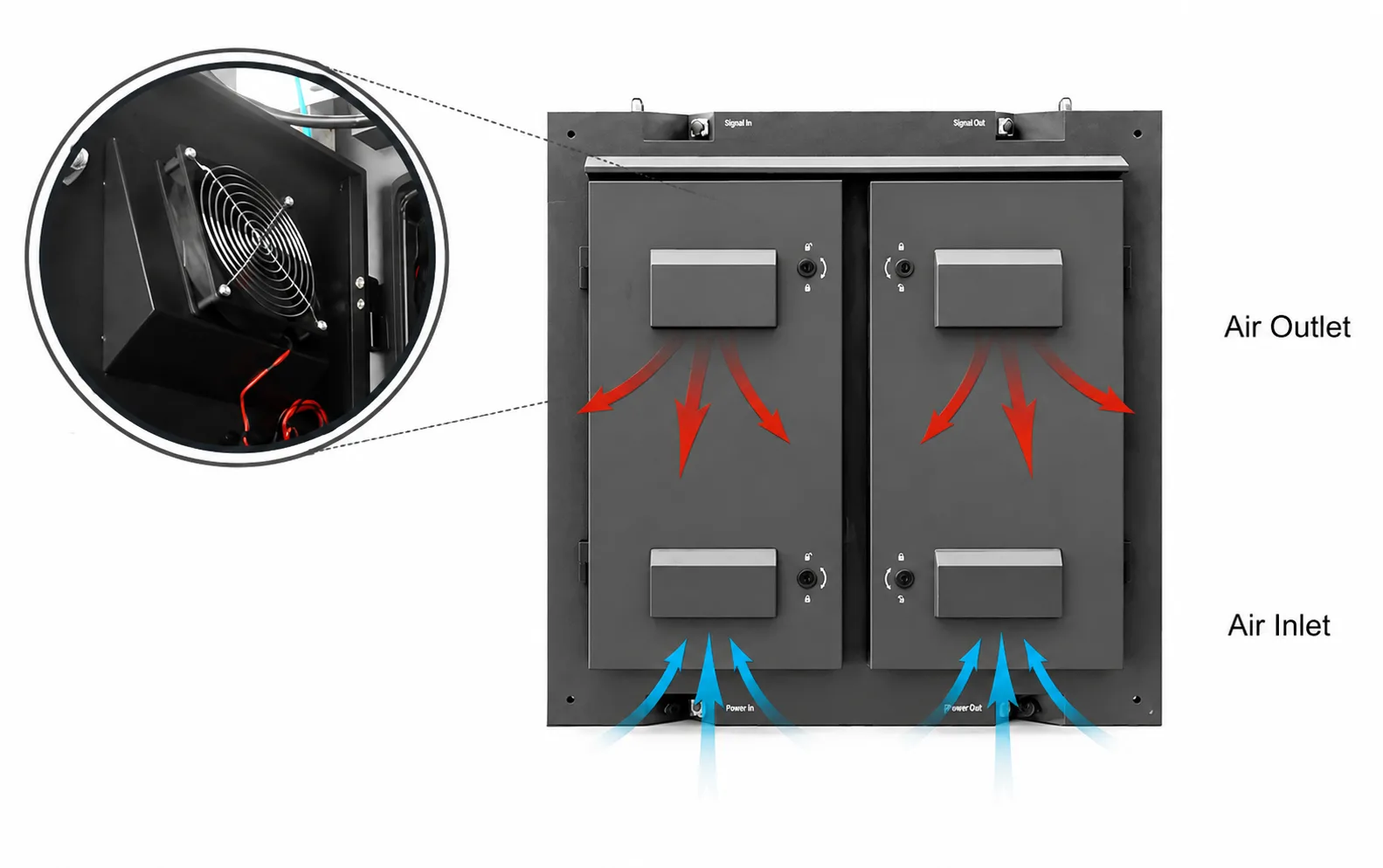

Super Good Heat Dissipation

- There are four cooling fans inside the cabinet, which can quickly reduce the temperature of the display and extend the life of the display.
- Air Outlet
- Air Inlet

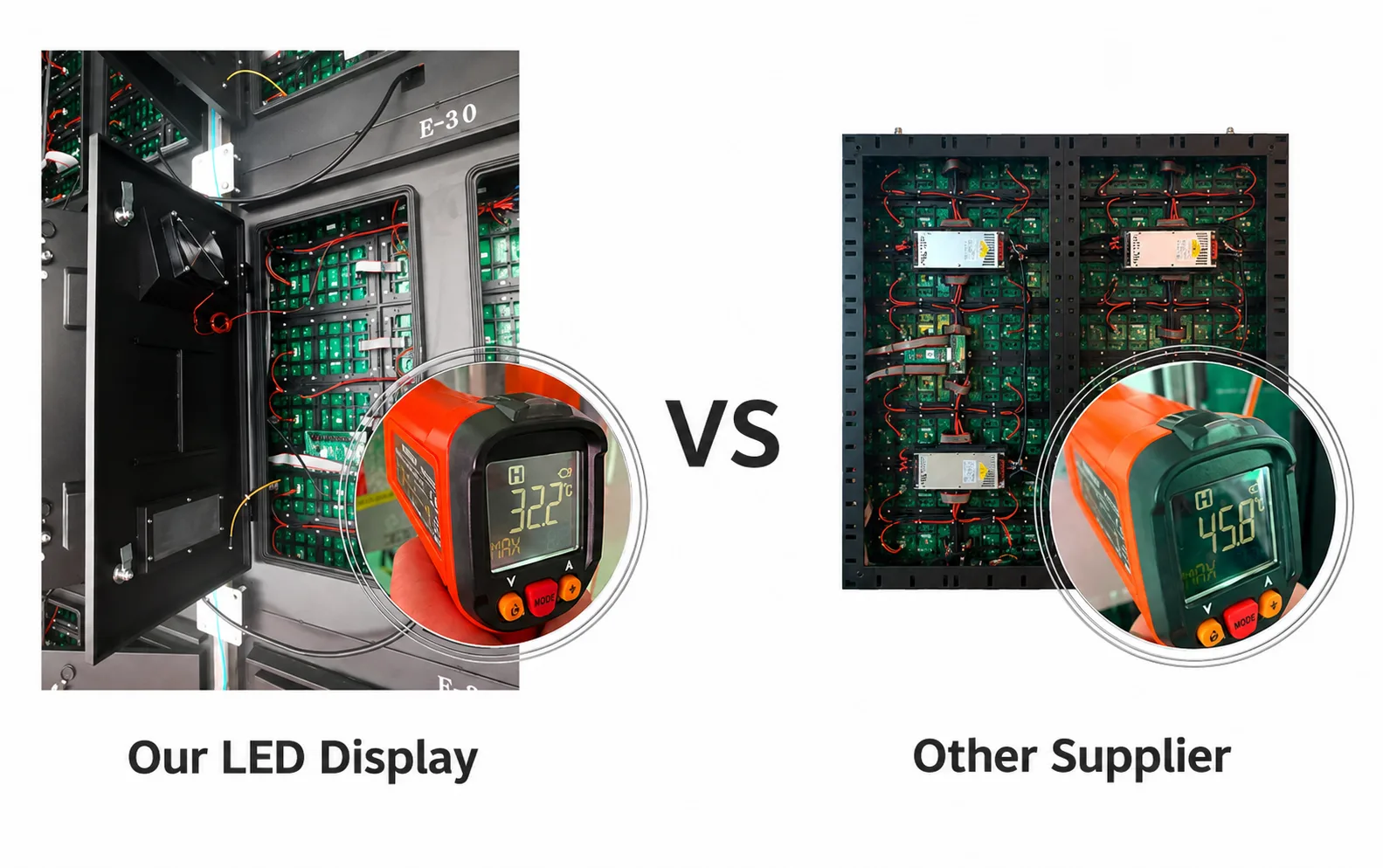

Low Temperature Technology

- LED display adopts the core technology of low-temperature energy saving to reduce the heat value of key electronic components inside the LED display, which can improve the reliability and prolong the service life of LED display.

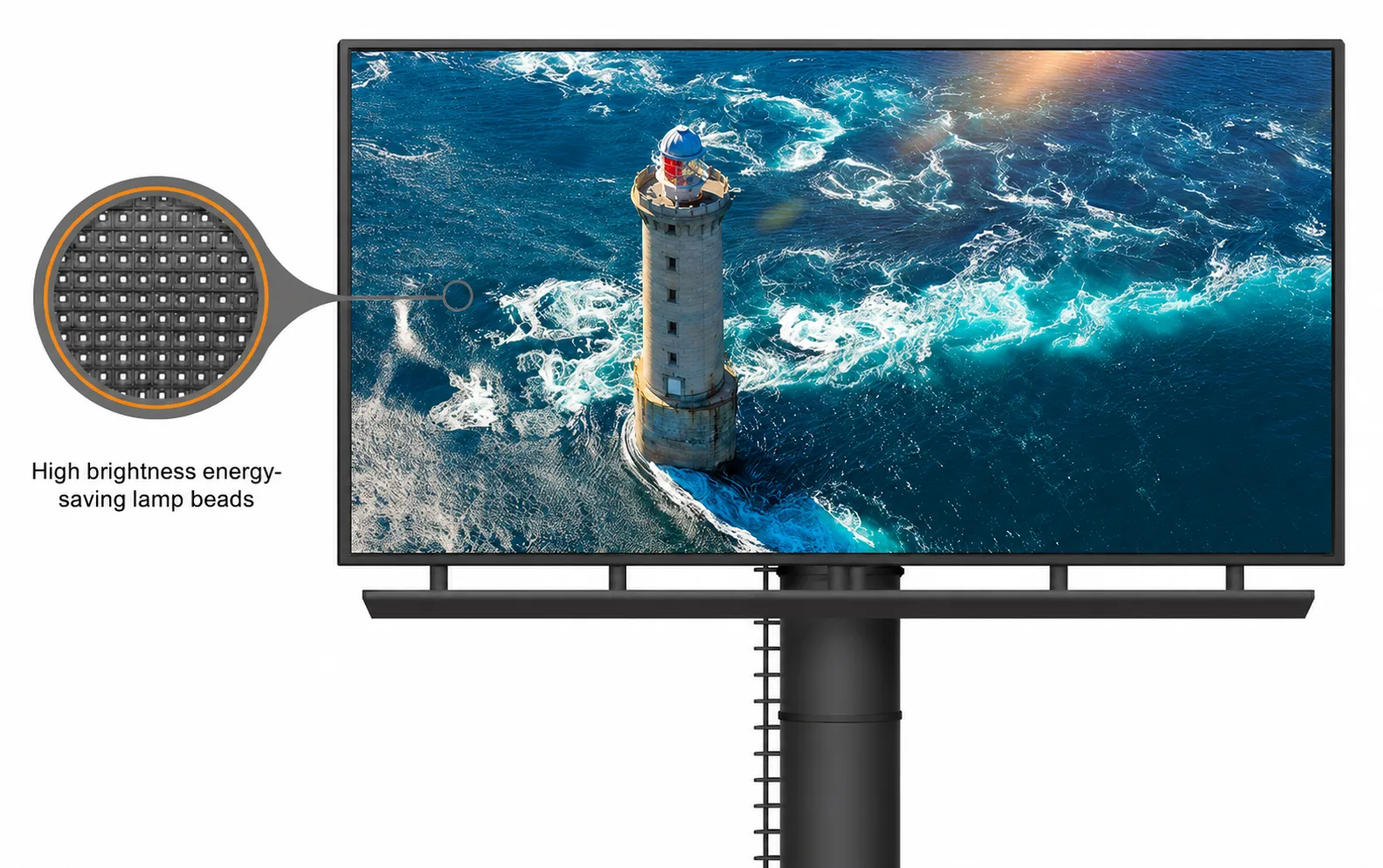

High Brightnes

- The brightness reaches up to 7500nits, can instantly captivate attention & deliver content even under strong light.
- High brightness energy-saving lamp beads

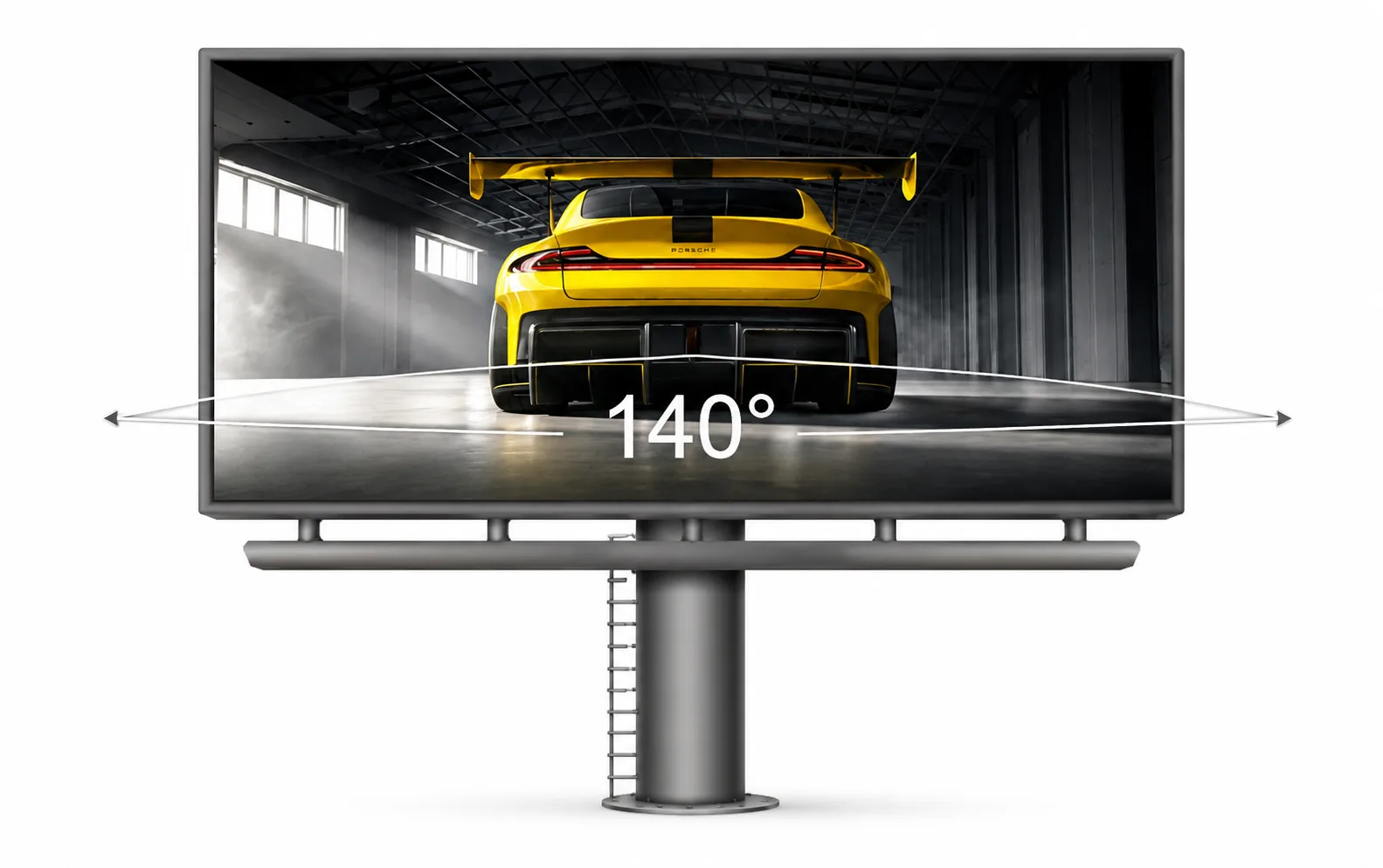

Wide Viewing Angle

- A wide viewing angle of 140° horizontal and 120° in vertical which reaches more viewers. The picture quality remains seamless in all direction and at a distance, presenting all viewers the same highly quality outputs.

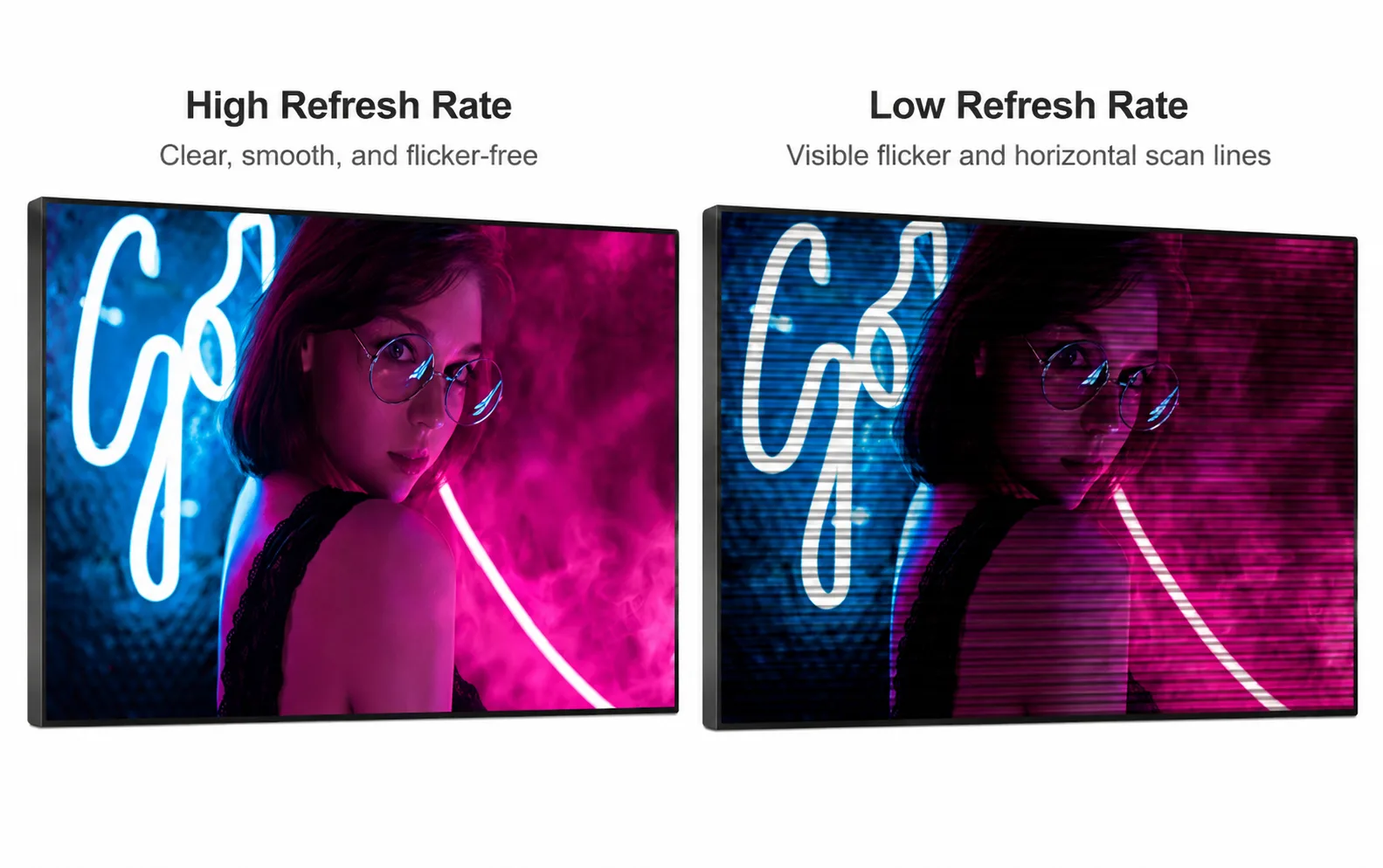

Ultra HD Visual Effect

- Let your content shine with high brightness, contrast, and refresh rates. Whether it's the blazing sun or the darkest night, your visuals will captivate your audience with unparalleled brilliance.
- 16 bit Grayscale
- 8000:1 Contrast Ratio
- 3840Hz Refresh Rate

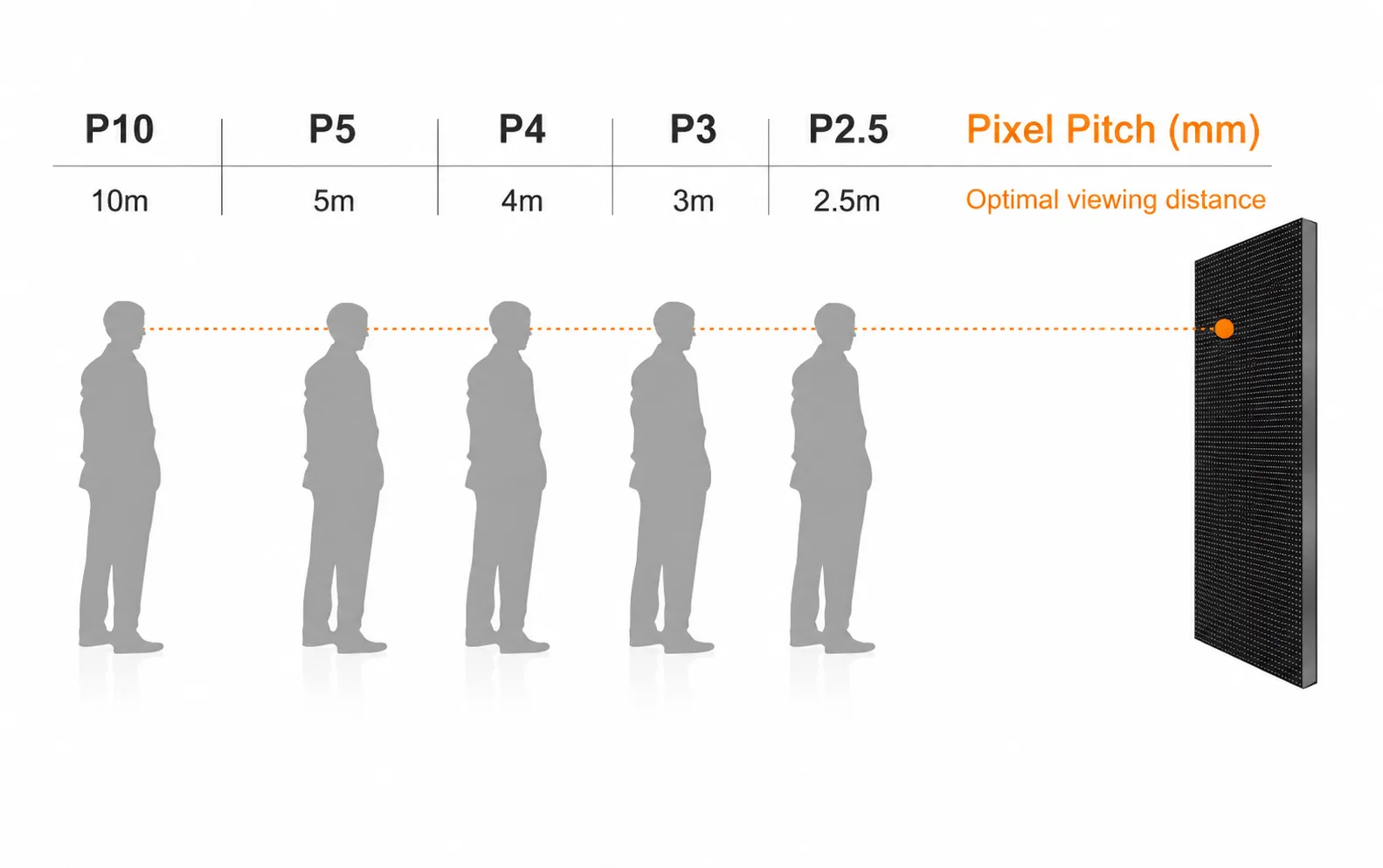

Viewing Distance

- Pixel Density: Is the total number of led lamps per m² of each screen model.
- Pixel Pitch (mm): P10 (10m), P5 (5m), P4 (4m), P3 (3m), P2.5 (2.5m)
- Optimal viewing distance

Energy-Efficient LED Display Solution

LEDU outdoor advertising LED display can be configured with energy-efficient components and suitable brightness control. This helps reduce unnecessary power consumption while maintaining strong outdoor visual performance.

For long-term DOOH advertising projects, energy efficiency is important for operating cost control.

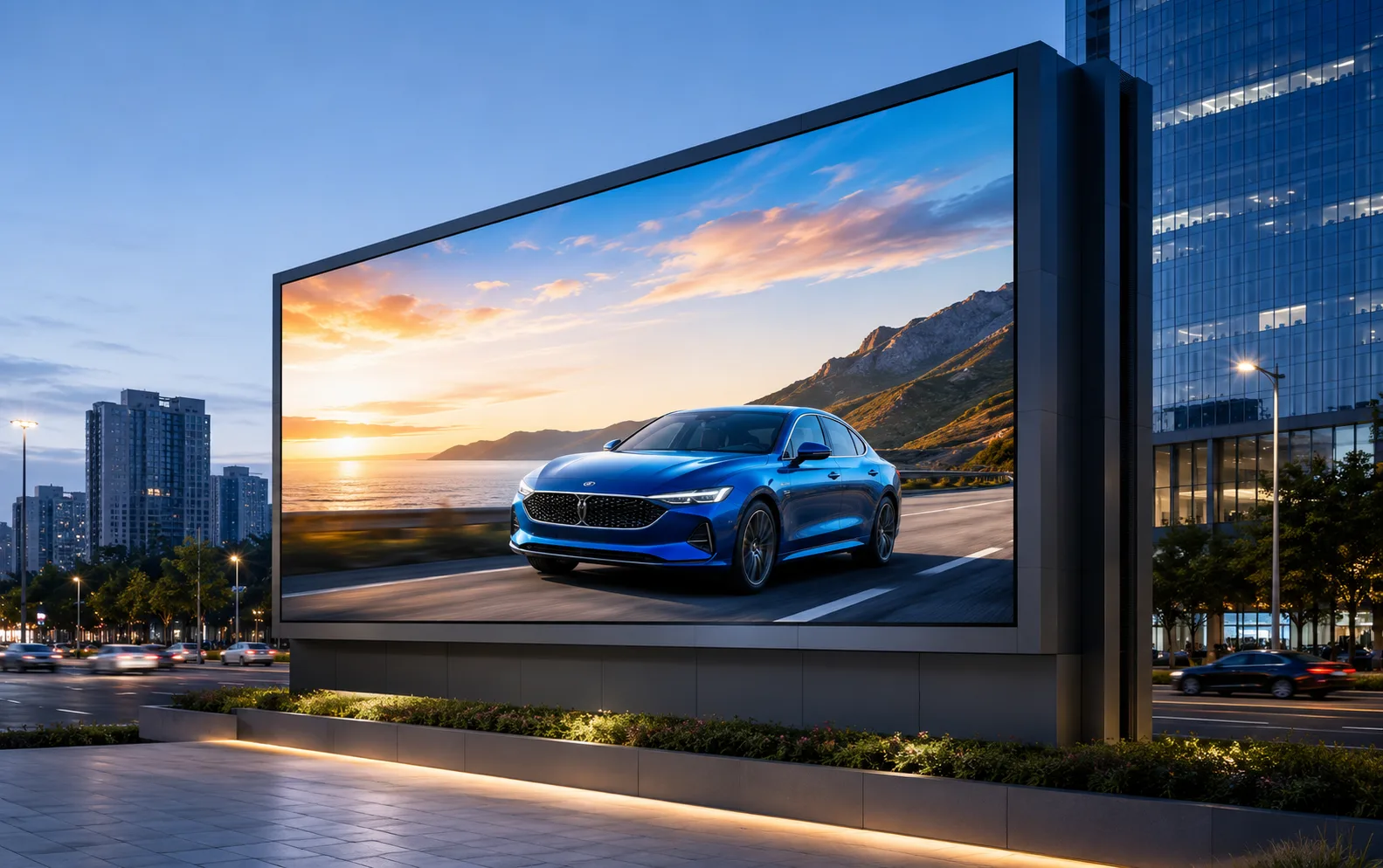

Reliable Long-Term Outdoor Operation

LEDU focuses on stable product quality for outdoor advertising LED display projects. LED modules, cabinets, power supplies, receiving cards and control systems are carefully tested before shipment.

Strict quality control and aging tests help improve display stability, reduce failure risk and support long-term commercial operation.

Specification

Outdoor P2.5-P10 Parameters

Model	P2.5	p3	p4	p5	p8	p10
Usage	Oudoor	Outdoor	Outdoor	Outdoor	Outdoor	Outdoor
Cabinet size(mm)	960960105mm	960960105mm	960960105mm	960960105mm	960960105mm	960960105mm
Cabinet Resolution (dot)	384dotsx384dots	320dotsx320dots	240dots × 240dots	192dots × 192dots	128dots × 128dots	96dots × 96dots
Scanning	1/16scan	1/16scan	1/10scan	1/8scan	1/4scan	1/2scan
Packaging Technology	SMD	SMD	SMD	SMD	SMD	SMD
Installation	Wall mounted/Column mounted /Recessed/Roof top Installation	Wall mounted/Column mounted /Recessed/Roof top Installation	Wall mounted/Column mounted /Recessed/Roof top Installation	Wall mounted/Column mounted /Recessed/Roof top Installation	Wall mounted/Column mounted /Recessed/Roof top Installation	Wall mounted/Column mounted /Recessed/Roof top Installation
Input Voltage	AC220V～AC110V @ 50Hz / 60Hz	AC220V～AC110V @ 50Hz / 60Hz	AC220V～AC110V @ 50Hz / 60Hz	AC220V～AC110V @ 50Hz / 60Hz	AC220V～AC110V @ 50Hz / 60Hz	AC220V～AC110V @ 50Hz / 60Hz
Brightness(cd/㎡)	4500-7500nits	4500-7500nits	4500-7500nits	4500-7500nits	4500-7500nits	4500-7500nits
Max. Power Consumption(w)	900W	900W	900W	900W	900W	900W
Average Power Consumption(w)	260W	260W	260W	260W	260W	260W
Cabinet Weight (kg)	33.5kg	33.5kg	33.5kg	33.5kg	33.5kg	33.5kg
Cabinet Material	Iron	Iron	Iron	Iron	Iron	Iron

Why Choose LEDU Outdoor Advertising LED Display?

For global digital out-of-home (DOOH) media operators, pro-AV integrators, and advertising agencies, selecting the right hardware partner determines the long-term ROI of an outdoor installation.

Shenzhen Ledu Display Co., Ltd. (Ledu Display) manufactures elite-tier visualization hardware engineered specifically to withstand punishing outdoor environments. Here are the four foundational pillars—spanning factory strength, delivery execution, rugged quality, and lifetime support—that make Ledu the premier global choice for your next outdoor advertising led display deployment:

Professional Outdoor Advertising LED Display Manufacturer

LEDU provides professional outdoor advertising LED display solutions for global customers, advertising companies, media operators, system integrators and project contractors. We focus on outdoor LED billboard, DOOH LED display, roadside LED advertising screen, building facade LED display and commercial outdoor LED display projects.
Reliable After-Sales Support for Long-Term Outdoor Operation

Outdoor advertising LED display projects require stable long-term operation. LEDU provides reliable after-sales support for outdoor LED display customers, including installation guidance, control system support, maintenance instructions, spare parts support and technical assistance.
Stable Production Capacity and On-Time Delivery

Delivery time is very important for outdoor advertising LED display projects, especially for billboard installation, media launch schedules, commercial opening dates and government or contractor project timelines. LEDU focuses on efficient order management, stable production arrangement and strict project follow-up. From order confirmation, raw material preparation, LED module production, cabinet assembly, aging test, final inspection to packaging and shipment, every step is managed carefully.
Quality Assurance and Warranty Protection

LEDU outdoor advertising LED display is produced with strict quality control standards. Key components such as LED modules, LED cabinets, power supplies, receiving cards, control systems and cables are carefully inspected before shipment. Each outdoor advertising LED screen goes through brightness testing, color consistency checking, waterproof and dustproof inspection, high refresh rate testing, aging test and final full-screen performance verification.

Application

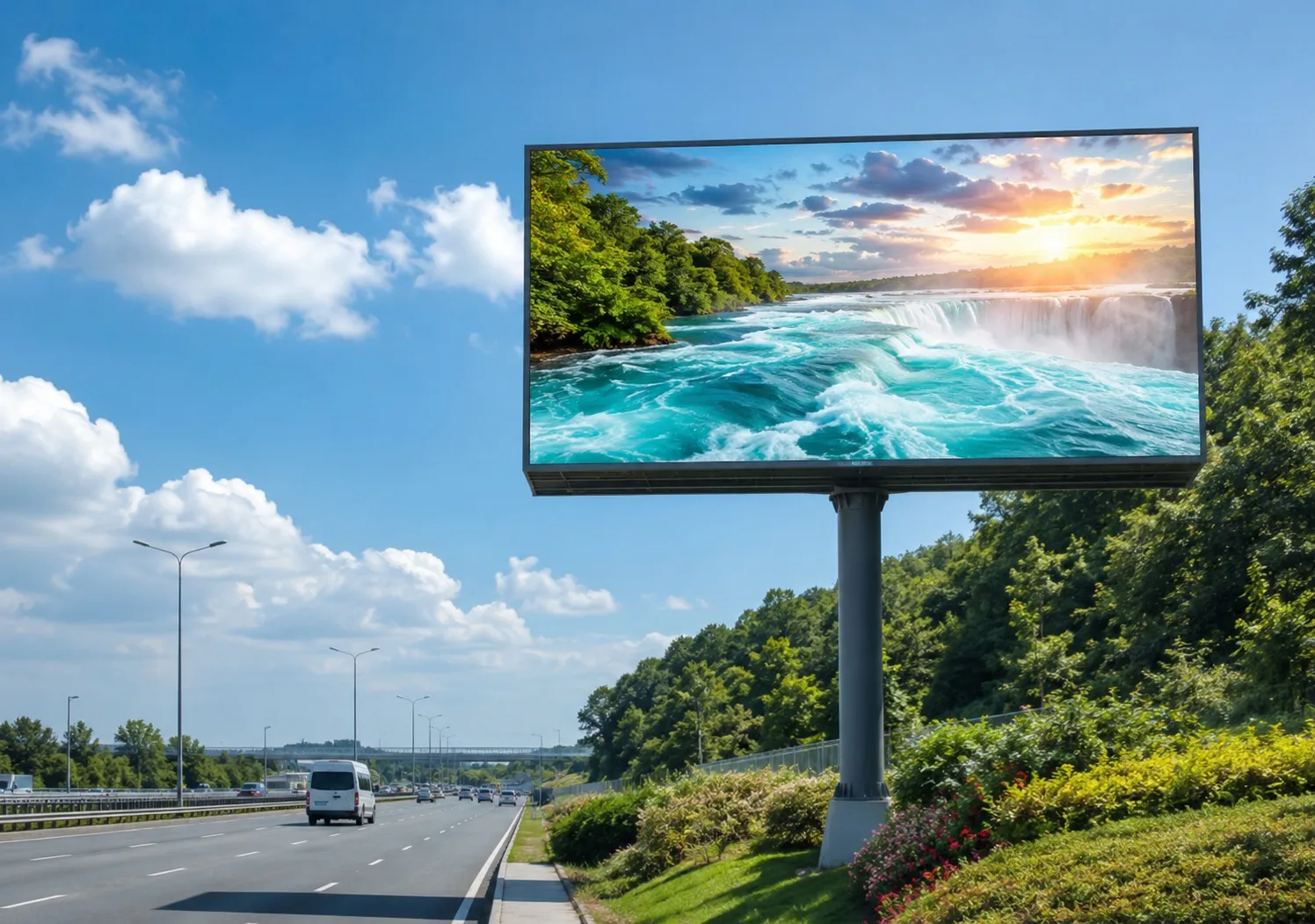

Highway Single Column Outdoor Advertising LED Display Billboard

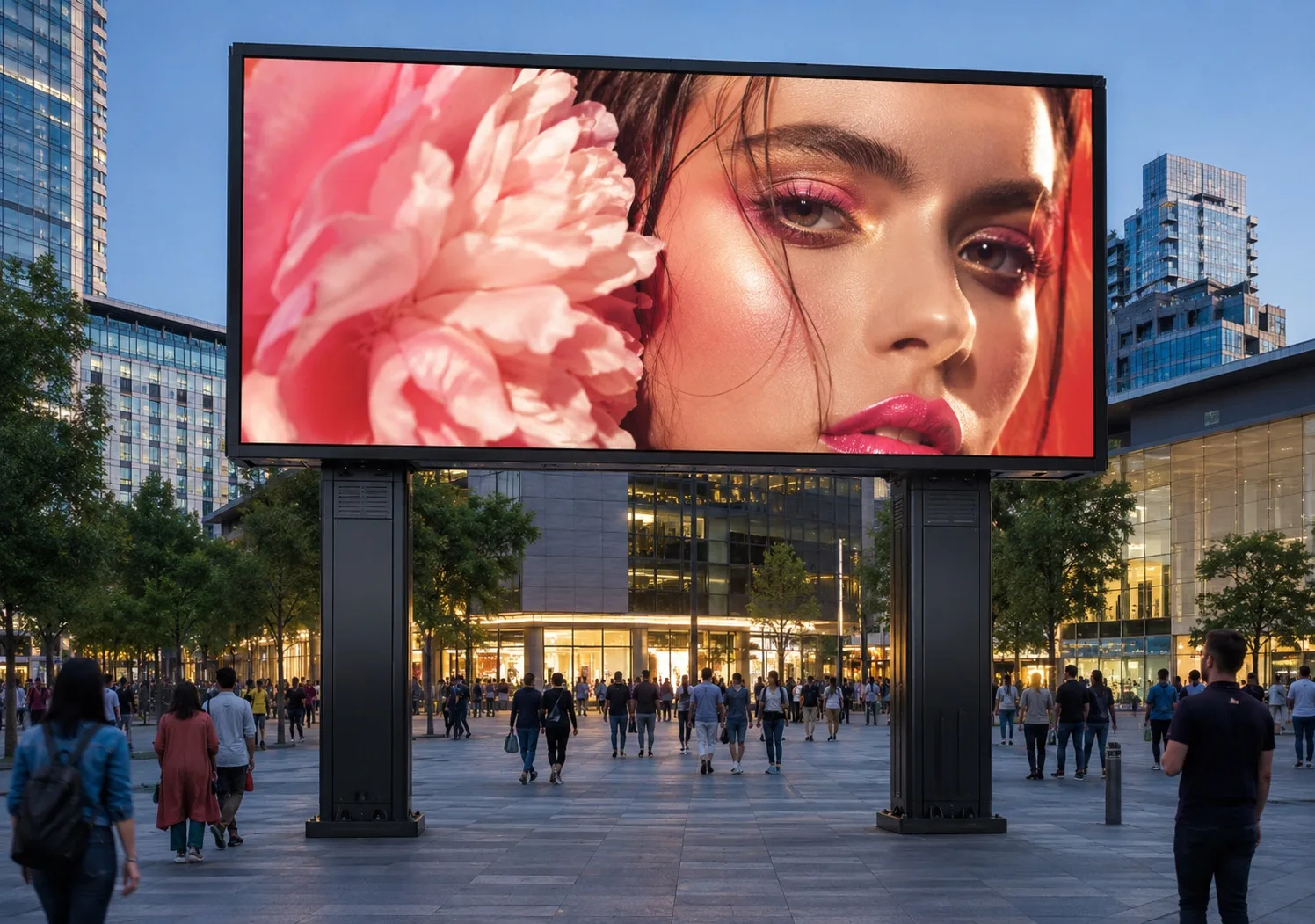

Double Column Outdoor LED Advertising Screen for Urban Plazas

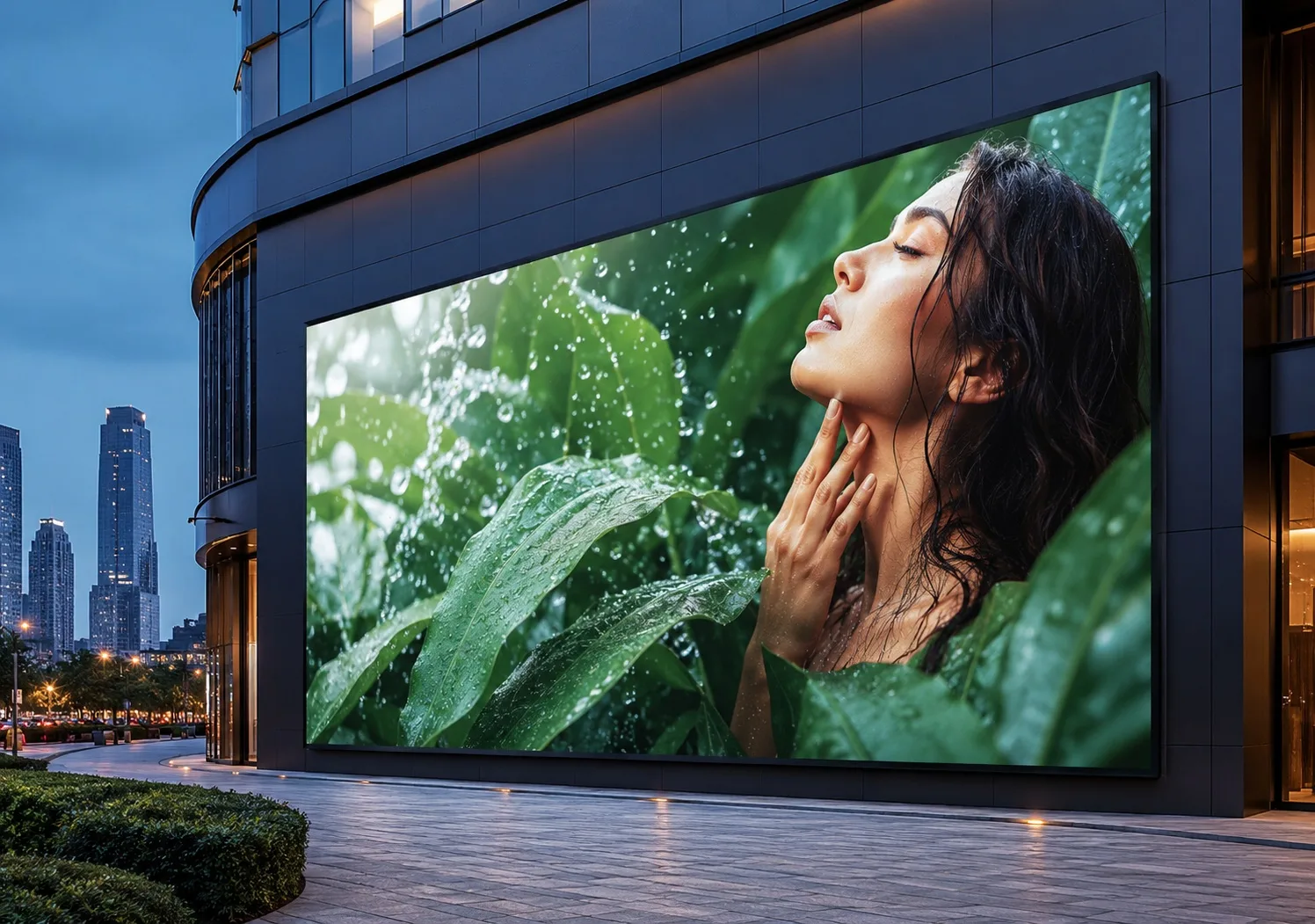

Wall-Mounted Building Facade Outdoor Commercial LED Display Wall

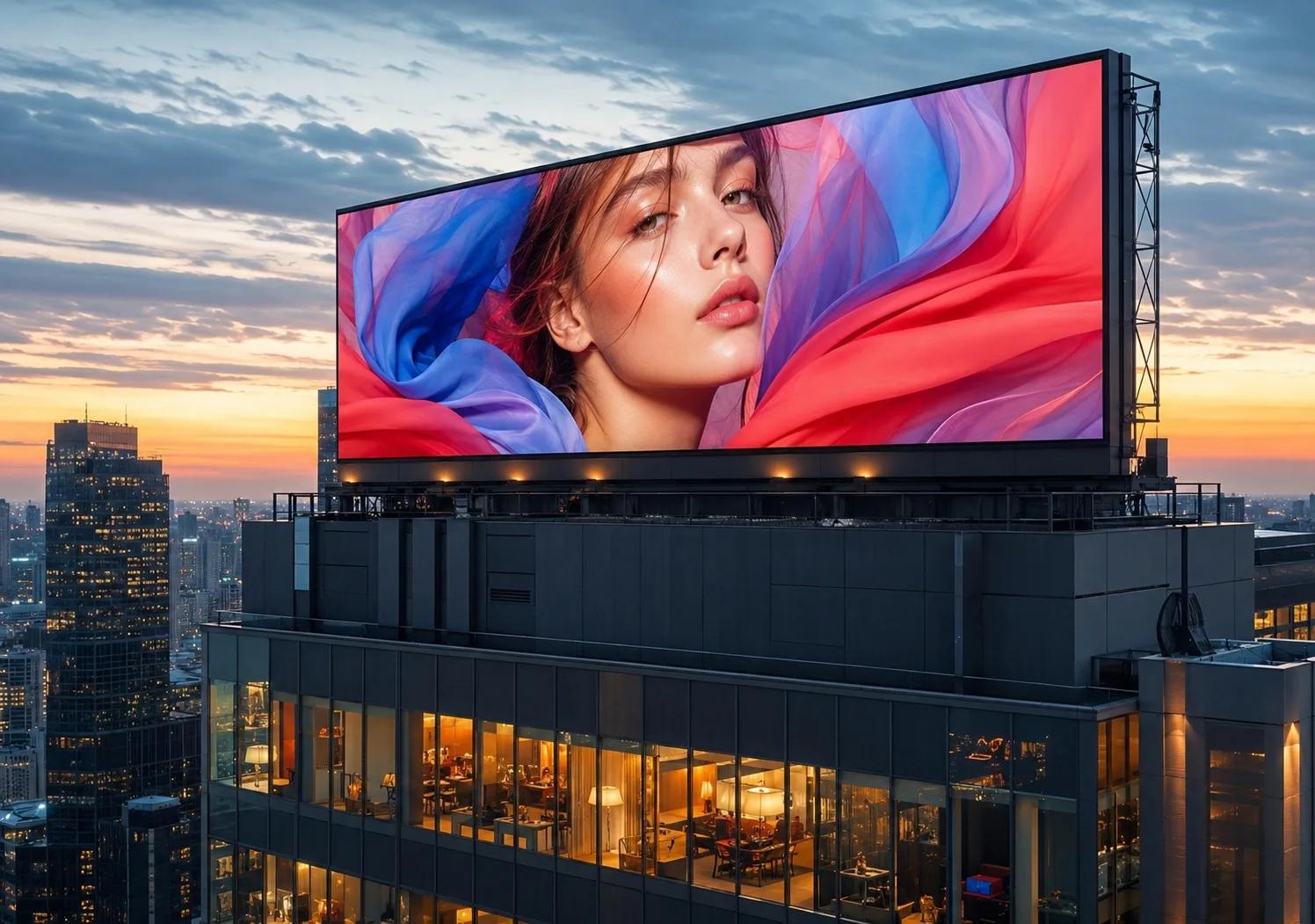

Roof-Mounted Digital Advertising Billboard on Commercial Skyscrapers

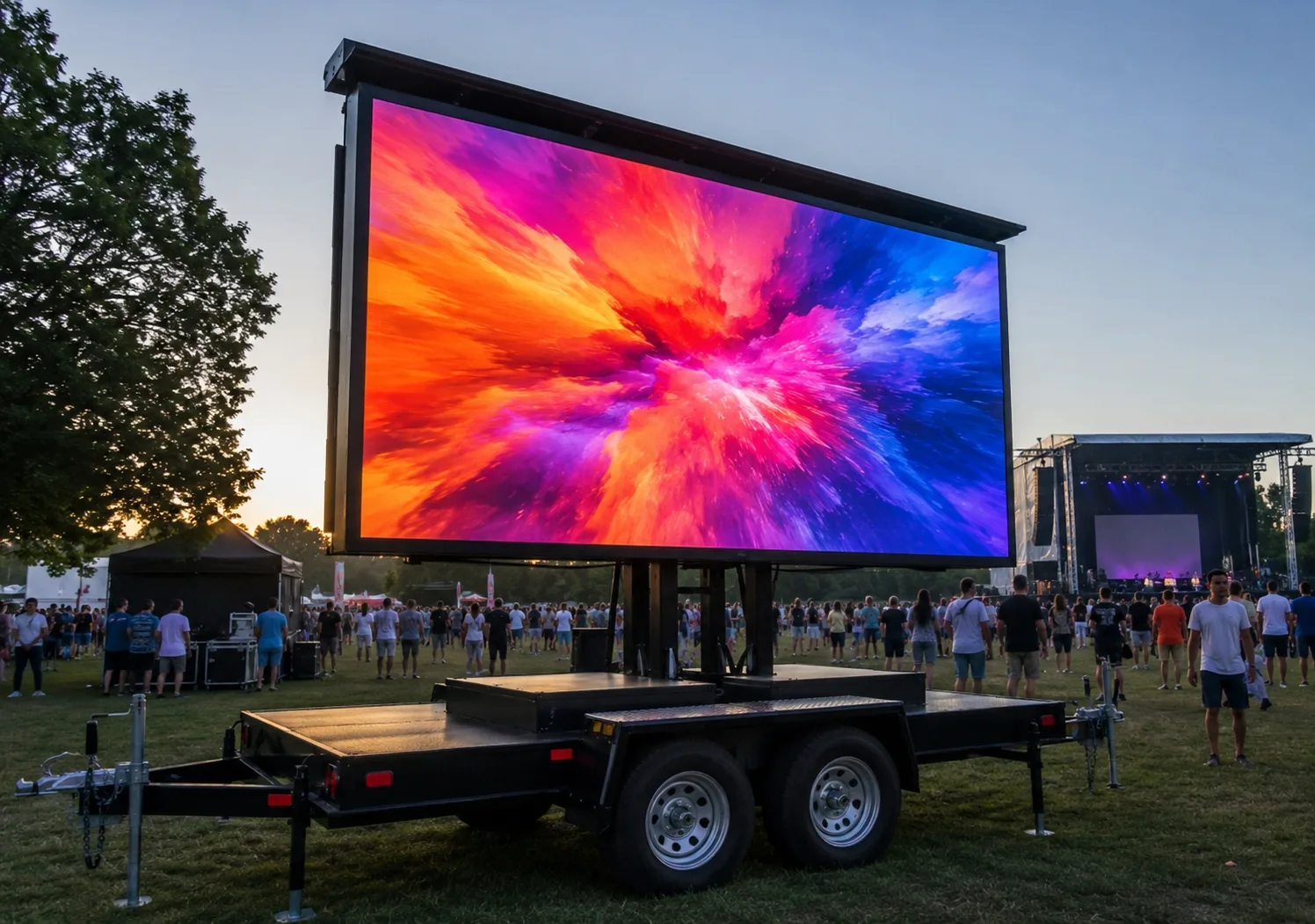

Mobile Trailer-Mounted Outdoor Advertising LED Display for Events

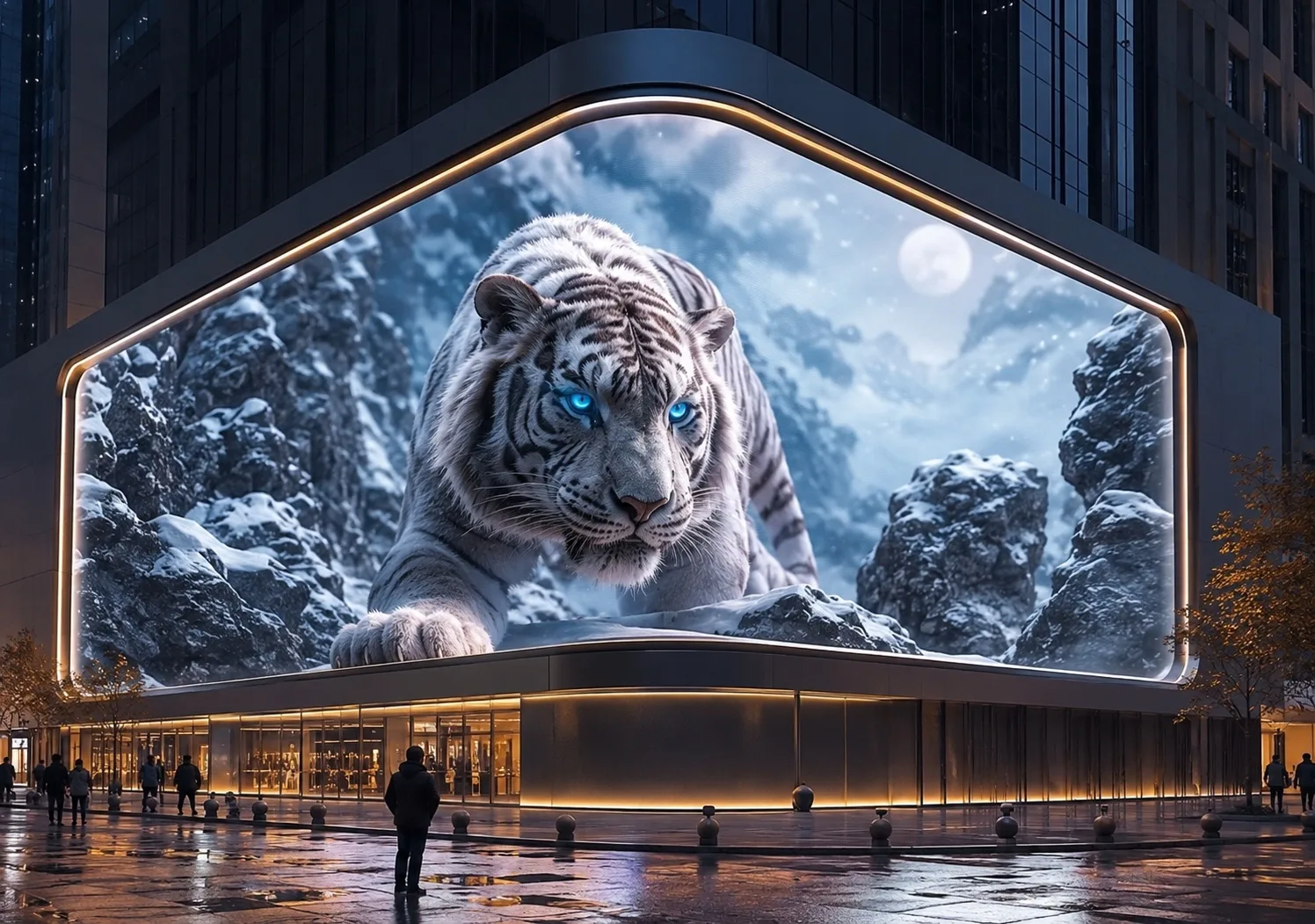

Seamless Curved Corner Outdoor Advertising LED Video Wall for 3D Media

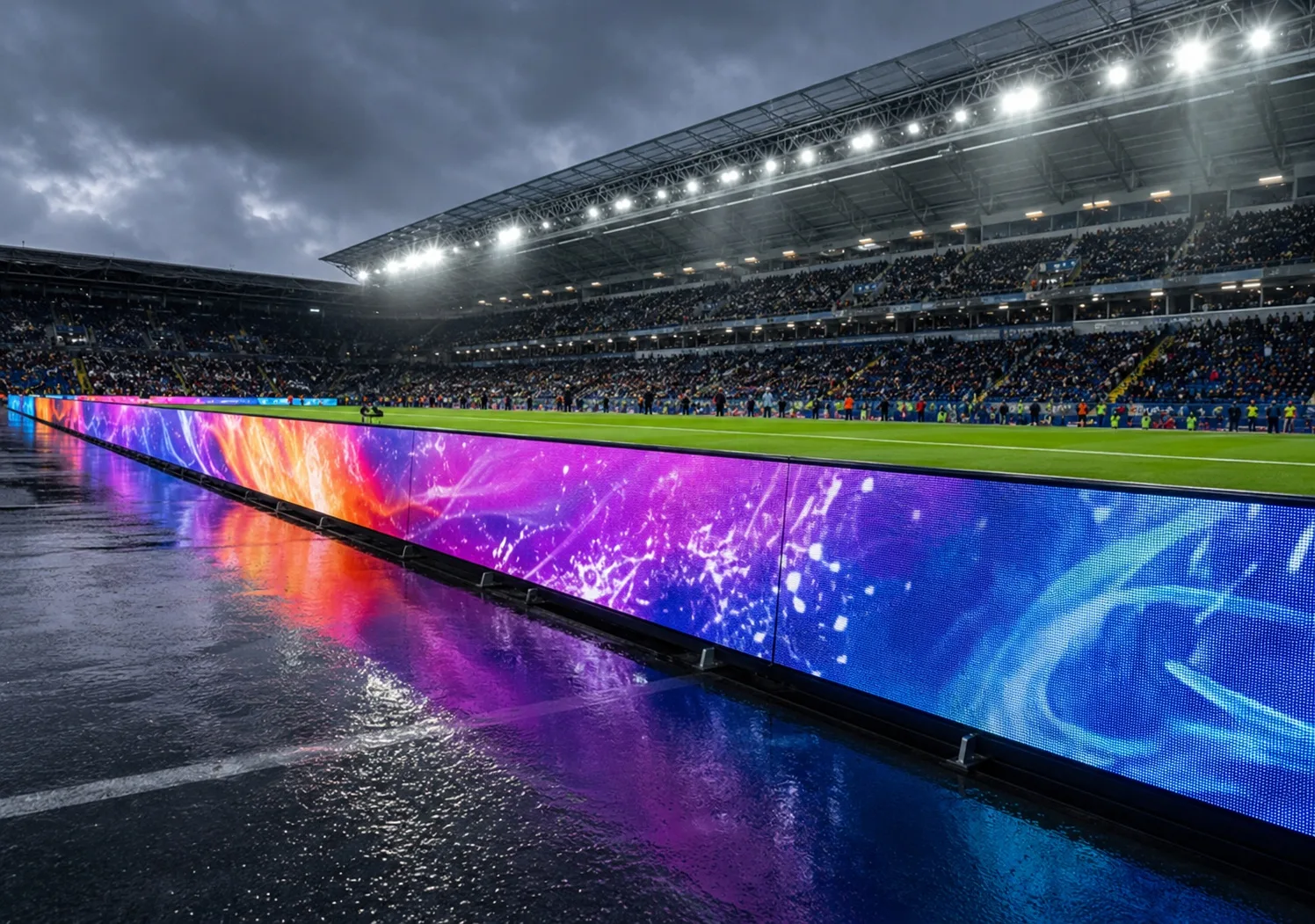

Weatherproof Stadium Perimeter Outdoor RGB LED Display Panel Array

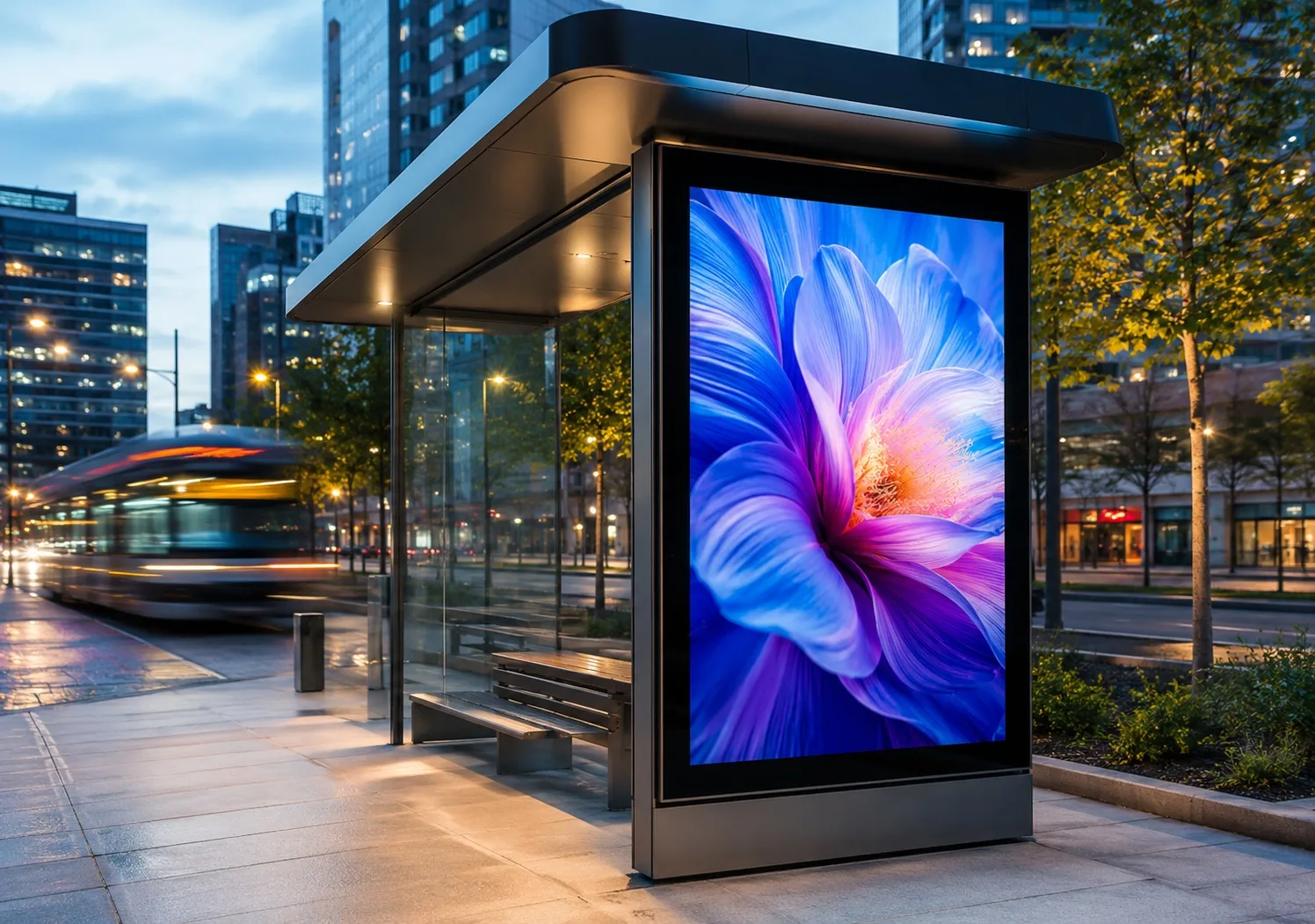

Street Furniture Smart Bus Shelter Outdoor Advertising LED Sign

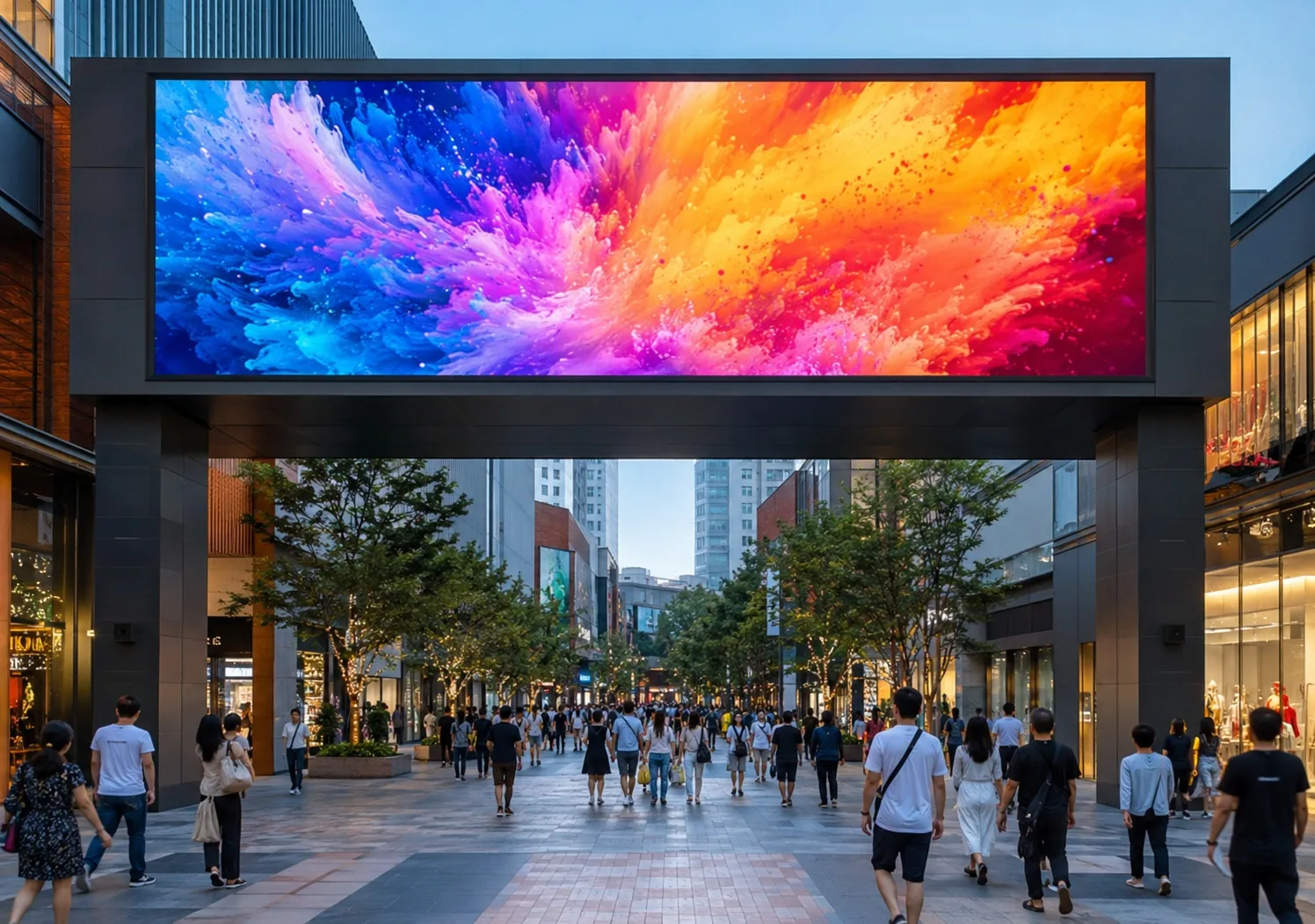

Pedestrian Promenade Gantry Full Color Advertising LED Screen
Gas Station Roadside Advertising LED Display Totem Signage

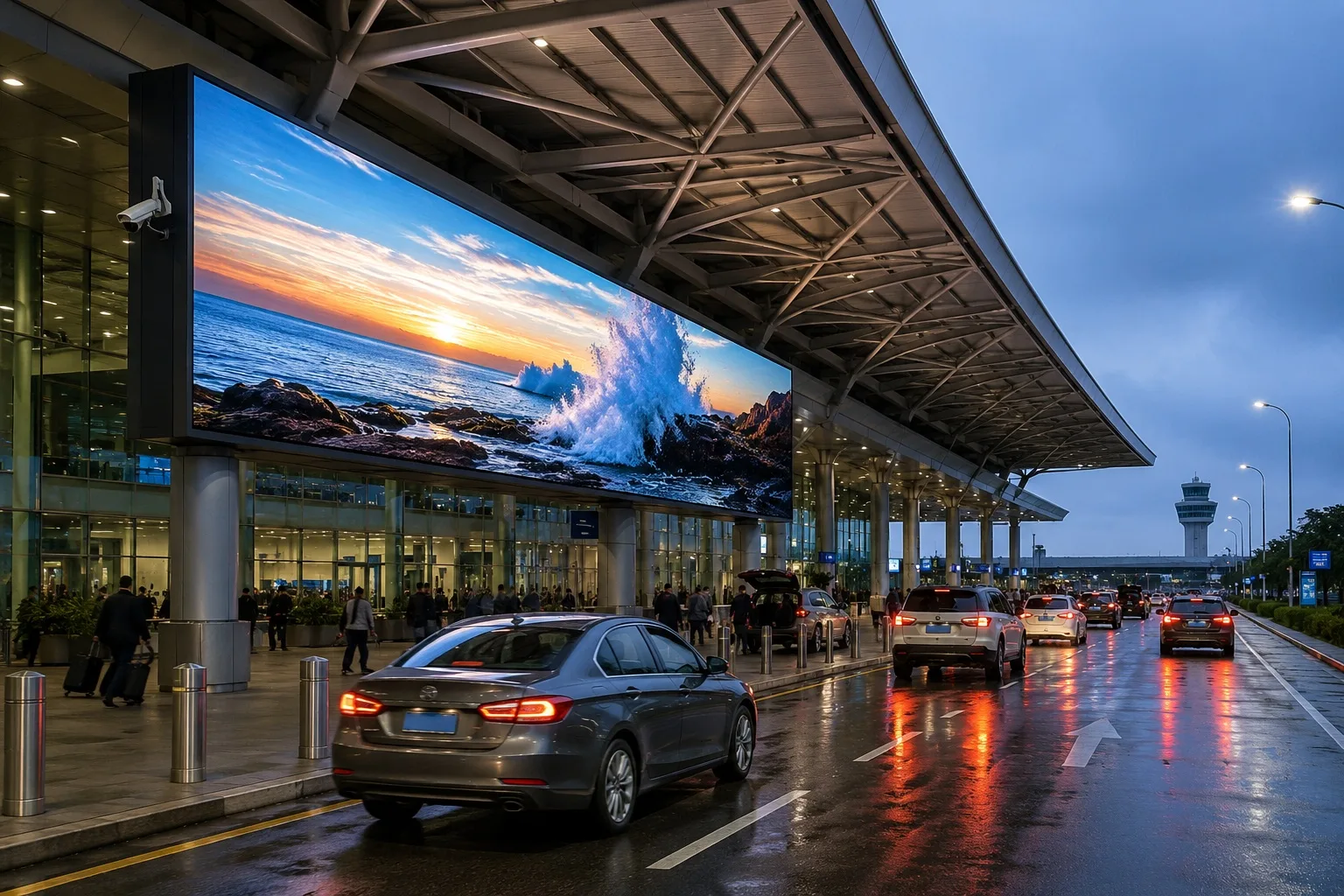

Airport Terminal Drop-off Zone Outdoor Digital Billboard Signage

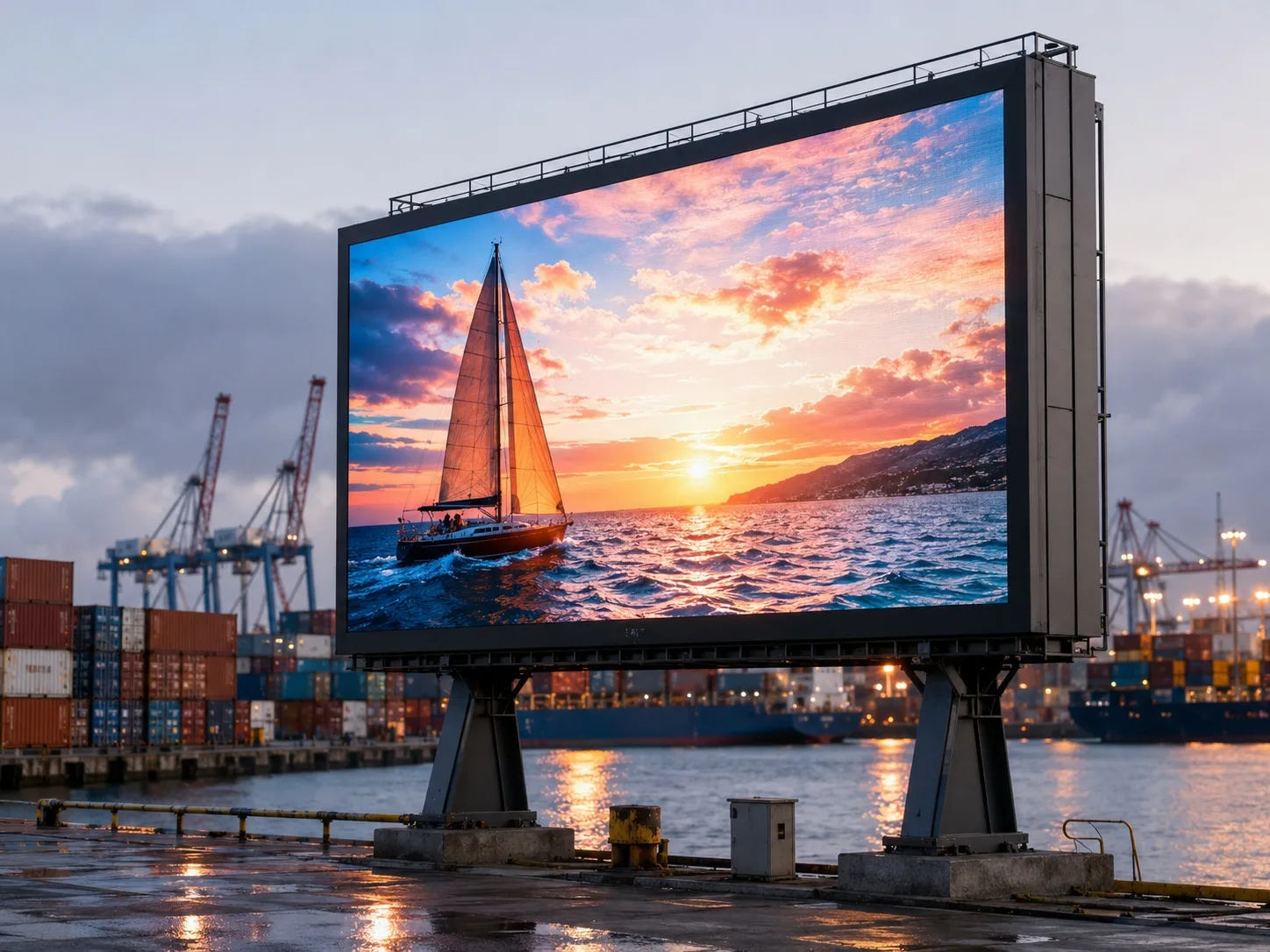

Anti-Corrosion Coastal Port Outdoor Advertising LED Signage Board

FAQ

What is an outdoor advertising LED display?

An outdoor advertising LED display is a high-brightness digital LED screen used for outdoor commercial advertising, brand promotion, public information and DOOH media. It can display videos, images, animations, text and advertising campaigns with vivid color and strong visual impact.

Where can outdoor advertising LED displays be used?

Outdoor advertising LED displays are widely used for digital billboards, roadside advertising, building facades, shopping mall exterior walls, commercial plazas, airports, railway stations, bus stations, stadiums, highways, gas stations, coastal ports and city landmark advertising projects.

What are the main advantages of outdoor advertising LED display?

Outdoor advertising LED display offers high brightness, vivid color, wide viewing angle, dynamic content playback, seamless large-screen splicing and flexible content updates. Compared with traditional printed billboards, an outdoor LED advertising screen can attract more attention and create higher advertising value.

What is the difference between outdoor advertising LED display and indoor LED display?

Outdoor advertising LED display is designed for outdoor environments, so it usually requires higher brightness, waterproof protection, dustproof design, stronger cabinet structure and better heat dissipation. Indoor LED displays focus more on high resolution and close viewing distance.

What pixel pitch should I choose for an outdoor advertising LED display?

The best pixel pitch depends on viewing distance, screen size and project budget. Common outdoor advertising LED display pixel pitches include P3, P3.91, P4, P5, P6, P8 and P10. For closer viewing distance, a smaller pixel pitch is recommended. For highways and long-distance viewing, a larger pixel pitch can be more cost-effective.

What brightness is recommended for outdoor LED advertising screens?

Outdoor LED advertising screens usually require high brightness to remain clearly visible in daylight. The brightness can be customized according to sunlight exposure, installation direction, viewing distance and application environment. High-brightness outdoor LED displays are ideal for roadsides, commercial plazas and building advertising.

Is outdoor advertising LED display waterproof?

Yes. A professional outdoor advertising LED display should have waterproof and dustproof protection for outdoor use. LEDU outdoor LED displays can be designed with weather-resistant cabinets, sealed modules, waterproof power connections and reliable drainage structures to support long-term outdoor operation.

Can outdoor advertising LED display work in rain?

Yes. A high-quality outdoor advertising LED display can operate normally in rainy conditions when it is properly designed, installed and protected. Waterproof modules, sealed cabinets, stable power supplies and professional installation are important for reliable outdoor performance.

Can outdoor advertising LED display be used in coastal areas?

Yes. For coastal areas, ports and humid environments, outdoor advertising LED displays should use anti-corrosion cabinet design, moisture-resistant protection and stable outdoor components. This helps reduce corrosion risk caused by salt spray, humidity and harsh weather.

Does outdoor advertising LED display support remote content updates?

Yes. Depending on the control system configuration, outdoor advertising LED display content can be updated remotely through network control, computer software or cloud-based media management systems. This is useful for advertising companies, DOOH media operators and commercial property owners.

Can outdoor LED advertising screens play videos?

Yes. Outdoor LED advertising screens can play videos, images, animations, text, brand campaigns, product advertisements and public information. They are suitable for commercial advertising, media operation, event promotion and city information display.

What is a DOOH LED display?

DOOH LED display means Digital Out-of-Home LED Display. It is used for outdoor digital advertising in public spaces such as roadsides, shopping malls, airports, railway stations, city squares, gas stations and commercial buildings. Outdoor advertising LED display is one of the most important products for DOOH media projects.

What installation methods are available for outdoor advertising LED display?

Outdoor advertising LED display can support single-column installation, double-column installation, wall-mounted installation, rooftop installation, building facade installation, trailer-mounted installation, gantry installation, bus shelter installation and customized steel structure installation.

What is a single-column outdoor LED billboard?

A single-column outdoor LED billboard is an outdoor advertising LED display installed on one main support column. It is commonly used along highways, roadsides, commercial entrances, gas stations and open outdoor areas where long-distance visibility is important.

What is a double-column outdoor LED billboard?

A double-column outdoor LED billboard uses two support columns to hold a large outdoor LED advertising screen. It provides better structural support for wide-format LED billboards and is often used in city plazas, highways, shopping centers and commercial districts.

Can outdoor advertising LED displays be installed on building walls?

Yes. Wall-mounted outdoor advertising LED displays can be installed on shopping mall exterior walls, commercial buildings, office towers, hotels and retail storefronts. This installation method helps create strong brand exposure and high-impact outdoor advertising.

How long can an outdoor advertising LED display last?

The service life depends on LED components, power supplies, cabinet quality, brightness settings, working environment and maintenance. With good materials, proper installation, aging testing and regular maintenance, outdoor advertising LED displays can provide stable long-term commercial operation.

How do I maintain an outdoor advertising LED display?

Outdoor advertising LED display maintenance includes checking LED modules, power supplies, receiving cards, cables, waterproof seals, cabinet ventilation, control system and display performance. LEDU can provide front maintenance or rear maintenance solutions according to project requirements.

Why choose LEDU outdoor advertising LED display?

LEDU provides professional outdoor advertising LED display solutions for global customers. We support pixel pitch selection, brightness recommendation, cabinet design, steel structure suggestions, control system configuration, production testing, aging test, packaging, shipment and after-sales support. LEDU helps customers build reliable outdoor LED billboard and DOOH LED display projects.

How can I get a quotation for an outdoor advertising LED display?

To get an outdoor advertising LED display quotation, please provide screen size, pixel pitch, installation location, viewing distance, brightness requirement, installation method, control system requirement and project application. LEDU will recommend a suitable outdoor LED advertising screen solution and provide a competitive factory quotation.
