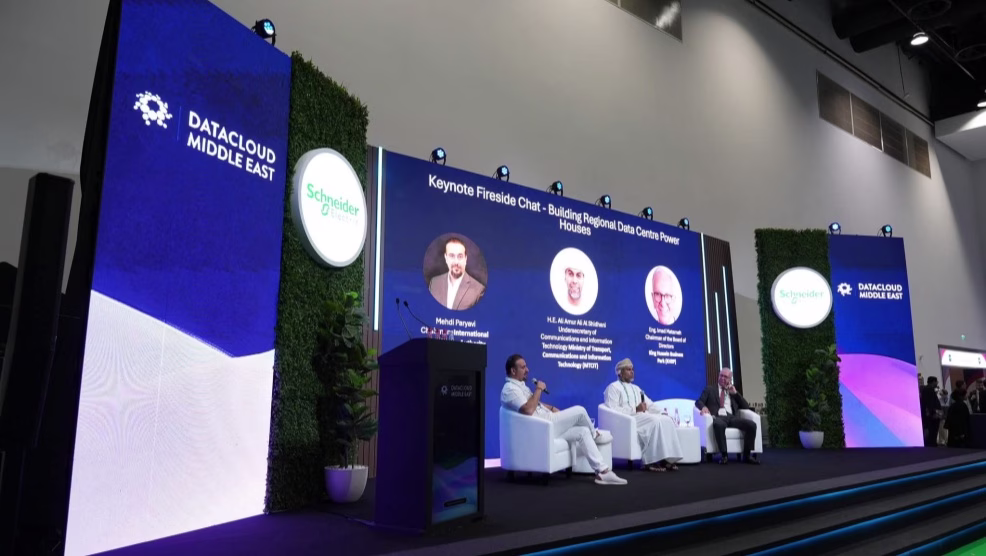

Product Introduction

Welcome to Shenzhen Ledu (LEDU) Display Co., Ltd., your trusted manufacturer of high-end digital visual solutions. In the fast-paced event production industry, equipment reliability, rapid deployment, and flawless visual performance are non-negotiable. Our indoor and outdoor rental LED displays are engineered specifically to meet the rigorous demands of global touring, high-profile corporate events, and live broadcasting.

Designed with precision-crafted die-cast aluminum cabinets and cutting-edge visual technology, LEDU event LED screens guarantee an unforgettable immersive experience while maximizing the Return on Investment (ROI) for AV rental companies.

Inquire

Rental LED Display

Explore Ledu’s comprehensive range of Rental LED Displays, available in various pixel pitches from high-definition Indoor P1.9/P2.6 to high-brightness Outdoor P3.91/P4.81. Our product list features versatile, modular cabinets designed to meet the diverse visual requirements of global touring, stage events, and commercial exhibitions.

Church LED Display

Application Scenario: Churches use LED walls to display song lyrics, sermon notes, and live feeds of the pastor for larger congregations. They often require a solution that balances high performance with budget sensitivity.

Send Inquiry Now>

Concert LED Display

Application Scenario: Outdoor music festivals require massive visual displays that can compete with direct sunlight and withstand unpredictable weather. These screens serve as the main stage background, delivering high-energy visuals and live camera feeds to thousands...

Send Inquiry Now>

Product Features

Ultra-Lightweight & Slim

Crafted from high-precision die-cast aluminum, our cabinets weigh as little as 7kg, allowing for reduced shipping costs and easier handling by stage crews.
Anti-Collision Corner Protection

Rental screens face rough handling during transport. Ledu Display integrates flip-out corner protectors that shield the fragile LED lamps at the four corners of the cabinet. This simple yet critical feature prevents pixel damage during ground stacking, saving you thousands in repair costs.
High-Precision Curving

High-precision arc locks allow for -15° to +15° curving (concave and convex), enabling creative stage designs, including wave shapes and circular columns.
High IP Rating / Weatherproof

Engineered for harsh environments, our outdoor cabinets feature IP65/IP66 protection ratings. Fully sealed against heavy rain, dust storms, and humidity, Ledu displays perform stably in extreme weather conditions.
Modular Maintenance

The fully modular design allows for front and rear maintenance of the power box and modules, ensuring instant repairs during live events.
Seamless Splicing

Unlike LCD video walls with visible bezels, Ledu LED displays offer a completely seamless visual experience. Our precision-engineered modules connect perfectly to create infinite screen sizes without any visual gaps, providing a unified and immersive viewing experience.
High Refresh Rate

Designed for professional cameras and live broadcasting, our screens feature a high refresh rate of 3840Hz to 7680Hz. This technology eliminates scanning lines and flickering during photo shoots or video recording, making it ideal for sports events, concerts, and TV studios
Ultra-Long Lifespan

Built to last, our LED displays boast an operational lifespan of over 100,000 hours. With high-quality components and superior heat dissipation designs, Ledu screens are a long-term investment that runs reliably 24/7 for over a decade.
Wide Viewing Angle

Maximize your audience reach with our 160° horizontal and 140° vertical viewing angles. Whether viewers are standing to the side or looking up at a billboard, the image quality remains consistent with no color shift or brightness loss.
High Grayscale & Contrast Ratio

Experience true-to-life colors with 16-bit grayscale processing and high contrast ratios (up to 5000:1). Our displays deliver deep blacks and vibrant colors, ensuring superior image depth and detail even in low-light environments

Basic Components of Rental LED Displays

LED Beads (LED Chips)

The core display element of an LED screen that converts electrical signals into light signals. By combining red, green, and blue (RGB) LEDs, it produces a full spectrum of colors and brightness levels, forming the foundation of image and video display for indoor/outdoor LED screens.

Driver IC (Integrated Circuit)

A critical control chip that regulates the on/off state and brightness of LED beads, manages pixel grayscale and color output precision. It ensures stable, high-fidelity image reproduction and uniform brightness across the entire LED display panel.

PCB Board (Printed Circuit Board)

The main circuit carrier for LED beads, driver ICs, capacitors, and other electronic components. It provides electrical connection pathways to transmit power and data signals between components, enabling seamless signal distribution across LED modules.

Back Cover (Bottom Shell)

A structural and protective component for the LED module. It secures the PCB board and internal parts, reduces electromagnetic interference (EMI) that could disrupt signal transmission, and supports heat dissipation—ensuring stable performance during software calibration and long-term operation.

Mask (LED Display Face Cover)

Covers the LED beads to reduce glare and improve contrast. During calibration, the software accounts for the mask’s light-diffusing properties to adjust brightness and color accuracy, ensuring the final image has sharp details and uniform visual effects across the screen surface.

Waterproof Gasket (Sealing Ring)

A rubber/sealing component used in gaps of LED display cabinets and connectors. It blocks water, dust, and moisture from entering the internal circuitry, enhancing the IP rating (e.g., IP65/IP67) of outdoor LED displays and extending their service life. Flexible Flat Cable A thin, flexible flat cable for short-distance signal transmission—typically between LED modules and receiving cards, or between adjacent modules. It enables fast, stable data transfer and saves space in compact LED display installations. Red and Black Power Cables The red cable carries positive DC current, and the black cable carries negative DC current. They deliver stable power from the power supply to LED beads, driver ICs, receiving cards, and other active components, ensuring consistent power distribution for the LED display.

LED Power Supply

Converts mains AC (110V/220V) to low-voltage DC (5V/12V) for the display. The calibration software can detect voltage fluctuations via the control system; the power supply maintains stable output to support the software’s tuning of brightness and refresh rate without signal distortion.

Receiving Card (LED Display Control Card)

Receives calibrated video data from the LED processor, decodes it according to the software’s settings (e.g., resolution, pixel mapping), and distributes it to individual LED modules. It is the bridge between the software’s tuning commands and the physical display hardware.

LED Cabinet

The physical frame that houses LED modules, power supplies, receiving cards, and other components. It ensures structural stability of the LED screen, supports heat dissipation, and facilitates easy installation, maintenance, and cabinet splicing for large LED displays.

LED Video Processor

Processes input video signals (HDMI, SDI, DVI) and adapts them to the LED display’s specifications (resolution, aspect ratio) based on software settings. It executes the software’s commands for image scaling, PIP (picture-in-picture), and signal splicing, delivering a unified video source to the receiving cards for the final display.

LED Screen Calibration Software

Core Role in Creating a Complete Large-Screen Image . LED display calibration software is the central control tool that unifies all hardware components to produce a cohesive large-screen image.

Rental LED Module Differrent Series

Standard Rental LED Display Modules

Standard Rental LED Modules are the industry workhorse for events, utilizing mature SMD (Surface Mounted Device) technology. Designed for versatility, these modules typically come in standard sizes (250x250mm) to fit various die-cast aluminum cabinets.
Ledu Display’s Standard Rental Modules feature premium black-shell LEDs for high contrast and high-performance driver ICs delivering 3840Hz or 7680HZ refresh rates. Equipped with strong magnets, they support fully front-accessible maintenance, allowing technicians to swap out a module in seconds during a live show. They offer the perfect balance of cost, resolution, and brightness for concerts and corporate events.

Key Advantages:

Cost-Effective: The most affordable solution for mainstream events.

Easy Maintenance: Universal size and magnetic design.

High Color Consistency: Excellent uniformity for large-scale video walls.

Rental Flexible LED Modules

Rental Flexible LED Modules (Soft Modules) are designed to break the limitations of rigid screens. Made with high-resilience Flexible PCBs and silicone rubber masks, these modules can bend to create convex, concave, or S-shaped waves without damaging the LEDs. Ledu Display’s Soft Rental Modules are engineered with strong magnetic backings to attach securely to curved metal frames. They are essential for creative stage designs, allowing AV rental companies to build columns, arches, and ribbons that standard flat panels cannot achieve. Despite their flexibility, they maintain high definition and color accuracy.

Key Advantages:

Creative Shaping: Perfect for cylinders, waves, and artistic designs.

Durable Flexibility: Withstands repeated bending without cracking.

Seamless Curve: No gaps or dark lines when bent.

Rental GOB LED Modules

Rental GOB (Glue On Board) Modules are the ultimate solution to the most common rental pain point: dead pixels caused by impact. GOB technology applies a layer of advanced optical thermal conductive epoxy resin over the surface of the SMD LEDs. Ledu Display’s GOB Modules form a hardened protective shield that makes the screen shockproof, waterproof (IP65 front), and dustproof. For touring companies that transport screens frequently, GOB significantly reduces repair costs by protecting the LED lamps from knocks during setup, dismantling, and flight case transport.

Key Advantages:

Super Protection: Highly resistant to collision and impact (“Anti-Knock”).

Moisture Proof: Prevents humidity oxidation in outdoor environments.

Easy Cleaning: The smooth surface can be wiped clean with a cloth.

Rental HOB LED Modules

Rental HOB (High-Protection On Board) Modules are an evolution of protection technology, often considered a premium version of coating. HOB utilizes a specialized nano-material coating that not only protects the LEDs but also enhances optical properties. Unlike some glossier coatings, Ledu Display’s HOB Modules feature a matte surface finish. This significantly reduces light reflection from stage spotlights, increasing the contrast ratio and ensuring deep blacks. It offers the impact resistance of GOB but with superior visual performance for high-end TV studios and camera-focused events.

Key Advantages:

Matte Finish: No reflection or glare under studio lights.

Enhanced Contrast: Deeper blacks for better image quality.

Precision Protection: Protects against sweat, dust, and minor impacts.

Rental COB LED Modules

Rental COB (Chip On Board) Modules represent the cutting edge of display technology. Instead of packaging chips into individual cases (SMD), the LED chips are mounted directly onto the PCB board and encapsulated as a single smooth unit. Ledu Display’s COB Rental Series allows for ultra-fine pixel pitches (P0.9 to P1.9) with unmatched durability. The Flip-Chip technology ensures superior heat dissipation and stability. Because the surface is fully sealed, COB modules are completely waterproof, dustproof, and collision-resistant, making them the only safe choice for 4K/8K fine-pitch rental screens where fragile SMDs would easily break.

Key Advantages:

Highest Reliability: Near-zero failure rate (low dead pixel ratio).

Visual Comfort: Surface light source reduces eye strain (no moiré).

Ultimate Durability: Withstands cleaning, water, and hard impact.

Rental LED Module Differrent Pixel Pitch

RENTAL FULL COLOR SERIES

P2.604-24S SMD

FEATURES
1. Fully outdoor waterproof design, widely used in rental display.
2. SMD1415, high contrast.
3. High Quality ICN2153IC, more vivid images.
4. 250*250mm standard module size, perfect for screen pixel upgrade.
5. Private mould, seamless design, high consistency.
6. 25% – 30% Energy saving, less heat, longer lifespan.

P2.976-21S SMD

FEATURES
1. Fully outdoor waterproof design, widely used in rental display.
2. SMD2020, high contrast.
3. Double latch IC, more vivid images.
4. 250*250mm standard module size, perfect for screen pixel upgrade.
5. Private mould, seamless design, high consistency.
6. 25% – 30% Energy saving, less heat, longer lifespan

P3.91-16S SMD

FEATURES
1. Fully outdoor waterproof design, widely used in rental display.
2. SMD1921, high contrast.
3. Double latch IC, more vivid images.
4. 250*250mm standard module size, perfect for screen pixel upgrade.
5. Private mould, seamless design, high consistency.
6. 25% – 30% Energy saving, less heat, longer lifespan

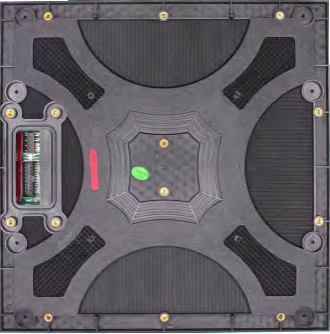

P4.81-13S SMD

FEATURES
1. LEDS: SMD 1921mm, lead-free, RoHS compliant, water-resistant (IPX8), high contrast, stablelight output.
2. Selected dual lathed driver IC, high contrast ratio, vivid and more accurate color reproduction.
3. IP65 protection grade.
4. Universal 250x250mm module fixture; upgrade feasible.
5. More energy-saving driver IC, saving up to 30% of power consumption, is available upon request.

Rental LED Module Differrent Sizes

At Shenzhen Ledu Display, we offer a comprehensive range of rental LED module sizes to ensure universal compatibility with the global market’s leading die-cast aluminum cabinets. Whether you are upgrading your inventory or replacing spare parts, selecting the correct module dimension is crucial for seamless assembly.

250mm x 250mm(P2.604, P2.976, P3.91, P4.81)
500mm x 250mm ( P3.91, P4.81, P5.95)
248mm x 248mm( P1.9, P2.0, P2.9)
192mm x 192mm(P3, P6)
320mm x 160mm(2, P2.5, P3.076, P4, P5）

Cabinets for Rental LED Displays

Explore Shenzhen Ledu Display’s full range of Die-Cast Aluminum Rental Cabinets. Featuring 500x500mm, 500x1000mm, 576x576mm, 640x640mm, and 496x496mm sizes for lightweight, seamless stage video walls. Shenzhen Ledu Display creates the backbone of spectacular stage events with our premium Die-Cast Aluminum Rental Cabinets. Engineered via high-precision CNC processing, our cabinets offer extreme flatness (<0.1mm tolerance), rapid heat dissipation, and ultra-lightweight portability. We offer five distinct cabinet dimensions to suit every AV rental inventory and stage design requirement

The Global Standard Series (500x500mm & 500x1000mm)

500mm x 500mm: The most versatile cabinet in the industry. Weighing only 7kg, it features -15° to +15° high-precision curving locks for creative convex and concave shapes. Perfectly compatible with 250x250mm modules.

500mm x 1000mm: The “Speed Master.” Twice the height of the standard panel, this 1-meter cabinet cuts installation time by 50% for large outdoor festivals.

Unique Advantage: These two sizes support Mixed Splicing (Vertical & Horizontal). You can combine them to create creative screen heights (e.g., 2.5m, 3.5m) and unique geometric stage designs.

The Classic Indoor Series (576mm x 576mm)

Designed specifically for 192x192mm modules, the 576x576mm cabinet is a classic standard for indoor corporate events and conferences.

The Universal Value Series (640mm x 640mm)

The bridge between fixed and rental. This cabinet is engineered to fit the universal 320x160mm module (the most common module size in the world).

The High-Precision Series (496mm x 496mm)

A specialized compact cabinet designed for high-end indoor applications using 248x248mm modules.

QuickStage Series

FlexStage Plus Series

RentaView Pro Series

EventPro Series

BrightVenue P Series

StageHire Series

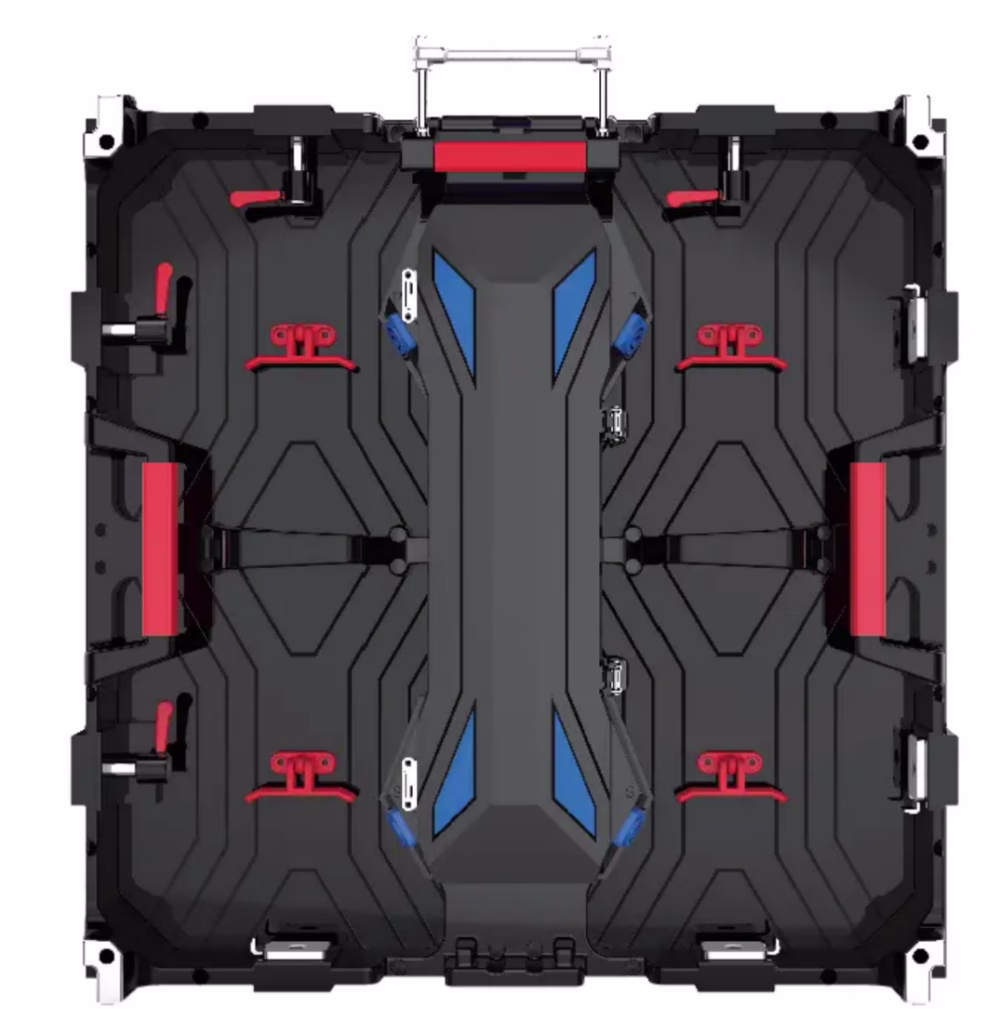

TourPro 576 Series

StageMatrix 576 Series

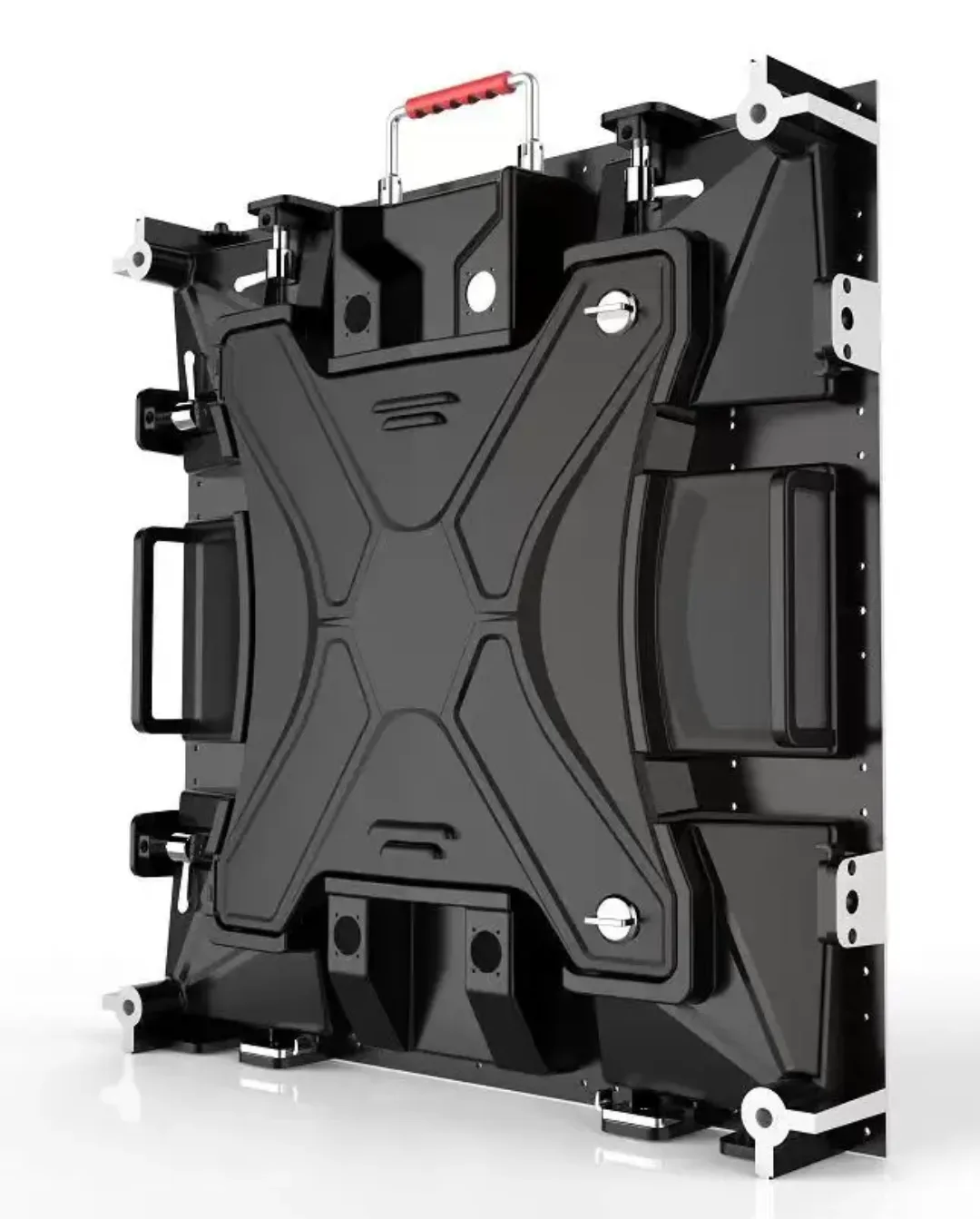

CubePro 576 Series

ApexMatrix 640 Series

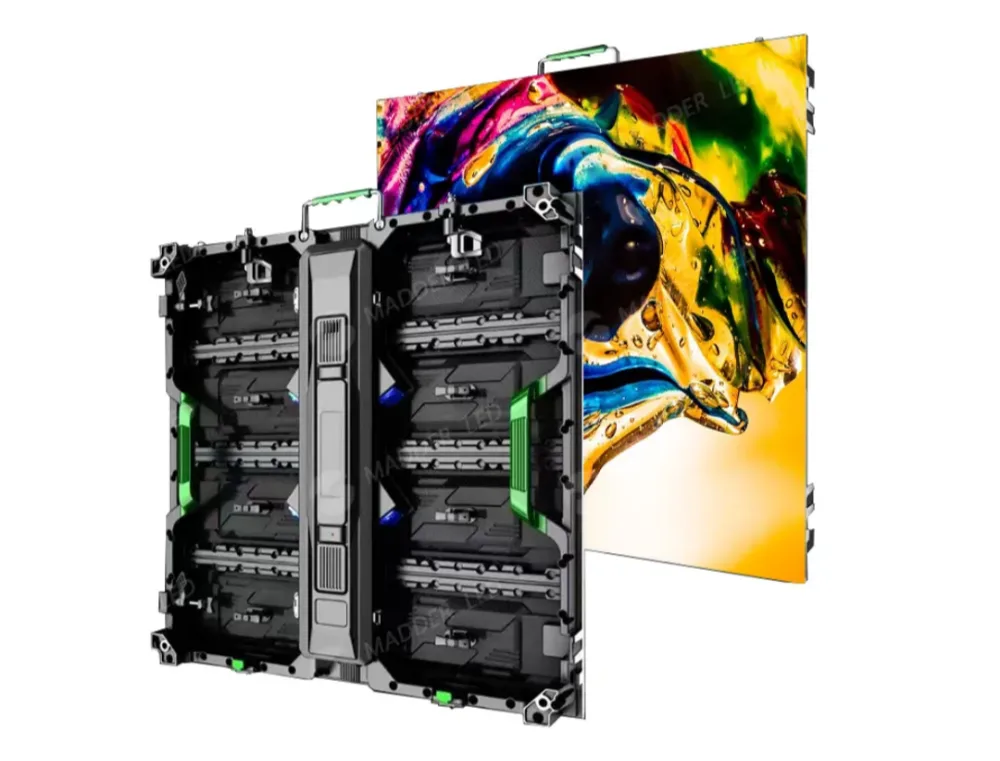

EliteVision 640 Series

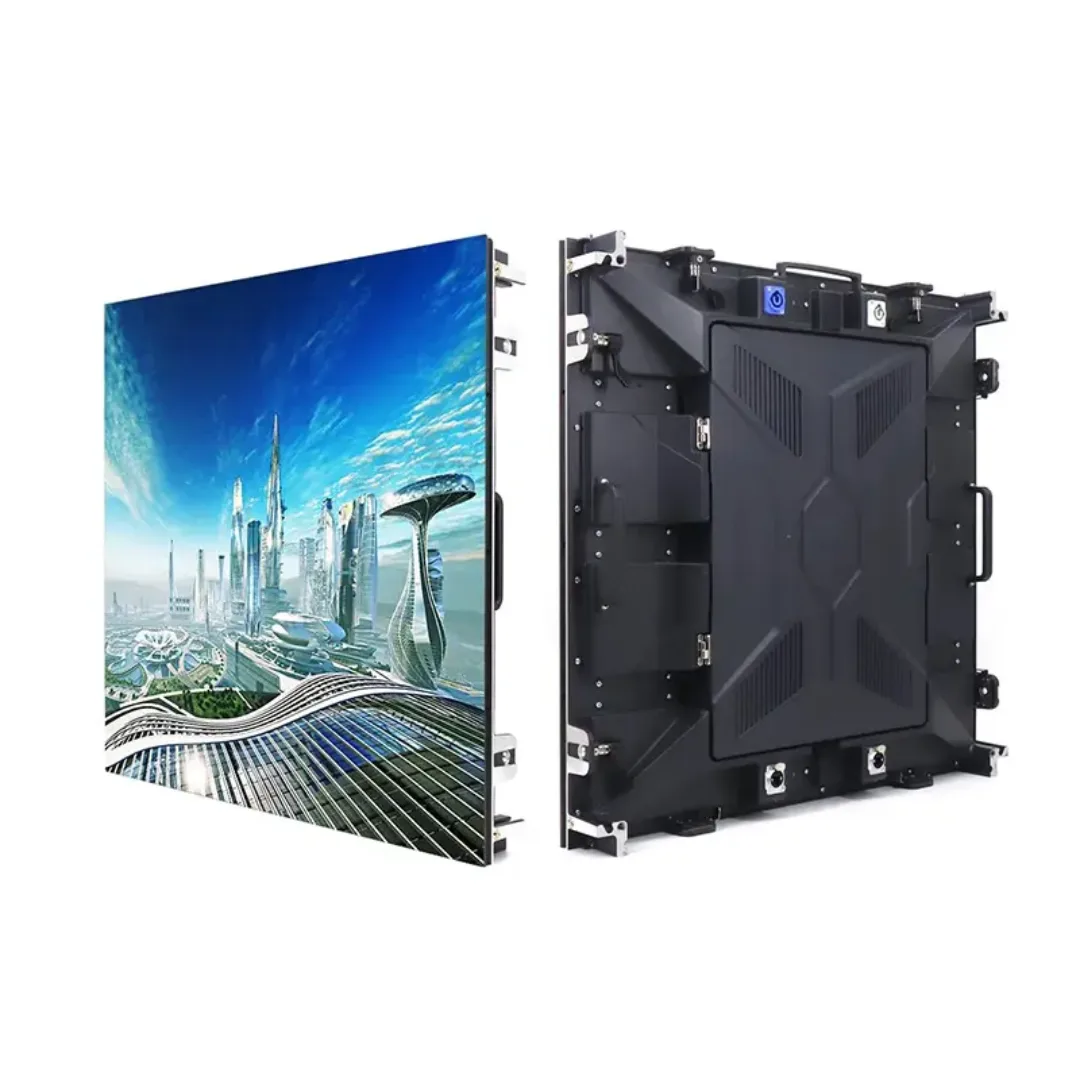

NexusPro 640 Series

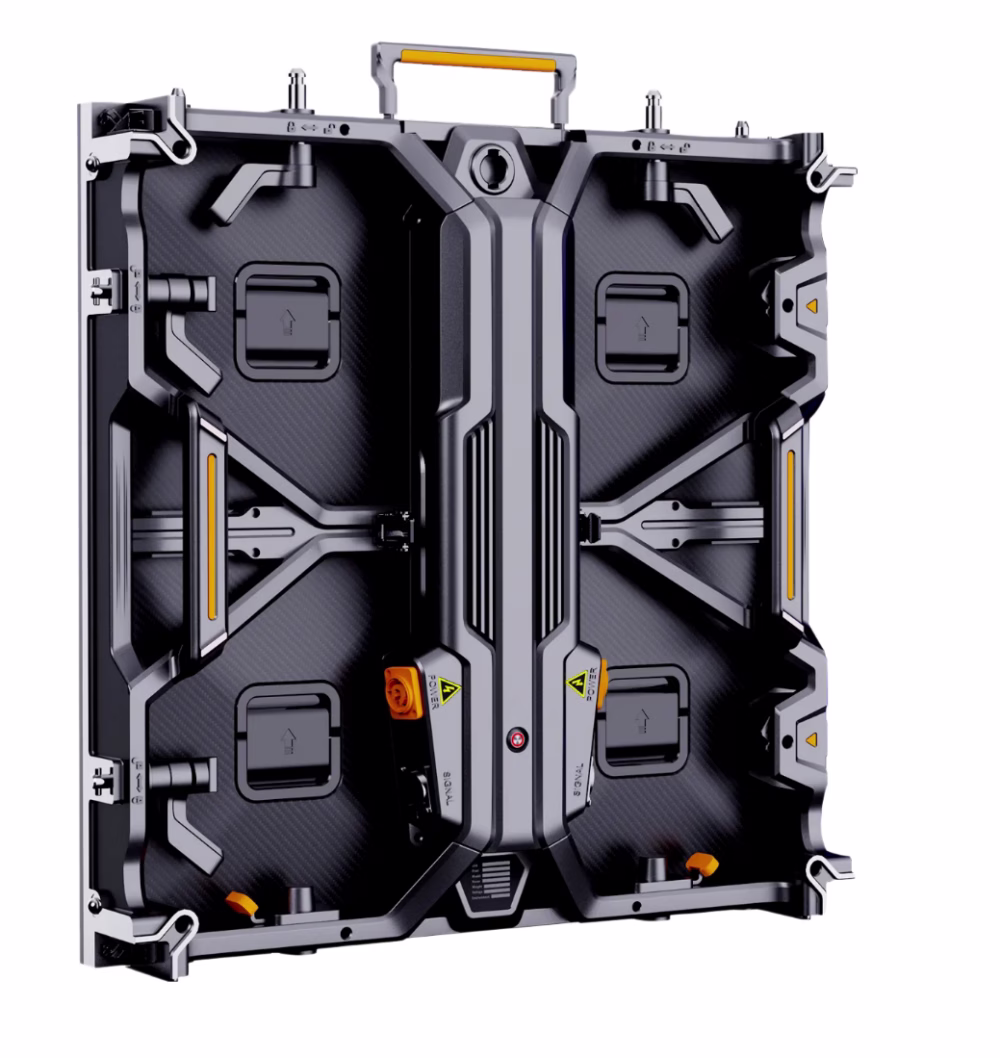

MiniFlex Series

Installation Types for Rental LED Displays

At Shenzhen Ledu (LEDU) Display Co., Ltd., we understand that in the event rental industry, every second counts. Our indoor and outdoor rental LED displays are engineered with a user-friendly design to ensure a high-speed setup and teardown process. Whether you are managing a high-profile concert, a corporate gala, or an international trade show, LEDU provides versatile rental LED video wall installation options to fit any venue requirement.

Hanging LED Display Installation: For large-scale concerts and music festivals, the hanging rental LED display is the industry standard. Utilizing heavy-duty hanging bars (flying bars) and professional truss systems, our lightweight die-cast aluminum cabinets are lifted into the air.

Stacking Rental LED Display Installation: When overhead rigging is not an option, the ground-stacked LED video wall provides a stable and impressive alternative. This method uses a specialized base frame and rear reinforcement structures to build the screen from the floor up.

Wall-Mounted (Permanent or Semi-Permanent) Setup: While “rental” implies mobility, Wall-Mounted Rental Displays are installed directly onto a temporary frame or existing wall structure using back brackets. Crucially, Ledu’s solutions for this method feature Full Front Maintenance, allowing modules and power supplies to be swapped out from the front without removing the cabinet.

Curved Splicing and Creative Setup: Curved Rental LED Display utilizes Ledu’s specialized high-precision curve locks (Side Locks). These allow the cabinets to be angled (typically ±15°) to create smooth concave (inner curve) or convex (outer curve) shapes, or even cylinders.

Kinetic or Mechanical Rental LED Display Installation: Kinetic Rental LED Displays combine Ledu’s ultra-lightweight cabinets with automated mechanical systems (sliding rails, rotating arms, or lifting motors). The screen physically moves—splitting apart, rotating, or sliding open—synchronized with the video content.

How Rental LED Displays Work

LED Modules

These are the fundamental units. Each LED Module contains an array of individual LEDs (Light Emitting Diodes) arranged in a grid. The pixel pitch (Pixel Pitch) determines the display’s resolution and viewing distance.

LED Cabinets/Tile

Multiple LED Modules are mounted onto a frame called an LED Cabinet or LED Tile. These cabinets are the building blocks that are seamlessly assembled to form the final large-format LED Video Wall.

Control System

This system includes the Sending Card (which receives the video source) and Receiving Cards (mounted inside the cabinets) that distribute data and commands to the LEDs.

Power Supply

Converts AC power to the low-voltage DC power required for the LEDs and control components.

Power Cables and Data Cables

For outdoor LED display, the Ethernet cable transmits data signals from the LED display controller to the screen, enabling real-time content updates, synchronization, and remote monitoring. The power cable supplies stable electricity to all LED modules, ensuring 24/7 operation, energy efficiency, and reliable performance

Full LED Display

Upon the installation and configuration of the outdoor LED display, a complete outdoor LED advertising screen is formed and operates normally.

How rental LED displays deliver powerful visual impact

In the highly competitive event production and AV rental industry, capturing the audience’s attention is everything. At Shenzhen Ledu (LEDU) Display Co., Ltd., our indoor and outdoor rental LED displays are meticulously engineered to transform ordinary stages into breathtaking visual spectacles.

For global touring, massive music festivals, and high-end corporate events, visual impact directly determines the success of the show. Here are the 6 key ways our stage LED video walls deliver an uncompromising, powerful visual experience:

Ultra-High Refresh Rates for Broadcast-Quality Visuals

In today’s event landscape, live streaming and professional recording are standard. LEDU rental LED screens are equipped with premium driving ICs that deliver an ultra-high refresh rate of 3840Hz to 7680Hz. This ensures a completely flicker-free LED display under professional broadcast cameras and smartphones. The result is buttery-smooth video playback without scan lines or water ripples, ensuring your digital content looks flawless both live and on-screen.

Deep Blacks and High Contrast for Vibrant Imagery

To make colors truly pop, you need perfect blacks. LEDU uses high-quality black SMD LEDs and light-absorbing surface masks to achieve an exceptional high contrast ratio. This advanced technology ensures deep, rich blacks and incredibly vibrant colors. Whether displaying dark, moody concert graphics or bright corporate logos, our high-contrast stage LED screens provide striking image depth and true-to-life color reproduction.

Flawless Seamless Splicing for a Giant Unified Canvas

A powerful visual impact is instantly ruined by visible gaps between screen panels. LEDU’s touring LED panels are manufactured using CNC-machined, high-precision die-cast aluminum cabinets. Combined with our advanced fast-lock system, this guarantees seamless splicing. The entire LED video backdrop acts as one massive, perfectly flat canvas, allowing the audience to focus entirely on the immersive 4K or 8K content without distraction.

Exceptional Brightness for Any Lighting Environment

Visuals must remain punchy and clear, regardless of ambient light. Our indoor rental LED displays offer perfectly calibrated brightness that fights through heavy stage lighting and lasers without blinding the audience. For daytime events, our outdoor rental LED walls blast up to 5500+ nits of brightness, ensuring the screen remains fully daylight readable and visually dominating even under direct sunlight at outdoor music festivals.

Ultra-Wide Viewing Angles for Maximum Audience Reach

A powerful visual should be experienced by everyone in the venue, not just the VIPs in the center. LEDU event LED displays are designed with an ultra-wide viewing angle of 160° horizontally and vertically. This means that attendees standing on the far left, right, or back of the stadium experience the exact same color accuracy and brightness without image distortion, maximizing audience engagement.

Creative Curved Configurations for 3D Immersive Designs

Modern stage design goes beyond flat walls. LEDU cabinets feature high-precision curve-locking mechanisms that support smooth concave and convex setups. By creating curved rental LED displays, circular screens, or wrap-around stage tunnels, AV integrators can deliver naked-eye 3D visual effects and deeply immersive environments that leave a lasting, powerful impression on attendees.

Inquire

Customizable to meet the requirements of any scenario

At Shenzhen Ledu (Ledu) Display, we understand that no two events are alike. Modern stage designs demand flexibility. Our Rental LED Display series is engineered with a modular, adaptive architecture that allows AV professionals to break free from rectangular constraints and build truly custom visual experiences.

Flexible Curved Splicing (Concave & Convex)

Ledu’s rental cabinets are equipped with high-precision high-precision curve locks (Arc Locks). These allow for angle adjustments of ±15 degrees between cabinets.

Key Benefit: You can customize the screen shape to form smooth concave (inner arc) arrays to wrap around the audience, or convex (outer arc) shapes for center-stage designs.
Best For: Perfect for creating “Wave” shapes for DJ booths, circular cylinder screens for trade show columns, or immersive tunnels.

Seamless 90° Right-Angle & Cube Splicing

Our cabinets feature specialized 45-degree cut edges and seamless corner connectors.

Key Benefit: This allows two cabinets to join perfectly at a 90-degree angle without a visible bezel gap. You can construct LED Cubes, L-shaped screens, or wrap displays around sharp structural pillars in a venue.
Best For: Ideal for naked-eye 3D visual content, hanging cube displays in arenas, and creative architectural mapping at exhibitions.

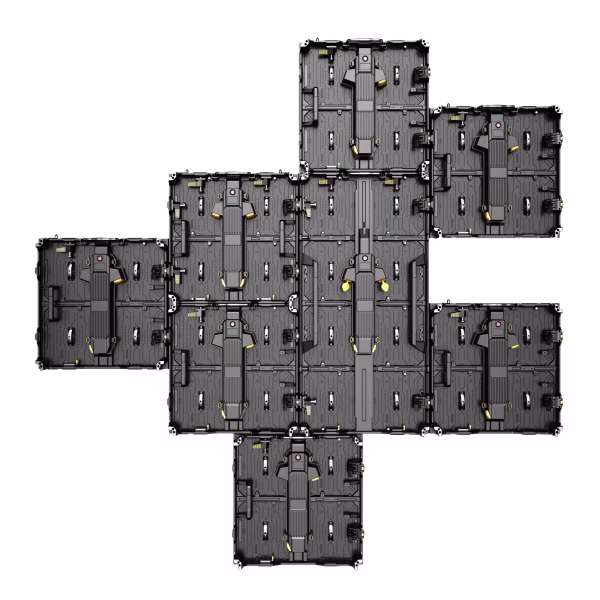

Mixed Splicing & Modular Scalability

Ledu’s rental series supports Mixed Splicing between 500x500mm and 500x1000mm cabinets. They share the same power box, modules, and locking systems.

Key Benefit: This gives stage designers total freedom to customize the Aspect Ratio and total screen size to fit tight spaces where standard sizes won’t work. You can build up, down, or sideways with infinite scalability.
Best For: Perfect for uneven stage backdrops, or trade show booth structure.

Multi-Functional Application (Floor & Ceiling)

Our cabinets are designed for dual-purpose customization. With the addition of a PC mask (polycarbonate cover) and reinforced sub-frame, the standard rental screen transforms into an interactive LED Dance Floor.

Key Benefit: The same cabinets can be flown (hung) from a truss, stacked on the ground, or laid flat on the floor.
Best For: Car shows where the car drives onto the screen, fashion runways, or nightclub.

How to Choose the Right Rental LED Display?

Selecting the perfect Rental LED Display is critical to the success of your event. Whether you are planning a massive outdoor music festival, a corporate trade show, or a virtual production studio, the specifications can be overwhelming. At Shenzhen Ledu (Ledu) Display, we simplify the process. Use this guide to understand the key factors—Pixel Pitch, Brightness, and Refresh Rate—so you can invest in the right rental solution for your business.

Determine the Environment: Indoor vs. Outdoor

For Indoor Events (Conferences, Auto Shows, Weddings): You need an Indoor Rental LED Display. Brightness: 800–1,000 nits is sufficient.

For Outdoor Events (Music Festivals, Sports, Public Plazas): Choose an Outdoor Rental LED Display. Brightness: Look for ≥4,500 nits.
Calculate the Viewing Distance

P1.9 – P2.6: Best for 3–8 meters. Ideal for boardrooms, luxury retail, and XR studios where viewers are very close.

P2.9 – P3.9: Best for 4–10 meters. Best for 4–10 meters. The industry standard for trade shows, weddings, and indoor stages.

P3.9 – P4.8: Best for 5–15 meters. The “Sweet Spot” for outdoor concerts and large touring events where the audience is further away.
Consider Installation Speed

For rental companies, “Time is Money.” The design affects how fast you can set up and tear down.

Weight: Ledu’s panels weigh only 7kg (Indoor) to 12kg (Outdoor), allowing for one-person installation.

Corner Protection: Rental screens are moved constantly. Ensure the cabinets have Corner Guards to prevent pixels from breaking during transport in flight cases.
Consider your budget

Smaller pixel pitch, higher brightness, and higher refresh rates all come with Consider your budgeta higher cost. You can find the best balance between performance and price based on your actual needs and budget.

Benefits of Installing Rental LED Displays

LEDU’s professional indoor and outdoor rental LED displays enable AV rental companies to maximize operational efficiency and ROI through an ultra-lightweight, fast-lock design that significantly reduces labor costs and setup time for any stage event. These high-resolution rental LED video walls deliver unmatched visual impact with seamless splicing and superior refresh rates, providing the ultimate creative screen solution for concerts, exhibitions, and immersive corporate stage branding.

Inquire

Related Cases

France Cycling Live Broadcast — Product Type: P3.9 Outdoor Rental LED Display Address: France
View More>
Send Inquiry Now>
Spain Outdoor Concert — Product Type: P4.8 Outdoor Rental LED Display Address: Spain
View More>
Send Inquiry Now>
Philippines Poolside Sports — Product Type: P3.9 Outdoor Rental LED Display Address: Philippines
View More>
Send Inquiry Now>

FAQ

What is the difference between Indoor and Outdoor Rental LED Displays?

The main differences are Brightness and Protection.

Indoor Rental Screens (Ledu P2.6/P2.9/P3.9) have lower brightness (800-1000 nits) for eye comfort and prioritize high refresh rates and high gray scale for superior close-up viewing.

Outdoor Rental Screens ( Ledu P3.91/P4.81) feature high brightness (≥4500 nits) to be visible under sunlight and have an IP65 waterproof rating to withstand rain and dust.

How do I choose the right Pixel Pitch for my event?

Pixel Pitch (Ledu P2.6, P3.9) determines the resolution and optimal viewing distance. A simple rule is 1mm of pitch = 1 meter of viewing distance.

For Conferences & XR Studios (Close viewing): Choose P1.9 or P2.3.

For Large Stages & Concerts (Far viewing): Choose P3.9 or P4.8. Choosing the right pitch ensures your audience sees a sharp image without wasting budget on unnecessary resolution.

Can Ledu Rental Screens be customized to different sizes and aspect ratios?

Yes. Our screen design is fully modular. Using our standard 500x500mm and 500x1000mm die-cast aluminum cabinets, you can build a video wall of any size (4K, 8K) or aspect ratio (16:9, 21:9). We also support Mixed Splicing, allowing you to combine different cabinet sizes to fit unique stage designs.

Will the LED screen flicker during live broadcasting or camera recording?

No. Ledu Rental Displays are equipped with high-end driver ICs that support a High Refresh Rate of ≥3840Hz (up to 7680Hz for XR Virtual Production). This ensures a stable, flicker-free image on professional TV cameras, smartphones, and live streams, making them ideal for concerts and corporate events.

Are your Outdoor Rental LED Screens truly waterproof?

Yes. All Ledu outdoor models are rated IP65 (Front) and IP54 (Rear). We use high-quality glue filling technology and waterproof rubber rings on all modules and power boxes. This ensures the screen operates safely even during heavy rain at outdoor music festivals.

Can I create a Curved or Creative shape with your screens?

Absolutely. Our rental cabinets feature high-precision Curved Locks (Side Locks). You can adjust the angle by ±15 degrees to create smooth Concave (Inner) or Convex (Outer) curves. We also support 90-degree corner splicing for creating LED pillars or cubes.

How fast is the installation process?

Ledu displays are designed for speed. With our Ultra-Lightweight Design (7kg-12kg per panel) and tool-free Fast-Lock Mechanism, a single technician can install a cabinet in under 10 seconds. A standard 50sqm video wall can be assembled by two people in just a few hours.

What installation methods do you support?

Our cabinets are versatile. They support:

Hanging (Flying): Using our hanging bars attached to a truss.

Stacking (Ground Support): Using a back-frame system on the floor.

Wall Mounting: For fixed temporary setups.

What are the power requirements for a rental video wall?

Power consumption depends on the model. Generally, the Average Power Consumption is around 200W-260W per square meter, with a Max Power Consumption of 600W-800W/sqm. We recommend using a professional Power Distribution Box (PLC) to manage voltage stability (110V-240V AC).

How do you prevent damage during transportation?

Rental screens face frequent travel. We use Corner Protection Designs (plastic or metal guards) on the four corners of the cabinet to prevent pixel damage during impact. Additionally, we ship our screens in professional Flight Cases with foam padding to ensure they arrive safely at your venue.

Is maintenance easy if a module fails during an event?

Yes. Ledu displays support Full Front and Rear Maintenance. If a module or power supply fails, you can use a magnetic tool to remove and replace the part in under 30 seconds without taking down the entire screen, ensuring zero downtime during your event.

What is the warranty period for Ledu Rental Displays?

We offer a standard 2-Year Warranty on all rental products, covering modules, power supplies, and receiving cards. We also provide a Spare Parts Package (free modules, cables, and lamps) with every order to ensure you have immediate backups on site.

Rental LED Display

Product Introduction

Rental LED Display

Product Features

Basic Components of Rental LED Displays

Rental LED Module Differrent Series

Rental LED Module Differrent Pixel Pitch

Rental LED Module Differrent Sizes

Cabinets for Rental LED Displays

Installation Types for Rental LED Displays

How Rental LED Displays Work

How rental LED displays deliver powerful visual impact

Customizable to meet the requirements of any scenario

How to Choose the Right Rental LED Display?

Benefits of Installing Rental LED Displays

Related Solutions

Related Cases

FAQ

Talk to Expert
