Film Transparent LED Display

LEDU film transparent LED display features 90–95% high transparency, 3 kg/m² lightweight design, 3 mm ultra-thin LED film, self-adhesive glass installation, high flexibility, 3840–7680 Hz refresh rate, and multiple pixel pitches from P4 to P20. Ideal for retail windows, glass walls, shopping malls, showrooms, exhibitions, hotels, and creative transparent LED projects.

Inquire

Description Specifications Advantage Application

Description

LEDU film transparent LED display is a new-generation self-adhesive transparent LED film screen designed for glass walls, retail windows, shopping malls, commercial buildings, showrooms, exhibitions, hotels, and creative digital advertising projects.

With 90–95% ultra-high transparency, only 3 mm ultra-thin thickness, and approximately 3 kg/m² lightweight structure, the LED film can be directly attached to glass without heavy steel structure. It keeps the original transparency of the glass while delivering bright, vivid, and dynamic advertising content.

Compared with traditional transparent LED screens, LEDU transparent LED film display is thinner, lighter, more flexible, easier to install, and more suitable for modern glass architecture. It supports flat installation, curved installation, hanging installation, stacking installation, and mobile poster LED display solutions.

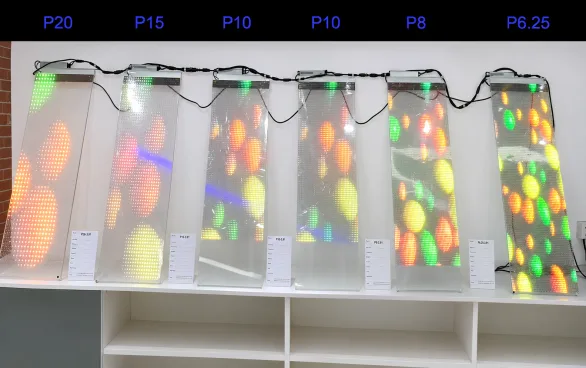

Available Pixel Pitch Options

LEDU film transparent LED display supports multiple pixel pitch options to meet different viewing distance and budget requirements:

P4
P5
P6.25
P8
P10
P15
P20

For close viewing distances, P4, P5, and P6.25 are recommended.
For large glass walls, building facades, shopping mall atriums, and long-distance viewing projects, P8, P10, P15, and P20 are cost-effective options.

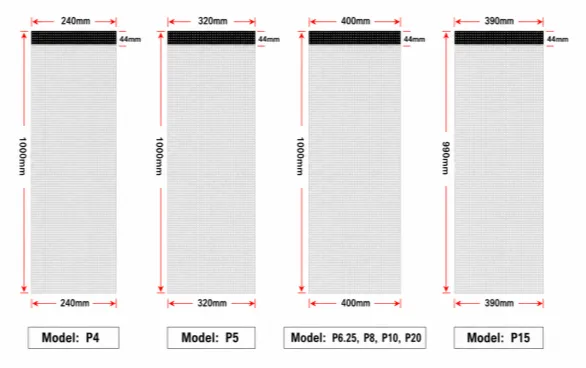

Multiple Sizes Can Be Mixed for Large Transparent LED Walls

LEDU film transparent LED display supports multiple standard module sizes, including:

1000 × 400 mm
1000 × 240 mm
1000 × 320 mm
990 × 390 mm

Customized sizes and free-cut dimensions are also available according to project requirements.

Different sizes can be mixed and spliced together to form a large transparent LED display wall, making it suitable for different glass dimensions and creative architectural layouts.

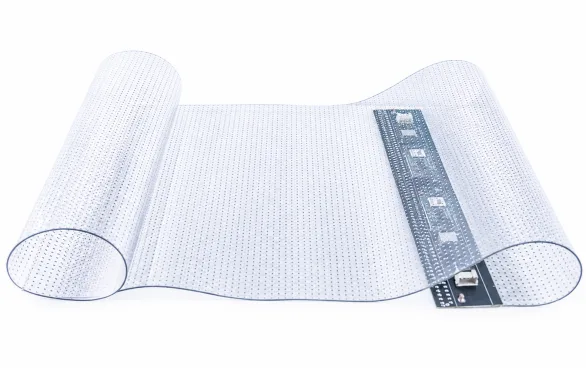

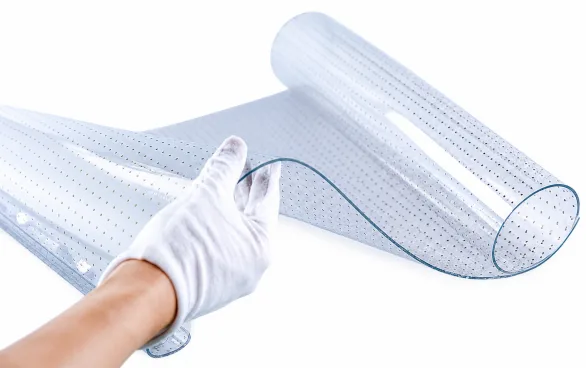

High Flexible, Foldable and Bendable Design

LEDU transparent LED film display supports high flexibility. The LED film can be bent, folded, and adapted to different glass shapes, helping designers create more creative and customized transparent LED projects.

It is suitable for:

Flat glass walls
Curved glass surfaces
Cylindrical glass structures
Irregular transparent display designs
Creative commercial advertising spaces

This high flexible design gives architects, designers, and project contractors more freedom for creative installation.

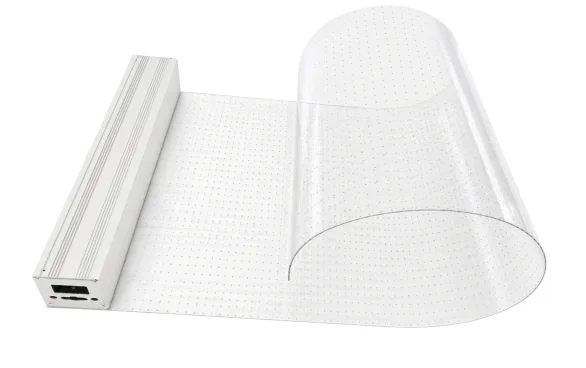

2-in-1 Power Box Design

The 2-in-1 power box integrates the hub board, receiving card, and power supply into a compact control solution.

This design helps simplify wiring, reduce installation space, improve appearance, and make the system easier to install and maintain.

A cleaner system structure also makes the whole transparent LED film project more professional and reliable.

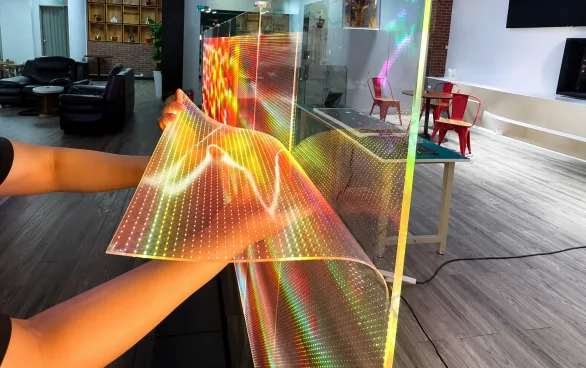

Self-Adhesive Design for Easy Glass Installation

The self-adhesive design allows the LED film to be directly pasted onto glass. No complicated steel structure is required for many indoor glass display projects.

Installation is simple, clean, and fast:

Clean the glass surface
Position the transparent LED film
Attach the film directly to the glass
Connect the power and control system
Start displaying advertising content

This greatly saves installation time and project cost.

High-Quality Components for Long-Term Stability

LEDU uses high-quality LED lamps, ICs, PCB, power supply, cables, and control components to ensure stable performance and long service life.

High-quality components help improve:

Display brightness
Color consistency
Product stability
Heat dissipation performance
Signal transmission
Long-term operating reliability

For commercial LED display projects, stable quality is one of the most important factors for reducing after-sales problems and protecting customer investment.

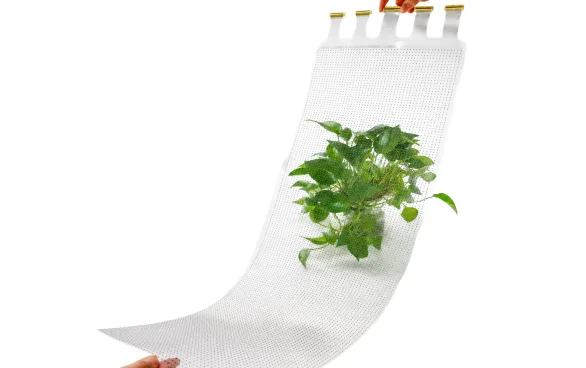

90–95% Ultra-High Transparency

LEDU film transparent LED display offers 90–95% high transparency, allowing natural light to pass through the glass while displaying high-brightness video, images, brand advertisements, and digital content.

This makes it ideal for retail window advertising, shopping mall glass walls, luxury storefronts, auto showrooms, commercial buildings, and indoor glass partitions.

The screen attracts attention without blocking the view behind the glass.

Ultra-Lightweight Design, Only 3 kg/m²，Ultra-Thin 3 mm LED Film Structure

The transparent LED film weighs approximately 3 kg per square meter, making it much lighter than traditional LED cabinets and conventional transparent LED displays.

The lightweight structure helps reduce installation difficulty, transportation cost, building load, and labor cost. It is especially suitable for glass curtain walls and commercial glass structures where heavy LED cabinets are not suitable.

With only around 3 mm thickness, LEDU film transparent LED display can be closely attached to the glass surface. The ultra-thin design creates a clean, modern, and almost invisible installation effect.

From the front, it displays vivid advertising content. From the back, it keeps the glass space bright, open, and transparent.

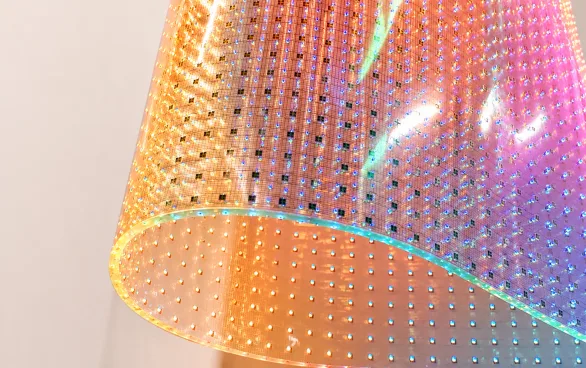

LED Lamp & Driving IC 2-in-1 Stable Design

LEDU transparent LED film display uses LED Lamp & Driving IC 2-in-1 technology, helping improve signal stability, display consistency, and product reliability.

This design makes the display structure cleaner and more stable, while reducing complicated components and improving the overall performance of the transparent LED film screen.

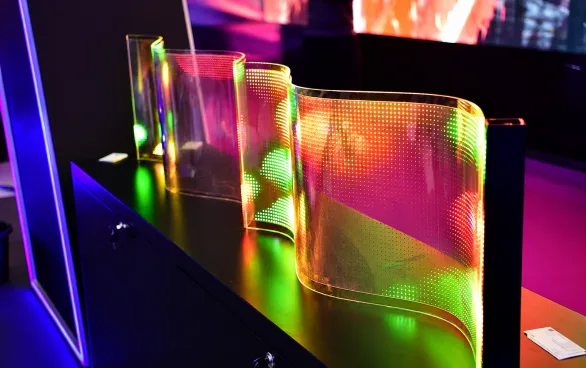

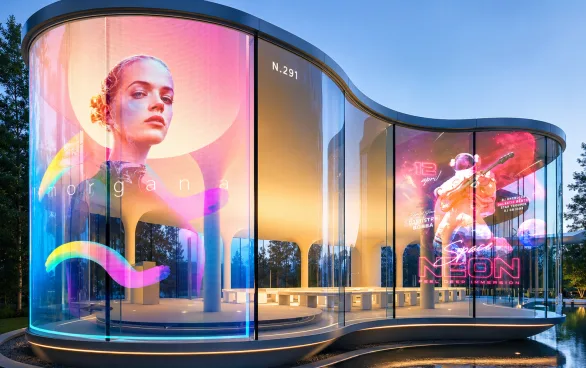

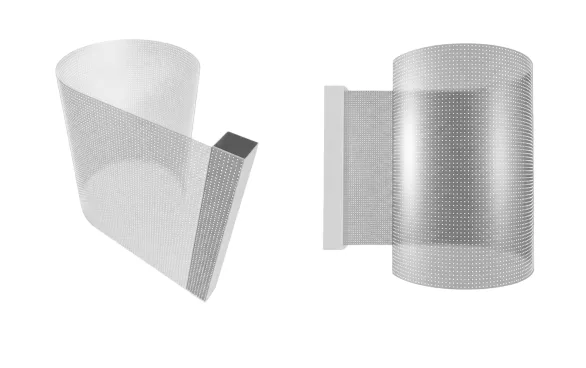

Supports Curved Installation

The flexible film structure allows the LED display to be installed on curved glass or special-shaped surfaces. This makes LEDU film transparent LED display a strong choice for high-end commercial spaces, luxury retail stores, technology showrooms, museums, exhibitions, and creative stage backgrounds.

Curved transparent LED display solutions help create a more immersive and futuristic visual experience.

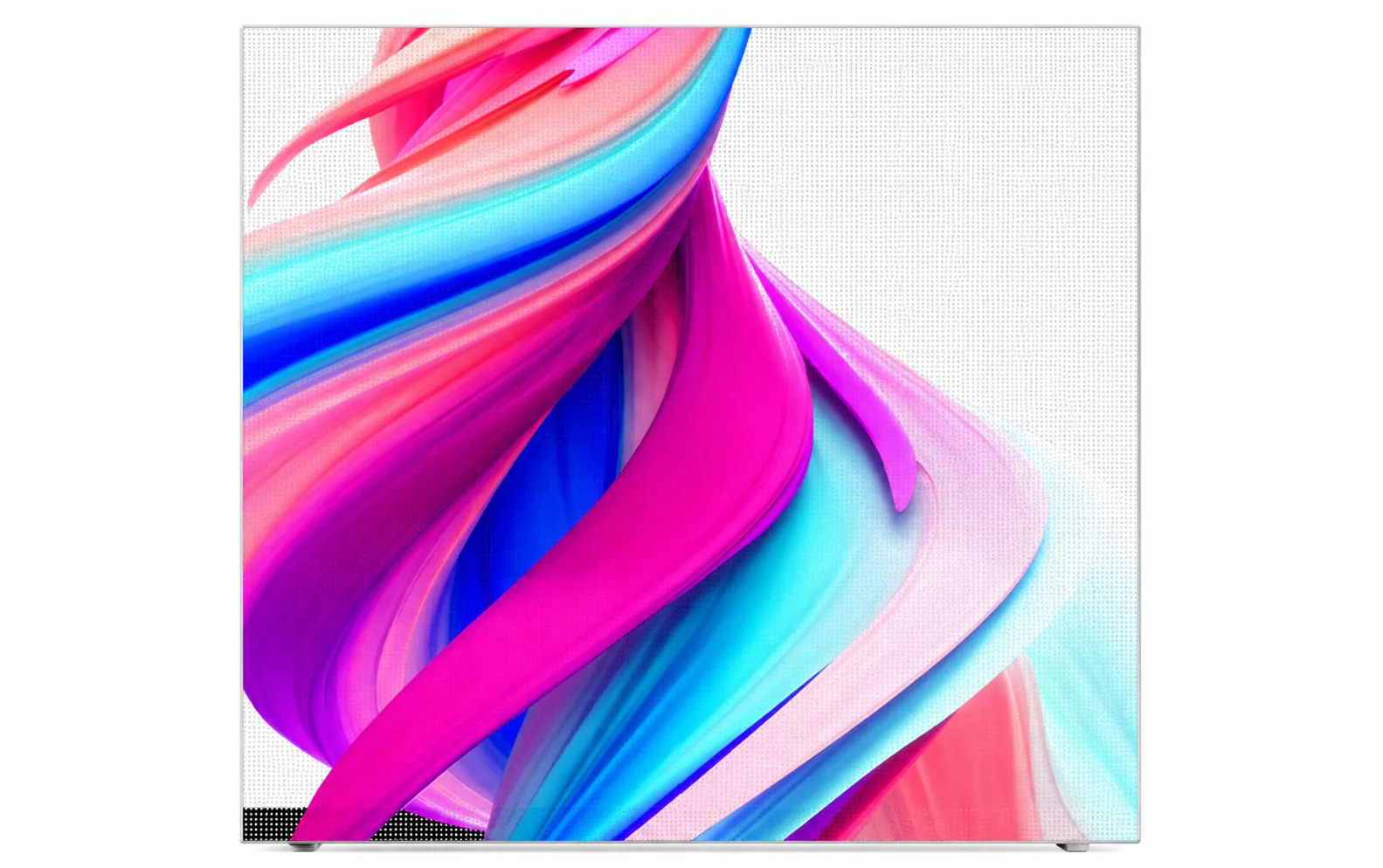

High Refresh Rate: 3840–7680 Hz

LEDU film transparent LED display supports high refresh rates from 3840 Hz to 7680 Hz, delivering smooth video performance and excellent camera-friendly display effects.

It is suitable for:

Luxury brand advertising
Live events
Exhibition display
Commercial video playback
Retail window promotion
Photo and video shooting environments

The high refresh rate helps reduce flickering, improve video quality, and create a more professional visual effect.

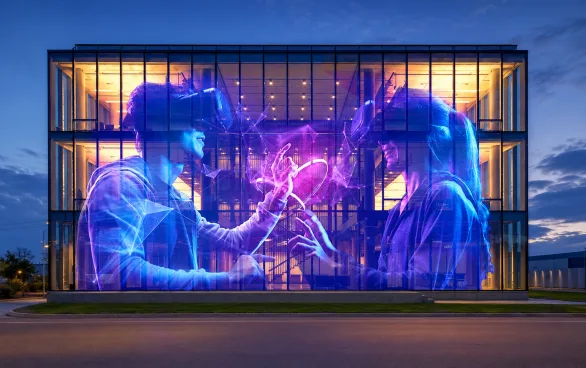

High Grayscale Performance

High grayscale performance allows the transparent LED film screen to show more natural color transitions, richer details, deeper image layers, and smoother dark-to-bright changes.

This is especially important for luxury product videos, fashion advertising, cosmetics promotion, automotive display, jewelry advertising, and high-end commercial digital signage.

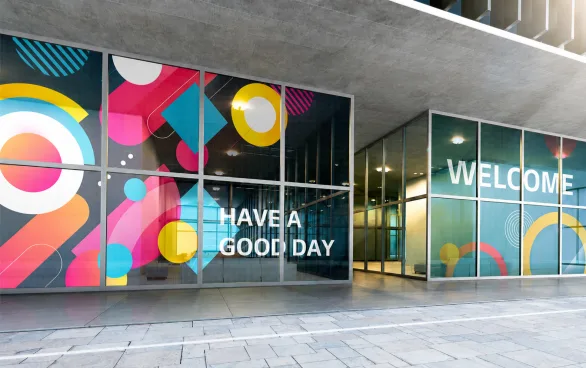

High Brightness for Strong Visual Impact

LEDU film transparent LED display offers high brightness performance, making advertising content clear, vivid, and eye-catching even in bright indoor environments or glass window applications.

The display can attract pedestrians, customers, and visitors from a distance, helping improve brand exposure, product promotion, and customer engagement.

Multiple Installation Methods

LEDU film transparent LED display supports different installation methods for different project needs:

Direct glass self-adhesive installation
Hanging installation
Stacking installation
Curved installation
Glass wall installation
Mobile poster LED display installation
Customized creative installation

This makes it suitable for both fixed commercial projects and flexible temporary display applications.

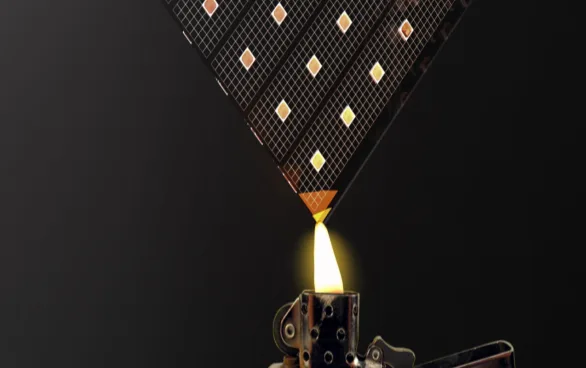

Flame Retardant & UV Resistant

The film transparent LED display uses flame-retardant and UV-resistant materials to improve safety and long-term durability. It helps reduce fire risks, prevents material aging, yellowing, and cracking caused by sunlight exposure, and ensures stable performance for glass window, retail storefront, shopping mall, and commercial display applications.

Specification

Indoor P4-P20 Module Parameters

Model	P4	p5	p6.25	p8	p10	p15
Usage	Indoor	Indoor	Indoor	Indoor	Indoor	Indoor
Module size(mm)	240*1000mm	320*1000mm	400*1000mm	400*1000mm	400*1000mm	390*990mm
Cabinet Resolution (dot)	15000	12800	10240	6250	4000	1716
Brightness	2000nits	2500nits	2000/4000nits	2000/4000nits	2000/4000nits	3000nits
Transparency	90%	91%	92%	92%	94%	94%
Angel of View	160	160	160	160	160	160
Weight	1kg	1.3kg	1.3kg	1.3kg	1.3kg	1.3kg
Input Voltage	AC100-240V/50/60HZ	AC100-240V/50/60HZ	AC100-240V/50/60HZ	AC100-240V/50/60HZ	AC100-240V/50/60HZ	AC100-240V/50/60HZ
Max. Power Consumption(w)	600W/M²	600W/M²	600W/M²	600W/M²	600W/M²	600W/M²
Average Power Consumption(w)	200W/M²	200W/M²	200W/M²	200W/M²	200W/M²	200W/M²
Work Environment	Temperature -20~55℃ Humidity 10-90%	Temperature -20~55℃ Humidity 10-90%	Temperature -20~55℃ Humidity 10-90%	Temperature -20~55℃ Humidity 10-90%	Temperature -20~55℃ Humidity 10-90%	Temperature -20~55℃ Humidity 10-90%
Refresh Rate (HZ)	≥3840	≥3840	≥3840	≥3840	≥3840	≥3840

Why Choose LEDU Film Transparent LED Display?

LEDU Film Transparent LED Displays stand out by offering direct factory customization from Shenzhen alongside unique product features designed for creative architectural lighting. In a market where traditional rigid screens are common, our film solutions provide unparalleled flexibility, discretion, and ease of integration for engineers, architects, and high-end retail designers.

Professional Transparent LED Display Manufacturer

Shenzhen LEDU Display Co., Ltd. focuses on LED display solutions for global commercial, retail, advertising, event, and creative display projects. We provide professional film transparent LED display solutions from product selection to project support, helping customers choose the right pixel pitch, size, installation method, brightness, and control system.
Customized Project Support

Every glass LED display project is different. LEDU supports customized size, free cutting, mixed-size splicing, curved installation, and different pixel pitch options. Our team can help customers design a suitable transparent LED film display solution according to: Glass size&Viewing distance&Installation environment &Brightness requirement &Content type &Budget &Maintenance needs
Stable Quality and Reliable Performance

LEDU uses high-quality LED lamps, ICs, PCBs, power supplies, cables, and control systems to ensure stable display performance. From material selection to production testing, we focus on quality control to help customers reduce project risk and improve long-term reliability.
Easy Installation, Lower Project Cost

The self-adhesive transparent LED film can be directly attached to glass, helping reduce steel structure cost, installation labor, and construction time. For many retail and commercial projects, this means faster project delivery and a cleaner installation appearance.

Application

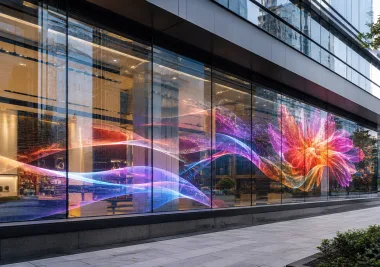

ommercial Building Glass Curtain Wall Film Transparent LED Display 优化图片文件名 (Filenam

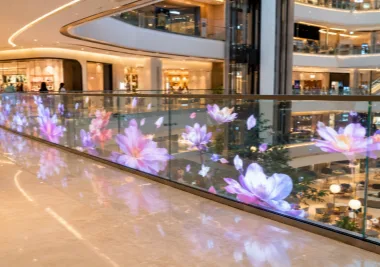

Shopping Mall Balustrade Glass Railing Transparent LED Film Screen

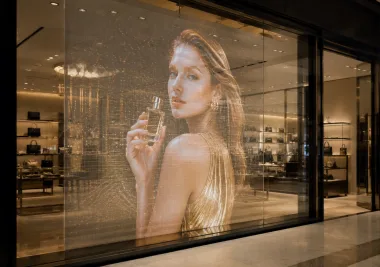

Luxury Retail Store Window Film Transparent LED Display Panel

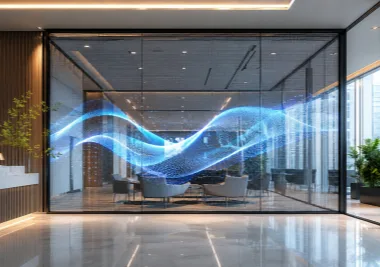

Corporate Office Lobby Glass Partition Film Transparent LED Screen

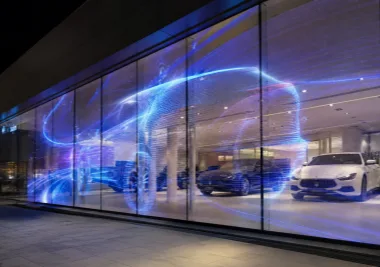

Automotive Showroom Glass Facade Film Transparent LED Display Board

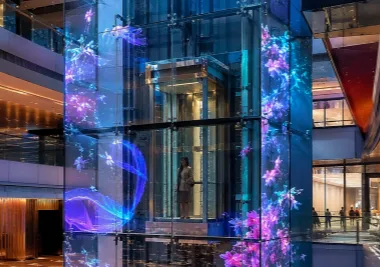

Sightseeing Elevator Glass Shaft Transparent LED Crystal Film Screen

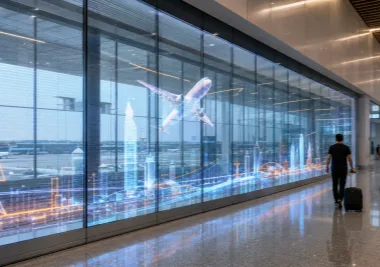

Airport Terminal Transit Glass Wall Film Transparent LED Display

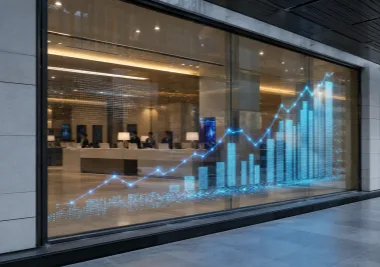

Financial Bank Window Adhesive Film Transparent LED Screen

FAQ

What is a film transparent LED display?

A film transparent LED display is an ultra-thin, lightweight, and self-adhesive LED screen that can be directly attached to glass. It displays video and advertising content while maintaining high transparency.

What is the transparency of LEDU film transparent LED display?

LEDU film transparent LED display offers 90–95% transparency, allowing light and visibility through the glass.

How thick is the transparent LED film?

The thickness is approximately 3 mm, making it very thin and suitable for clean glass installation.

How heavy is the film transparent LED display?

The weight is approximately 3 kg/m², which is much lighter than traditional LED cabinets.

Can the LED film be directly pasted on glass?

Yes. LEDU film transparent LED display uses a self-adhesive design and can be directly attached to glass surfaces.

Does it support customized size?

Yes. LEDU supports standard sizes such as 1000 × 400 mm, 1000 × 240 mm, 1000 × 320 mm, and 990 × 390 mm. Customized size and free cutting are also available.

Can different sizes be mixed together?

Yes. Multiple sizes can be mixed and spliced to form a large transparent LED display wall.

Can it be installed on curved glass?

Yes. The flexible LED film supports curved installation and creative glass display projects.

What pixel pitches are available?

Available pixel pitches include P4, P5, P6.25, P8, P10, P15, and P20.

What is the refresh rate?

LEDU film transparent LED display supports high refresh rates from 3840 Hz to 7680 Hz.

Is the display suitable for retail windows?

Yes. It is very suitable for retail window advertising because it keeps the window transparent while showing bright video content.

Is it easy to maintain?

Yes. LEDU transparent LED film display is designed for convenient maintenance and stable long-term operation.

What components are used?

LEDU uses high-quality LED lamps, ICs, PCB, power supplies, cables, and control components.

What is the advantage of LED Lamp & Driving IC 2-in-1 design?

This design improves system stability, simplifies the structure, and helps ensure consistent display performance.

What is the 2-in-1 power box?

The 2-in-1 power box integrates the hub board, receiving card, and power supply into a compact system, making installation cleaner and easier.

Can it be used as a mobile poster LED display?

Yes. LEDU film transparent LED display supports mobile poster screen installation for exhibitions, retail promotions, and temporary events.

Is it suitable for shopping malls?

Yes. It is widely used in shopping mall glass walls, atriums, entrances, and commercial advertising areas.

Can it show high-quality video content?

Yes. With high refresh rate, high grayscale, and high brightness, it can display smooth, vivid, and professional video content.

How do I choose the best pixel pitch?

Choose smaller pixel pitch for closer viewing distance and higher image detail. Choose larger pixel pitch for long-distance viewing and larger glass wall projects.

Why choose LEDU film transparent LED display?

LEDU provides high-transparency, ultra-lightweight, flexible, self-adhesive, and customized transparent LED film display solutions with stable quality and professional project support.
