Outdoor LED Billboard Solution

An Outdoor Fixed Installation LED Display is a permanent LED video wall mounted on building facades, rooftops, or standalone pole structures. Unlike rental screens, these are engineered for long-term use. Their primary applications include DOOH (Digital Out-of-Home) advertising, massive digital billboards, stadium scoreboards, building fascia branding, and public information displays. LEDU Display specializes in durable permanent outdoor LED screens tailored for these high-impact environments.

Choosing the correct pixel pitch is crucial for balancing image clarity and budget. It depends mostly on the minimum viewing distance.

• For close viewing (5-10 meters), such as street-level outdoor retail LED signage, choose fine pitches like P3 or P4.

• For medium distances (10-20 meters), such as shopping mall facades, P5 or P6 are popular.

• For long distances (20+ meters), like highway LED billboards, P8 or P10 provide the best ROI. LEDU provides expert consulting to determine the optimal outdoor LED pixel pitch for your project.

Since they are exposed to the elements 24/7, waterproof and weatherproof capabilities are non-negotiable. For a reliable outdoor fixed LED screen, you should look for an IP (Ingress Protection) rating of at least IP65 for the front (totally dust tight and protected against water jets) and IP54 or IP65 for the rear, depending on the installation method. LEDU’s all-weather LED displays are engineered to withstand heavy rain, high humidity, snow, and dust.

To ensure sunlight readability during bright daylight, an outdoor fixed LED wall must have high brightness, measured in Nits or cd/m².

• For shaded areas or consistent overcast skies, 5,000 Nits may suffice.

• For direct, harsh sunlight (e.g., southward-facing building), a high-brightness LED screen of 6,500 to 8,500+ Nits is required to avoid washing out the image. LEDU includes automatic brightness sensors to optimize visibility and save energy at night.

The installation method depends on the location's architecture and local regulations. The most common methods for fixed installation outdoor LED screens include:

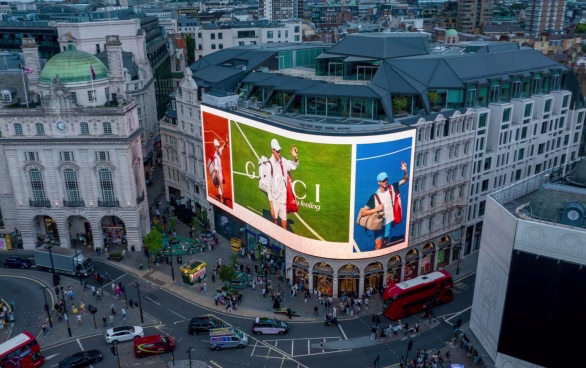

• Wall-Mounted: Attached directly to the facade of a building.

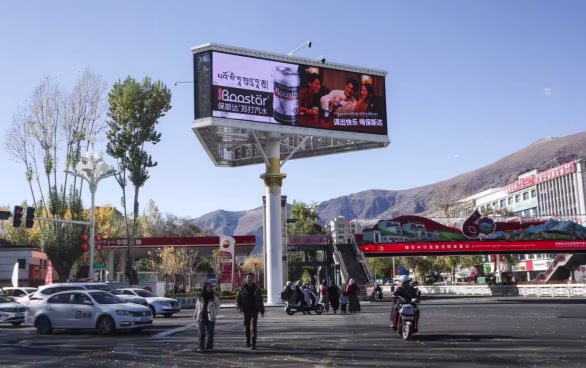

• Pole-Mounted (Single or Double Column): Standalone structures often used for highway billboards.

• Rooftop Installation: Mounted on the top of buildings for maximum visibility.

• Gantry Installation: Spanning across roads or entrances. LEDU Display provides detailed structural diagrams to support your local engineering team.

This describes how technicians access components for servicing.

• Rear Maintenance: The traditional method requiring a walking platform or space behind the screen (at least 60-80cm). Ideal for pole-mounted or rooftop screens where rear access is easy.

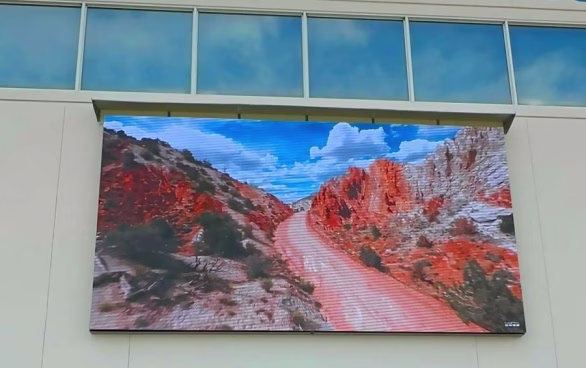

• Front Maintenance (Front Service): Modules are removed from the front using specialized tools. Crucial for wall-mounted outdoor LED walls where no rear space is available, significantly saving on structural depth and installation costs. LEDU offers versatile designs supporting both maintenance types.
