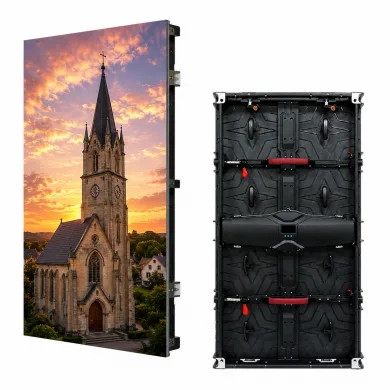

Church LED Display

A church LED display is more than a screen. It is an important visual communication tool for modern worship spaces. Compared with traditional projectors or LCD screens, LED video walls offer higher brightness, better contrast, seamless splicing, wider viewing angle and a stronger visual impact.

LEDU Church LED Display is suitable for displaying worship lyrics, sermon notes, Bible verses, live camera feeds, church event videos, prayer content, welcome messages and background visuals. The screen delivers bright colors, smooth video playback and clear text, helping every audience member see the content clearly from different seating positions.

With modular LED cabinet design, the display can be customized according to church stage size, viewing distance, installation structure and budget. It is suitable for small churches, medium worship halls, large church auditoriums, gospel events, religious conferences and church broadcast systems.

Inquire

Description Specifications Advantage Application

Description

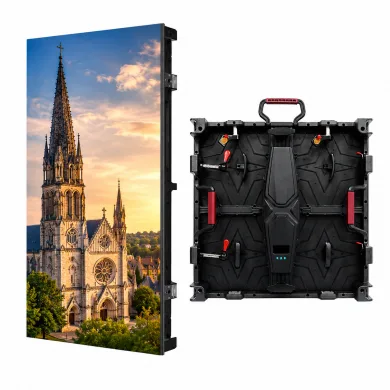

LEDU Church LED Display uses a flexible cabinet design to support different screen sizes and installation methods. The 500×500mm LED cabinet is compact and lightweight, suitable for creative screen layouts and smaller LED video wall projects. The 500×1000mm LED cabinet is ideal for larger church LED display projects because it helps reduce installation time and improves screen assembly efficiency.

The cabinet structure supports seamless splicing, ensuring a clean and continuous image without visible gaps between LED panels. This makes the church LED video wall suitable for sermon backgrounds, worship stage visuals, live streaming, choir performances and large-format religious presentations.

The lightweight cabinet design helps reduce installation load and makes maintenance easier. The 500×500mm cabinet weighs about 8kg, and the 500×1000mm cabinet weighs about 14.5kg. This is especially helpful for churches that need safe installation, fast setup and long-term stable operation.

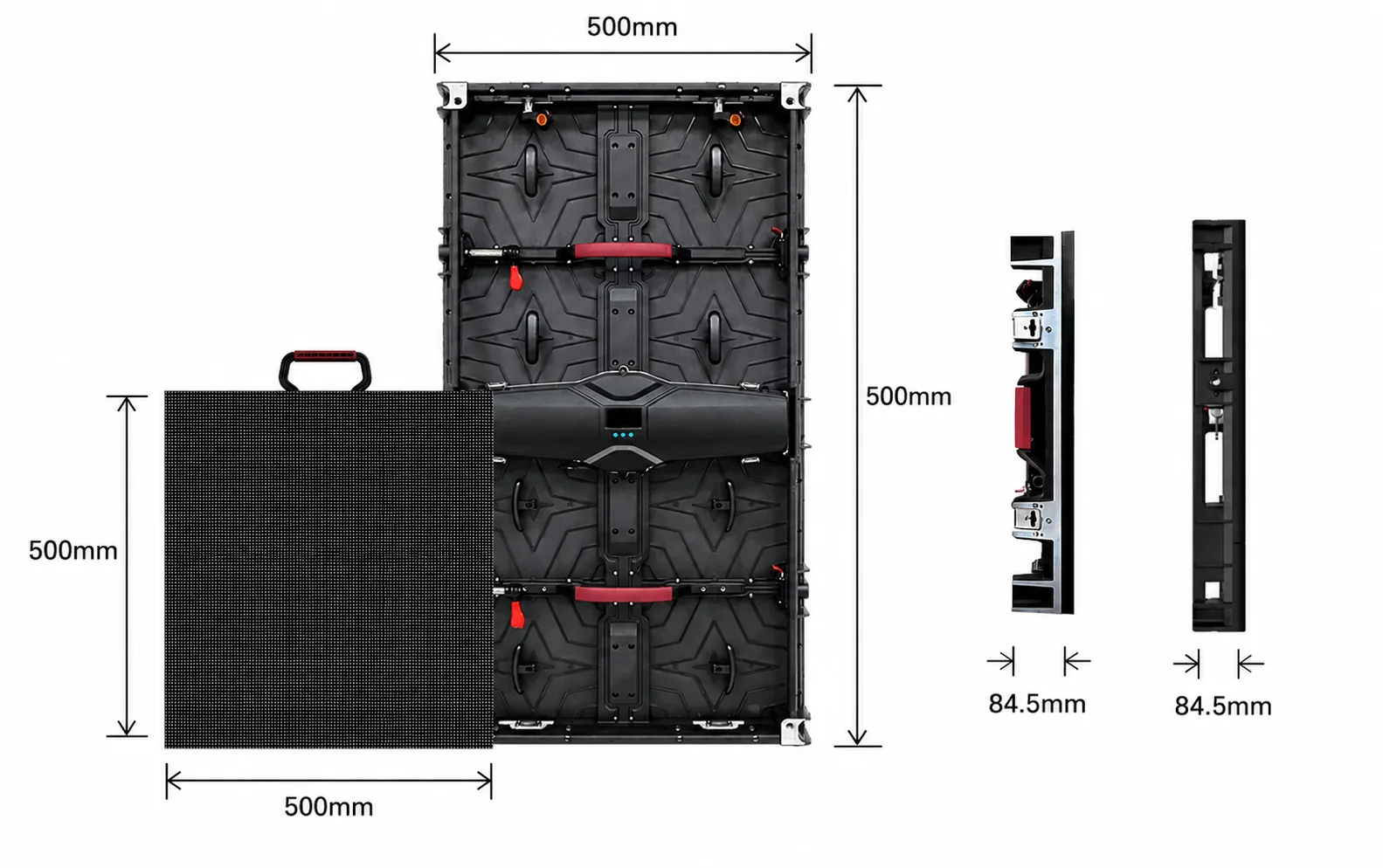

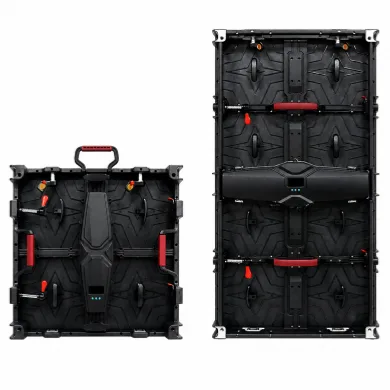

Flexible Cabinet Options: 500×500mm and 500×1000mm

LEDU provides 500×500mm and 500×1000mm cabinet options for different church LED display projects. The 500×500mm cabinet is suitable for flexible layouts, while the 500×1000mm cabinet is ideal for faster installation and larger screen areas.

Both cabinet sizes can be combined according to the required screen width, height, resolution and viewing distance.

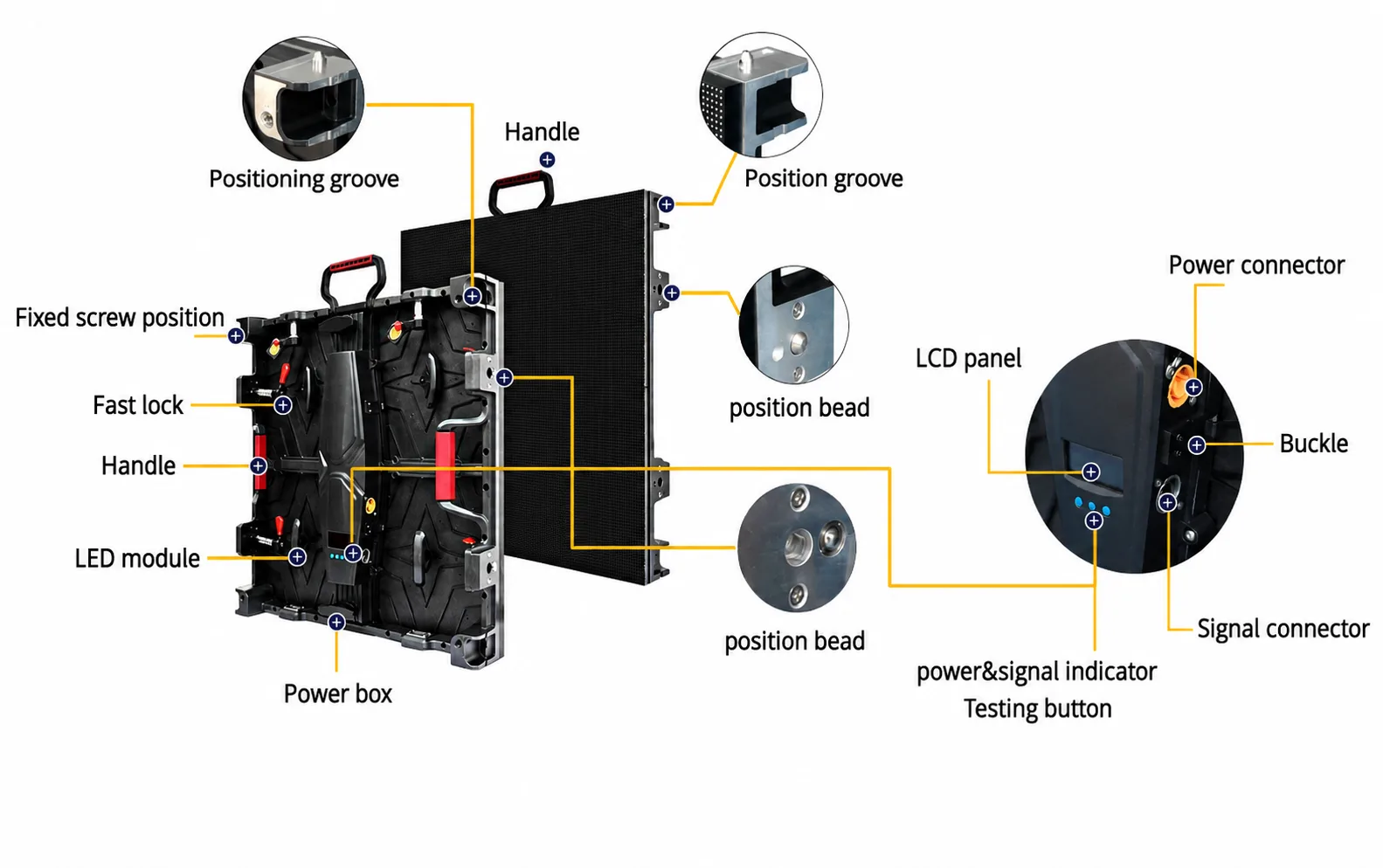

Cabinet Diagram

LEDU Church LED Display is designed for churches, houses of worship, worship centers, prayer halls, church stages, live streaming studios and religious event venues that require clear image quality, stable performance and a powerful visual experience. With high refresh rate, high contrast, seamless splicing and flexible cabinet design, this church LED display helps create a more immersive worship atmosphere and improves visual communication during sermons, worship songs, live broadcasts, Bible verses, announcements and event presentations.

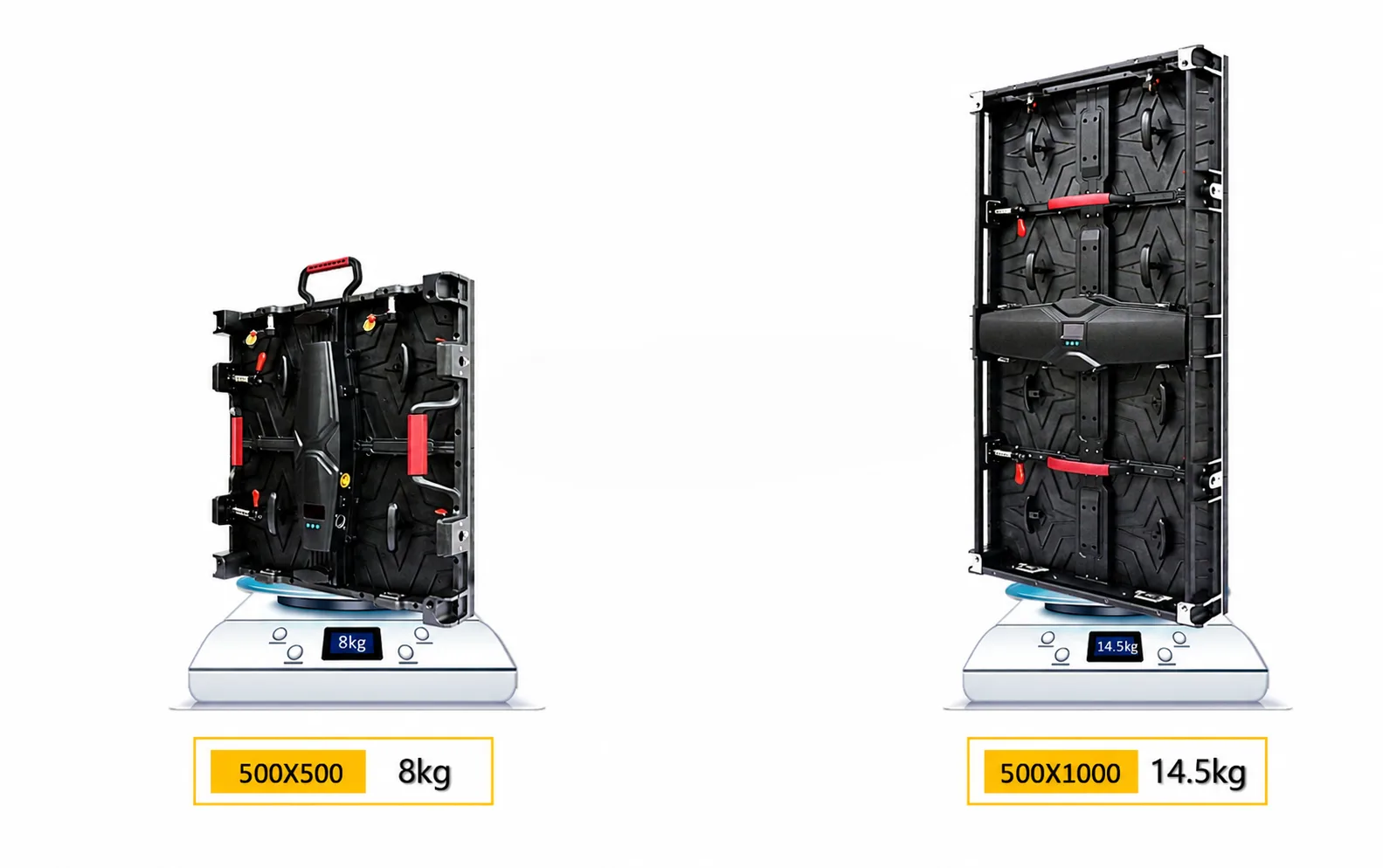

Lightweight Cabinet Design

The 500×500mm cabinet weighs about 8kg, and the 500×1000mm cabinet weighs about 14.5kg. The lightweight structure makes the LED display easier to install, move and maintain.

This helps reduce structural load and improves installation efficiency, especially for wall-mounted church LED screens, stage background LED walls and rental-style worship event displays.

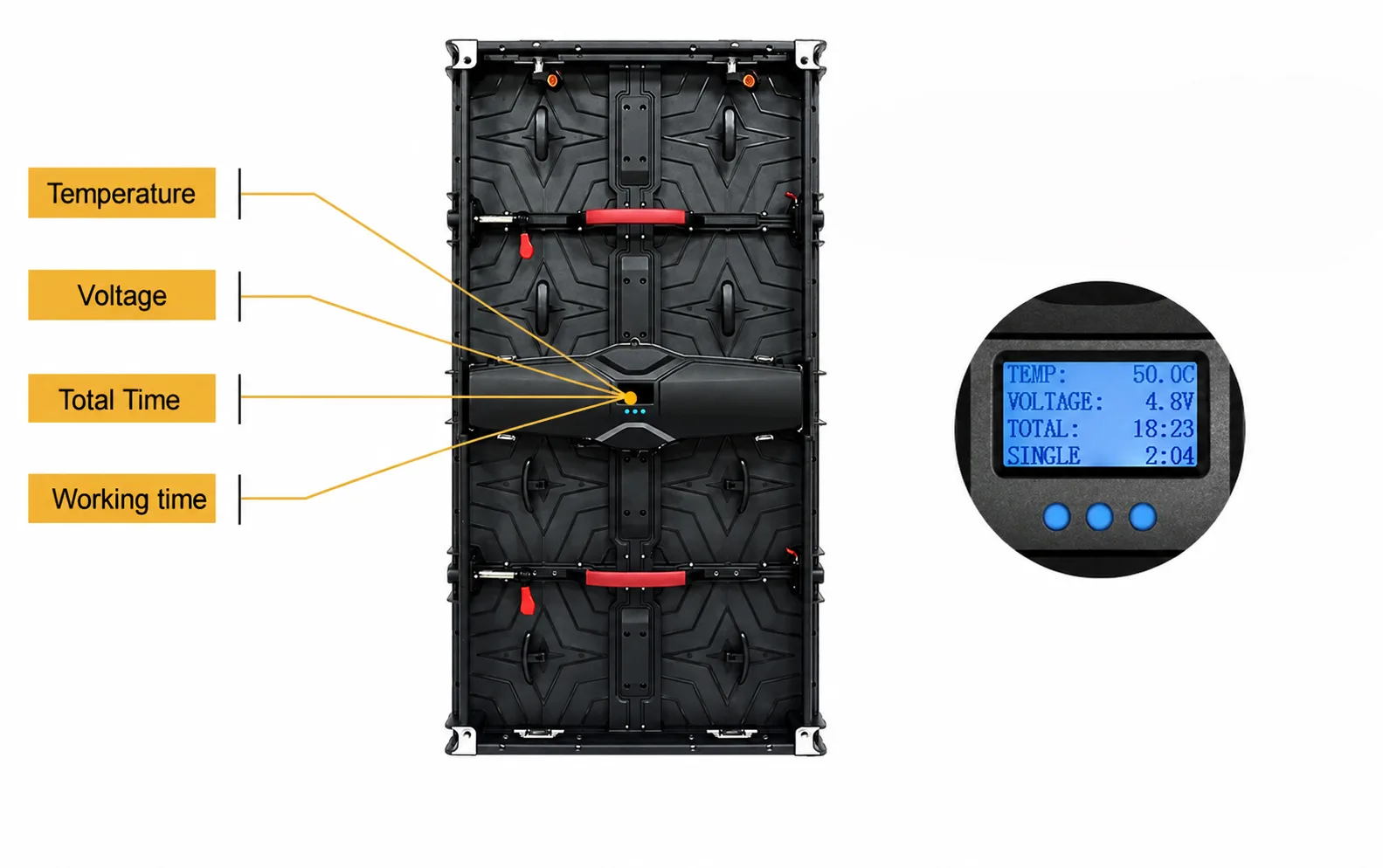

LCD Monitoring Panel for Real-Time Screen Status

The church LED display can be equipped with an LCD monitoring panel to show important working information, such as voltage, current, working time, temperature and operating status.

This helps church technical teams check the display condition more easily and improves maintenance efficiency. Real-time monitoring also helps reduce unexpected failure risk during worship services, concerts, sermons and religious events.

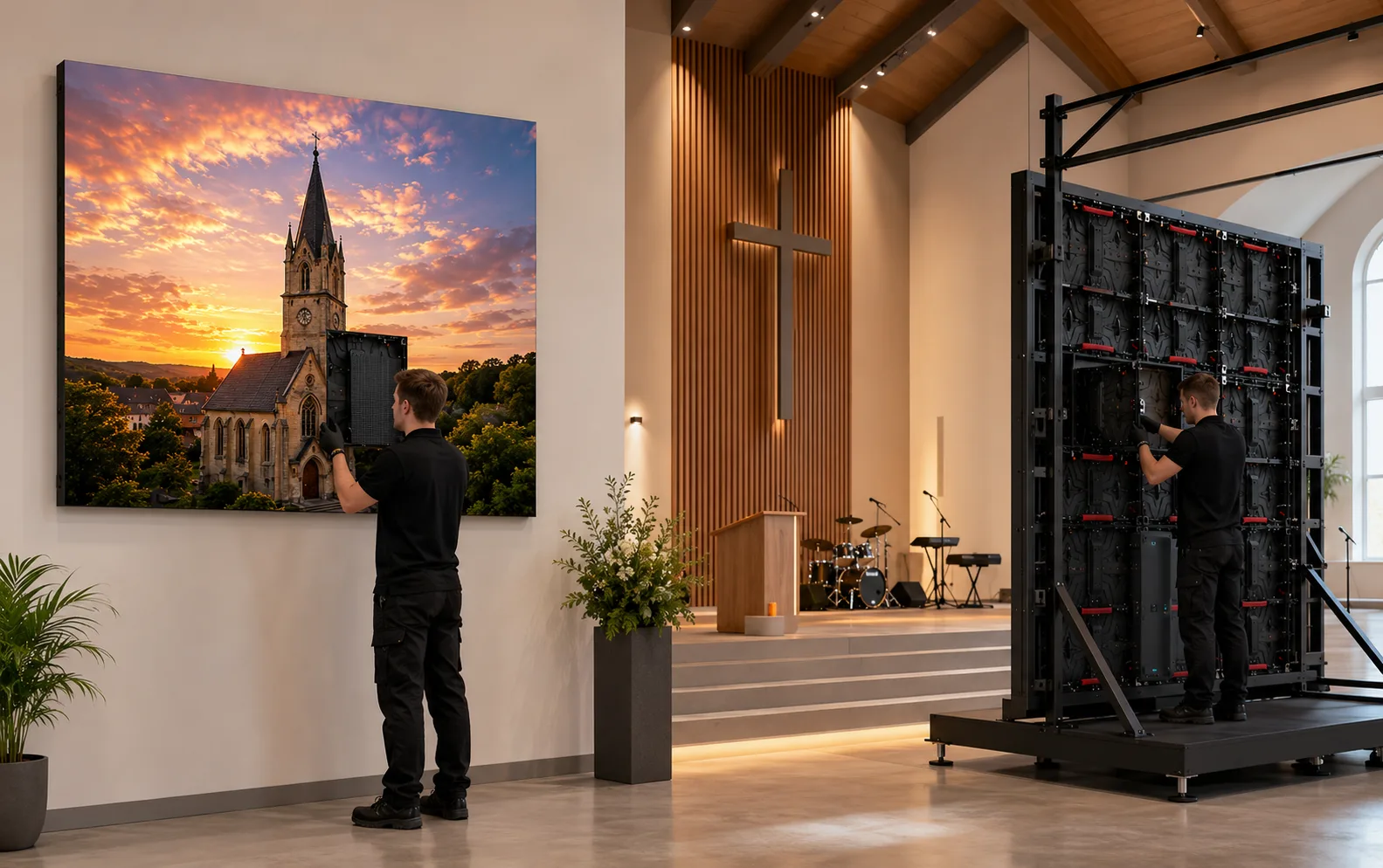

Front and Rear Maintenance Options

LEDU Church LED Display can support convenient maintenance according to project requirements. For wall-mounted church LED video walls, front maintenance is especially useful because LED modules and key components can be serviced from the front side.

For stage structures or installations with rear access, rear maintenance can also be selected. Flexible maintenance design helps reduce downtime and makes long-term operation easier.

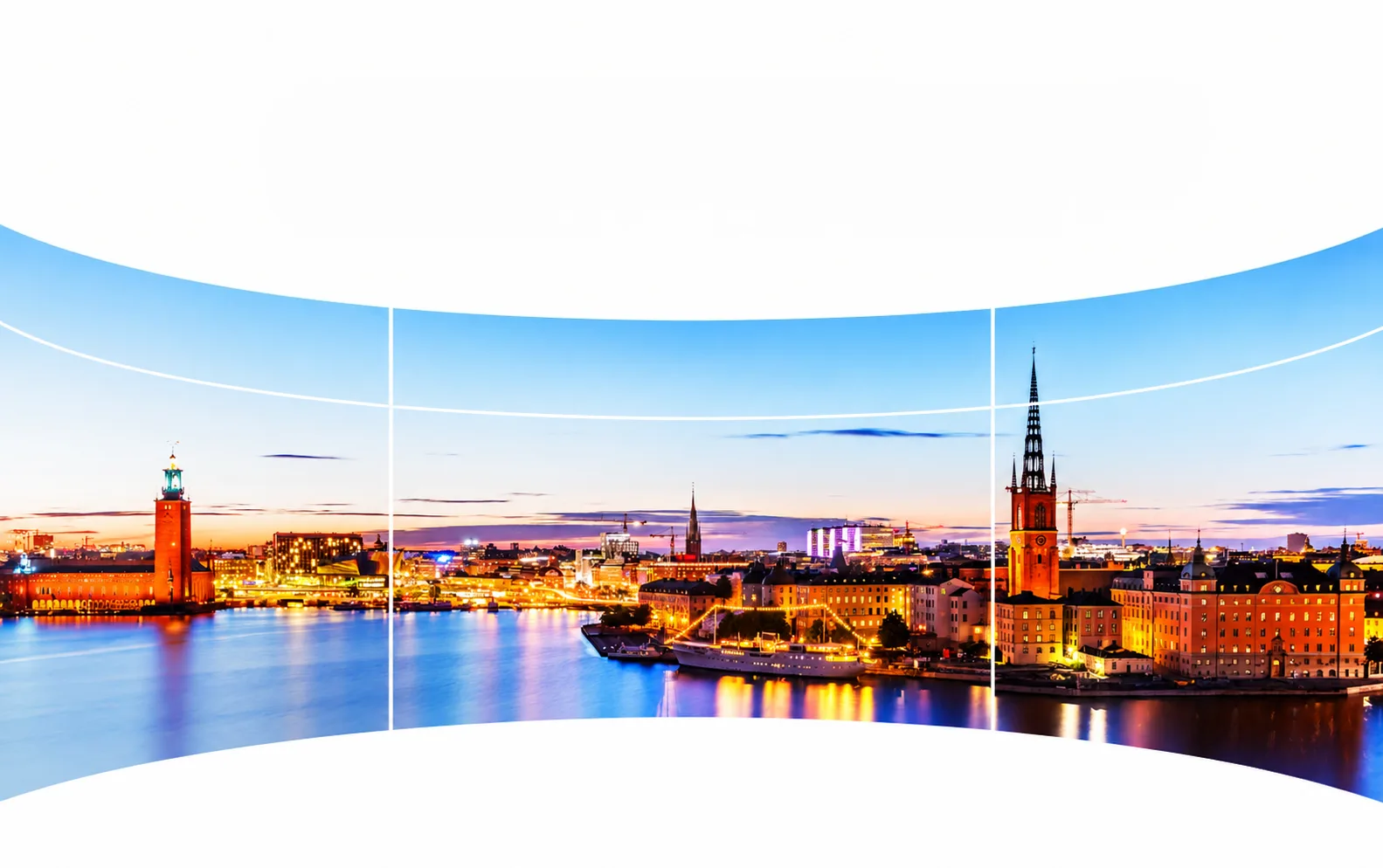

Wide Viewing Angle for Church Seating Areas

Church audiences often sit in different areas, including front rows, side seats, balconies and rear seating zones. LEDU Church LED Display offers a wide viewing angle, allowing viewers to see clear images and readable text from multiple positions.

This helps improve visibility for worship lyrics, sermon content, Bible verses and live video feeds.

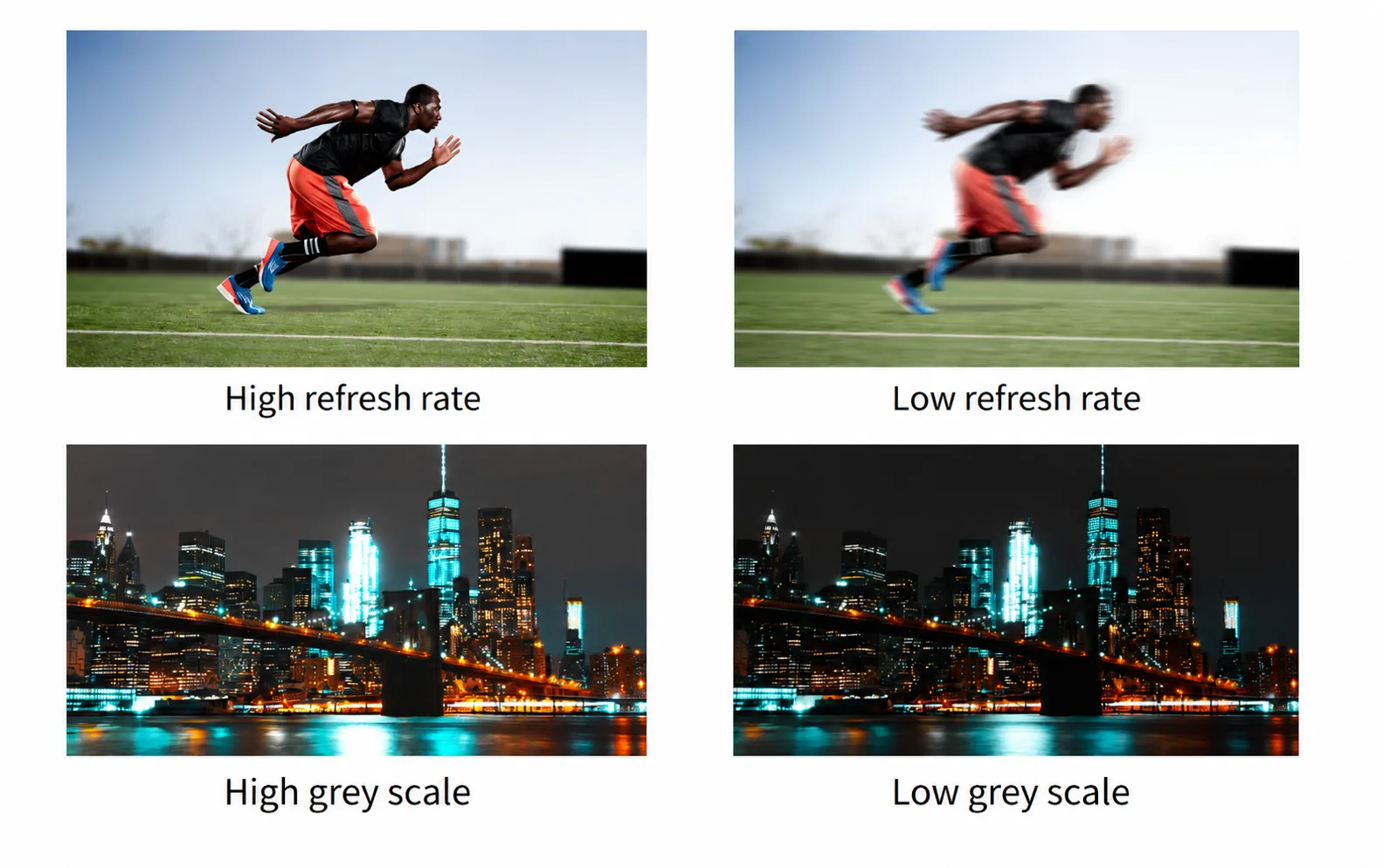

High Refresh Rate for Smooth Worship Video Playback

LEDU Church LED Display is designed with a high refresh rate to provide smooth video performance. It helps reduce flicker, scan lines and image tearing during camera shooting, live streaming and video playback.

This is very important for churches that use cameras for online worship services, YouTube live streaming, Facebook live streaming, sermon recording or multi-camera production. A high refresh rate LED display helps the screen look cleaner and more stable on camera.

High Contrast and Vivid Color Performance

The church LED screen delivers high contrast, rich color and clear image details. It can display worship backgrounds, Bible verses, sermon graphics, live camera feeds and religious video content with strong visual impact.

High contrast helps make text easier to read and improves image depth, especially in darker church environments or stage lighting conditions. The result is a more professional and immersive worship experience.

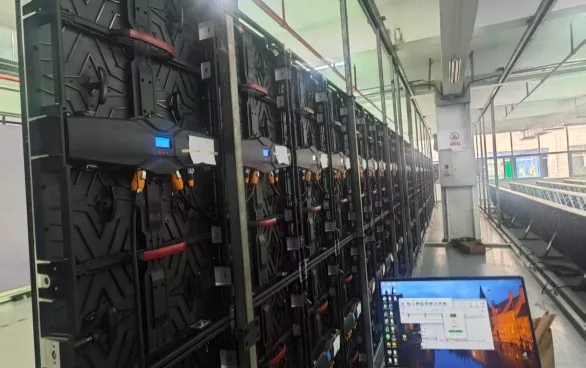

Seamless Splicing for a Clean Church Video Wall

The modular LED cabinet design supports seamless splicing, allowing multiple LED panels to form a large church LED video wall without visible bezels. This creates a modern and high-end visual effect compared with LCD video walls or traditional projection systems.

A seamless LED video wall is ideal for church stages, altar backgrounds, worship halls and religious event venues where visual quality and professional appearance are important.

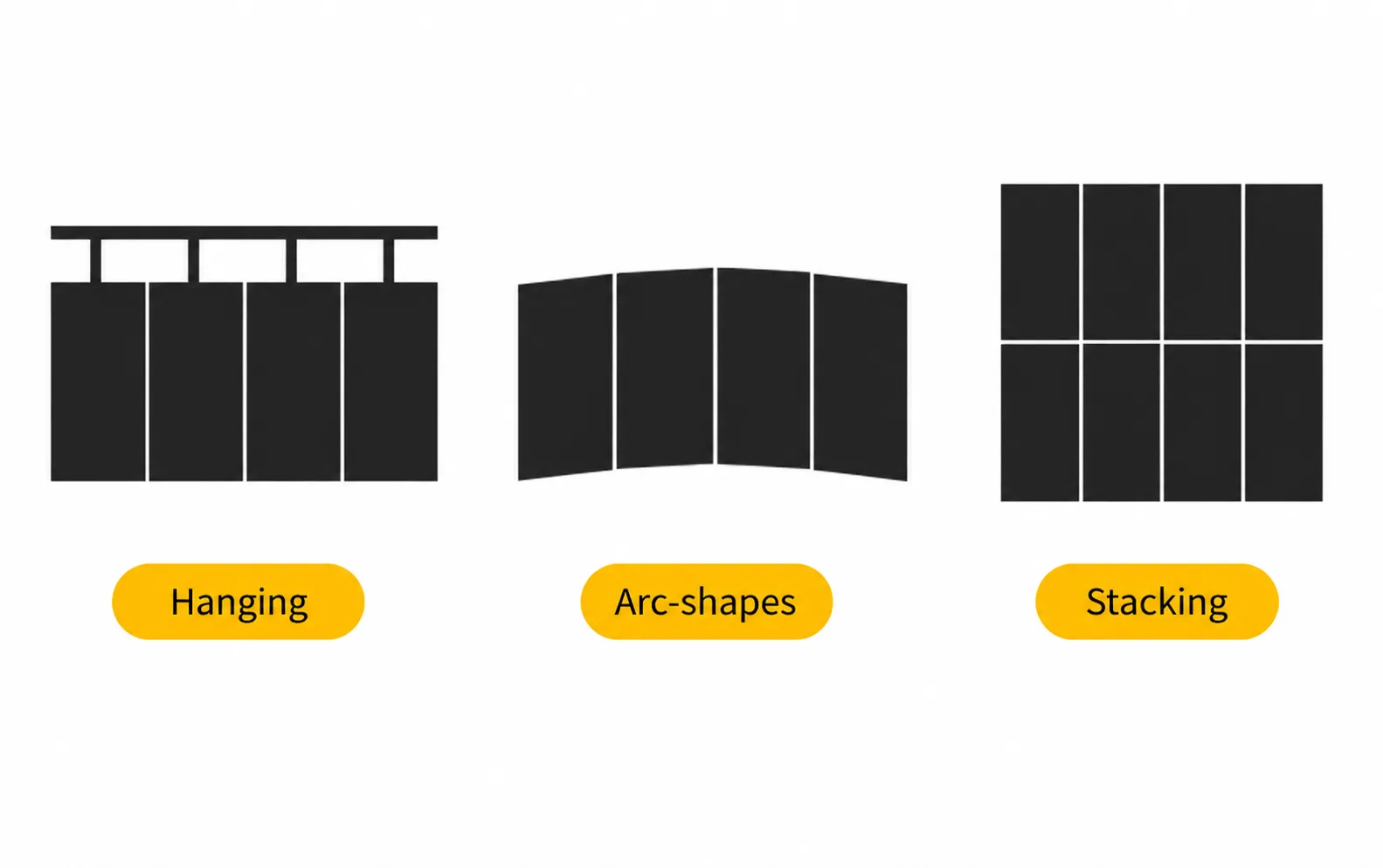

Different Installations

As professional LED rental products, convenience and variability of installations are one of the key points for your rental businesses.It can be assembledIt in most of standardized sizes with various installation ways, such ashanging installation, arc installation, stacking installation, etc.

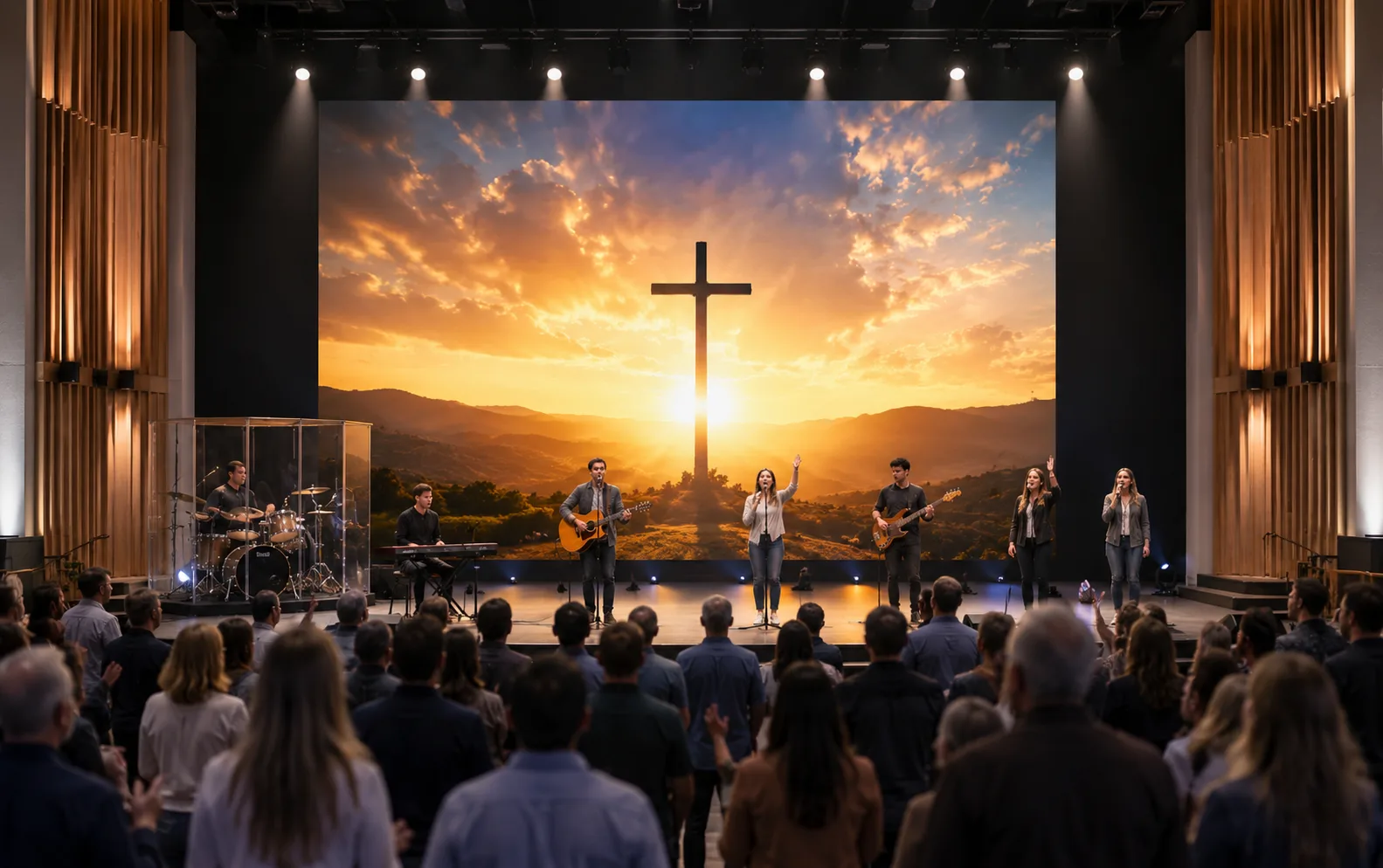

Stable Long-Term Operation

Church LED displays are often used every week for worship services, rehearsals, events, live streaming and community activities. LEDU focuses on stable components, strict quality control and aging tests to support long-term operation.

LED modules, receiving cards, power supplies, control systems and cabinets are carefully tested before delivery to help improve reliability and reduce maintenance cost.

Specification

Indoor P1.56-P3.91 Module Parameters

Model	PI.56 GOB	p1.95	p2.5	p2.6	p2.9	p3
Usage	Indoor	Indoor	Indoor	Indoor	Indoor	Indoor
Cabinet size(mm)	500500mm /5001000mm	500500mm /5001000mm	500500mm /5001000mm	500500mm /5001000mm	500500mm /5001000mm	500500mm /5001000mm
Physical Density(Dot/sqm)	409600	262144	160000	147456	112896	65536
Protection Level	IP31	IP31	IP31	IP31	IP31	IP31
Packaging Technology	GOB	SMD	SMD	SMD	SMD	SMD
Maintenance	Front/Back	Front/Back	Front/Back	Front/Back	Front/Back	Front/Back
Refresh Rate	3840-7680hz	3840-7680hz	3840-7680hz	3840-7680hz	3840-7680hz	3840-7680hz
Brightness(cd/㎡)	600-1200nits	600-1200nits	600-1200nits	600-1200nits	600-1200nits	600-1200nits
Max. Power Consumption(w)	600w	600w	600w	600w	600w	600w
Average Power Consumption(w)	200-300w	200-300w	200-300w	200-300w	200-300w	200-300w
Cabinet Weight (kg)	8kgs/14.5kgs	8kgs/14.5kgs	8kgs/14.5kgs	8kgs/14.5kgs	8kgs/14.5kgs	8kgs/14.5kgs
Cabinet Material	Die-casting aluminum	Die-casting aluminum	Die-casting aluminum	Die-casting aluminum	Die-casting aluminum	Die-casting aluminum

Why Choose LEDU Church LED Display?

For modern houses of worship, upgrading to an LED video wall is a significant investment. Pastors, worship leaders, and church AV directors need a display that enhances the worship experience without causing distractions, while remaining mindful of congregation budgets.

Shenzhen Ledu Display Co., Ltd. understands the unique technical and aesthetic requirements of religious sanctuaries. Here is why congregations and AV integrators worldwide choose our church led display solutions:

Professional LED Display Solution for Churches

LEDU provides customized church LED display solutions for worship halls, church stages, religious events and live streaming applications. From screen size calculation to pixel pitch selection and control system configuration, LEDU helps customers choose the right LED video wall solution.
High-Quality Visual Performance

With high refresh rate, high contrast, seamless splicing and wide viewing angle, LEDU Church LED Display helps churches create clear, bright and immersive visual experiences.
Reliable Production and Quality Control

LEDU carefully controls LED modules, PCB boards, power supplies, receiving cards, cabinets and control systems. Aging tests and full-screen inspections help ensure stable performance before shipment.
Flexible Customization and Technical Support

LEDU supports different cabinet sizes, pixel pitches, installation structures and screen layouts. Technical support can be provided for installation guidance, system configuration and after-sales service.

Application

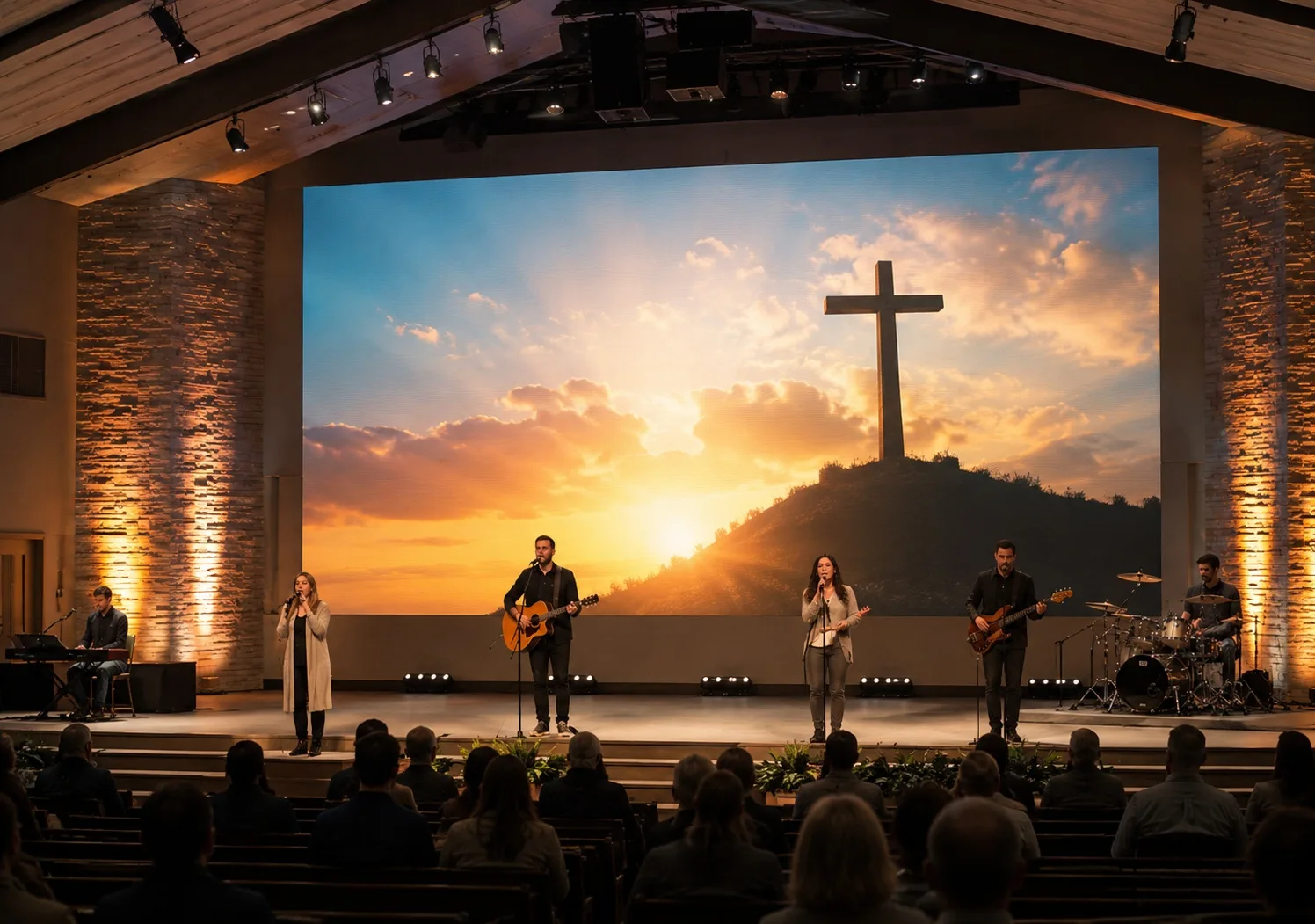

Church Worship Stage LED Display

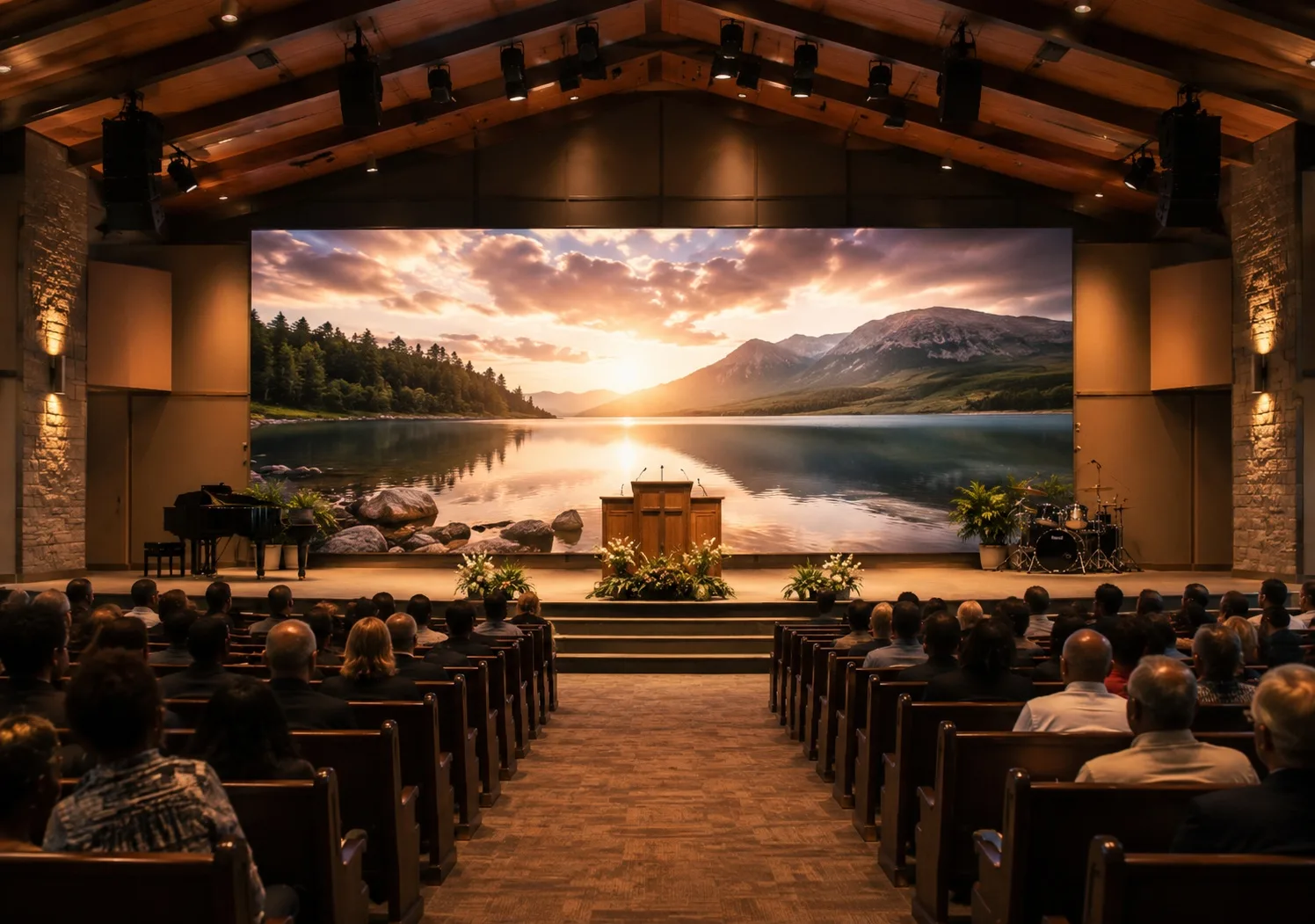

Church Background LED Video Wall

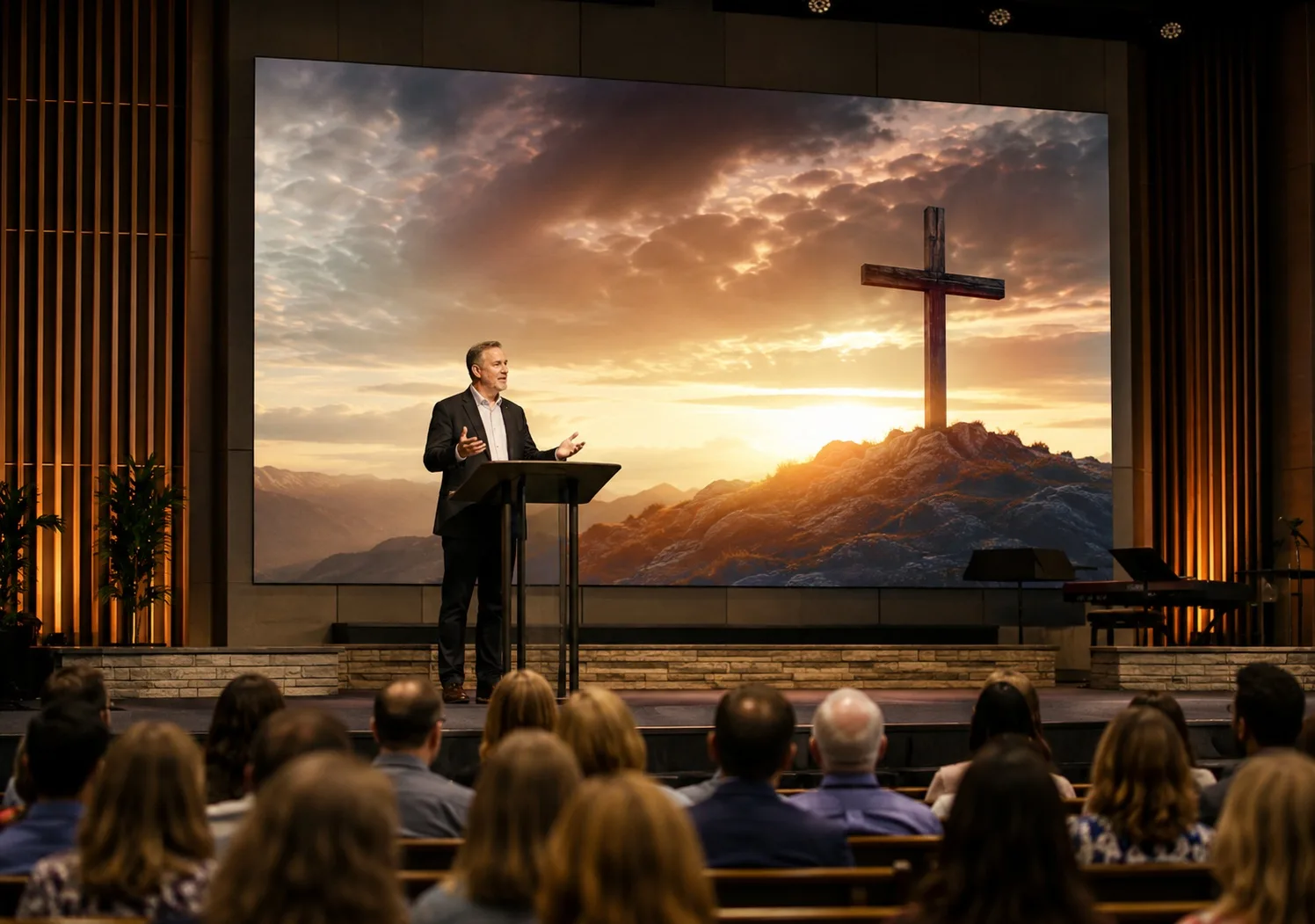

Church Sermon LED Screen

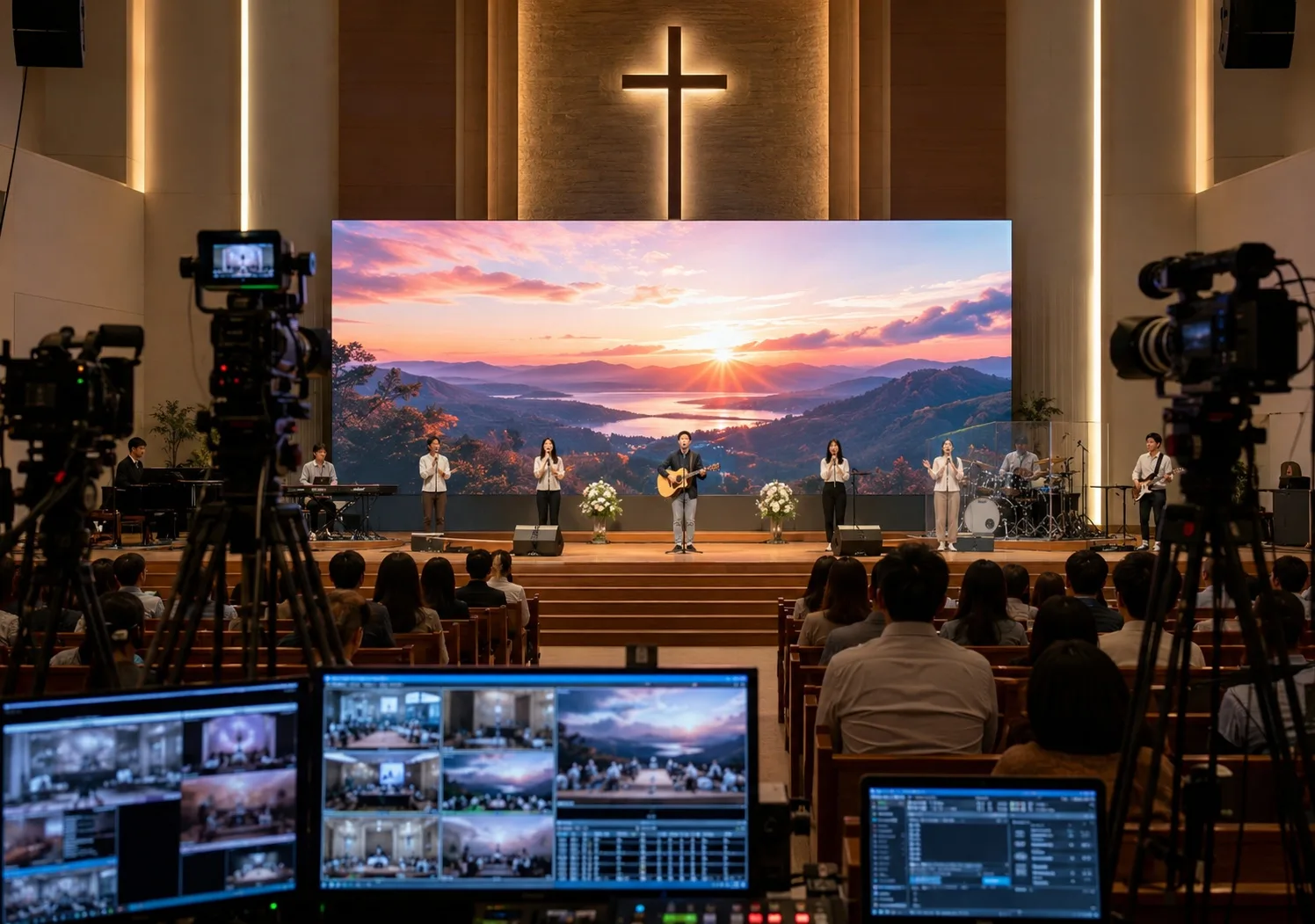

Church Live Streaming LED Display

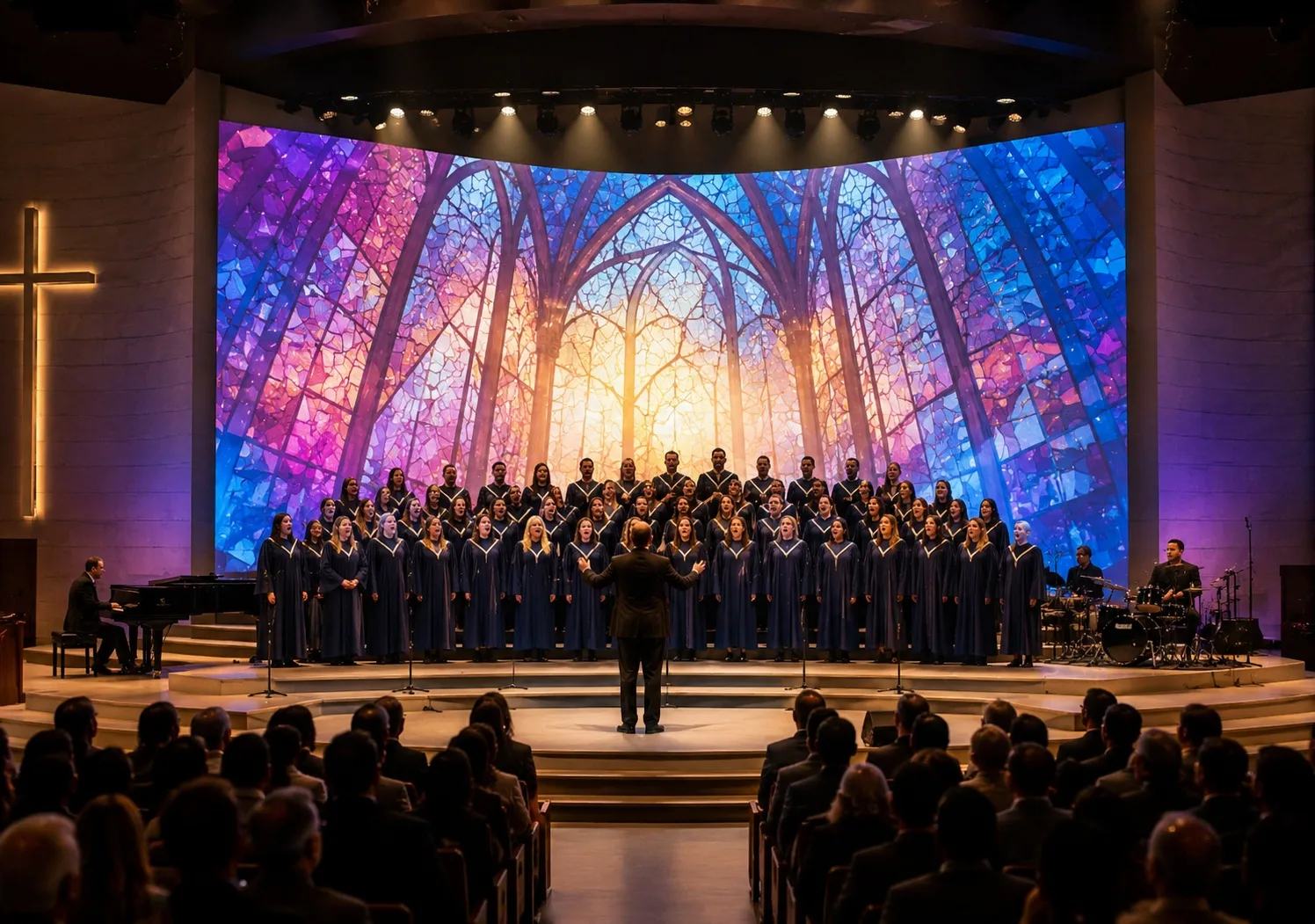

Church Choir Performance LED Wall

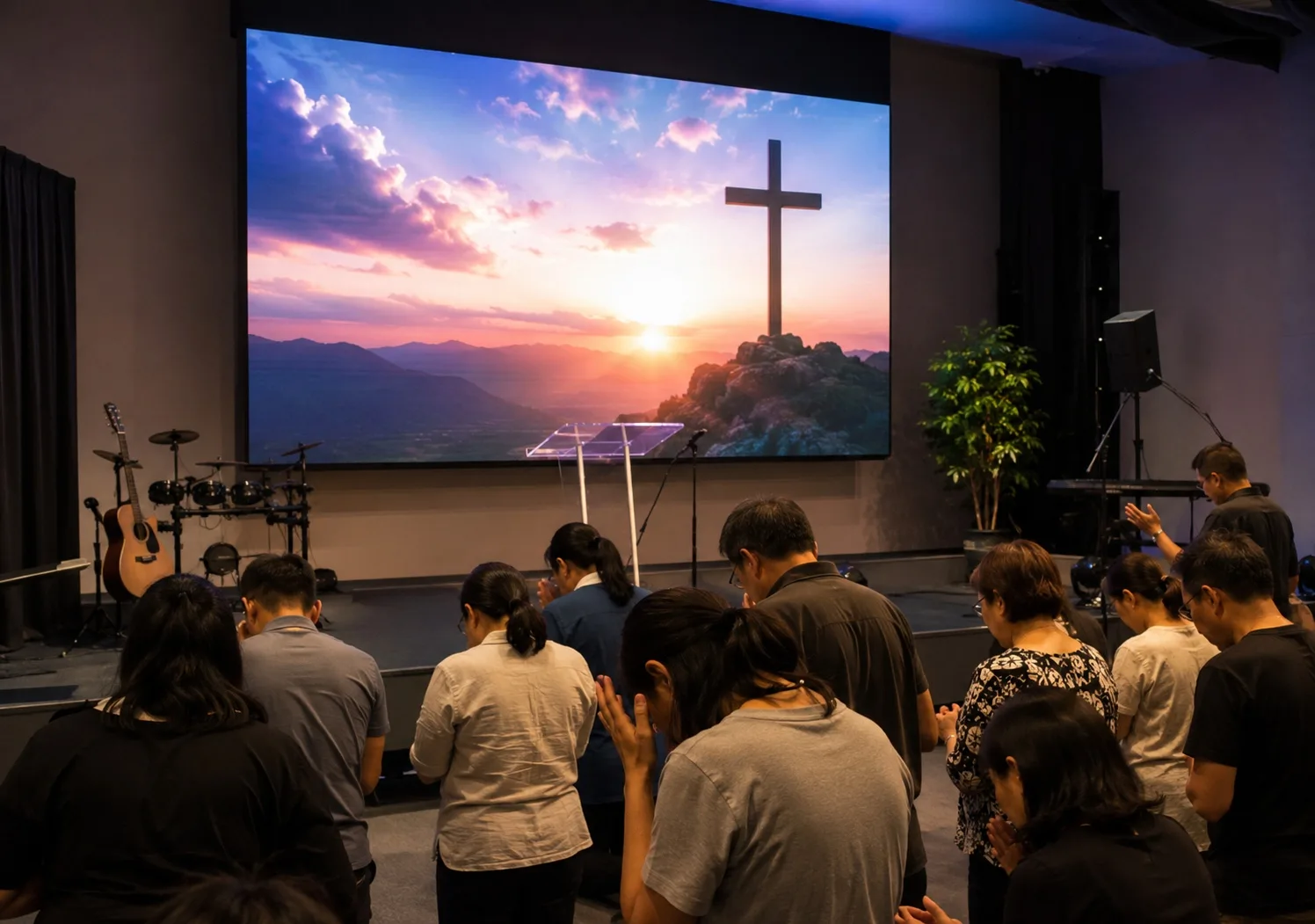

Church Prayer Meeting LED Display

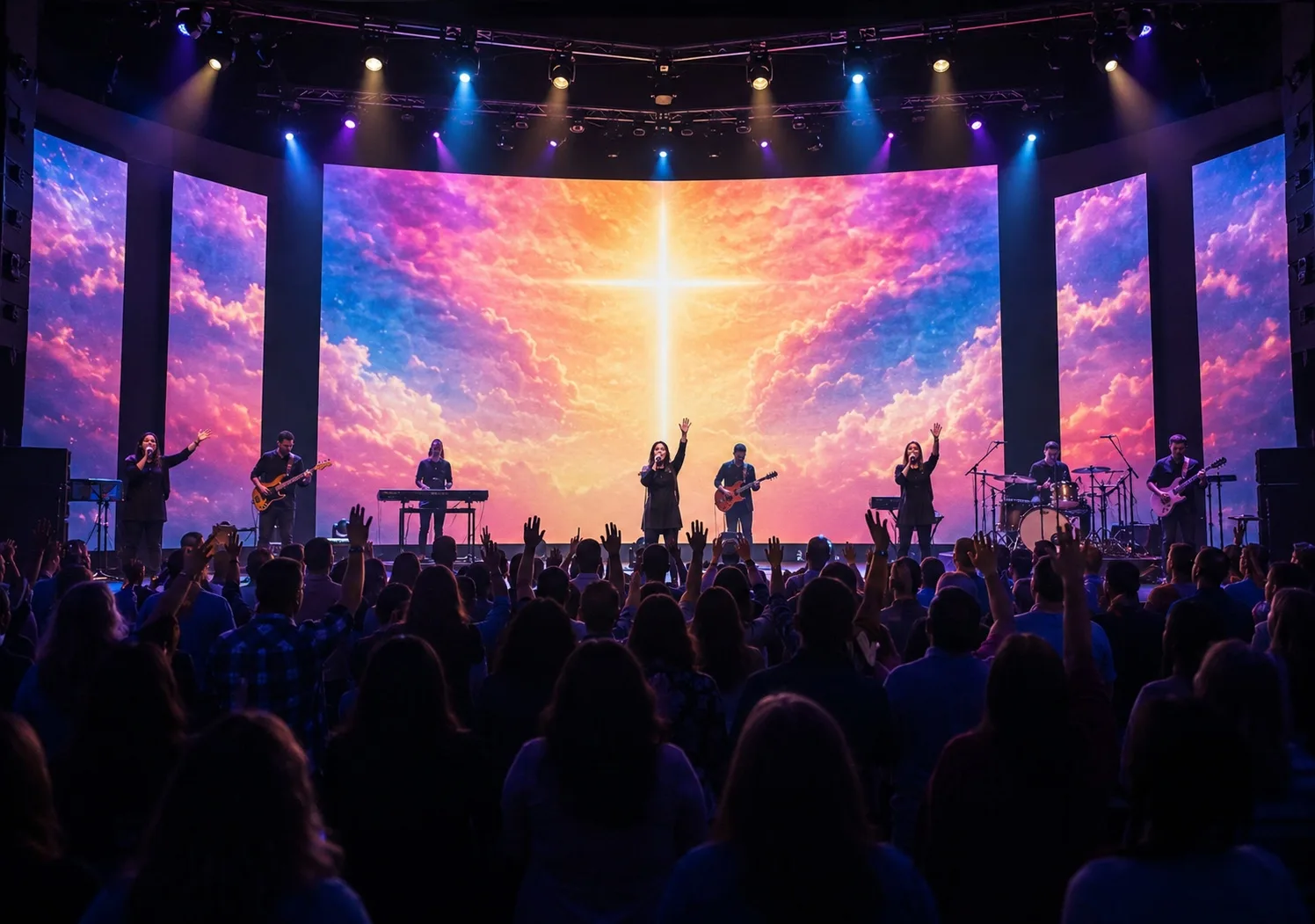

Church Concert LED Video Wall

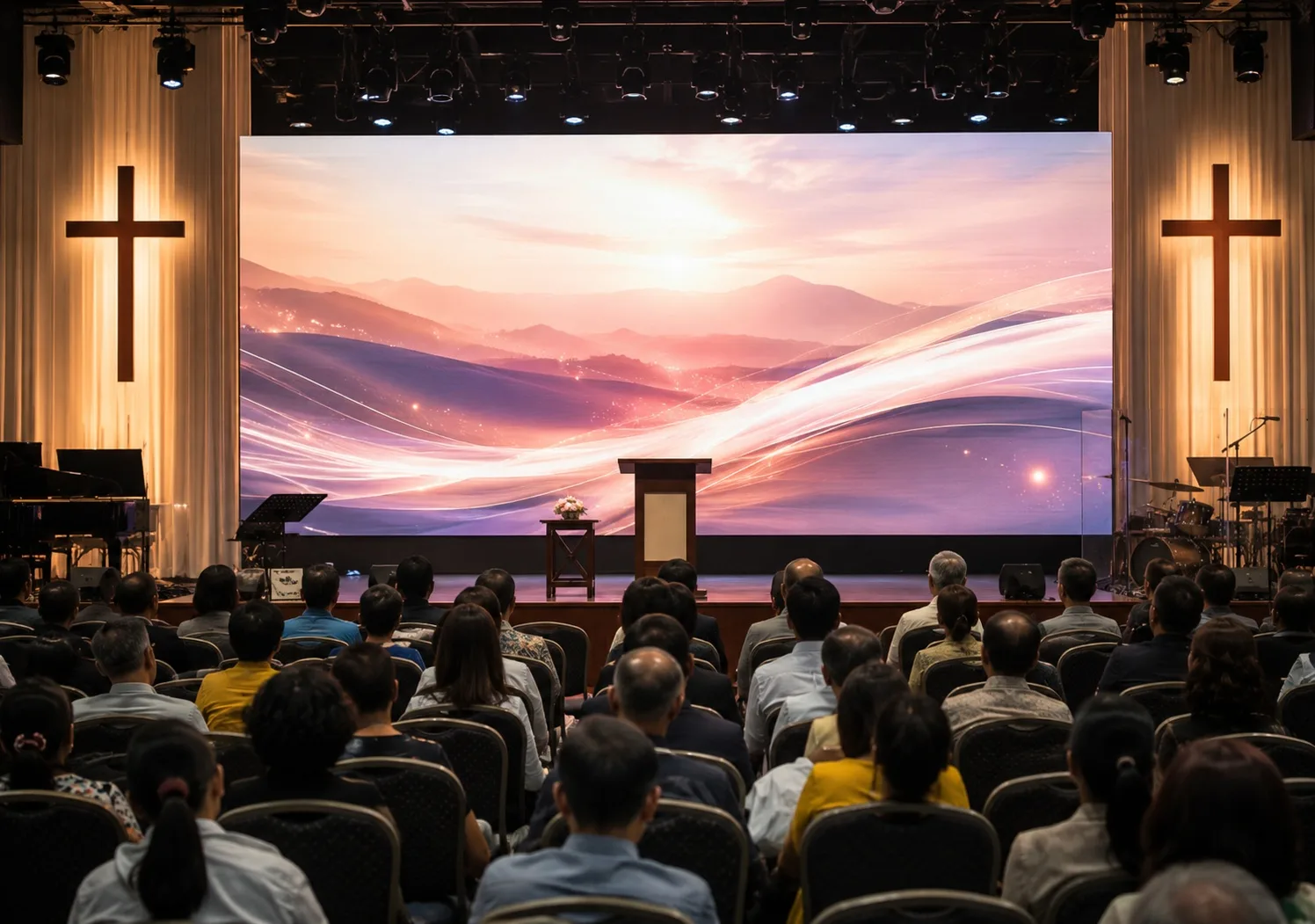

Church Conference LED Display

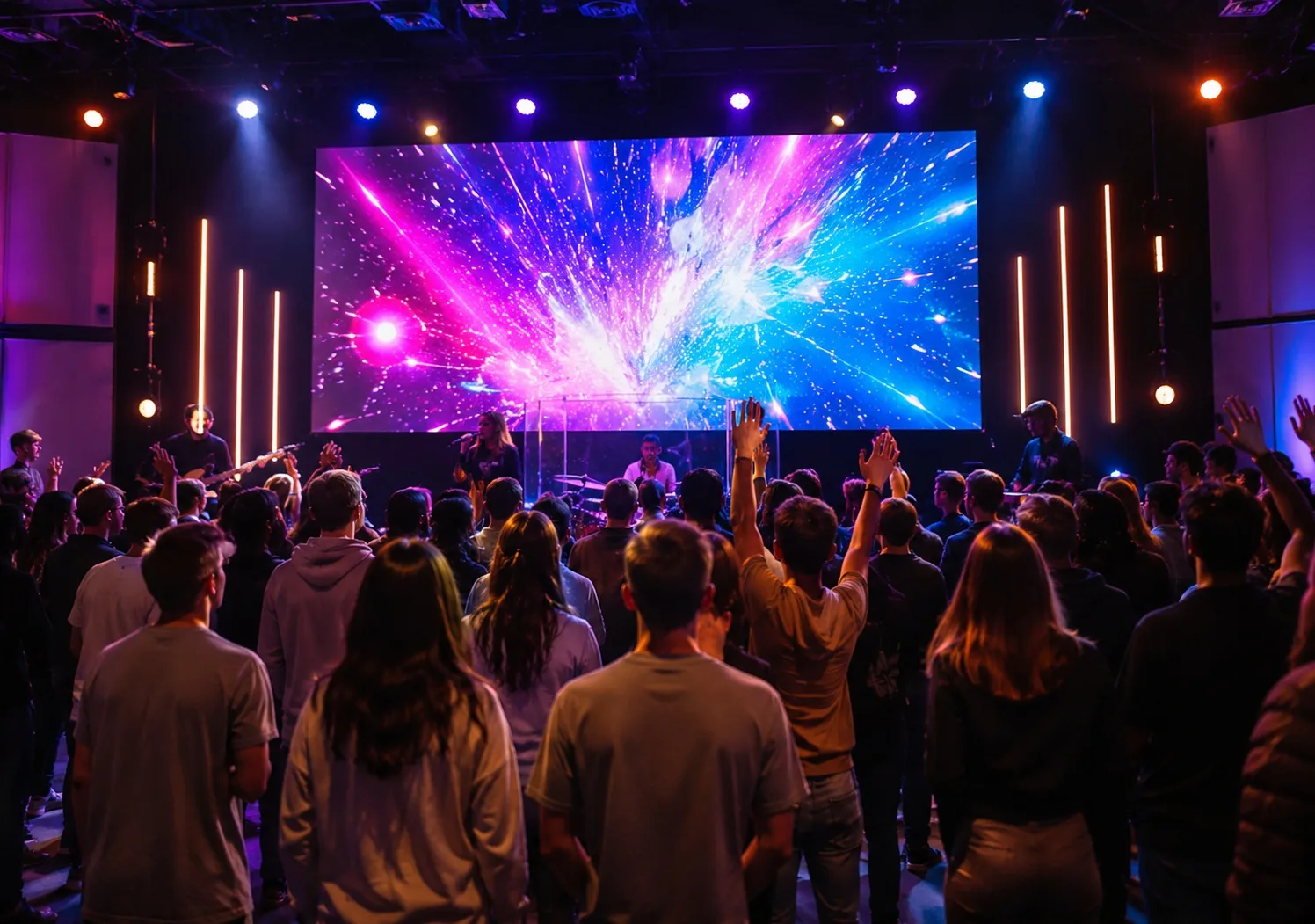

Church Youth Event LED Screen

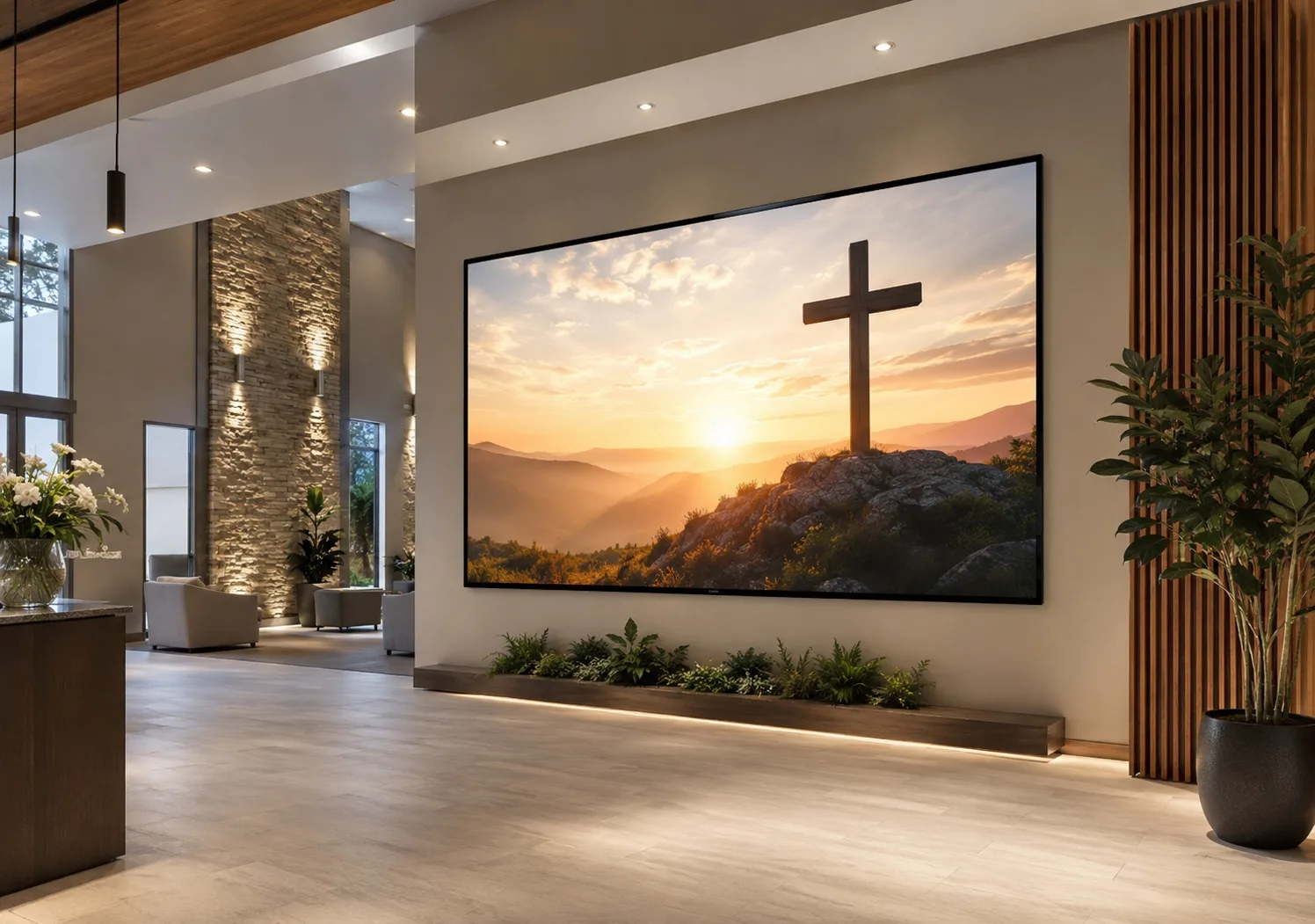

Church Lobby Digital LED Display

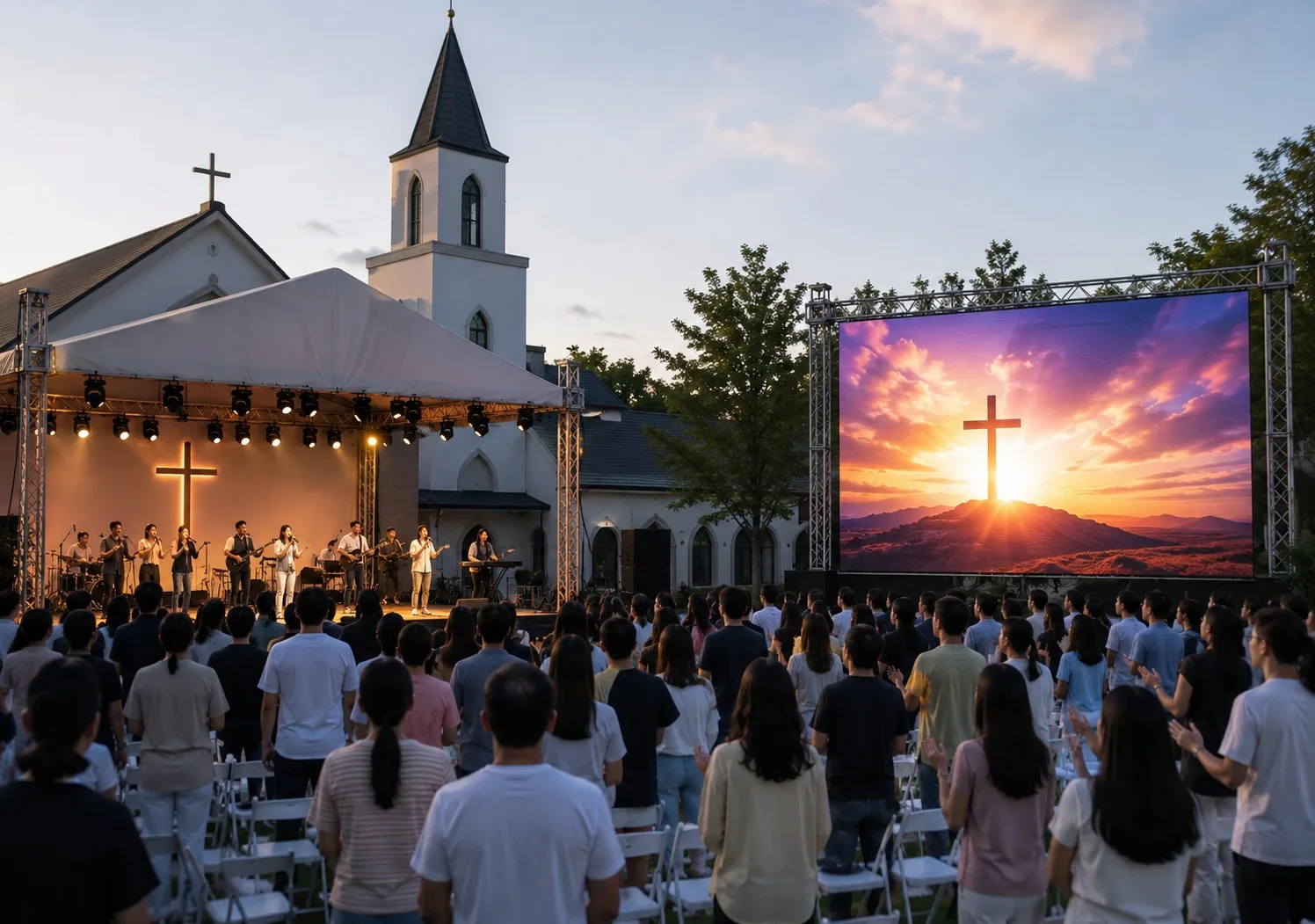

Church Outdoor Event LED Display

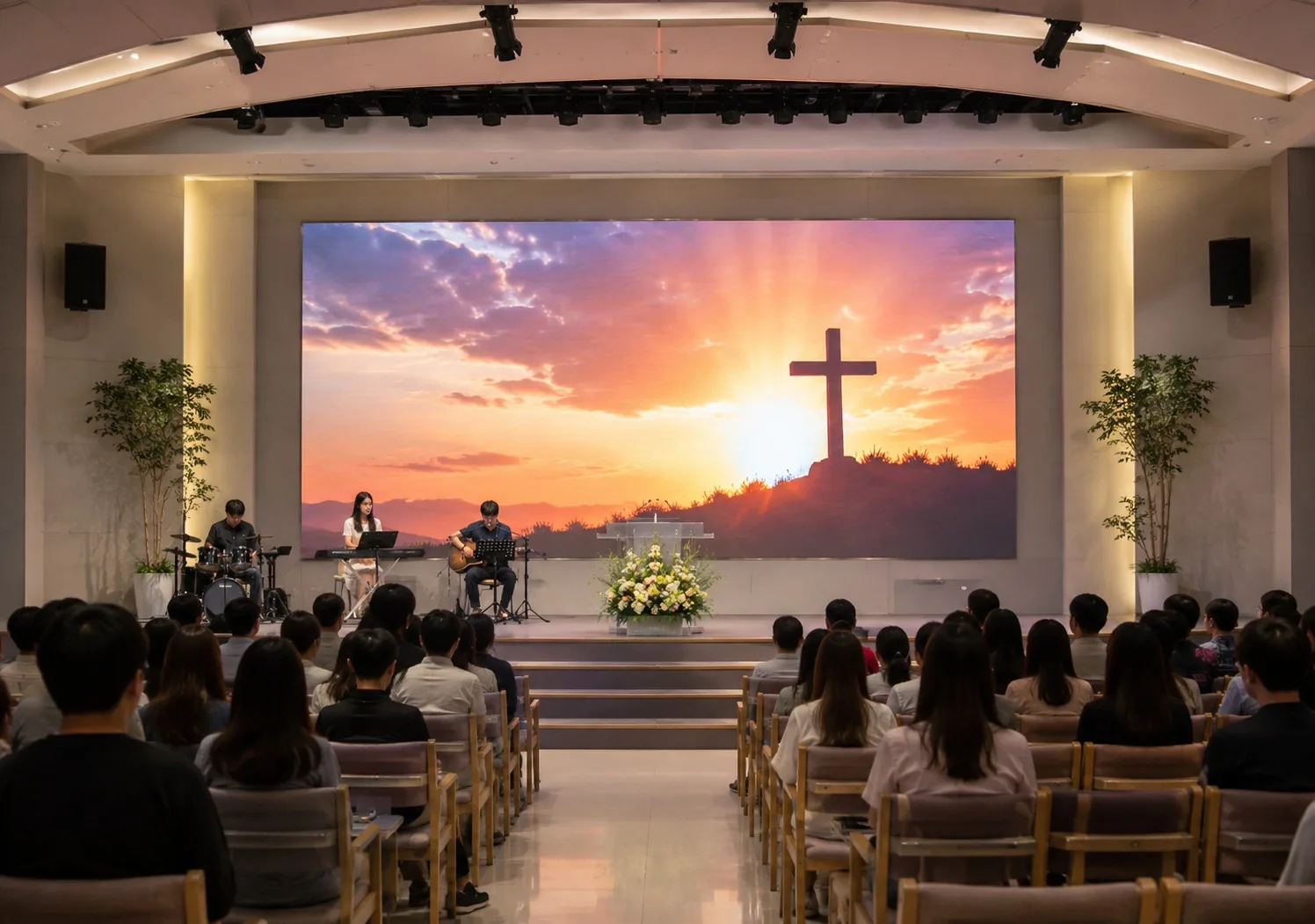

Church Multi-Purpose Hall LED Screen

FAQ

What is a Church LED Display?

A Church LED Display is a high-definition LED video wall designed for worship services, sermons, church stages, choir performances, live streaming, Bible verse display and church event presentations. Compared with projectors or LCD screens, a church LED display offers higher brightness, seamless splicing, vivid color, wider viewing angle and a more immersive visual experience for the congregation.

Why should churches choose an LED display instead of a projector?

A church LED display provides brighter images, better contrast, clearer text and more stable performance than a traditional projector. It is especially suitable for large worship halls, bright church interiors, live streaming and stage backgrounds. LED screens also do not require projection distance, making them a better solution for modern church LED video wall projects.

What are the common applications of Church LED Display?

Church LED displays are widely used for worship stage backgrounds, sermon presentations, Bible verses, lyrics, choir performances, live streaming, church concerts, prayer meetings, youth events, conference rooms, church lobbies and outdoor church events. They help improve visual communication and create a more engaging worship environment.

What cabinet sizes are available for LEDU Church LED Display?

LEDU Church LED Display can use 500×500mm and 500×1000mm LED display cabinets according to the installation size and project requirements. The 500×500mm cabinet is compact and flexible, while the 500×1000mm cabinet is suitable for faster installation of larger church LED video walls.

What is the weight of the Church LED Display cabinet?

The 500×500mm church LED display cabinet weighs about 8kg, and the 500×1000mm cabinet weighs about 14.5kg. The lightweight cabinet design helps reduce installation pressure, improve installation efficiency and make maintenance easier for church stage LED screen projects.

Is Church LED Display suitable for close viewing distance?

Yes. LEDU Church LED Display supports different pixel pitch options for close and medium viewing distances. Fine pixel pitch church LED screens can show clear Bible verses, lyrics, sermon content, live video and worship backgrounds with excellent detail, making them suitable for indoor church sanctuaries and worship halls.

What pixel pitch is recommended for Church LED Display?

The recommended pixel pitch depends on viewing distance, screen size and budget. Common options include P1.95, P2.6, P2.9, P3.91 and other customized pixel pitches. For close viewing indoor church LED display projects, smaller pixel pitch can provide sharper images and clearer text.

Does LEDU Church LED Display support high refresh rate?

Yes. LEDU Church LED Display supports high refresh rate performance, which helps deliver smooth video playback and reduces flicker during camera shooting and live streaming. A high refresh rate church LED video wall is ideal for worship services, online broadcasting, stage performances and video recording.

Is Church LED Display suitable for live streaming?

Yes. LEDU Church LED Display is suitable for church live streaming because it provides high refresh rate, stable image performance and excellent color consistency. It helps reduce scan lines, flicker and camera interference, making the screen look clean and professional on video.

Can Church LED Display show Bible verses and worship lyrics clearly?

Yes. A high-definition church LED screen can display Bible verses, worship lyrics, sermon points, announcements and presentation slides clearly. With high contrast, good grayscale performance and vivid color, the content remains easy to read for the congregation.

Does Church LED Display support seamless splicing?

Yes. LEDU Church LED Display supports seamless splicing, allowing multiple LED cabinets to form a large church LED video wall without visible gaps. Seamless splicing creates a clean and professional stage background for worship, sermons and church events.

Can the Church LED Display be customized to different screen sizes?

Yes. LEDU can customize the church LED display size according to the stage width, ceiling height, viewing distance, installation structure and content requirements. The screen can be designed as a flat LED wall, curved LED wall, background LED screen or customized church stage LED display solution.

What is the advantage of high contrast for Church LED Display?

High contrast helps the church LED display show deeper blacks, brighter highlights and more realistic images. This is important for worship backgrounds, Bible scenes, live camera feeds, lyrics and sermon visuals. A high contrast church LED screen improves visual depth and audience engagement.

Does the Church LED Display have an LCD monitoring panel?

Yes. LEDU Church LED Display can be designed with a smart LCD monitoring panel. The LCD panel can show important working information such as voltage, temperature, total working time and operating status. This helps users monitor the screen condition and improve maintenance efficiency.

Can Church LED Display support front maintenance?

Yes. LEDU Church LED Display supports front maintenance according to project requirements. For wall-mounted church LED video walls, front maintenance is very useful because LED modules, power supplies and receiving cards can be serviced from the front side without requiring rear access.

Can Church LED Display support rear maintenance?

Yes. Rear maintenance can also be selected for church stage structures or installations with enough rear access space. Flexible front or rear maintenance design helps reduce downtime and makes long-term operation easier for church LED screen projects.

Is Church LED Display easy to install?

Yes. LEDU Church LED Display uses a lightweight cabinet structure, fast lock design and high-precision cabinet alignment. The 500×500mm and 500×1000mm cabinets can be installed efficiently, helping churches, AV integrators and stage contractors save installation time.

Is Church LED Display reliable for weekly worship services?

Yes. Church LED displays are often used every week for worship services, rehearsals, events, live streaming and community activities. LEDU focuses on stable components, strict quality control and aging tests to support long-term operation and reduce maintenance cost.

Can LEDU provide a complete Church LED Display solution?

Yes. LEDU can provide a complete church LED display solution, including pixel pitch selection, screen size calculation, cabinet configuration, control system, installation method, technical guidance and after-sales support. This helps customers choose the right LED display for church projects more efficiently.

Why choose LEDU Church LED Display?

LEDU Church LED Display is designed for high-definition image quality, high refresh rate, high contrast, seamless splicing, flexible maintenance and reliable long-term operation. With 500×500mm and 500×1000mm cabinet options, lightweight structure, smart LCD monitoring and professional technical support, LEDU helps churches build modern, clear and engaging worship LED video wall solutions.
