Outdoor LED Display

At Shenzhen Ledu (LEDU) Display Co., Ltd., we specialize in engineering high-performance outdoor LED display solutions designed to deliver high-impact visual communication in the most demanding environments. As a trusted China outdoor LED screen manufacturer, LEDU combines cutting-edge technology with rigorous quality control to provide global clients with reliable, commercial-grade digital billboards. Our outdoor LED video walls are the preferred choice for digital-out-of-home (DOOH) advertising, sports stadiums, transportation hubs, and architectural landmarks worldwide.

Inquire

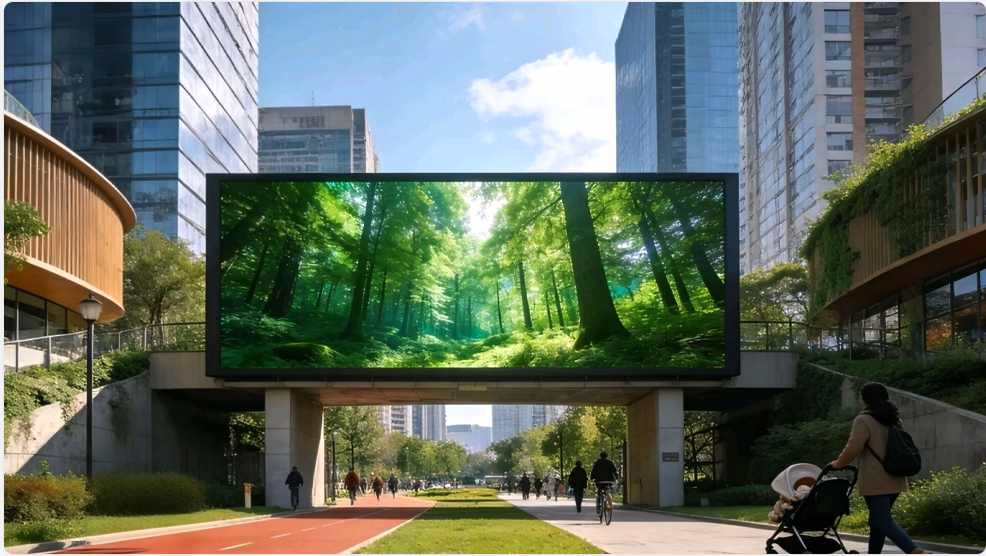

Prouduct Introduction

“Transform your digital advertising with Ledu Display’s premium outdoor LED Display solutions. Designed for the most demanding environments, our outdoor LED screens deliver crystal-clear visuals with high brightness capabilities (up to 10,000 nits), ensuring perfect readability even under direct sunlight.

Whether for digital billboards, building facades, or stadium perimeters, our rugged cabinets feature top-tier IP65 waterproof ratings, energy-saving common cathode technology, and superior heat dissipation. From P2.5 high-resolution displays to massive P10 advertising screens, Ledu Display provides reliable, long-lasting visual performance that maximizes audience engagement and ROI for your DOOH (Digital Out-of-Home) campaigns.”

Inquire

Outdoor LED Display

LEDU has engineered a comprehensive range of outdoor LED displays tailored to address a wide array of application scenarios and specific customer requirements — ideal for stadiums, commercial plazas, and urban billboards.

Commercial LED Display

Key Features: Outdoor commercial LED displays focus on high-definition brand engagement, close-up viewing, and sleek aesthetics. They are heavily utilized in the Digital Out-Of-Home (DOOH) advertising sector to drive retail foot traffic and enhance corporate branding....

Send Inquiry Now>

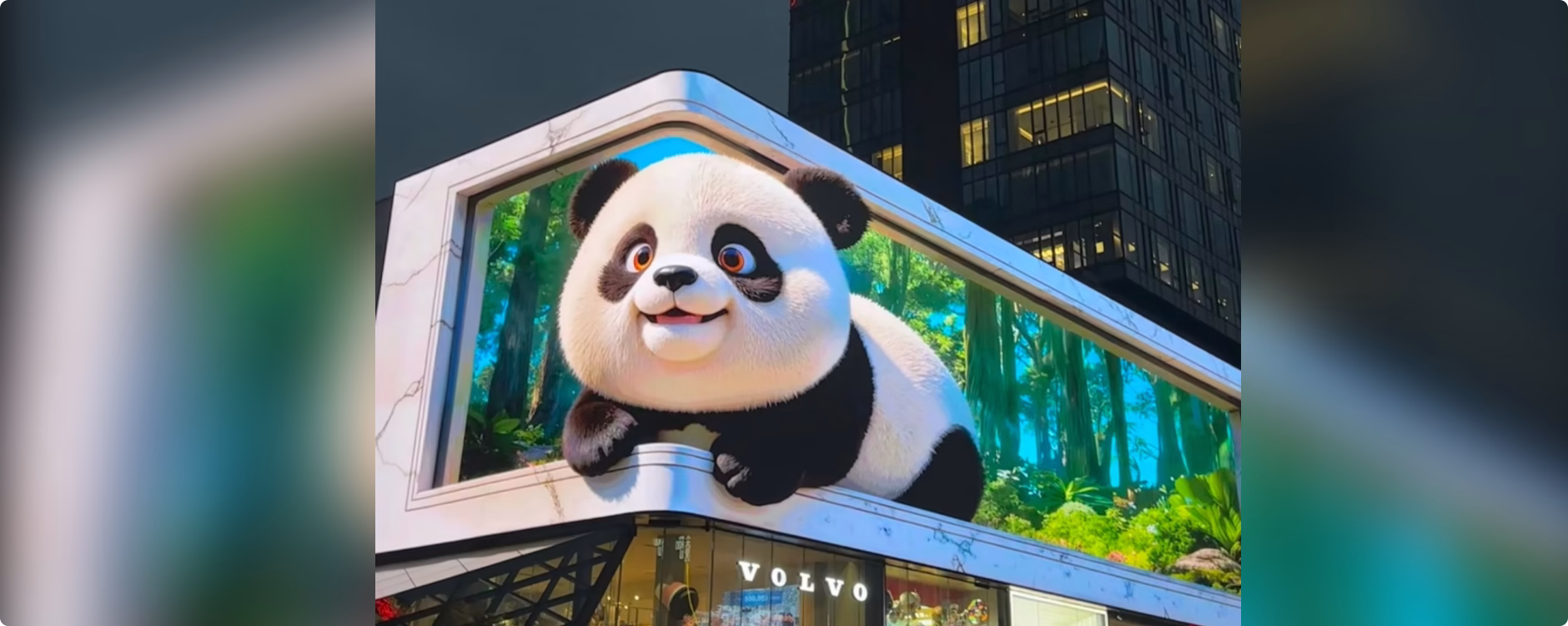

3D LED Display

Key Features: Leveraging advanced optical technologies and professional display algorithms, these 3D outdoor LED billboards create stunning stereoscopic effects without the need for 3D glasses, delivering strong immersion and eye-catching visual impact. Designed with high brightness...

Send Inquiry Now>

Advertising LED Display

Key Features: Engineered for outdoor advertising campaigns, these high-brightness LED displays boast an IP65+ protection rating, enabling stable operation in harsh weather conditions such as heavy rain, strong wind and extreme temperatures. Featuring medium-to-large pixel pitches...

Send Inquiry Now>

Product Features

High Brightness & Strong Light Adaptability

Outdoor LED displays offer 5,000–10,000+ cd/㎡ brightness for clear visibility in direct sunlight. Auto-brightness adjustment optimizes performance based on ambient light while minimizing light pollution.
High Protection Rating

With a protection class of IP65 or higher, these screens offer complete dustproof and waterproof capabilities. They can withstand harsh weather conditions such as heavy rain, sandstorms, extreme heat, and severe cold, ensuring long-term stable operation in outdoor environments.
High Contrast & Color Reproduction

Utilizing ultra-bright red, green, and blue primary color LEDs, outdoor LED displays support full-color rendering with high color fidelity and strong image layering. They accurately restore color details of images and videos, maintaining vivid color performance even in intense light.
Modular Design

Featuring a lightweight cabinet structure and modular design, these displays are easy to transport, install, and maintain. The modular structure enables quick screen splicing, reducing installation complexity. In case of malfunctions, faulty modules can be replaced rapidly, minimizing downtime.
Wide Viewing Angle & Long-Distance Visibility

Offering a horizontal viewing angle of over 120° and a vertical viewing angle that caters to audiences at different heights, these screens ensure clear visibility for viewers from all directions. By optimizing pixel pitch and installation height, they deliver sharp display effects even for long-distance viewing.
Intelligent Control & Remote Management

Outdoor LED displays can be controlled via computers, mobile phones, or cloud platforms, allowing for timely adjustments to advertising content, playback sequences, and schedules. Some models come with real-time monitoring functions that collect operational data to enable precise control and efficient operation and maintenance.
Energy Efficiency & Environmental Friendliness

Adopting energy-saving designs such as high-efficiency driver ICs, low-voltage operation, and auto-brightness adjustment technology, these screens effectively reduce energy consumption. Additionally, LED chips have a long service life, lowering replacement frequency and maintenance costs, which aligns with the green and energy-saving development trend.
Strong Environmental Adaptability

These displays are suitable for various outdoor settings, including coastal areas and high-humidity regions. Some models undergo special treatments such as anti-salt spray and UV resistance, extending their service life.
Customizable Large Display Area

Screen sizes can be fully customized, ranging from small outdoor advertising screens to large-scale displays for plazas and stadiums, meeting the application needs of different scenarios. They can also be fabricated into irregular shapes to match building facades or integrated with naked-eye 3D technology for more visually striking effects.
High Stability

Built with industrial-grade chips and high-quality materials, outdoor LED displays are equipped with excellent heat dissipation systems, lightning protection, and anti-static designs. They can operate stably within a wide temperature range of -20℃ to +60℃, adapting to the complex working conditions of outdoor environments.

Basic Components of Outdoor LED Displays

LED Beads (LED Chips)

The core display element of an LED screen that converts electrical signals into light signals. By combining red, green, and blue (RGB) LEDs, it produces a full spectrum of colors and brightness levels, forming the foundation of image and video display for indoor/outdoor LED screens.

Driver IC (Integrated Circuit)

A critical control chip that regulates the on/off state and brightness of LED beads, manages pixel grayscale and color output precision. It ensures stable, high-fidelity image reproduction and uniform brightness across the entire LED display panel.

PCB Board (Printed Circuit Board)

The main circuit carrier for LED beads, driver ICs, capacitors, and other electronic components. It provides electrical connection pathways to transmit power and data signals between components, enabling seamless signal distribution across LED modules.

Back Cover (Bottom Shell)

A structural and protective component for the LED module. It secures the PCB board and internal parts, reduces electromagnetic interference (EMI) that could disrupt signal transmission, and supports heat dissipation—ensuring stable performance during software calibration and long-term operation.

Mask (LED Display Face Cover)

Covers the LED beads to reduce glare and improve contrast. During calibration, the software accounts for the mask’s light-diffusing properties to adjust brightness and color accuracy, ensuring the final image has sharp details and uniform visual effects across the screen surface.

Waterproof Gasket (Sealing Ring)

A rubber/sealing component used in gaps of LED display cabinets and connectors. It blocks water, dust, and moisture from entering the internal circuitry, enhancing the IP rating (e.g., IP65/IP67) of outdoor LED displays and extending their service life. Flexible Flat Cable A thin, flexible flat cable for short-distance signal transmission—typically between LED modules and receiving cards, or between adjacent modules. It enables fast, stable data transfer and saves space in compact LED display installations. Red and Black Power Cables The red cable carries positive DC current, and the black cable carries negative DC current. They deliver stable power from the power supply to LED beads, driver ICs, receiving cards, and other active components, ensuring consistent power distribution for the LED display.

LED Power Supply

Converts mains AC (110V/220V) to low-voltage DC (5V/12V) for the display. The calibration software can detect voltage fluctuations via the control system; the power supply maintains stable output to support the software’s tuning of brightness and refresh rate without signal distortion.

Receiving Card (LED Display Control Card)

Receives calibrated video data from the LED processor, decodes it according to the software’s settings (e.g., resolution, pixel mapping), and distributes it to individual LED modules. It is the bridge between the software’s tuning commands and the physical display hardware.

LED Cabinet

The physical frame that houses LED modules, power supplies, receiving cards, and other components. It ensures structural stability of the LED screen, supports heat dissipation, and facilitates easy installation, maintenance, and cabinet splicing for large LED displays.

LED Video Processor

Processes input video signals (HDMI, SDI, DVI) and adapts them to the LED display’s specifications (resolution, aspect ratio) based on software settings. It executes the software’s commands for image scaling, PIP (picture-in-picture), and signal splicing, delivering a unified video source to the receiving cards for the final display.

LED Screen Calibration Software

Core Role in Creating a Complete Large-Screen Image . LED display calibration software is the central control tool that unifies all hardware components to produce a cohesive large-screen image.

Outdoor LED Module Differrent Series

Outdoor Standard LED Display Modules

Outdoor Standard LED Display Modules are the backbone of the global digital advertising industry. Designed for stability and cost-effectiveness, these modules typically utilize SMD (Surface Mounted Device) or DIP technology to deliver high reliability in varying weather conditions. At Ledu Display, our standard modules (available in P4, P5, P6, P8, and P10) are engineered with high-quality copper brackets and gold wire bonding. They provide a standard brightness of 5,500 to 6,500 nits, ensuring visibility during the day while maintaining vibrant color uniformity. These modules are the ideal choice for fixed installation billboards, building facades, and large-scale digital signage where durability and budget balance are key priorities.

Key Features:

Universal Compatibility: Standard sizing (e.g., 320x160mm) for easy replacement and maintenance.

IP65 Protection: Fully sealed against rain and dust.

Stable Performance: Proven technology for 24/7 continuous operation.

Outdoor Flexible LED Modules (Soft Modules)

Outdoor Flexible LED Modules (often called Soft Modules) are designed to break the rules of traditional flat displays. Made with high-quality flexible PCB boards and robust silicone rubber masks, these modules can bend, twist, and curve to fit unique architectural shapes.

Ledu Display’s Outdoor Soft Modules allow for the creation of seamless curved video walls, cylindrical columns, and wave-shaped screens in outdoor environments. Unlike indoor soft modules, our outdoor versions are rigorously treated for IP65 waterproofing and UV resistance, allowing you to install creative, 360-degree artistic displays in parks, plazas, and theme parks without worrying about weather damage.

Key Advantages:

Creative Freedom: Max bending ±30. Copper plating on circuit board 35μm can withstand 10000 bends and display continuous lines.Perfect for convex, concave, and S-shaped installations.

Unified PCB Color: All PCBs have the same color, and the black display is uniform when power is turned off.

No bright or dark line: The size of the soft bottom shell is consistent with the size of the PCB, and there is no dimensional tolerance to display no bright or dark lines

Magnetic Installation: Strong magnets allow for front-service installation on curved metal frames.

No edge light leakage: Customized black core soft bottom shell material with high flatness and no white edges displayed.

High Contrast: Anti-glare masks ensure the curve doesn’t reflect sunlight.get balance are key priorities.

Outdoor Energy-Saving LED Modules (Common Cathode)

Outdoor Energy-Saving LED Modules represent the latest evolution in display technology, utilizing advanced Common Cathode (CC) architecture. Unlike standard Common Anode modules that supply constant power to all chips, Common Cathode technology supplies precise, separate voltages to the Red, Green, and Blue LED chips.

Ledu Display’s Energy-Saving Modules reduce power consumption by 30% to 50%, significantly lowering operational electricity costs. Because the energy is utilized more efficiently, these modules generate significantly less heat (a ‘Cold Screen’ effect), which eliminates the need for heavy air conditioning systems and extends the lifespan of the LED components. This is the premium choice for massive DOOH screens and eco-friendly projects.

Key Features:

Saving 40%：By using low-voltage power sources (2.8V and 3.8V), the overall power consumption of the screen can be effectively reduced 40% compared to the traditional LED screen.

Low radiation：Low pressure operation，the maximum current and peak of the power supply are lower, reduce the instantaneous current of the entire frequency, resulting in lower radiation.

Cooling 30%：By using a low-voltage power supply, while reducing power consumption, the heat is significantly reduced by more than 50% compared to the traditional LED screen.

PWM drive：① Supports high brightness and high gray; ② Supports high refresh rate display

Outdoor Small Pixel Pitch LED Modules (Fine Pitch)

Outdoor Small Pixel Pitch LED Modules (also known as Fine Pitch Outdoor) are designed for applications requiring Ultra-High Definition (UHD) visuals at close viewing distances. Breaking the barriers of traditional outdoor screens, these modules feature pixel pitches ranging from P1.5 to P3.

With Ledu Display’s Small Pitch Modules, you can bring the resolution of an indoor TV to the outdoors. These modules feature high-contrast, black-face LEDs and anti-glare masks, making them perfect for luxury retail storefronts, pedestrian walking streets, bus stop signage, and drive-through menu boards where the audience is standing less than 3 meters away. They deliver 4K visual quality with the rugged IP65/IP66 waterproof protection needed for outdoor survival.

Key Features:

Double sided waterproof : The front&back of the PCB are coated with a layer of silicon Conforming to make electronic components waterproof, moisture-proof, dustproof, and salt spray resistant.

The led beads can withstand a thrust of 3kg: By adding special reinforcement glue around the LED beads, the maximum thrust that the LED lamps can withstand reach 3.18kg

Surrounding collision avoidance: Reinforce the perimeter and edges of the LED module to prevent the LED beads at the edges of the module from colliding.

Ultra-Close Viewing: Crystal clear images even from 2 meters away.

High Contrast Ratio: Deep blacks and vivid colors for premium branding.

Advanced Protection: Enhanced coating technologies (GOB) often used to protect fine pixels from impact.

Outdoor LED Module Differrent Pixel Pitch

OUTDOOR FULL COLOR SERIES

P2-20S SMD

FEATURES
1. Fully outdoor waterproof design, widely used in LED advertising totem.
2. SMD 1212, high contrast.
3. Double latch IC, more vivid images.
4. 160x160mm standard module size, perfect for screen pixel upgrade.
5. Private mould, seamless design, high consistency.
6. 25% – 30% Energy saving, less heat, longer lifespan.

P2.5-16S SMD

FEATURES
1.Fully outdoor waterproof design, widely used in LED advertising totem.
2. SMD 1415, high contrast.
3. Double latch IC, more vivid images.
4. 320x160mm standard module size, perfect for screen pixel upgrade.
5. Private mould, seamless design, high consistency.
6. 25% – 30% Energy saving, less heat, longer lifespan.

P3-16S SMD

FEATURES
1. Fully outdoor waterproof design, widely used in LED advertising totem.
2. SMD 1912, high contrast.
3. Double latch IC, more vivid images.
4. 192x192mm standard module size, perfect for screen pixel upgrade.
5. Private mould, seamless design, high consistency.
6. 25% – 30% Energy saving, less heat, longer lifespan.

P3.076-13S SMD

FEATURES
1. Fully outdoor waterproof design, widely used in LED advertising totem.
2. SMD 1415, high contrast.
3. Double latch IC, more vivid images.
4. 320x160mm standard module size, perfect for screen pixel upgrade.
5. Private mould, seamless design, high consistency.
6. 25% – 30% Energy saving, less heat, longer lifespan.

P4-10S SMD

FEATURES
1. Fully outdoor waterproof design, widely used in LED advertising totem.
2. SMD 1921, high contrast.
3. Double latch IC, more vivid images.
4. 320x160mm standard module size, perfect for screen pixel upgrade.
5. Private mould, seamless design, high consistency.
6. 25% – 30% Energy saving, less heat, longer lifespan.

P5-8S SMD

FEATURES
1. Fully outdoor waterproof design, widely used in LED advertising totem.
2. SMD 2727, high contrast.
3. Double latch IC, more vivid images.
4. 320x160mm standard module size, perfect for screen pixel upgrade.
5. Private mould, seamless design, high consistency.
6. 25% – 30% Energy saving, less heat, longer lifespan.

P6-8S SMD

FEATURES
1. Fully outdoor waterproof design, widely used in LED advertising totem.
2. SMD 2727/ SMD3535, high contrast.
3. Double latch IC, more vivid images.
4. 192x192mm standard module size, perfect for screen pixel upgrade.
5. Private mould, seamless design, high consistency.
6. 25% – 30% Energy saving, less heat, longer lifespan.

P6.67-6S SMD

FEATURES
1. Fully outdoor waterproof design, widely used in LED advertising totem.
2. SMD3535, high contrast.
3. Double latch IC, more vivid images.
4. 320x160mm standard module size, perfect for screen pixel upgrade.
5. Private mould, seamless design, high consistency.
6. 25% – 30% Energy saving, less heat, longer lifespan.

P8-5S SMD

FEATURES
1. Fully outdoor waterproof design, widely used in LED advertising totem.
2. SMD3535, high contrast.
3. Double latch IC, more vivid images.
4. 320x160mm standard module size, perfect for screen pixel upgrade.
5. Private mould, seamless design, high consistency.
6. 25% – 30% Energy saving, less heat, longer lifespan.

P10-2S SMD

FEATURES
1. Fully outdoor waterproof design, widely used in LED advertising totem.
2. SMD3535, high contrast.
3. Double latch IC, more vivid images.
4. 320x160mm standard module size, perfect for screen pixel upgrade.
5. Private mould, seamless design, high consistency.
6. 25% – 30% Energy saving, less heat, longer lifespan.

P10-4S SMD

FEATURES
1. Fully outdoor waterproof design, widely used in LED advertising totem.
2. SMD3535, high contrast.
3. Double latch IC, more vivid images.
4. 320x160mm standard module size, perfect for screen pixel upgrade.
5. Private mould, seamless design, high consistency.
6. 25% – 30% Energy saving, less heat, longer lifespan.

Outdoor LED Module Differrent Size

Ledu offers versatile outdoor LED display modules with multiple standard sizes to fit diverse commercial needs: 320*160mm, 256*128mm, 192*192mm, 480*320mm, and 500*250mm. Our high-brightness, waterproof LED panels support seamless splicing for outdoor advertising billboards, event video walls, and commercial signage, delivering clear visuals with wide viewing angles. Ideal for global B2B buyers seeking reliable, customizable LED display solutions.

320*160MM
256*128MM
192*192MM
480*320MM
500*250MM

Cabinets for Outdoor LED Displays

Ledu offers a full range of outdoor LED displays with customizable cabinets (profile aluminum, diecast aluminum, or iron) and sizes. From storefronts to stadiums, our products are tailored to specific dimensions, resolutions, and installation needs. Featuring high brightness, anti-glare technology, and an IP66 rating, they ensure clear visibility and stable performance in harsh outdoor conditions.

Profile Aluminum Cabinet Outdoor LED Display

The Profile Aluminum Cabinet features a lightweight alloy design that reduces structural load and installation costs. Its superior thermal conductivity ensures efficient heat dissipation without air conditioning, making it an energy‑saving, rust‑proof solution for outdoor advertising and DOOH projects.

Die-Cast Aluminum Cabinet Outdoor LED Display

Designed for high-end applications requiring absolute perfection, our Die-Cast Aluminum Cabinets utilize high-precision molding technology to achieve seamless splicing and flatness. Ultra-thin and ultra-light, these cabinets support fast locking and quick installation, making them the ideal choice for premium fixed installations and commercial displays where visual quality is paramount.

Iron (Steel) Cabinet Outdoor LED Display

The industry standard for large-scale outdoor advertising, our Iron Cabinets offer unmatched durability and cost-effectiveness. Built with high-strength steel and fully sealed for IP65/IP66 waterproof protection, this series provides a robust, heavy-duty solution for giant highway billboards and permanent installations in harsh weather environments.

AeroWall LED Series

AluLite Pro LED Series

EcoFit LED Series

SwiftInstall LED Series

PrimeAlu LED Series

SportView Ultra LED Series

SlimGuard LED Series

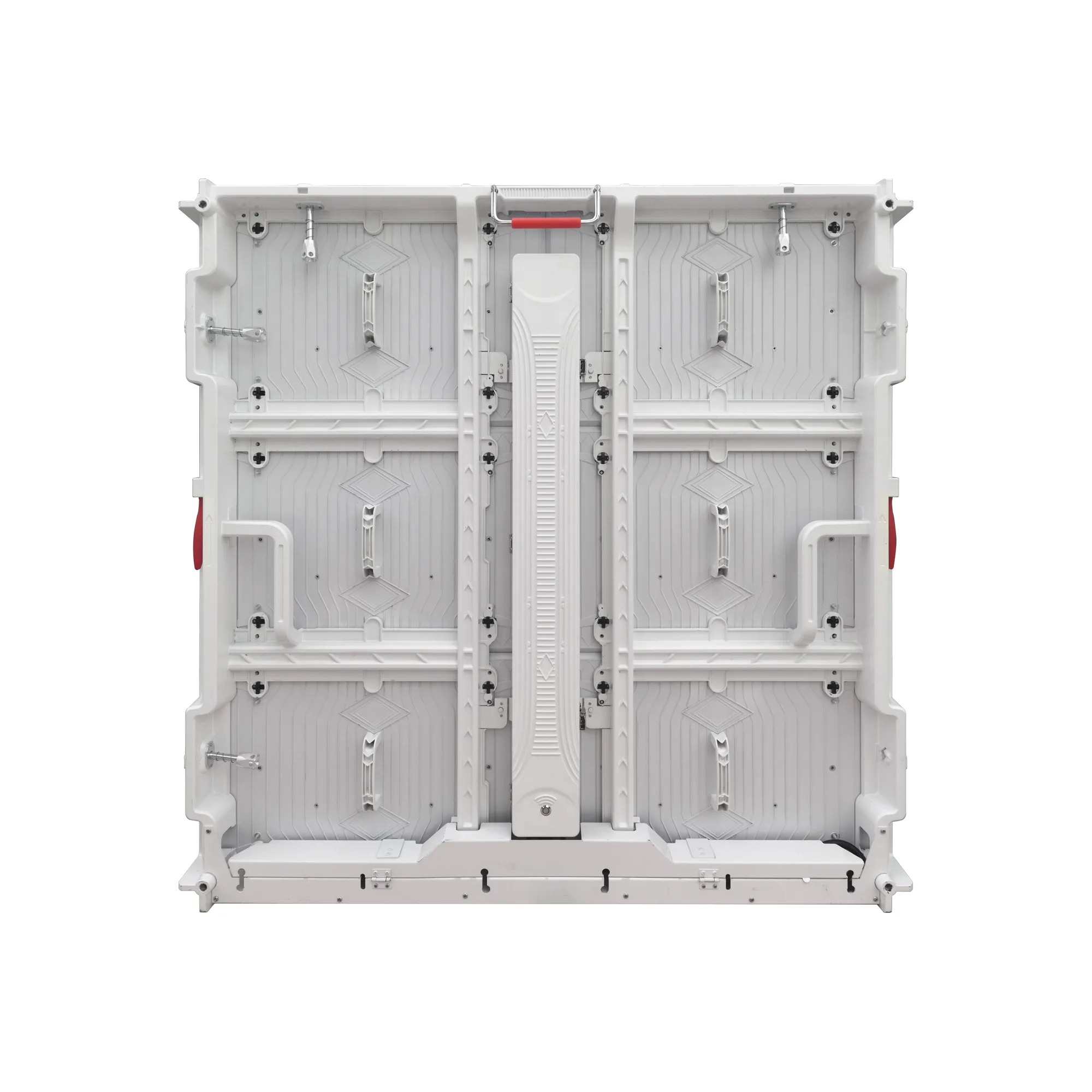

DiecastAlu Max LED Series

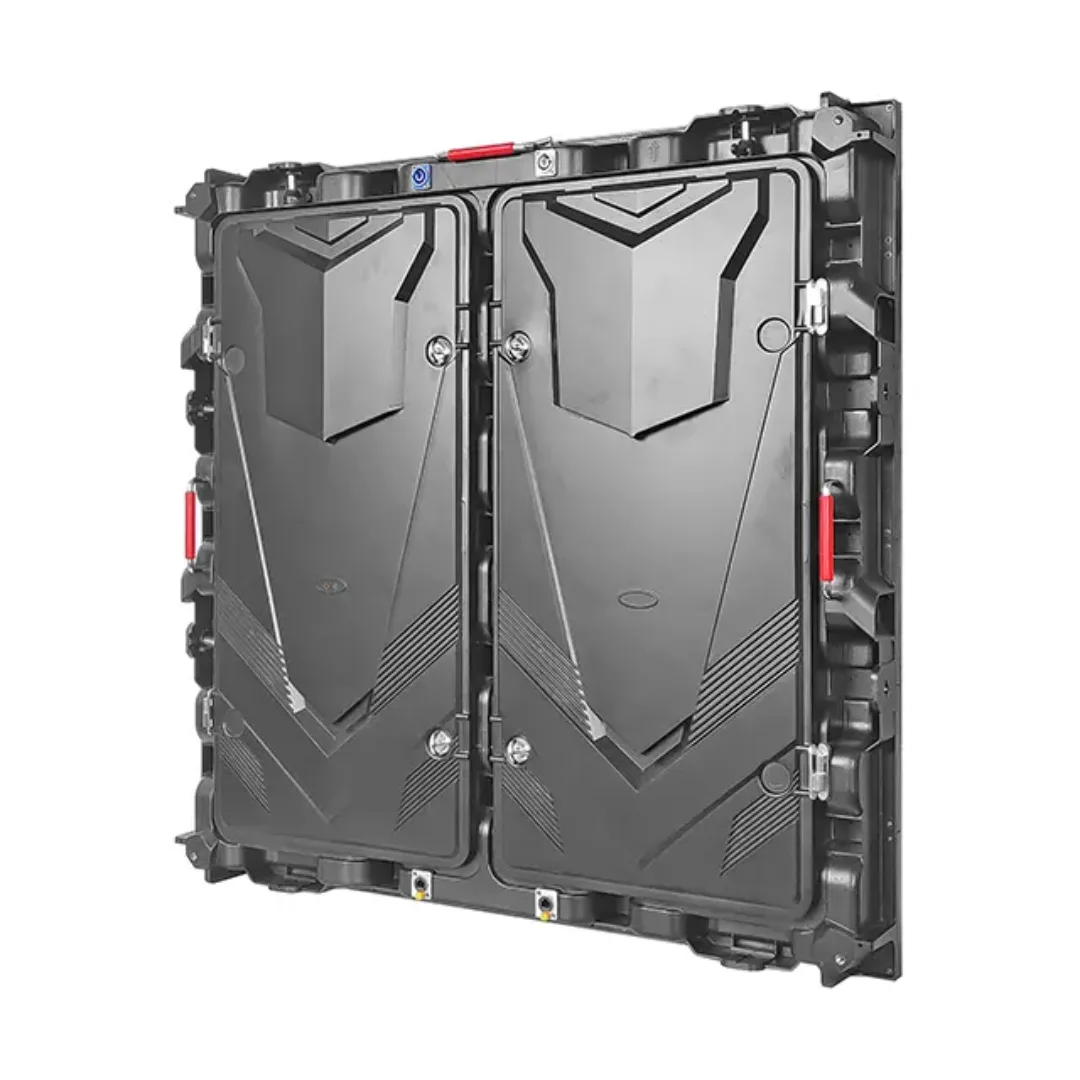

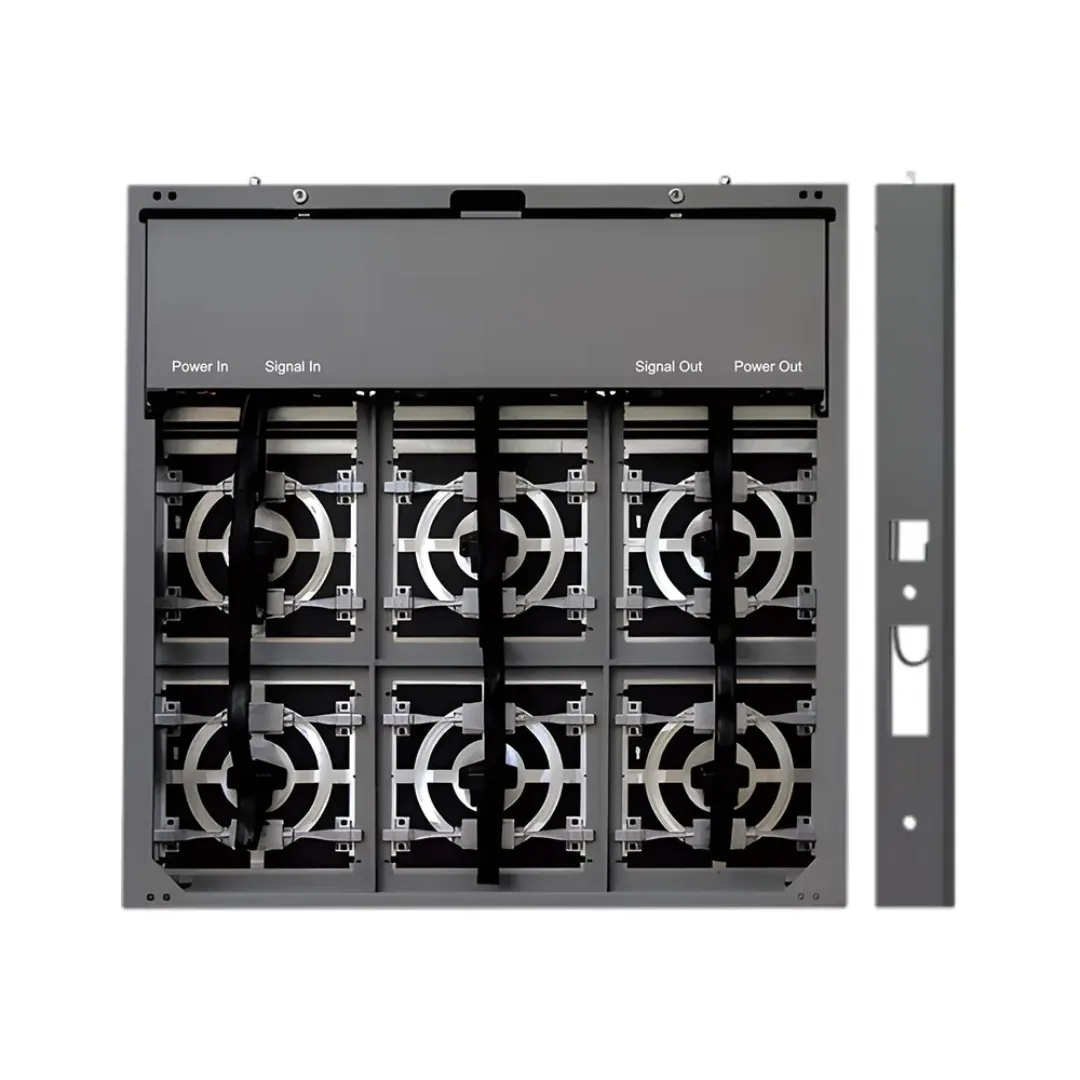

DiecastAlu Pro LED Series

HorizonFix Outdoor LED Series

DuraSteel LED Series

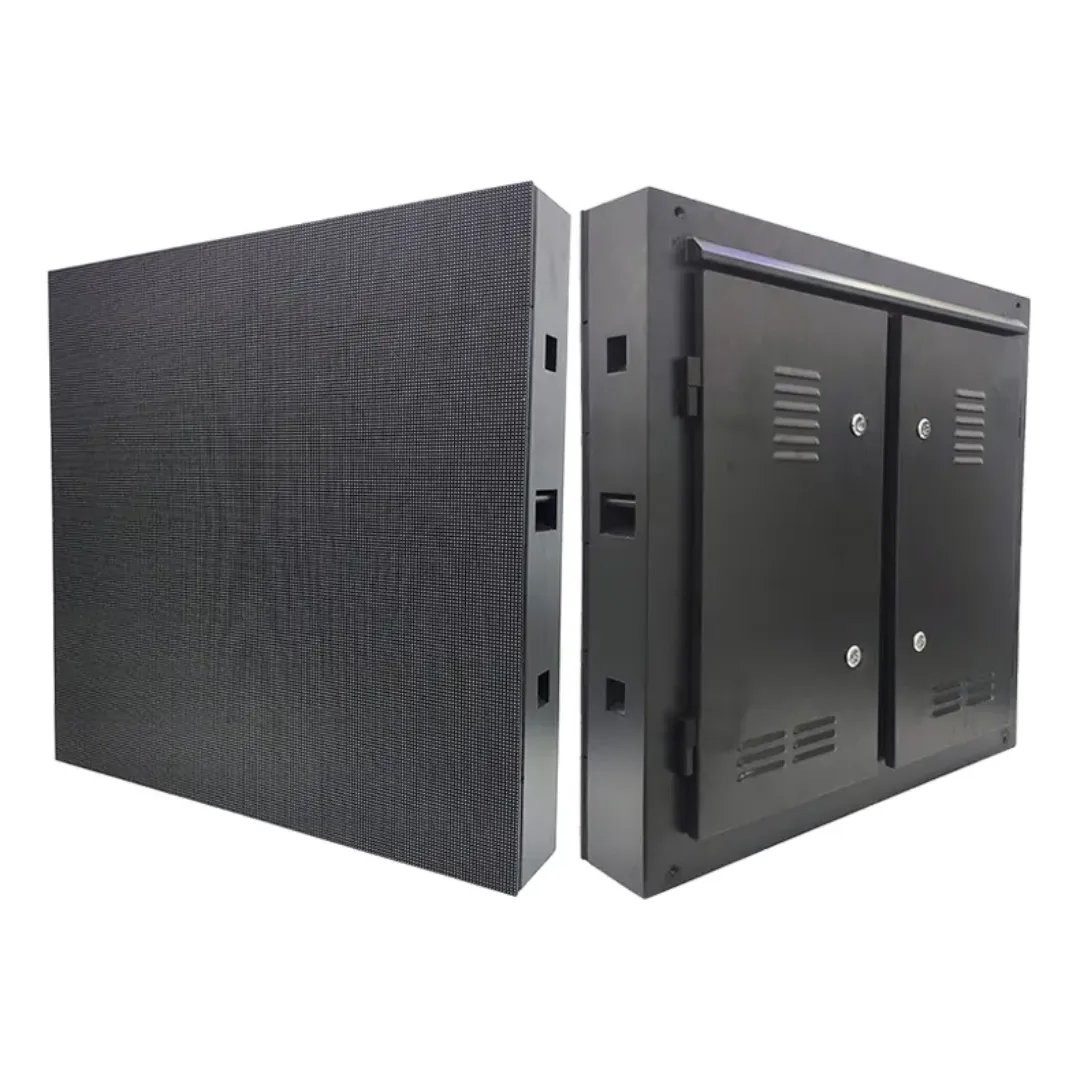

Fixed LED Series

Installation Types for Outdoor LED Displays

Our outdoor LED video walls are the preferred choice for digital-out-of-home (DOOH) advertising, sports stadiums, transportation hubs, and architectural landmarks worldwide.

Wall-Mounted Outdoor LED Display Installation: A space-saving solution that attaches flat against exterior building walls, ideal for storefronts, office buildings, and urban billboards with limited ground space.

Cantilever-Mounted Outdoor LED Display Installation: Extends horizontally from building facades or poles via sturdy brackets, offering unobstructed viewing angles for high-traffic roads and pedestrian plazas.

Recessed Outdoor LED Display Installation: Flush-installed into wall cavities or building structures, delivering a sleek, integrated look that complements architectural designs of malls, stadium lobbies, and luxury commercial buildings.

Column-Mounted Outdoor LED Display Installation: Mounted on standalone vertical columns, this flexible option suits open areas like highway rest stops, parking lots, and suburban commercial zones.

Free-Standing Outdoor LED Display Installation: Self-supporting units with stable bases, requiring no additional wall or column support; perfect for temporary events, construction sites, and pop-up promotional campaigns.

Roof-Top Outdoor LED Display Installation: Installed on building rooftops to maximize visibility across long distances, a top choice for city-center advertising, hotel branding, and landmark identification.

Mobile Outdoor LED Display Installation: Integrated with wheeled platforms or trailers for on-the-go deployment, ideal for mobile marketing tours, concerts, sports events, and emergency information dissemination.

Stadium Perimeter Outdoor LED Display Installation: Designed to fit along sports field fences, delivering dynamic content like live scores, player stats, and ads to audiences during football, basketball, and tennis matches.

Rental Hoist-Mounted Outdoor LED Display Installation: Lightweight, modular panels lifted by trusses or cranes for temporary large-scale events such as music festivals, trade shows, and outdoor concerts.

Curved Outdoor LED Display Installation: Features flexible LED panels shaped into curved forms, providing immersive viewing experiences for roundabouts, stadium end zones, and themed venue facades.

How Outdoor LED Displays Work

LED Modules

These are the fundamental units. Each LED Module contains an array of individual LEDs (Light Emitting Diodes) arranged in a grid. The pixel pitch (Pixel Pitch) determines the display’s resolution and viewing distance.

LED Cabinets

Multiple LED Modules are mounted onto a frame called an LED Cabinet or LED Tile. These cabinets are the building blocks that are seamlessly assembled to form the final large-format LED Video Wall.

Control System

This system includes the Sending Card (which receives the video source) and Receiving Cards (mounted inside the cabinets) that distribute data and commands to the LEDs.

Power Supply

Converts AC power to the low-voltage DC power required for the LEDs and control components.

Power Cables and Data Cables

For outdoor LED display, the Ethernet cable transmits data signals from the LED display controller to the screen, enabling real-time content updates, synchronization, and remote monitoring. The power cable supplies stable electricity to all LED modules, ensuring 24/7 operation, energy efficiency, and reliable performance

Full LED Display

Upon the installation and configuration of the outdoor LED display, a complete outdoor LED advertising screen is formed and operates normally.

How Outdoor LED Displays Work

In the crowded landscape of modern advertising, grabbing attention is the ultimate currency. Outdoor LED displays have evolved from simple signage into dynamic visual powerhouses. But what exactly makes them so effective? At Ledu, we engineer our digital billboards and commercial video walls to deliver a stunning visual experience that traditional media cannot match. Here is the technology behind the “wow” factor.sform spaces into visual powerhouses, capturing attention and leaving a lasting impression.

Extreme Brightness for Sunlight Visibility

The biggest challenge for outdoor advertising is the sun. Standard screens fade under direct light, but Ledu’s high-brightness LED displays (ranging from 6,000 to 10,000 nits) cut through even the brightest daylight. This ensures your content remains vibrant,

Infinite Contrast and Vivid Colors

Visual impact relies on the depth of the image. Our outdoor screens utilize black SMD technology and high-quality driver ICs to achieve a high contrast ratio. This creates “true blacks” and brilliant, saturated colors. Whether it’s a luxury brand advertisement or a cinematic trailer, the broad color gamut ensures every pixel pops with lifelike accuracy.

Seamless, Large-Scale Formats

Unlike LCD video walls that are plagued by visible bezels (lines), Ledu’s outdoor LED cabinets (including our Profile Aluminum and Die-Cast series) offer seamless splicing. This allows for the creation of massive, uninterrupted canvases—from highway monopoles to building facades—creating an immersive viewing experience that dominates the viewer’s field of vision.

High Refresh Rates for Fluid Motion

Static images are good; fluid motion is better. Our displays feature high refresh rates (up to 3840Hz). This eliminates flicker and “scan lines” when viewed by the human eye or captured on camera. The result is buttery-smooth video playback that is essential for broadcasting fast-paced content like sports events or 3D creative animations.

Creative Shapes and Naked-Eye 3D

The future of visual impact lies in creativity. Ledu’s outdoor solutions support curved LED screens and 90-degree corner installations, which are the foundation for viral Naked-Eye 3D (anamorphic illusion) content. These displays turn flat buildings into three-dimensional art installations, stopping pedestrians in their tracks and generating massive social media engagement.

IP65/IP66 Waterproof Ratings.

LEDU ensure the image remains crisp and glitch-free during heavy rain, dust storms, or snow. Furthermore, our integrated smart light sensors automatically adjust the screen’s brightness based on ambient light.

Inquire

Customizable to meet the requirements of any scenario

At Ledu, we believe your display should fit your vision, not the other way around. Standard sizes are just the beginning. As a premier LED display manufacturer, Ledu specializes in OEM/ODM customization, transforming complex architectural concepts into reality. Whether for a massive skyscraper facade or a unique creative installation, our outdoor LED solutions are engineered to adapt to any scenario, shape, or size.

Architectural & Creative Landmarks (Curved & 3D)

Turn buildings into landmarks. Our flexible LED modules and custom cabinet designs allow for smooth
curves, 90-degree corners, and irregular shapes (circles, triangles, columns).

Key Benefit: Seamless edge-to-edge designs that integrate perfectly with the
building’s structure.
Best For: Naked-eye 3D video walls, building wraps, and artistic city monuments.

Giant Commercial Billboards (Transportation & Highways)

For high-traffic areas, size and durability matter. We customize giant LED billboards and unipole
signs that withstand hurricane-force winds and extreme heat.

Best For: Highway advertising, airport terminals, and busy intersections.
Key Benefit: Custom steel or profile aluminum structures that ensure stability
while maximizing screen surface area for long-distance visibility.

Retail & Hospitality Branding (High-Resolution)

Create an upscale atmosphere with bespoke digital signage. We offer custom-sized high-resolution screens (small pixel pitch) designed for closer viewing distances in pedestrian zones.

Best For: Luxury storefronts, hotel entrances, and shopping mall plazas.
Key Benefit: Tailored aspect ratios to fit specific window frames or entrance arches without modifying your existing infrastructure.

Sports & Entertainment Venues

From center-hung scoreboards to perimeter ribbon displays, we customize screens to withstand impact and engage fans.

Best For: Stadiums, arenas, and outdoor event stages.
Key Benefit: High refresh rates and custom protective masks to ensure safety and broadcast-ready visuals.

How to Choose the Right Outdoor LED Display?

When selecting an outdoor LED display, focus on the following key aspects to avoid common pitfalls:

Consider the environment

Outdoor displays must feature high brightness (typically 5000–6000 nits or higher) and robust protection (waterproof, dustproof, and lightning-resistant) to withstand harsh weather conditions.
Consider the viewing distance

Choose an appropriate pixel pitch based on the audience’s viewing distance. Generally, the farther the viewing distance, the larger the pixel pitch you can select. For example, P4–P10 are common models for outdoor advertising screens, ideal for long-distance viewing.
Consider the content

If you need to play complex videos and images, opt for a full-color LED display. If you only need to show simple text and graphics, a dual-color or single-color screen may be more cost-effective.
Consider your budget

Smaller pixel pitch, higher brightness, and higher refresh rates all come with a higher cost. You can find the best balance between performance and price based on your actual needs and budget.

Benefits of Installing Outdoor LED Displays

Ledu’s outdoor LED displays are lightweight, practical, and fully customizable to fit building exteriors for a striking look. By transforming static signs into dynamic visuals, they capture attention and deliver powerful advertising results. Featuring ultra-high pixel density, our screens produce stunning HD imagery, ideal for live event broadcasts where every stage detail is clearly visible.

Ledu’s displays offer exceptional cost-effectiveness, with HD visuals driving a strong ROI. Despite their size, energy-efficient technology minimizes power use, while advanced temperature control ensures stable, 24/7 performance in any weather.

Inquire

Related Cases

France Cycling Live Broadcast — Product Type: P3.9 Outdoor Rental LED Display Address: France
View More>
Send Inquiry Now>
Spain Outdoor Concert — Product Type: P4.8 Outdoor Rental LED Display Address: Spain
View More>
Send Inquiry Now>
Philippines Poolside Sports — Product Type: P3.9 Outdoor Rental LED Display Address: Philippines
View More>
Send Inquiry Now>

FAQ

How much does an outdoor LED display cost?

The price of an outdoor LED display varies depending on factors like pixel pitch (P2.5, P5, P10), screen size, and cabinet material (e.g., Die-Cast Aluminum vs. Iron). Generally, smaller pixel pitches (higher resolution) cost more. At Ledu, we offer competitive factory-direct pricing. Contact us for a free, customized quote tailored to your budget and project needs.

Are your outdoor LED displays waterproof?

Absolutely. Our outdoor series (including the Profile Aluminum and Iron Cabinet models) features an IP65 or IP66 waterproof rating. They are strictly tested to withstand heavy rain, dust storms, snow, and humidity, ensuring reliable operation in harsh environments from extremely cold winters to tropical summers.

How is an outdoor LED video wall installed?

Our modular design supports various installation methods, including wall-mounted, pole-mounted (unipole/double-pole), hanging, and roof-top installation. For our Profile Aluminum cabinets, the lightweight design significantly reduces the need for heavy steel structures, making installation faster and cheaper.

Are outdoor LED billboards energy-efficient?

Yes. We utilize energy-saving technology, including common cathode power supplies in select models. Our Profile Aluminum series also dissipates heat naturally, eliminating the need for AC cooling units in many climates, which can reduce total energy consumption by up to 30%.

How do I change the video content on the screen?

You can control your display remotely via 4G/5G, Wi-Fi, or LAN using a computer or smartphone. We support popular control systems like NovaStar, allowing you to update ads and videos via a cloud platform from anywhere in the world.

What is the production lead time for an order?

Standard production time is typically 7 to 15 working days after deposit. For custom projects, it may take slightly longer. We ship globally via sea or air freight, ensuring safe delivery to your destination.

Is the LED screen visible under direct sunlight?

Yes. Ledu’s outdoor screens are engineered with high-brightness LEDs, typically ranging from 6,000 to 10,000 nits. This ensures the content remains vivid and readable even in bright midday sunlight. Additionally, our displays feature light sensors that automatically adjust brightness to prevent glare at night.

How do I choose the right Pixel Pitch (P-value) for my project?

The best pixel pitch depends on the viewing distance. A simple rule is: $Viewing Distance (meters) \approx Pixel Pitch (mm)$.P2.5 – P4: Best for close viewing (3-10m), such as shopping mall plazas or pedestrian streets.P5 – P8: Ideal for medium distances (10-20m).P10 – P16: Best for long distances (20m+), such as giant highway billboards or building roofs.

What is the lifespan of an outdoor LED screen?

High-quality LED digital signage typically has a lifespan of over 100,000 hours (approx. 11 years of continuous operation). Ledu uses premium components (like branded driver ICs and power supplies) and efficient heat dissipation designs to maximize longevity.

How do I maintain the LED display if a module fails?

Ledu offers both Front Access and Rear Access maintenance solutions. Front Maintenance: Ideal for wall-mounted screens where you cannot access the back. Rear Maintenance: Standard for pole-mounted billboards with a service platform. Our modular design allows you to replace a single module or power supply without dismantling the whole screen.

Can you manufacture custom shapes or sizes?

Yes! As an OEM/ODM manufacturer, Ledu specializes in custom LED solutions. We can create curved screens (concave/convex), 90-degree corner screens for naked-eye 3D effects, and custom aspect ratios to fit your specific architectural requirements.

What warranty LEDU offer?

We provide a standard 2 to 3-year warranty on most outdoor LED display products, with lifetime technical support. Extended warranties are also available upon request.

Outdoor LED Display

Prouduct Introduction

Outdoor LED Display

Product Features

Basic Components of Outdoor LED Displays

Outdoor LED Module Differrent Series

Outdoor LED Module Differrent Pixel Pitch

Outdoor LED Module Differrent Size

Cabinets for Outdoor LED Displays

Installation Types for Outdoor LED Displays

How Outdoor LED Displays Work

How Outdoor LED Displays Work

Customizable to meet the requirements of any scenario

How to Choose the Right Outdoor LED Display?

Benefits of Installing Outdoor LED Displays

Related Solutions

Related Cases

FAQ

Talk to Expert
